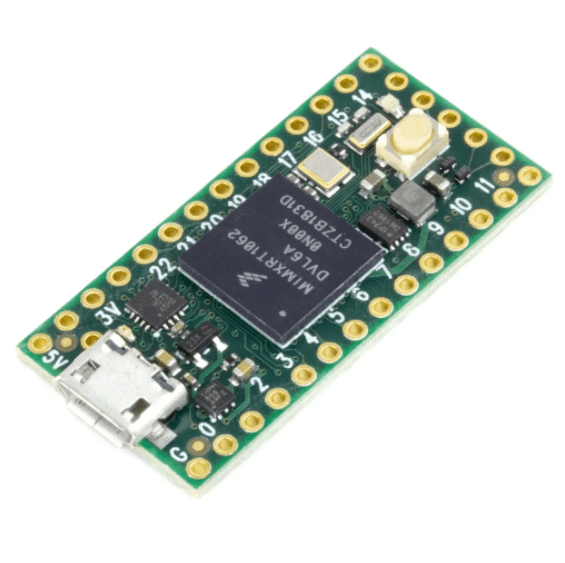

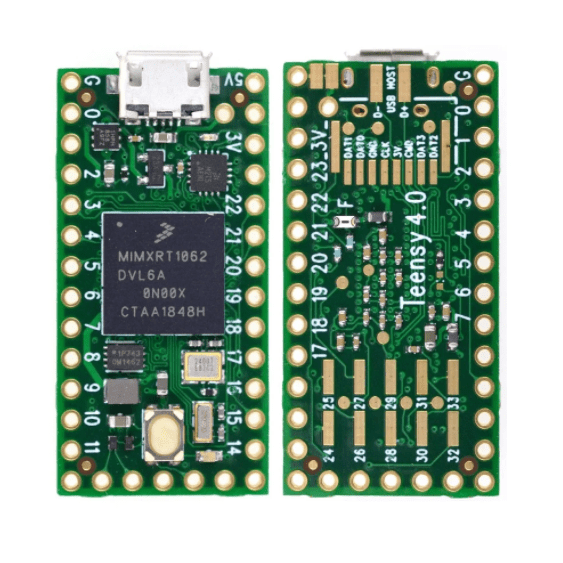

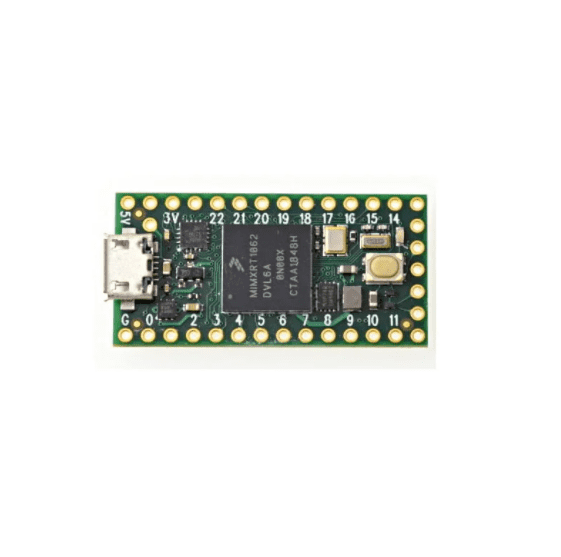

Teensy 4.0 Development Board The Teensy 4.0 features an ARM Cortex-M7 processor at 600 MHz, with an NXP iMXRT1062 chip, the fastest microcontroller available today – ten times faster than the Teensy 3.2! The NXP iMXRT1062 is a ‘cross-over’ processor, which has the functionality of a microcontroller, at the speeds of a microcomputer. It’s perfect for when you need tons of flash, RAM and, crunch lots of data, or when you need two full-speed USB ports. It even has a graphics processor! All this for two sawbucks. When running at 600 MHz, Teensy 4.0 consumes approximately 100 mA current. Teensy 4.0 provides support for dynamic clock scaling. Unlike traditional microcontrollers, where changing the clock speed causes wrong baud rates and other issues, Teensy 4.0 hardware and Teensyduino’s software support for Arduino timing functions are designed to allow dynamically speed changes. Serial baud rates, audio streaming sample rates, and Arduino functions like delay() and millis(), and Teensyduino’s extensions like IntervalTimer and elapsedMillis, continue to work properly while the CPU changes speed. Teensy 4.0 also provides a power shut-off feature. By connecting a pushbutton to the On/Off pin, the 3.3V power supply can be completely disabled by holding the button for 5 seconds and turned back on by a brief button press. If a coin cell is connected to VBAT, Teensy 4.0’s RTC also continues to keep track of date & time while the power is off. Teensy 4.0 also can also be overclocked, well beyond 600 MHz!

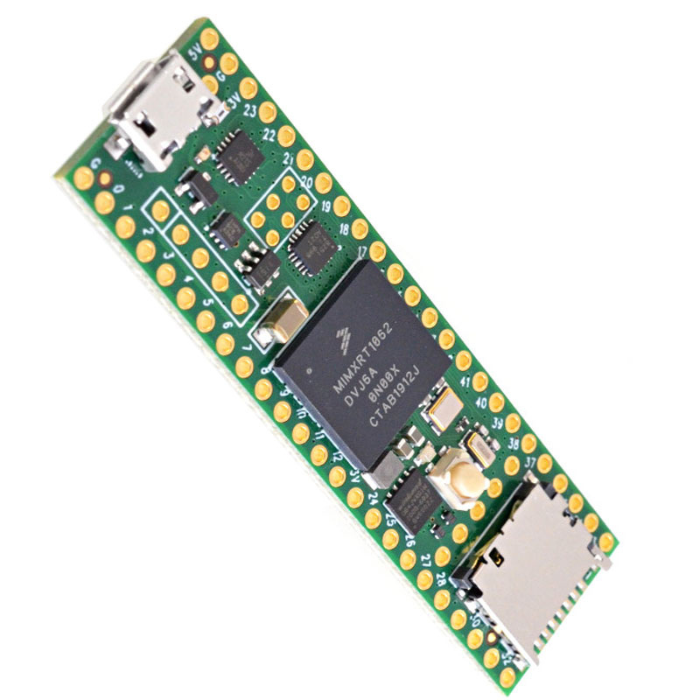

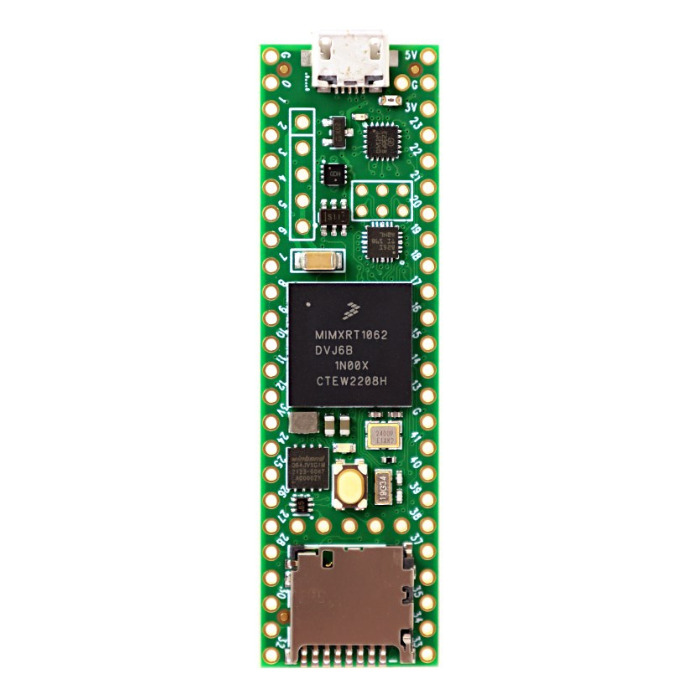

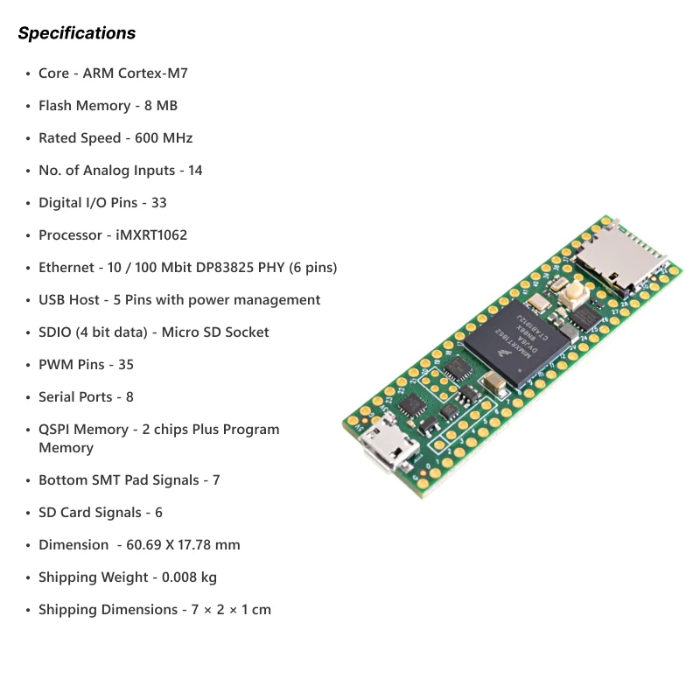

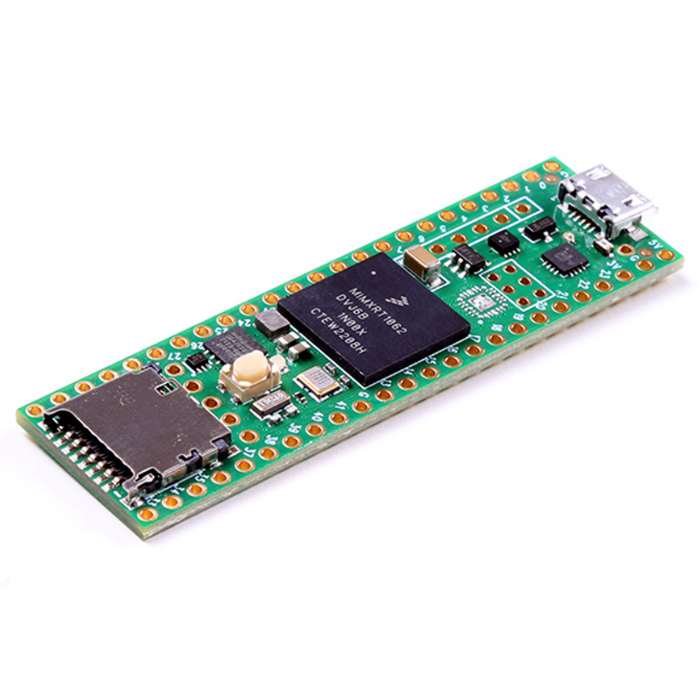

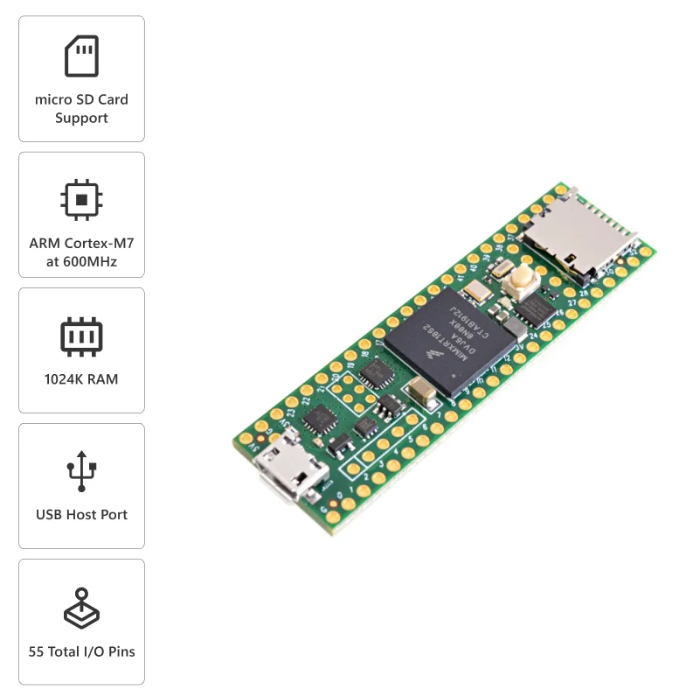

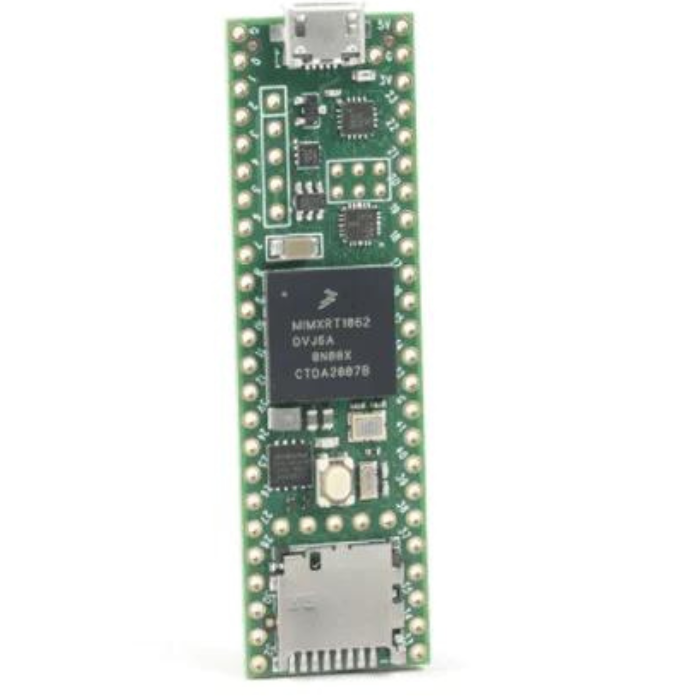

Teensy 4.1 Development Board The Teensy 4.1 is the newest iteration of the astoundingly popular development platform that features an ARM Cortex-M7 processor at 600MHz, with an NXP iMXRT1062 chip, four times larger flash memory than the 4.0, and two new locations to optionally add more memory. The Teensy 4.1 is the same size and shape as the Teensy 3.6 (2.4in by 0.7in) and provides greater I/O capability, including an ethernet PHY, SD card socket, and USB host port. When running at 600 MHz, this Teensy board consumes approximately 100mA current and provides support for dynamic clock scaling. Unlike traditional microcontrollers, where changing the clock speed causes wrong baud rates and other issues, Teensy 4.1 hardware and Teensyduino’s software support for Arduino timing functions are designed to allow dynamic speed changes. Serial baud rates, audio streaming sample rates, and Arduino functions like delay() and Millis (), and Teensyduino’s extensions like IntervalTimer and elapsedMillis, continue to work properly while the CPU changes speed. Teensy microcontroller 4.1 also provides a power shut-off feature. By connecting a pushbutton to the On/Off pin, the 3.3V power supply can be completely disabled by holding the button for five seconds and being turned back on by a brief button press. If a coin cell is connected to VBAT, this board's RTC also continues to keep track of the date & time while the power is off. Teensy 4.1 also can also be overclocked, well beyond 600MHz! Teensy 4.1’s Cortex-M7 processor includes a floating-point unit (FPU) that supports both 64-bit “double” and 32-bit “float”. With M4’s FPU on Teensy 3.5 & 3.6, and also Atmel SAMD51 chips, the only 32-bit float is hardware accelerated. Any use of double, double functions like log(), sin(), and cos() means slow software-implemented math. The 4.1 Teensy development board executes all of these with FPU hardware. Features ARM Cortex-M7 at 600MHz 1024K RAM (512K is tightly coupled) 8 Mbyte Flash (64K reserved for recovery & EEPROM emulation) USB Host Port 2 chips Plus Program Memory 55 Total I/O Pins Cryptographic Acceleration Random Number Generator RTC for date/time Programmable FlexIO Pixel Processing Pipeline Peripheral cross triggering Power On/Off management Pin diagram Applications: Ideal for robotics, automation, and motor control systems. Suitable for audio processing, DSP, and real-time audio manipulation applications. Best for data logging and acquisition systems. Enables IoT devices, web servers, and networked sensors. Suitable for secure communication and data encryption applications. Ideal for image processing, computer vision, and display systems. Provides versatility for interfacing with sensors, actuators, and peripherals. Allows for the development of tailored embedded systems and prototypes. All about Teensy 4.1 Development Board
