This is a basic component kit designed and curated by Iotcart. This component kit consists of resistors, capacitors, transistors, diodes, LED's, breadboard, wires, switch and other miscellaneous components that are essential for engineering projects. Why is a Basic Component Electronics Kit necessary? This is a collection of all the common and important electronic components that every electronics engineer needs for various projects. Without these essential equipments, you will not be able to test, prototype and run your project. This is more like a starter kit for electronic engineering projects. This component kit is designed and curated by our engineers keeping the needs of a enginnering student or a project enthusiast in mind. Note: Weight of the Package: 150grams (approx) and Dimensions (approx): 22 x 15 x 5cms Applications of this kit The Basic Component Kit is extremely versatile and can be used for various electronics projects requiring transistors, resistors, capacitors, diodes. It also be used to build independent circuits such as 555 timer based LED circuits. Sample Experiment Building a 555 timer based LED blinking circuit Material Required: Breadboard Power Supply 9V Battery DC Barrel Jack Breadboard 555 Timer Jumper Wires Procedure: The Blinking LED circuit uses a 555 timer in astable mode, which generates a continuous output in the form of a square wave at pin 3. This waveform will turn LED ON and OFF. The duration of ON/ OFF depends on the time cycle of the square wave. We can change the speed of blinking by changing the value of capacitance. The circuit diagram for the LED blink circuit is shown below: After you turn on the circuit, you should be able to see the LED blinking on and off periodically There are many applications of 555 timers, generally used in Lamp Dimmer, Wiper Speed control, Timer Switch, Variable duty cycle fixed frequency oscillator, PWM Modulation etc.

BC547 Transistor(Pack of 5) The BC547 transistor is a versatile negative-positive-negative (NPN) transistor that can be used for a multitude of purposes. It acts as the active component for switches and amplifiers when used alongside electronic components like resistors, coils, and capacitors. As with all NPN transistors, this transistor features an emitter terminal, a base or control terminal, and a collector terminal. The BC547 transistor is classified as a bipolar junction transistor (BJT), and there exist other types of transistors as well. For example, the junction field-effect transistor (JFET) features a single junction, while the metal oxide field-effect transistor (MOSFET) doesn't have any junctions at all. During the design and manufacturing of transistors, their characteristics can be predefined and achieved. The negative (N)-type material inside the NPN transistor contains an excess of electrons while the positive (P)-type material has a deficiency of electrons, both due to the doping process. This type of transistor is commonly used in general-purpose switching and amplification and is part of the BC847/BC547 series of 45 V, 100 mA NPN general-purpose transistors. Discover how Transistor BC547 powers your circuits. Features Advanced process technology Low error voltage Fast switching speed Full-voltage operation High power and current handling capability Read our blog explaining BC547 Transistor: Basic Knowledge, Pin Configuration & Features, provides comprehensive information about the transistor BC547.

BC548 NPN Transistor (Pack of 5) A BC548 transistor is a negative-positive-negative (NPN) transistor that is used for many purposes. Together with other electronic components, such as resistors, coils, and capacitors, it can be used as the active component for switches and amplifiers. Like all other NPN transistors, this type has an emitter terminal, a base or control terminal, and a collector terminal. In a typical configuration, the current flowing from the base to the emitter controls the collector current. A short vertical line, which is the base, can indicate the transistor schematic for an NPN transistor, and the emitter, which is a diagonal line connecting to the base, is an arrowhead pointing away from the base. Read our blog explaining the bc 547 transistor pinout , which provides comprehensive information about the BC547 transistor, covering its basic knowledge, pin configuration, features, working states, circuit diagrams, and applications.

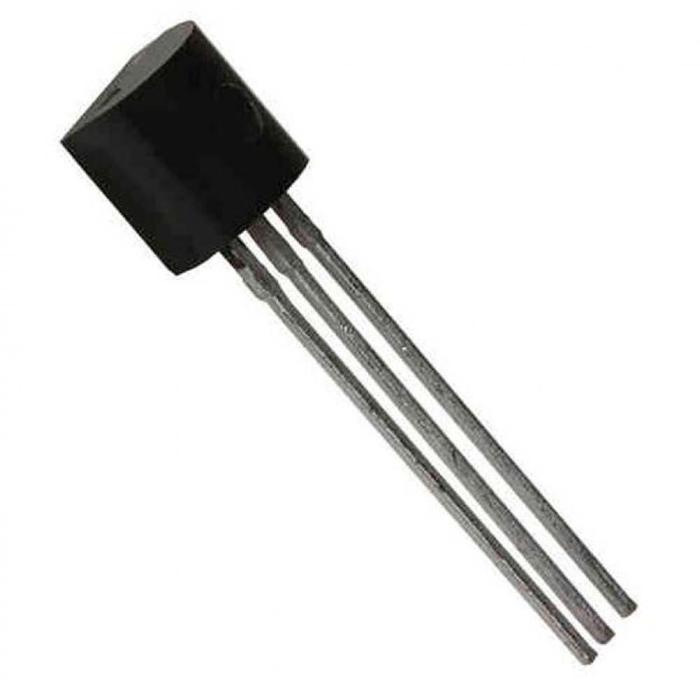

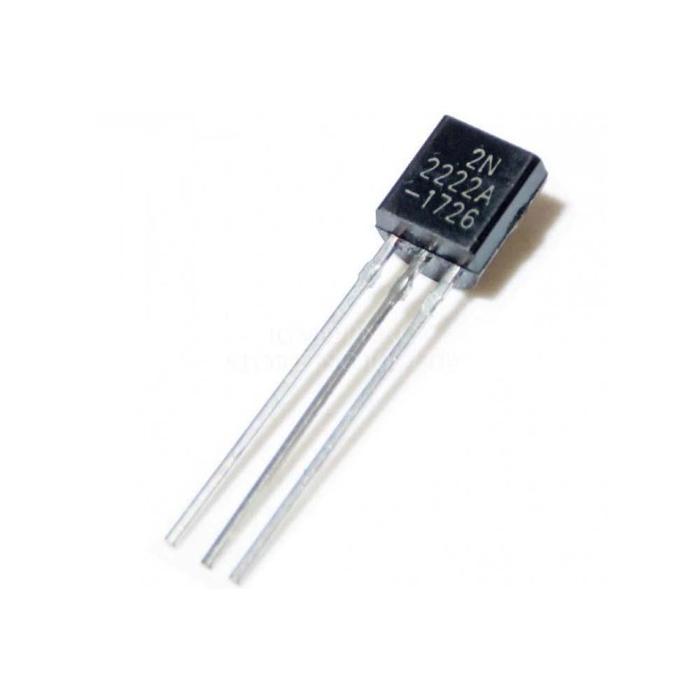

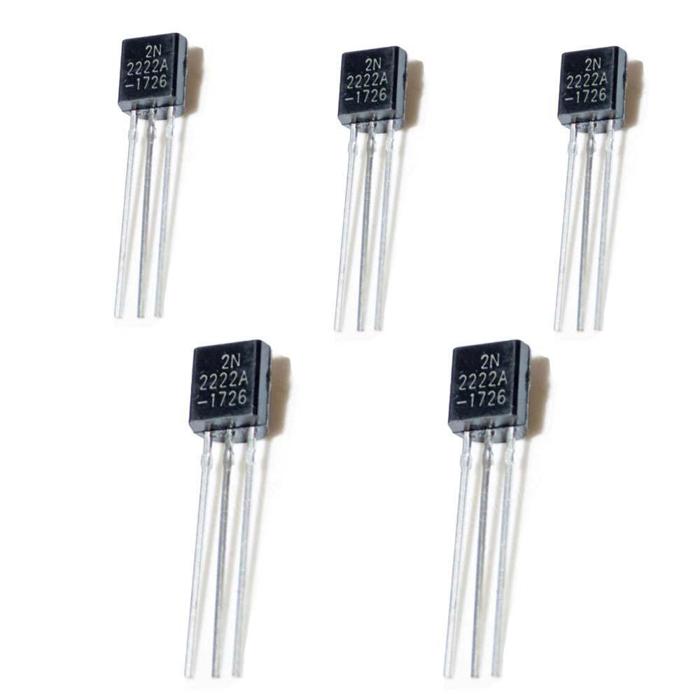

2N2222A NPN Transistor (Pack of 5) The PN2222A is a common NPN BJT used for general purpose low-power amplifying or switching applications. It is designed for low to medium current, low power, and medium voltage, and can operate at moderately high speeds. 2N2222A is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits. The 2N2222 NPN Transistor is made in the TO-18 metal can as shown in the picture. Replacements are commonly available now in the cheaper TO-92 packaging, where it is known as the PN2222 or P2N2222, which has similar specifications except for the lower maximum collector current. read more : What is a 2N2222A Transistor & Its Working Applications: This transistor can be used as a switch for automatically switch ON/OFF any appliances. It is used for PWM due to its quick response Because of its fast response time, it can be used for pulse width modulation. Home automation & embedded projects. Audio Preamplifiers Audio Amplifier Stages Used to switch several loads simultaneously Darlington Pairs These transistors are used in Motor drive circuits like VFD or variable frequency drives. Used in Rectifier Circuits & DC Inverters It is used as an amplifier to amplify voltage, current & power.

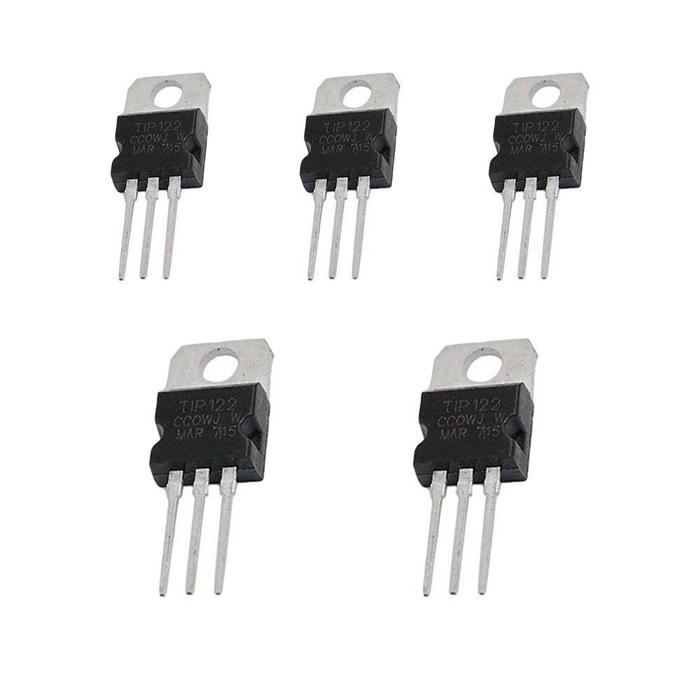

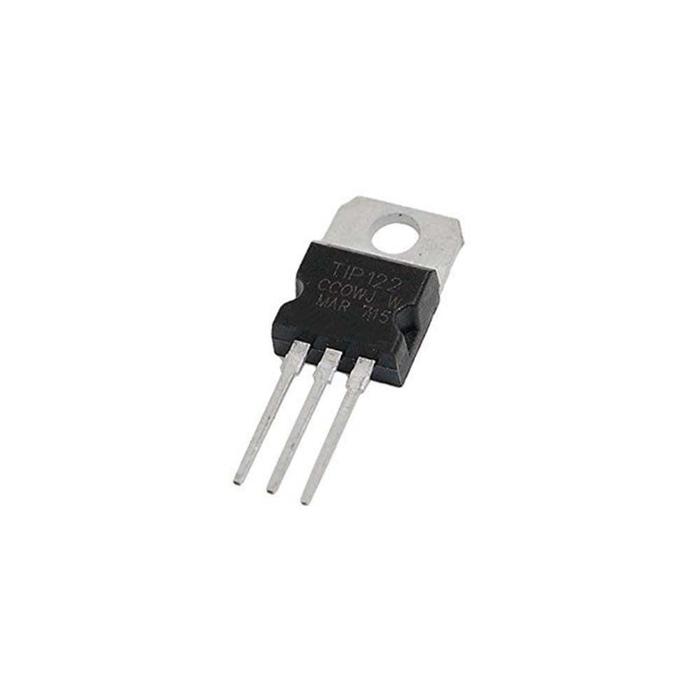

TIP122 Darlington NPN Transistor - (Pack of 5) The TIP122(RM0387) is an NPN Epitaxial Darlington Transistor. Mainly used for Medium Power Linear Switching Applications and Complements to TIP125/126/127. In electronic, the Darlington transistor (often called a Darlington pair) is a compound structure consisting of two bipolar transistors (either integrated or separated devices) connected in such a way that the current amplified by the first transistor is amplified further by the second one. This configuration gives a much higher common/emitter current gain than each transistor taken separately and, in the case of integrated devices, can take less space than two individual transistors because they can use a shared collector. Integrated Darlington pairs come packaged singly in transistor-like packages or as an array of devices (usually eight) in an integrated circuit.

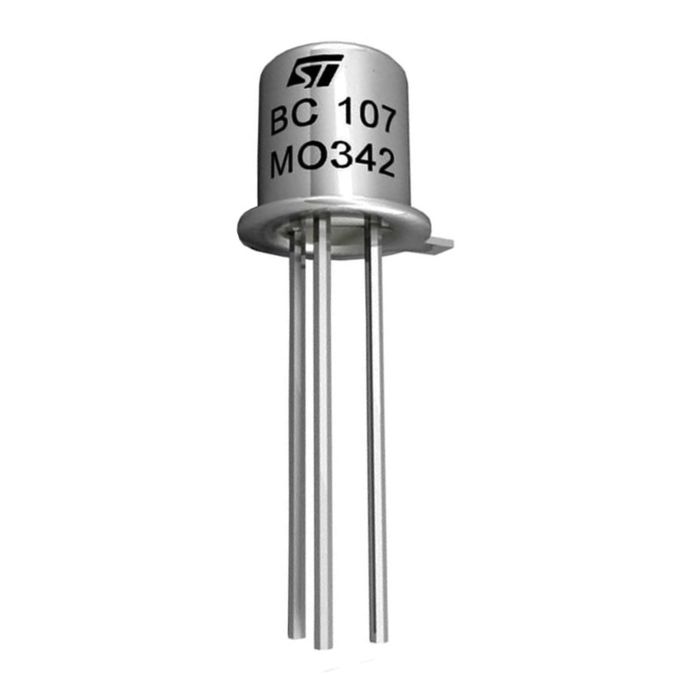

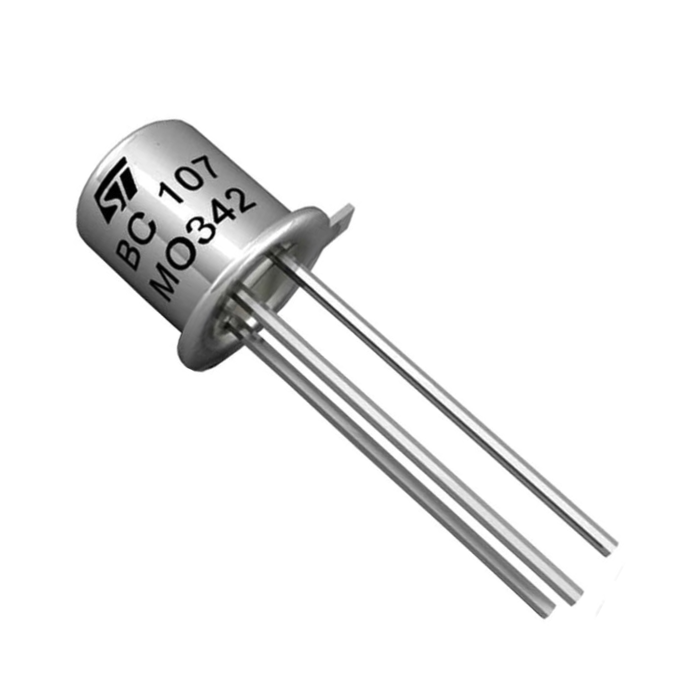

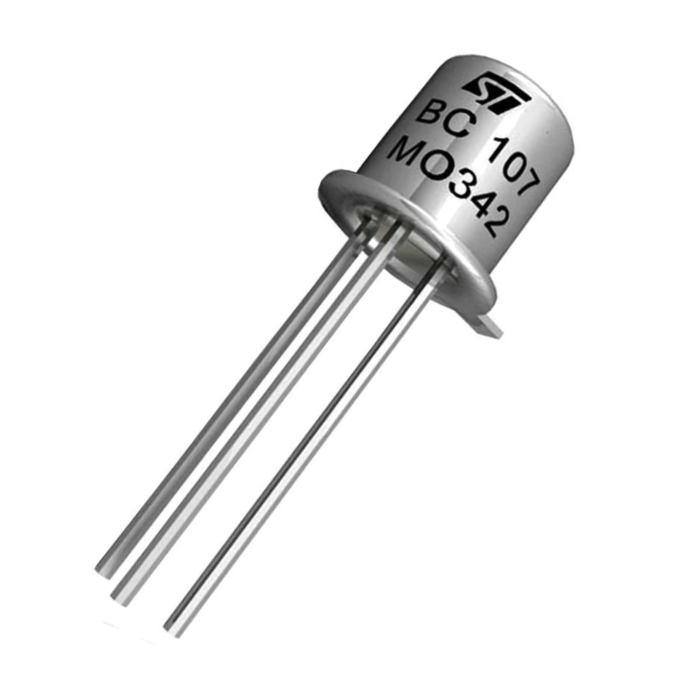

BC107 NPN General Purpose Transistor Metal can package The BC107 transistor is a general-purpose NPN semiconductor device designed for amplification and switching applications. Packaged in a robust metal can, the BC107 offers excellent reliability and stability for use in a wide range of electronic circuits. It works by using a small input voltage or current at one pair of terminals to control a larger current flow at another pair, allowing it to amplify signals effectively. This makes it an essential component for hobbyists, students, and professionals building analog or digital circuits. Whether used individually or as part of integrated systems, the BC107 transistor remains a versatile and dependable choice for electronics enthusiasts. Features: Metal TO-18 can package Advanced process technology Low-error voltage Quick switching speed Full-voltage operation High power and current handling capacity. Applications: It is utilized as a switching device. It is utilized in an amplifying device. It's utilized in DIY kits. It is used for electronic projects.

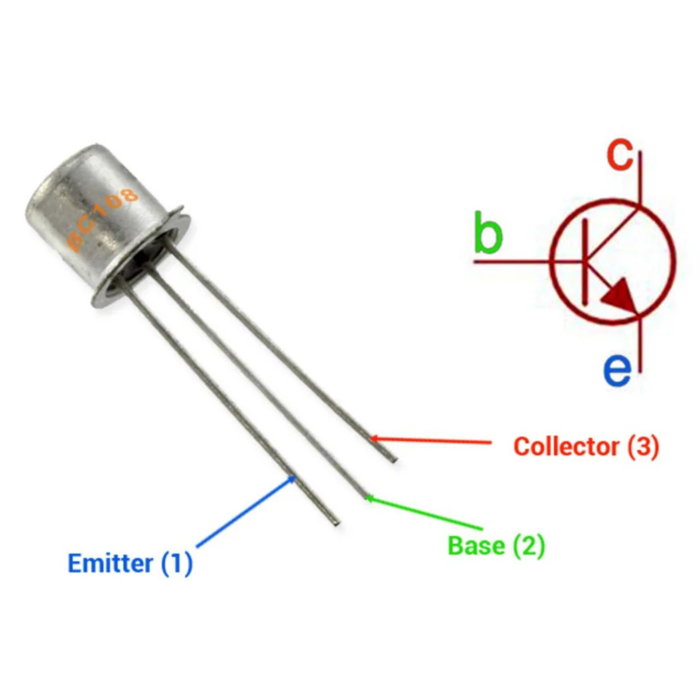

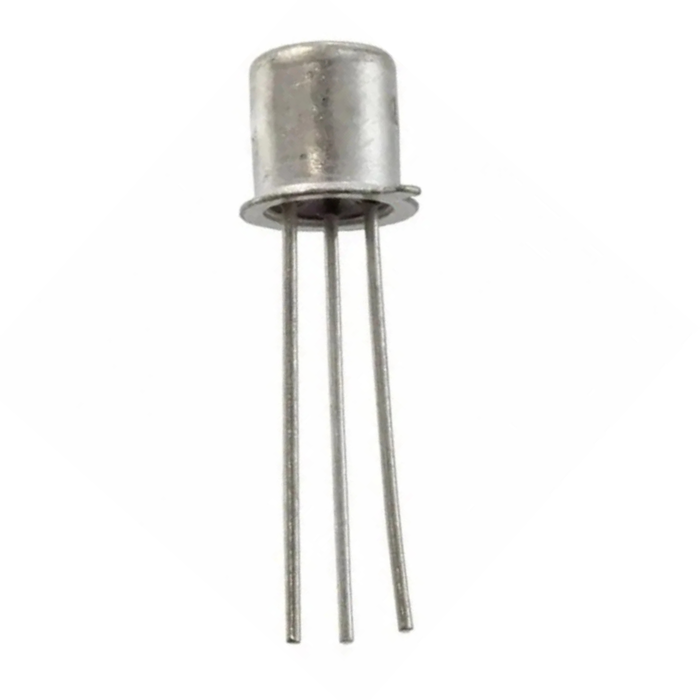

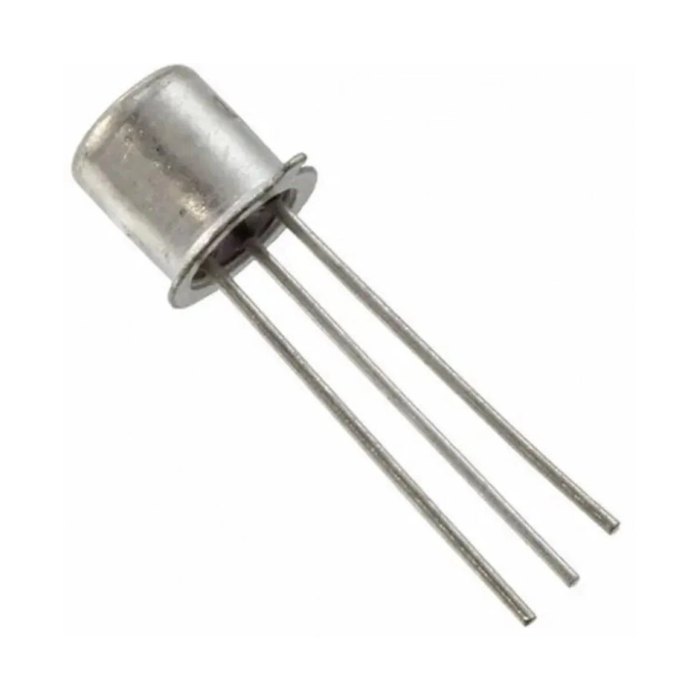

BC108 NPN General Purpose Transistor Metal Package The BC108 transistor is a reliable NPN general-purpose semiconductor device designed for amplifying or switching electronic signals and electrical power. Encased in a durable metal package, it features three terminals that allow easy integration into various electronic circuits. By applying a small voltage or current to one pair of terminals, the BC108 transistor effectively controls a larger current through another pair, enabling efficient signal amplification and switching functions. Widely used in hobby electronics, educational projects, and low-power applications, the BC108 transistor remains a versatile and dependable choice for engineers and DIY enthusiasts alike. Features: Metal TO-18 can packaging. Advanced process technology. Low error voltage. Fast switching speed. Full-voltage operation. High power and current handling capacity

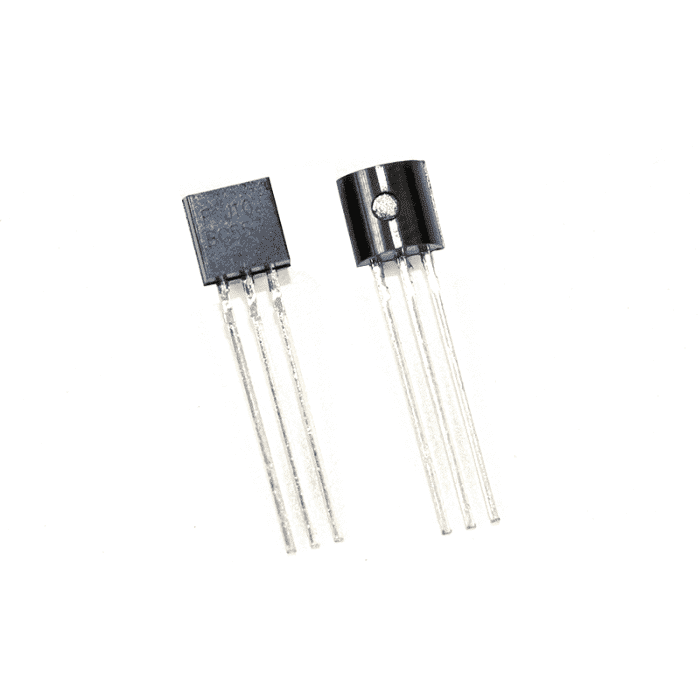

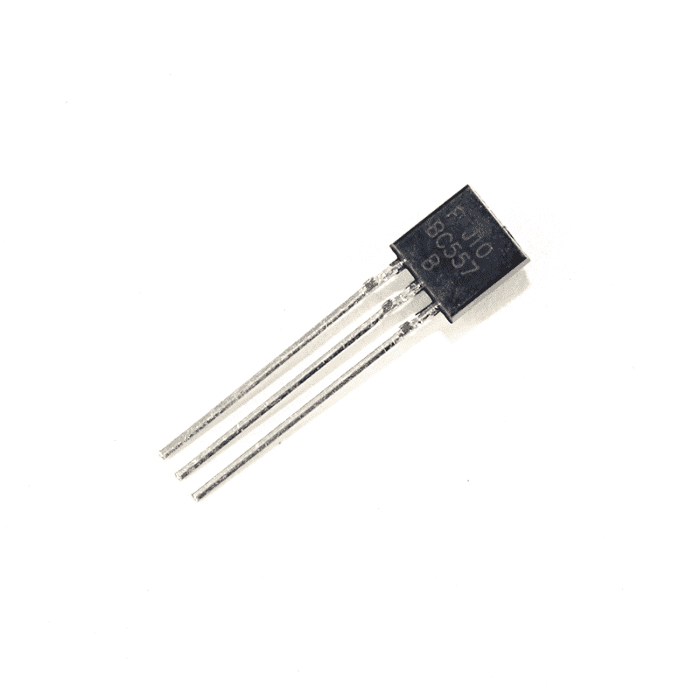

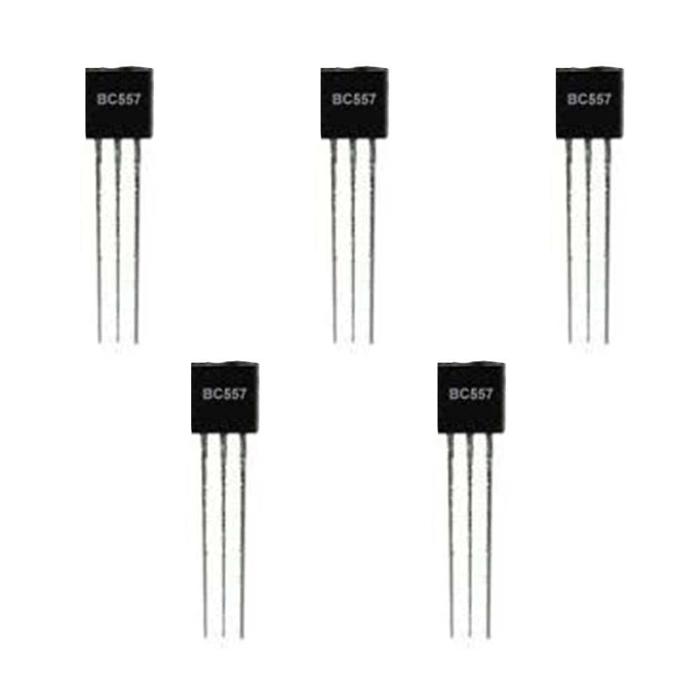

BC557 PNP Transistor - (Pack of 5) A transistor is a semiconductor device used to amplify and switch electronic signals and electrical power. It is composed of semiconductor material with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals changes the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. The BC557 (RM0385) is a PNP transistor and a heavy-duty drop-in replacement for a 2N2222 or 2N3906. The three terminals of a bipolar transistor are called the emitter, base, and collector. A small current into the base controls a large current flow from the collector to the emitter. The current at the base is typically one-hundredth of the collector-emitter current. Moreover, the large current flow is almost independent of the voltage across the transistor from collector to emitter. read our blog explaining the bc547 transistor pinout , which provides comprehensive information about the BC547 transistor, covering its role as a switch, working states, circuit diagrams, pin diagram.

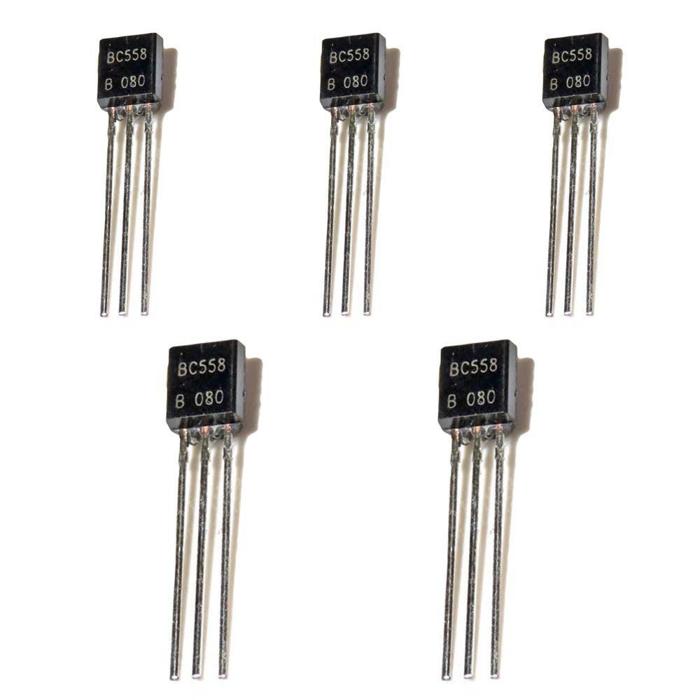

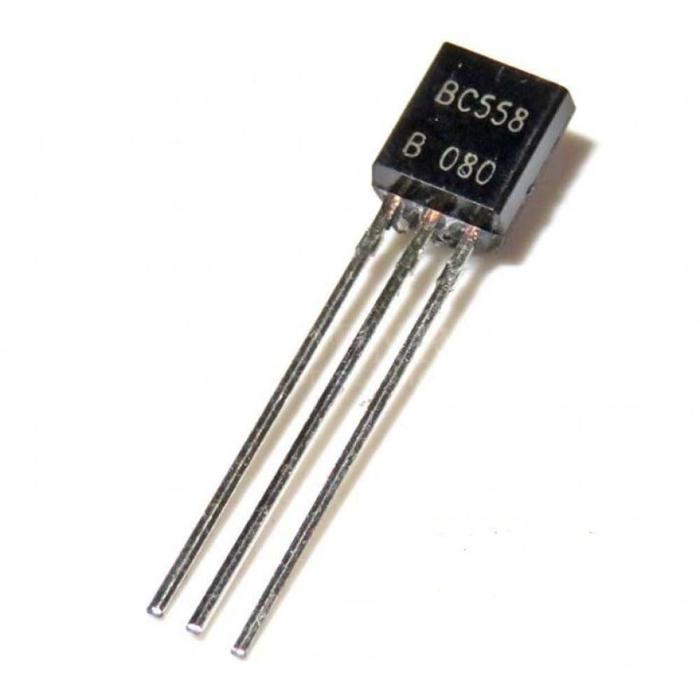

BC558 Transistor (Pack of 5) The BC558 is a PNP transistor and a heavy-duty drop-in replacement for a 2N2222 or 2N3906. The three terminals of a bipolar transistor are called the emitter, base, and collector. A small current into the base controls a large current flow from the collector to the emitter. The current at the base is typically one-hundredth of the collector-emitter current. Moreover, the large current flow is almost independent of the voltage across the transistor from collector to emitter. This makes it possible to obtain a large amplification of voltage by taking the output voltage from a resistor in series with the collector. read our blog explaining the BC547 Transistor : Basic Knowledge, Pin Configuration & Features.

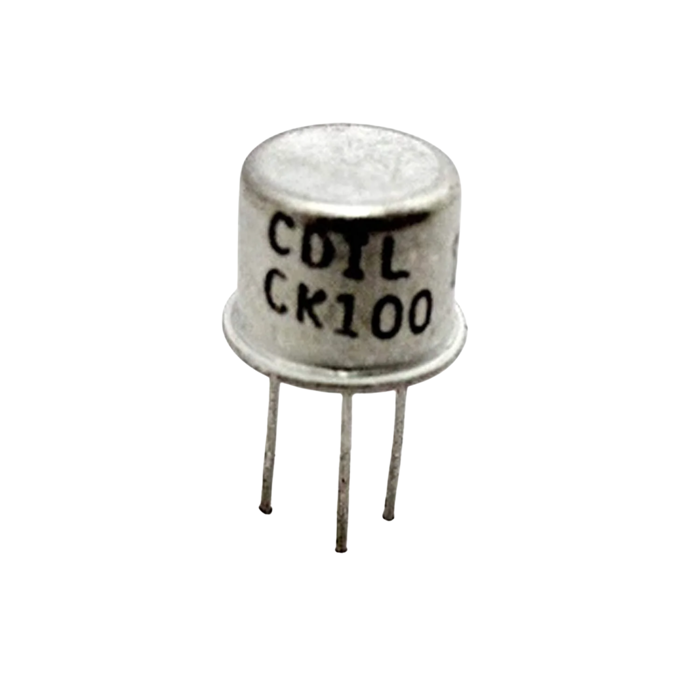

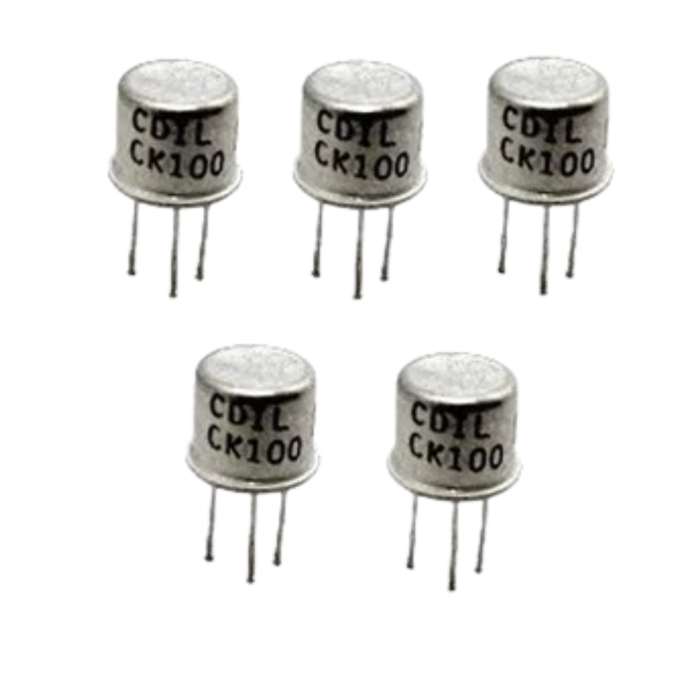

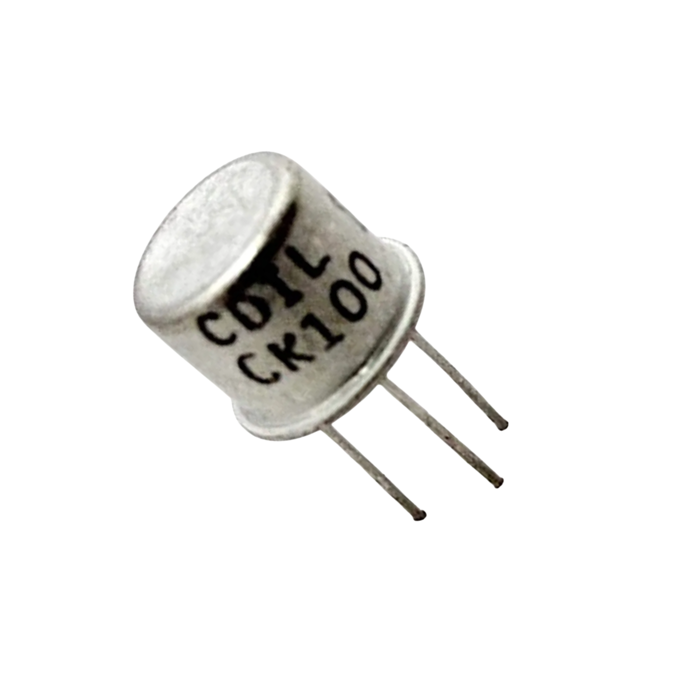

CDIL CK100 PNP Silicon Planar Power Transistor The CK100 Transistor by CDIL is a versatile, general-purpose medium power PNP silicon planar transistor designed for both switching and amplifier applications. Built with a robust three-layer construction, it operates efficiently within its working range, where the collector current (IC) is directly influenced by changes in the base current (IB) for a given collector-emitter voltage (VCE). This allows for consistent and reliable amplification in a wide variety of electronic circuits. Known for its dependable performance, the CK100 is widely used in hobby electronics, educational projects, and industrial applications requiring a medium power transistor solution. Features: High Ruggedness. Simple driving requirements. The highly secure operating location For minimal distortion complementary designs. Easy to transport and handle. Applications: General-purpose switching and amplification. General Purpose Medium Power Transistor
