4-Line to 16-Line Decoder/Demultiplexer IC - 74HC154 This is the 74HC Series 74HC154 IC, Each of these 4-line-to-16-line decoders IC utilizes TTL circuitry to decode four binary-coded inputs into one of sixteen mutually exclusive outputs when both the strobe inputs, G1 and G2, are LOW. The demultiplexing function is performed by using the 4 input lines to address the output line, passing data from one of the strobe inputs with the other strobe input LOW. When either strobe input is HIGH, all outputs are HIGH. These demultiplexers are ideally suited for implementing high-performance memory decoders. All inputs are buffered and input clamping diodes are provided to minimize transmission-line effects and thereby simplify system design.  check out : 74238 IC Pinout: Pinout Of 74HC154 IC Package Includes: Selected qty of IC - 74HC154 Specifications: Supply Voltage (VCC) 7 V Input Voltage (VI) 7 V Operating free-air temperature range 0°C to +70°C  Storage temperature range –65°C to +150°C

Hex Schmitt Trigger Inverter IC - 74HC14 The 74HC14 is a hex Schmitt trigger inverter integrated circuit (IC) with six independent Schmitt trigger inputs. Each input has an active high and active low output. The 74HC Series 74HC14 contains six independent gates each of which performs the logic INVERT function. Each input has hysteresis which increases the noise immunity and transforms a slowly changing input signal to a fast-changing, jitter-free output.  Pinout : Pinout Of 74HC14 IC Package Includes: Selected qty of IC - 74HC14 Specifications: Supply Voltage (VCC) 7 V Input Voltage (VI) 7 V Operating free-air temperature range 0°C to +70°C  Storage temperature range –65°C to +150°C

74HC151 - 8-Input Multiplexer IC The 74HC Series 74HC151 is 8 - Input Multiplexer 16 Pin IC. Data Selector/Multiplexer contains full on-chip decoding to select one of eight data sources as a result of a unique three binary code at select inputs. Two complementary outputs provide both inverting and non-inverting buffer operations. A Strobe input is provided which, when at a high level, disables all data inputs and forces Y output to a low state and W output to a high state. Select input buffers incorporate internal overlap features to ensure that select input changes do not cause invalid output transients. Used for Boolean Function Generator. check out : CD4047 - Astable/Monostable Multivibrator IC Pinout: Pinout Of 74HC151 IC Application: Used for Boolean Function Generator Package Includes: Selected qty of IC - 74HC151 Specifications: Type CMOS Voltage Rating 5VDC Temperature Rating -65 to 165 Deg C Number of pins 16 Mounting Through Hole

4-bit D-type Registers with 3-State Output IC - 74HC173 The 74HC Series 74HC173 is a 4-bit register that includes D-type flip-flops featuring totem-pole 3-state outputs capable of driving highly capacitive or relatively low-impedance loads. The high-impedance third state and increased high-logic-level drive provide these flip-flops with the capability of being connected directly to and driving the bus lines in a bus-organized system without the need for interface or pull-up components. Up to 128 of the 74LS173 outputs can be connected to a common bus and still drive two Series 74LS TTL normalized loads, respectively. To minimize the possibility that two outputs will attempt to take a common bus to opposite logic levels, the output control circuitry is designed so that the average output disable times are shorter than the average output enable times. Gated enable inputs are provided on these devices for controlling the entry of data into the flip-flops. When both data-enable (G1, G2) inputs are low, data at the D inputs are loaded into their respective flip-flops on the next positive transition of the buffered clock input. Gate output-control (M, N) inputs also are provided. When both are low, the normal logic states (high or low levels) of the four outputs are available for driving the loads or bus lines. The outputs are disabled independently from the level of the clock by a high logic level at either output-control input. The outputs then present a high impedance and neither load nor drive the bus line. Detailed operation is given in the function table. The 74LS173 is characterized for operation from 0°C to 70°C. Pinout: Pinout of 74HC173 IC Package Includes: 1 x IC - 74HC173 Specifications: Supply Voltage 4.75 - 5.25 V Operation free-air temperature -5.2 °C Output Current — High 16 mA Output Current — Low 70 µA

8 to 3 Line Priority Encoder IC - 74HC148 The 74HC Series 74HC148 is a 16 Pin 8-Line to 3-Line Priority Encoder IC having 2V to 6V Operating Voltage range with a 5.2mA output current and low power consumption. It encodes Eight Data Lines to a 3-Line Binary. It features priority decoding of the inputs to ensure that only the highest-order data line is encoded. Cascading circuitry (enable input EI and enable output EO) has been provided to allow octal expansion without the need for external circuitry. Data inputs and outputs are active at the low logic level. Pinout: Pinout of 74HC148 IC Package Includes: 1 x IC - 74HC148 Specifications: Type DIP Voltage Rating 2 to 6V Current Rating 8mA Output Current, 1µA Maximum low input current Temperature Rating -40 to 85 Deg C Number of pins 16 Propagation Delay 16ns Dimensions 7x5x3mm Weight 2g

Triple 3-Input NAND Gate IC - 74HC10 The 74HC10 Triple 3-Input NAND Gate IC belongs to the 74HC series. This IC package comes with three independent positive logic 3-input NAND Gates fabricated in low-power hotkey technology. The 74HC10 IC operates at a wide range of working voltage and a wide range of working conditions. And directly interfaces with CMOS, NMOS, and TTL. The output of the IC always comes in TTL which makes it quite easy to function with other TTL devices and microcontrollers. The IC 74HC10 comes as smaller in size and offers much faster speed which makes it highly reliable in every kind of device. 74HC10 IC can be soldered directly to the circuit board or easily mounted on a 14-pin IC base. They perform the Boolean functions Y = A • B • C or Y = A + B + C in positive logic. 74HC10 Operates at a supply voltage of 7V. This IC is designed for operation over the full military temperature range of −55°C to 125°C. 74HC10 has 14−pin. NAND gate is defined as a digital logic gate most commonly used in DLD applications. It is also sometimes referred to as a universal logic gate and used to implement any logic gate or expression in existence. In case, if any one of the inputs to the NAND gate switch to high, the output of the gate will always be logically low. On the other hand, a NAND gate yields a logical high only when all of its inputs are set to LOW. Pinout: Pinout Of 74HC10 IC Symbol  Pin Description 1A, 2A, 3A 1, 3, 9 data input 1B, 2B, 3B 2, 4, 10 data input GND 7 ground (0 V) 1C, 2C, 3C 13, 5, 11 data input 1Y, 2Y, 3Y 12, 6, 8 data output VCC 14 supply voltage APPLICATIONS Memory units PCs and notebooks Digital Electronics Networking Also check 74LS10 Triple-3-Input NAND Gate. It has three input pins and one output pin. The output is low when all three inputs are high, and it is high otherwise Package Includes: Selected qty of IC - 74HC10 Specifications: Supply Voltage (VCC) 7 V Input Voltage (VI) 7 V Operating free-air temperature range 0°C to 70°C  Storage temperature range –65°C to 150°C

Presettable synchronous BCD decade counter IC - 74HC160 The 74HC Series 74HC160 is a high-speed Si-gate CMOS device and is pin-compatible with low-power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74HC160 are synchronous presettable decade counters which feature an internal look-ahead carry and can be used for high-speed counting. Synchronous operation is provided by having all flip-flops clocked simultaneously on the positive-going edge of the clock (CP). The outputs (Q0 to Q3) of the counters may be preset to a HIGH or LOW level. A LOW level at the parallel enable input (PE) disables the counting action and causes the data at the data inputs (D0 to D3) to be loaded into the counter on the positive-going edge of the clock (providing that the set-up and hold time requirements for PE are met). Preset takes place regardless of the levels at count enable inputs (CEP and CET). A LOW level at the master reset input (MR) sets all four outputs of the flip-flops (Q0 to Q3) to LOW level regardless of the levels at CP, PE, CET, and CEP inputs (thus providing an asynchronous clear function). The look-ahead carry simplifies the serial cascading of the counters. Both counts enable inputs (CEP and CET) must be HIGH to count. The CET input is fed forward to enable the terminal count output (TC). The TC output thus enabled will produce a HIGH output pulse of a duration approximately equal to a HIGH-level output of Q0. This pulse can be used to enable the next cascaded stage.  Pinout: Pinout Of 74HC160 IC Symbol  Pin  Description MR   1 Asynchronous master reset (active LOW) CP   2 Clock input (LOW-to-HIGH, edge triggered) D0, D1, D2, D3   3, 4, 5, 6 Data input CEP 7 Count enable input GND   8 Ground (0 V) PE  9 Parallel enable input (active LOW) CET  10 Count enable carry input Q0, Q1, Q2, Q3  14, 13, 12, 11 Flip-flop output TC  15 Terminal count output VCC   16 Supply Voltage Applications: Television sets Home-sound sets Multimedia systems All mains-fed audio systems Car Audio (boosters). Package Includes: Selected qty of IC - 74HC160 Specifications: Series  74HC Function Presettable Counter Product Type Counter Shift Registers Counter Type Presettable Number of Circuits 1 Propagation Delay Time 37 ns Supply Voltage 2V - 6V Operating Temperature -55°C - +125°C Mounting Type Through Hole

4 Bit Bi-Stable Latch IC - 74HC75  The 74HC Series 74HC75 is a 4 Bit Bi-Stable Latch 16 Pin IC. It contains 4 transparent D latches with a common enable (gate) on latches 0 and 1 and another common enable on latches 2 and 3. When Q follows D (latch enabled) latch is said to be transparent. Q output will change only on edge of the input trigger pulse. small triangle on the clock (Cp) input of the symbol indicates that the device is positive edge-triggered. D and clock inputs are synchronous inputs. set (SD) and reset (RD) inputs are asynchronous. They operate independently of D and Cp. bubbles on set and reset inputs indicate that they are low active. latches are ideally suited for use as temporary storage for binary information between processing units and input-output or indicator units. Pinout: Pinout Of 74HC75 IC   Package Includes: Selected qty of IC - 74HC75  Specifications: Type DIP Voltage Rating 4.75 to 5.25V Temperature Rating 0 to 70 Deg C Number of Pins 16 Mounting Through Hole

8-Bit Serial In/Parallel Out Shift Register IC - 74HC164 The 74HC Series 74HC164 IC utilizes advanced silicon-gate CMOS technology. It has high noise immunity and low consumption of standard CMOS integrated circuits. It also offers speeds comparable to low-power Schottky devices. This 8-bit shift register has gated serial inputs and CLEAR. Each register bit is a D-type master/slave flip-flop. Inputs A & B permit complete control over the incoming data. A LOW at either or both inputs inhibits the entry of new data and resets the first flip-flop to the low level at the next clock pulse. A high level of one input enables the other input which will then determine the state of the first flip-flop. Data at the serial inputs may be changed while the clock is HIGH or LOW, but only information meeting the setup and hold time requirements will be entered. Data is serially shifted in and out of the 8-bit register during the positive-going transition of the clock pulse. Clear is independent of the clock and accomplished by a low level at the CLEAR input. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and the ground.  Pinout: Pinout of 74HC164 IC Pin no. Pin name The main function 1 A Gated Serial Input 1 2 B Gated Serial Input 2 3,4,5,6,10,11,12,13 Parallel Output (A-H) Parallel Output Pins 9 CLR Clear 1 Active-Low 7 GND Ground Pin 8 CLK Clock 14 VCC Power Input Pin Package Includes: 1 x IC - 74HC164 Specifications: Supply Voltage (VCC) 2-6V DC Input or Output Voltage (VIN, VOUT) 0 Vcc Operating Temperature Range (TA) −4 -40 to 85°C Input Rise or Fall Times VCC = 2.0V 1000 ns Input Rise or Fall Times VCC = 4.5V 500 ns Input Rise or Fall Times VCC = 6.0V 400 ns

74HC20 - Dual 4-input NAND Gate IC The 74HC Series 74HC20 is a 14-Pin Quad 4-Input NAND Gate IC. This device contains four independent gates each of which performs the logic NAND function. NAND gates utilize advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. All gates have buffered outputs. All devices have high noise immunity and the ability to drive 10 LS-TTL loads. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground. check out : Triple 3-Input NAND Gate IC - 74HC10 Pinout: Pinout Of 74HC20 IC Package Includes: Selected qty of IC - 74HC20 Specifications: Supply Voltage (VCC − 0.5 to + 7.0V DC  Input Voltage (VIN) −0.5V to VDD + 0.5V Output Voltage (VOUT) − 0.5 to VCC + 0.5V Clamp Diode Current (IIK, IOK) ± 20 mA DC Output Current, per pin (IOUT) ± 25 mA DC VCC or GND Current, per pin (ICC) ± 50 mA  Storage Temperature Range (TSTG) − 65°C to + 150°C  Power Dissipation (PD) (Note 4) 500 mW S.O. Package only 500 mW

Dual 1-of-4 Line Data Selector/Multiplexer IC - 74HC153 The 74HC Series 74HC153 IC's data selectors/multiplexers contains inverters and drivers to supply fully complementary, on-chip, binary decoding data selection to the AND-OR-invert gates. Separate strobe inputs are provided for each of the two four-line sections.  The 74HC153 features independent enable inputs (nE) and common data select inputs (S0 and S1). For each multiplexer, the select inputs select one of the four binary inputs and routes it to the multiplexer output (nY). A HIGH on E forces the corresponding multiplexer outputs LOW. Inputs include clamp diodes Pinout: Pinout Of 74HC153 IC Package Includes: 1 x IC - 74HC153 Specifications: Supply Voltage (VCC) 7 V Input Voltage (VI) 7 V Operating free-air temperature range 0°C to +70°C  Storage temperature range –65°C to +150°C

4-bit Magnitude Comparator IC - 74HC85 The 74HC Series 74HC85 are high-speed Si-gate CMOS devices and are pin-compatible with low-power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74HC85 IC are 4-bit magnitude comparators that can be expanded to almost any length. They perform the comparison of two 4-bit binary, BCD, or other monotonic codes and present the three possible magnitude results at the outputs (QA>B, QA=B and QAB, IA=B and IAB = = LOW and IA=B = HIGH. For words greater than 4-bits, units can be cascaded by connecting outputs QAΒ and QA=B to the corresponding inputs of the significant comparator.  Pinout: Pinout of 74HC85 IC Package Includes: 1 x IC - 74HC85 Specifications: Operating Voltage Range 2.0 to 6.0 V Package DIP−16 Input Current 1 uA Powering Current 160 uA Output Current at VCC 4 mA Fan-Out 10 LS-TTL Load Propagation Delay 13 ns Temperature Range -65 °C to +150 °C

12-Stage Binary Ripple Counter IC - 74HC4040 The 74HC Series 74HC4040 IC is a 16 Pin 12-Stage Binary Ripple Counter IC having 2V to 6V Operating Voltage range with a 1uA low input current. It has a clock input (CP), an overriding asynchronous master reset input (MR), and twelve parallel outputs (Q0 to Q11). The counter advances on the HIGH-to-LOW transition of CP. A HIGH on MR clears all counter stages and forces all outputs LOW, independent of the state of CP. Each counter stage is a static toggle flip-flop. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC. Pinout: Pinout Of 74HC4040 IC Package Includes: 1 x 74HC4040 IC Specifications: Power supply voltage  2V to 6V Supply voltage (Vcc) -0.5V to + 7.0V Input voltage (Vin) -1.5V to Vcc + 1.5V Output voltage (Vout) -0.5V to Vcc + 0.5V Clamp diode current ±20mA DC output current (per pin) ±25mA DC Vcc and GND current (per pin ±50mA Typical propagation delay 16ns Power dissipation 600mW Operating temperature -55℃ to 125℃

'--

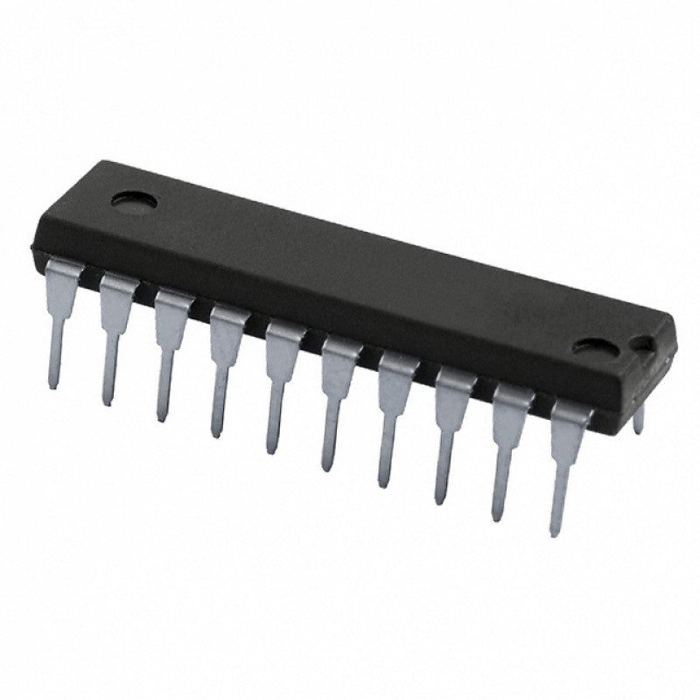

3-State Output Octal D-Type Flip-Flop IC - 74HC374 The 74HC Series 74HC374 is a 20 Pin 3-State output Octal D-Type Flip-Flop IC having 2V to 6V Operating Voltage range with 7.8mA output current and high noise immunity. It has the ability to drive  15  LS-TTL  loads.  Due to the large output drive capability and the 3-STATE feature, these devices are ideally suited for interfacing with bus lines in a bus organized system.   The eight edge-triggered flip-flops enter data into their registers on the LOW to HIGH transition of the clock (CP). The output-enable (OE) controls the 3-state outputs and is independent of the register operation. When OE is HIGH, the outputs are in the high-impedance state. Pinout: Pinout of 74HC374 IC Package Includes: 1 x IC - 74HC374 Specifications: Operating Voltage Range 2.0 to 6.0 V Package DIP−20 Input Current 1 uA Powering Current 80 uA Output Current at VCC 6 mA Fan-Out 10 LS-TTL Load Propagation Delay 14 ns Temperature Range -65 °C to +150 °C
