M5StickV K210 AI Camera (without wifi)
Expected restock within 5-7 business days. We'll ship immediately once available.
For urgent inquiries, please contact us .
Delivery & Pickup Options
Expected to be in stock within 5-7 business days. We'll ship immediately once available.

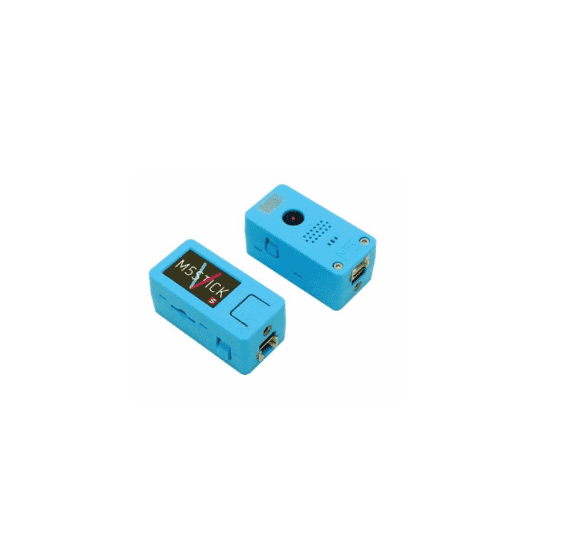

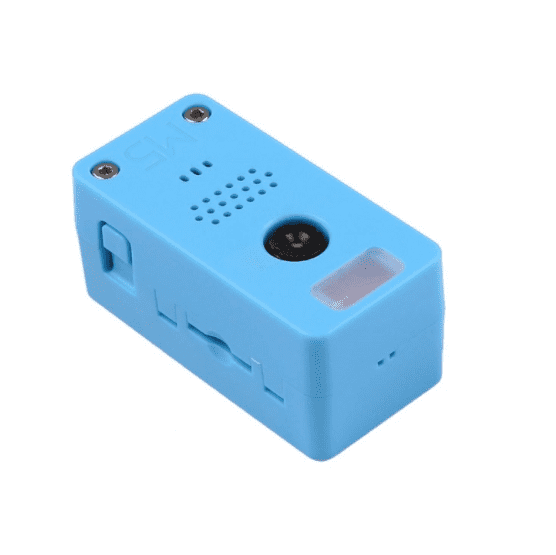

M5StickV K210 AI Camera (without wifi) M5Stack recently launched the new AIoT(AI+IoT) Camera powered by Kendryte K210 -an edge computing system-on-chip(SoC) with dual-core 64bit RISC-V CPU and advanced neural network processor. M5StickV AI Camera possesses machine vision capabilities, equips OmniVision OV7740 image sensor, adopts OmniPixel®3-HS technology, provides optimum low light sensitivity, supports various vision identification capabilities. (e.g. Real-time acquisition of the size, type, and coordinates of the detected target ) In addition to an OV7740 sensor, M5StickV features more hardware resources such as a speaker with built-in I2S Class-D DAC, IPS screen, 6-axis IMU, 200mAh Li-po battery, and more. It is able to perform convolutional neural network calculations at low power consumption, so M5StickV will be a good zero-threshold machine vision embedded solution. It is in support of MicroPython, which makes your code to be more concise when you use M5stick-V for programming. Switching operations ? Power on: Long press power button for 2 seconds Power off : Short press power button for 6 seconds Applications: Face recognition/detection Object detection/classification Obtaining the size and coordinates of the target in real-time Obtaining the type of detected target in real-time Shape recognition Video/Display Game simulator
- Dual-core 64-bit RISC-V Kendryte K210 processor
- OmniVision OV7740 sensor with low-light optimization
- Supports face detection, object classification, and shape recognition
- Built-in IPS display, IMU, speaker, and 200mAh battery
- MicroPython support for easy programming
- Edge AI processing with neural network acceleration
- Real-time vision inference at low power
- On-device face and object detection
- Compact form factor for embedded applications
- No OS required – runs AI models directly
| Kendryte K210 | Dual core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal) |
|---|---|
| SRAM | 8MiB |
| Flash | 16M |
| Power input | 5V @ 500mA |
| KPU Parameter size of neural network | 5.5MiB - 5.9MiB |
| Port | TypeC x 1, GROVE(I2C+I/0+UART) x 1 |
| RGB LED | RGBW x 1 |
| Button | Custom button x 2 |
| IPS screen | 1.14 TFT, 135*240, ST7789 |
| Camera | OV7740(30W pixels) |
| FOV | 55deg |
| PMU | AXP192 |
| Battery | 200mAh |
| External storage | TF-card(microSD) |
| MEMS | MPU6886 |
| Dimension | 48*24*22mm |
| Weight | 82gm |
Does the M5StickV support Wi-Fi connectivity?
No, this model (M5StickV K210) does not include Wi-Fi. It is designed for standalone AI vision processing.
What programming language is supported?
The M5StickV supports MicroPython, allowing concise and efficient coding for AI and vision applications.
Can it perform real-time object detection?
Yes, it supports real-time object detection, classification, and coordinate tracking using its K210 AI processor.
Is it compatible with Arduino or Raspberry Pi?
It is not directly compatible with Arduino or Raspberry Pi but can be interfaced via serial or GPIO for data exchange.
To rate this product please login!
About M5StickV K210 AI Camera (without wifi) by M5Stack
Buy M5StickV K210 AI Camera with OV7740 sensor. Compatible with MicroPython, supports face & object detection. Best price in India.
Categorised under: AI Camera› AI Hardware› M5Stack› M5 Stack Cameras
