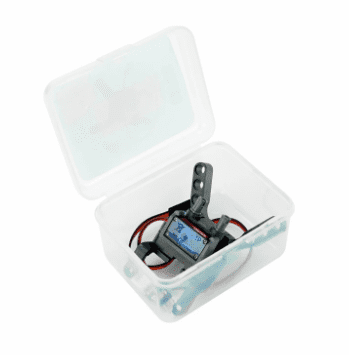

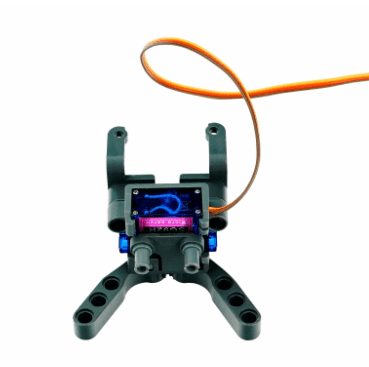

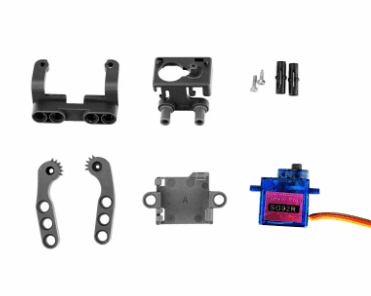

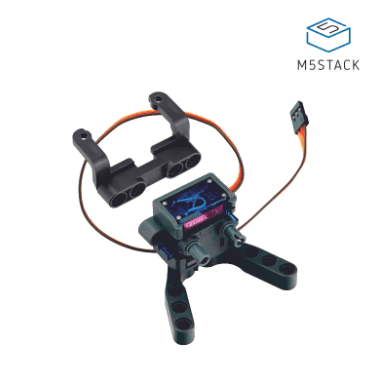

M5 Stack Catch Unit (SG92R)

M5Stack Dial - ESP32-S3 Smart Rotary Knob with 1.28" Round Touch Screen Now it's easy to take your projects to the next level with the M5Stack Dial. The M5Stack Dial - ESP32-S3 Smart Rotary Knob is a compact, feature-rich embedded development board designed for smart home control with 1.28" Round Touch Screen, is the ultimate solution for tactile control and easy interaction! Discover the M5Stack Dial powered by the formidable ESP32-S3 MCU, housing the Xtensa LX7 core and boasting 8M-FLASH. With features like WiFi and OTG\CDC functions, it's ready to handle any task you throw at it. Whether it's batteries, power adapters, or other sources, the M5Stack Dial easily adjusts to your power requirements with a voltage input range from 6V to 36V. It will provide you a stunning visual with the 1.28-inch round touch screen, featuring a sharp 240x240px resolution. And with the GC9A01 screen driver, you will see every detail with clarity and accuracy. Navigate with ease and accuracy with the help of the FT3267 touch driver like a smartphone, you can swipe through menus, tweak settings, or interact with your projects smoothly. Whether it's access control systems or personalized user experiences, the options are limitless cause of the improved security and convenience with the built-in RFID feature powered by the WS1850S chip. With those, it includes a lot of features that are going to blow your mind. Are you a beginner or an expert, doesn’t matter! the M5Stack Dial has the power to make your projects easier and more fun! Applications: Industrial automation Smart home management Internet of Things (IoT) projects Access control systems

M5 Stack COMMU Module Extend RS485/TTL CAN/I2C Port COMMU is a Muti-Communication-Interface-Converter. Integrated with 2 I2C, 1 TTL, 1 CAN, 1 RS485. Apparently, COMMU has packed with most of the series communications. Default connection: TTL - UART0, RS485 - UART2. Since the ESP32 pin map is allowed for re-assign, you can re-assign or re-mapping the TTL or RS485 interface to other pins. Be careful about TTL Interface. It is a UART Interface actually by default. But you can switch it to connect with UART2 after changing those jumpers(J6, J7, J9, J10).

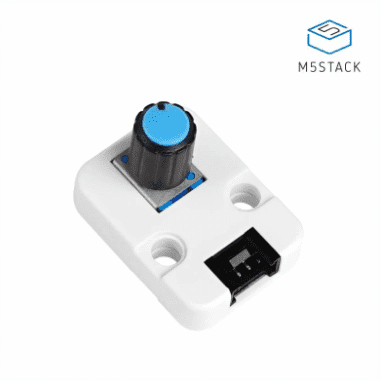

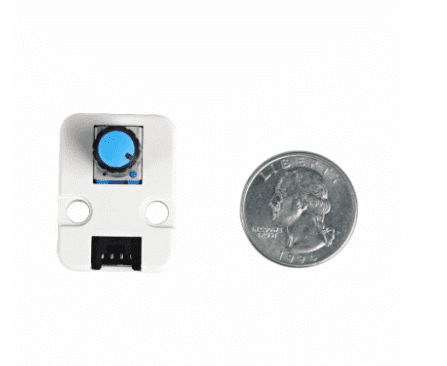

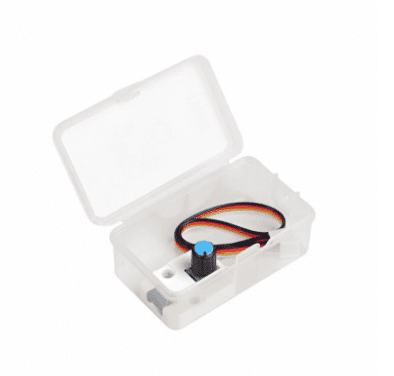

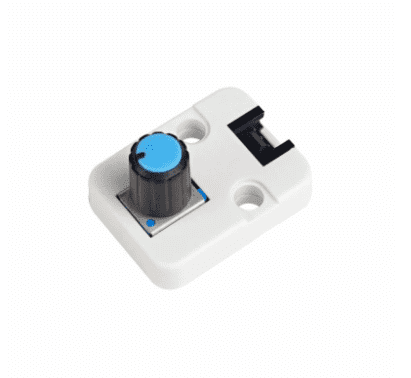

M5 Stack Mini Angle Unit with Potentiometer ANGLE is a rotary switch Unit that simply includes a 10K Ohm potentiometer inside. This unit can be used for Continuous signal rotatory control for applications such as volume, brightness, or motor speed. A potentiometer is a manually adjustable variable resistor with three terminals: Two terminals are connected to a resistive element, the third terminal is connected to an adjustable wiper. The position of the wiper determines the output voltage. The out voltage is captured and converted by AD on ESP32 on portB. In the M5 Stack product system, Normally the Grove color indicates the type of communications. Black: Single BUS (AD, DA, GPIO) Red: I2C Blue: Uart White: Others(depends)

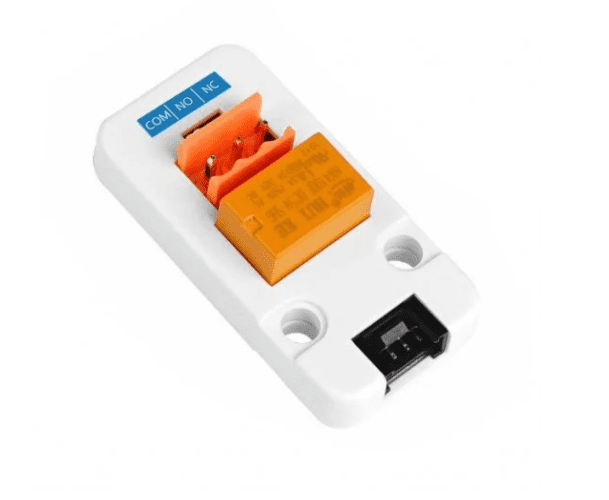

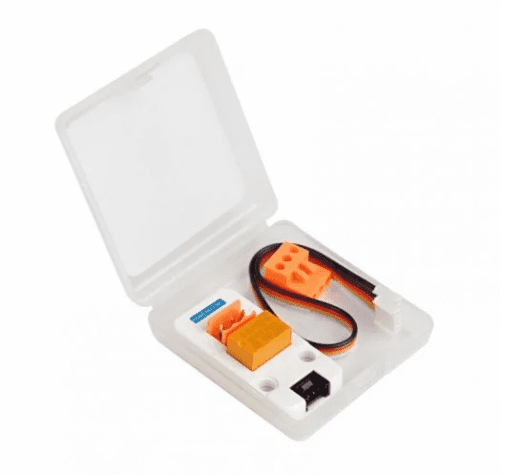

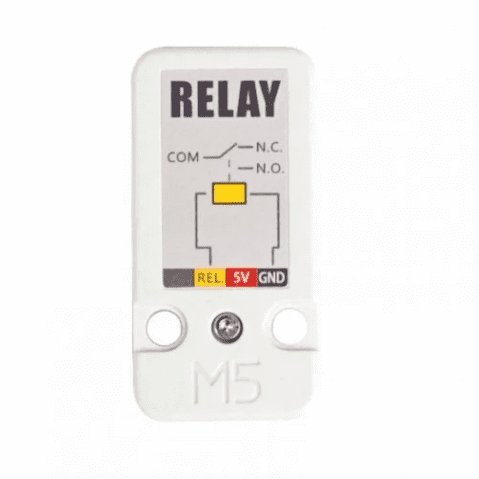

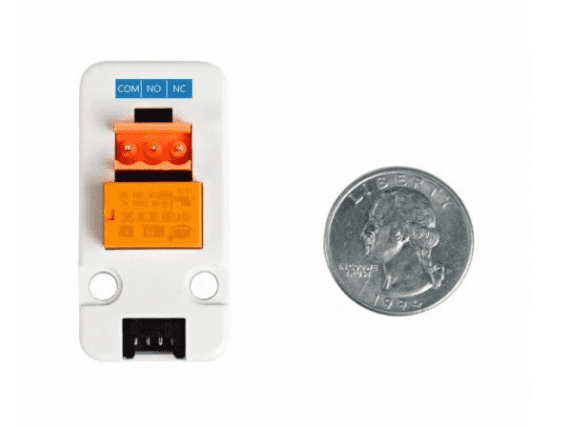

M5 Stack Mini 3A Relay Unit RELAY as it says is an M5Unit that implements Relay functions. Relay can be used as an electrically operated switch, uses an electromagnet to mechanically operate a switch, where it is necessary to control a large power load circuit by a separate low-power signal such as digital signal output from a microprocessor. The Relay support input voltage of up to 30V DC and 220V AC. There are 3 pins named: ON, OFF, COM. You can program to make COM connect to ON or OFF, just by high and low output of a digital GPIO. Applications: Remote control of high-power appliances, such as refrigerators, air conditioners, TVs, etc. Also check the M5 Stack Grove-T Connector , which comes in a package of 5 pieces. It is a T-shaped hub called CONNEXT-T, used for CONNEXT port expansion. Also check M5 Stack 1 to 3 HUB Unit . The HUB Unit is a device that allows you to connect more GROVE ports to your M5Stack device. This is useful if you want to use multiple sensors or other devices at the same time.

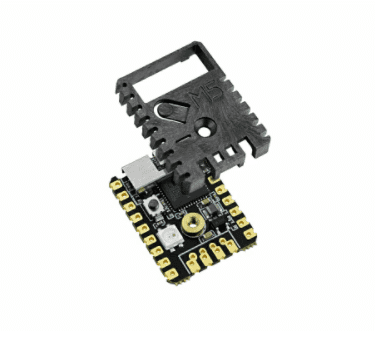

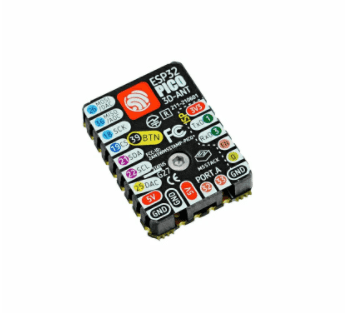

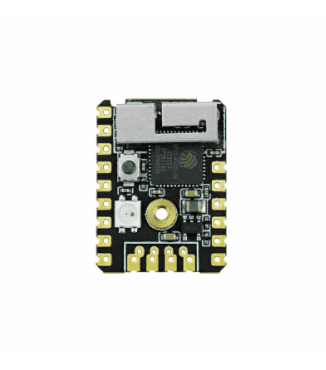

M5Stamp Pico Mate with Pin Headers STAMP-PICO features an ultra-compact design with two low-power Xtensa® 32-bit LX6 microprocessors at 240MHz on a PCB are as tiny and delicate as a postage stamp. low power consumption. It is ideal for any space-constrained or battery-powered devices such as wearables, medical devices, sensors, and other IoT devices. Multiform: 5 options of installation, means endless possibilities! (SMT, DIP, flywire, grove interface), with a high-temperature resistant plastic shell, 3D antenna and components can be better protected. Low code development: STAMP-PICO supports UIFlow graphical programming platform, scripting-free, cloud push; and fully compatible with Arduino, MicroPython, ESP32-IDF, and other mainstream development platforms to quickly build various applications. High Integration: STAMP-PICO contains 5V->3.3V DC/DC port, GPIOx12, programmable RGB light x1, button x1, finely tuned RF circuit, providing stable and reliable wireless communication. Stong Expandability: Easy access to M5Stack's hardware and software ecology system: a wealth of sensors, actuators, functional modules, and accessories to choose from, Extremely fast adaptation. Applications: Instrumentation Wi-Fi Remote Monitoring/Control Smart Home Color LED Control Fire/security intelligent integrated management Smart Card Terminal Wireless POS

M5 Stack PDM Microphone Unit (SPM1423) PDM mini Unit is a digital MEMS silicon-based microphone based on PDM (Pulse Density Modulation) signal. The microphone has a high signal-to-noise ratio, high sensitivity, low power consumption, anti-radio frequency interference, smooth frequency response, and other characteristics. It automatically switches the microphone state according to the clock frequency (power down/activate/sleep)and can be widely used for the audio data collection on wearable devices and smart digital devices. Applications: Spectrum Analyzer Recorder Noise meter

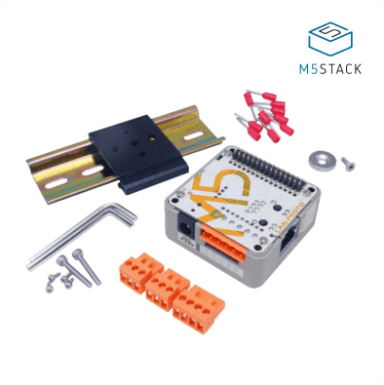

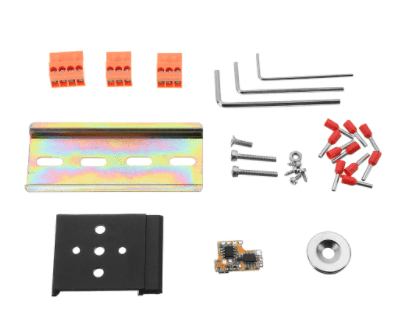

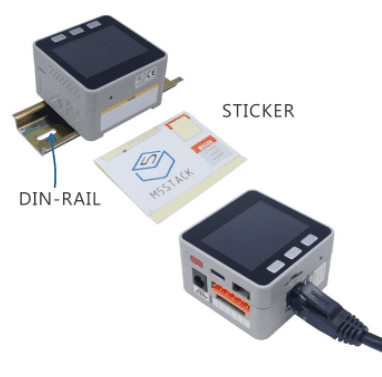

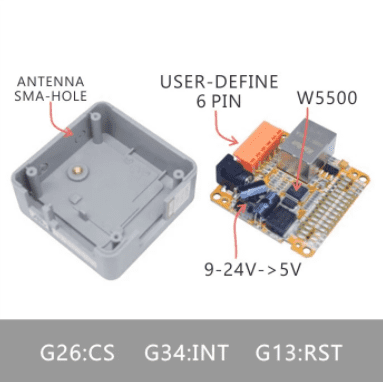

M5Stack LAN Module with W5500 Although the M5 core is ESP32-based, having Wi-Fi and Bluetooth integrated, it doesn't stop you enable the Ethernet function. This LAN is an M5 Base that has a W5500 chip, which is a Hardwired TCP/IP embedded Ethernet controller that provides an easier Internet connection to embedded systems. This Base is specifically designed for industrial application scenarios, comes with a couple of HT3.96 connectors, 485 metal rail, and magnet discs for easy installation and fixation. The 6 pin of the HT3.96 connector are dangling, you can wire them up with the M-BUS and other circuits as you like. Applications: M5Core + LAN implementing a conveyor controller PC transmits video to Core via cable Also check M5 Stack Esp32 downloader kit . It is a USB-TTL adapter board designed for ESP32/ESP8266, featuring a CP2104/CH9102 chip. The kit supports one-touch download without chip and pin-down resetting manually. It includes components like the ESP32 CAM Downloader, ESP32 CAM Pinout Board, a 2.54-6P female header, and two 2.54-3P rows of pins. The USB Interface Type is TypeC, and it operates with a Baud Rate ranging from 300bps to 2Mbps. Also check The M5Stack FIRE IoT Development Kit (PSRAM) V2.6 is a cost-effective Wi-Fi and Bluetooth dual-mode IoT controller based on the Espressif ESP32 main control chip. It features two low-power Xtensa 32-bit LX6 microprocessors with a main frequency of up to 240MHz. The kit includes 8M PSRAM and 16M FLASH memory, a 2.0-inch full-color HD IPS display panel, IMU, LED, microphone, speaker, TFCard slot, and various peripherals.
