LM358

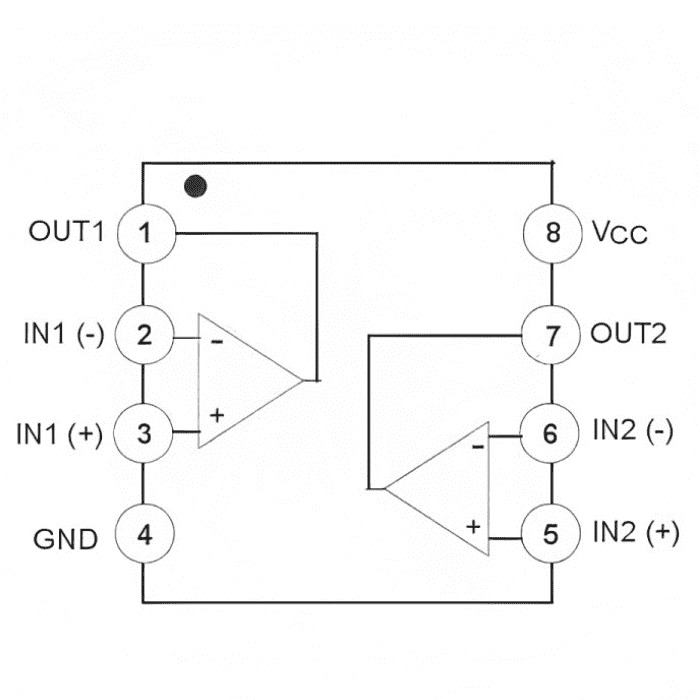

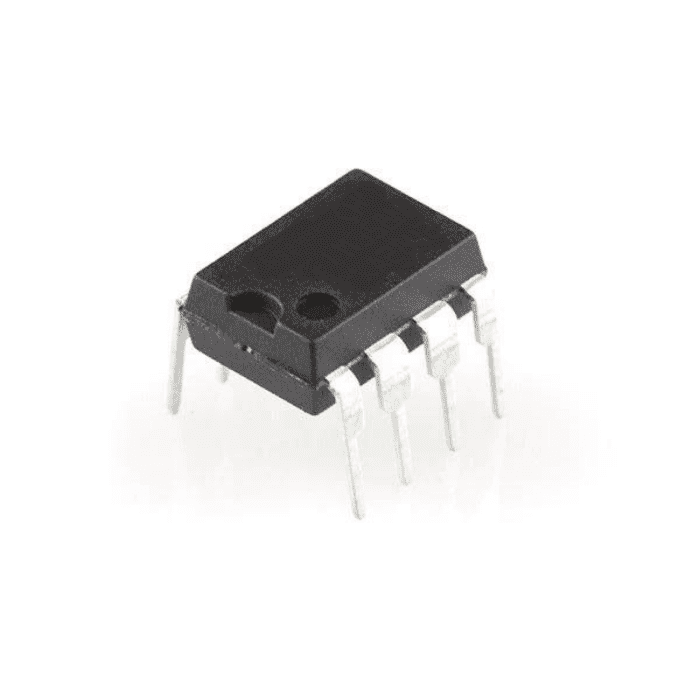

LM358 LM358 IC is a low-power dual-operational amplifier integrated circuit . It can support an operating voltage of +3 to +32 volts or ±1.5 to ±16 volts and input voltage can range from ?0.3 to +32 volts with a single power supply. LM 358B and LM2904B devices are the next-generation versions of LM 358 and LM2904 operational amplifiers which include two high-voltage (36 V) op-amps. The LM 358 and LM2904 are available in a chip-sized package (8-bump DSBGA) using TI's DSBGA package technology. Utilizing the circuit designs perfected for Quad Operational Amplifiers, these dual operational amplifiers feature low power drain, a common mode input voltage range extending to ground/VEE, and single supply or split supply operation. The LM358 IC series is compatible with industry-standard operational amplifiers, making it a popular choice in cost-sensitive applications. It consists of two independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. LM 358 IC can also be used for testing an LDR, a phototransistor, and a photodiode. When it comes to the LM 358 IC, we prioritize quality and affordability above all else. That's why we're excited to offer you not only the IC but also the best LM358 price available anywhere online! LM358 Pinout: LM358 Pin Diagram Applications: Transducer amplifiers Conventional op-amp circuits general signal amplification Low-power AC applications
