Is the L86-M33 compatible with Arduino and Raspberry Pi?

Yes, it communicates via UART at 3.3V and is fully compatible with Arduino, Raspberry Pi, and other microcontrollers.

Does it support external antennas?

Yes, it supports automatic switching between internal patch and external active antennas with short-circuit protection.

What satellite systems does it support?

It supports GPS, GLONASS, Galileo, and QZSS for global coverage and high positioning accuracy.

What is the power consumption in tracking mode?

Only 26mA @ 3.3V in tracking mode, with multiple low-power modes for energy-efficient operation.

L86-M33 GPS GNSS Module - Buy Online in India

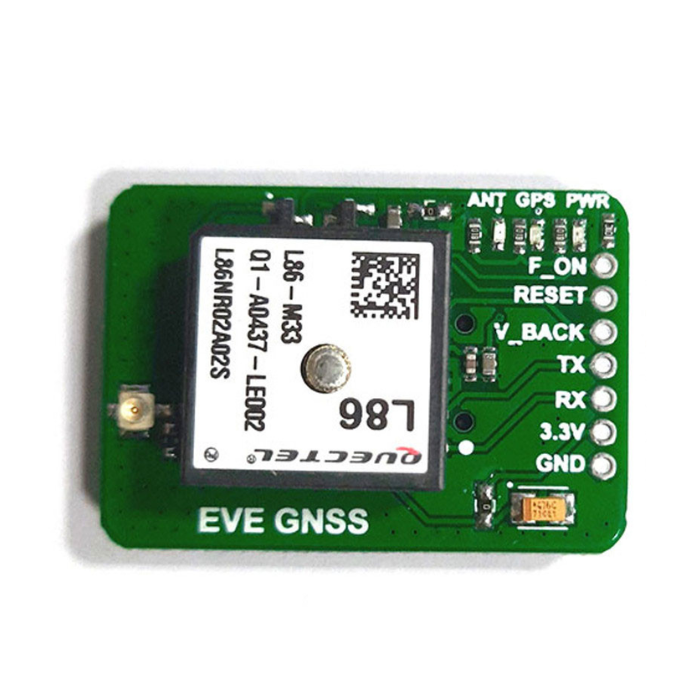

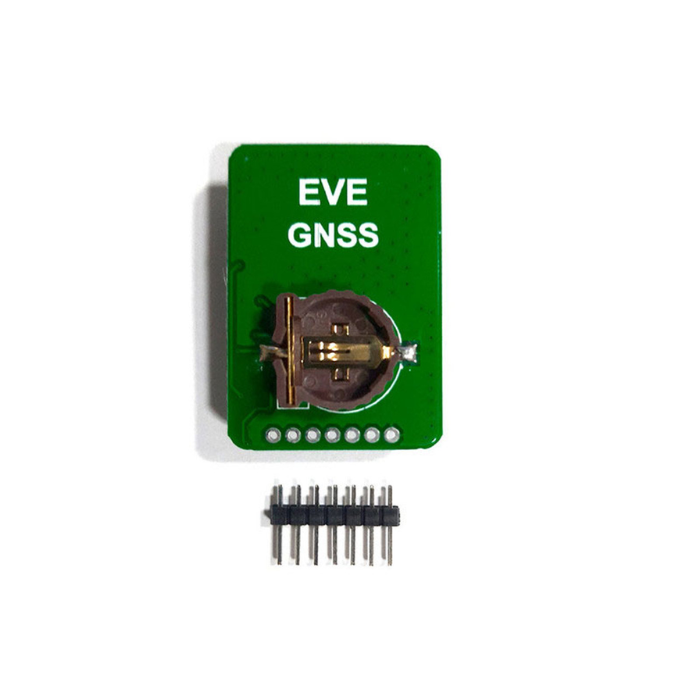

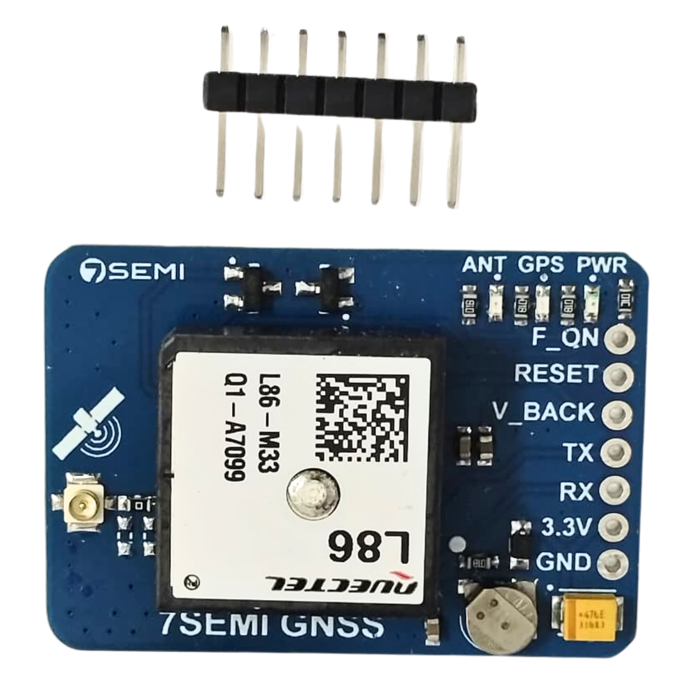

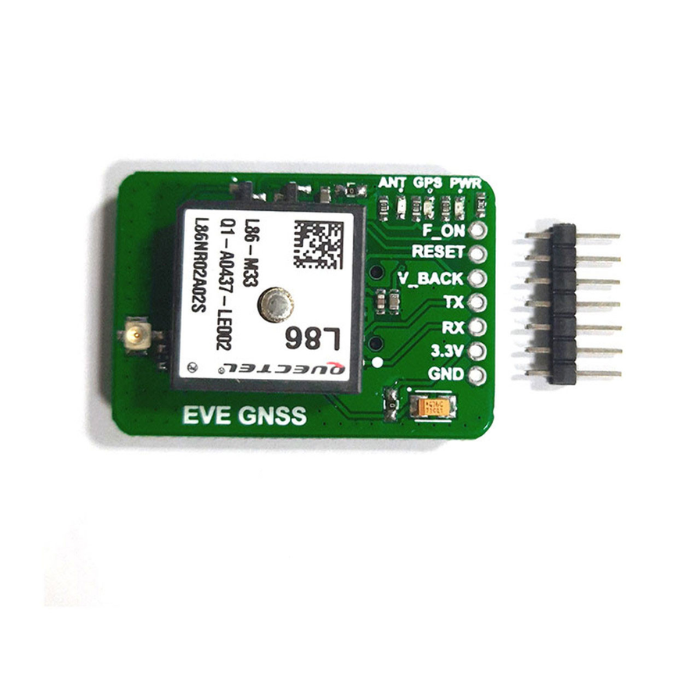

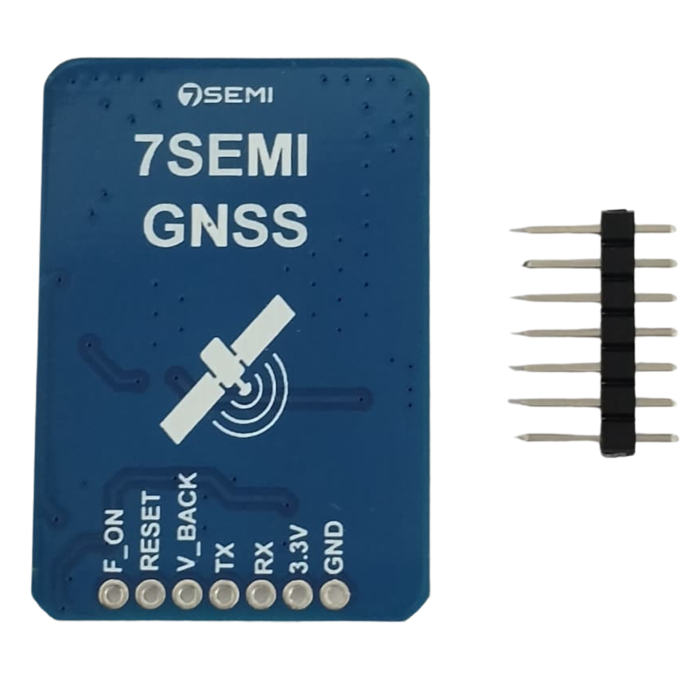

Name: L86-M33 GPS GNSS Breakout Module -7Semi
Brand: 7Semi
SKU: IOT-2744
Price: 1105.39 INR
Availability: InStock
Rating: 5 (1 reviews)

GNSS Module	Quectel L86
Chipset	MediaTek MT3333
Antenna	Built-in 18.4 x 18.4 x 4.0 mm patch antenna; External antenna connector with automatic switching and short-circuit protection
Power Supply	3.3V
Communication Interface	UART (TX, RX, FON, RESET pins)
Backup Power Pin	V_BACK
Positioning Technology	AGPS EASY orbit prediction, AlwaysLocate power-saving mode
Dimensions	18.4 x 18.4 x 4.0 mm
Operating Environment	Indoor & outdoor, weak signal capable
