Cytron 30Amp 7V-35V Smart Drive Dual Channel DC Motor Driver

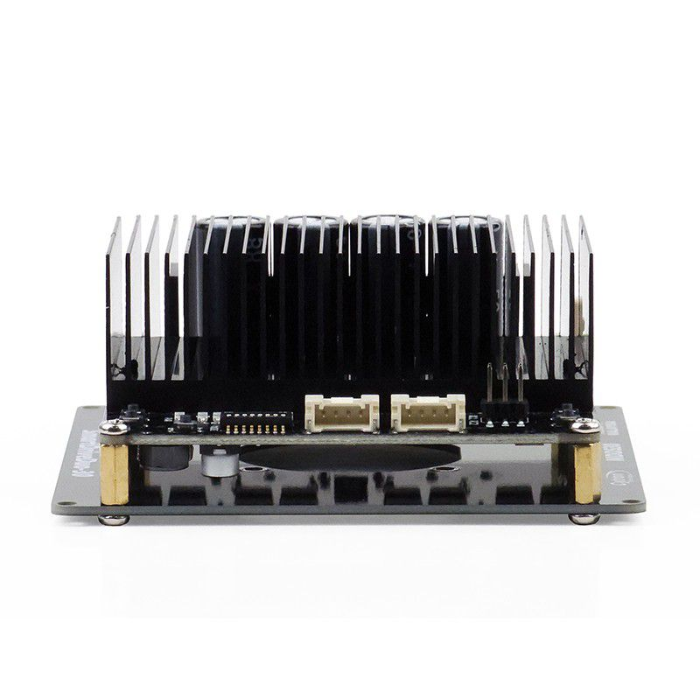

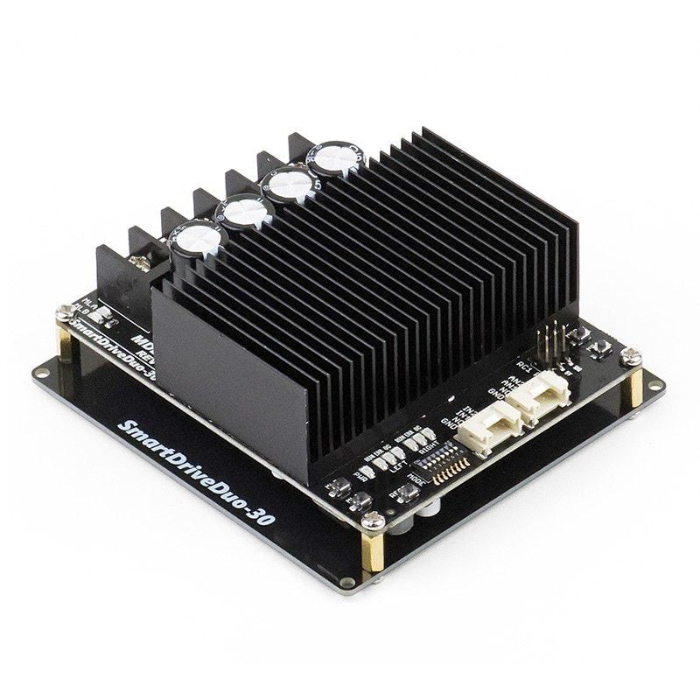

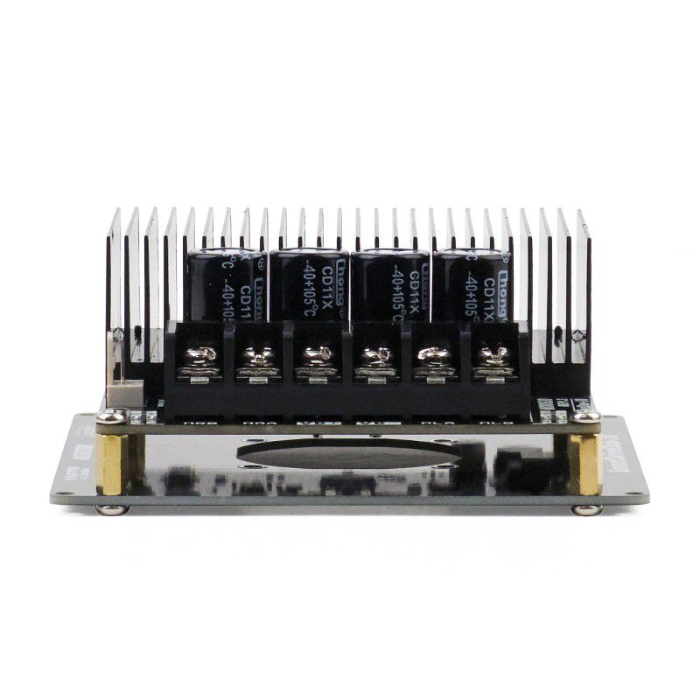

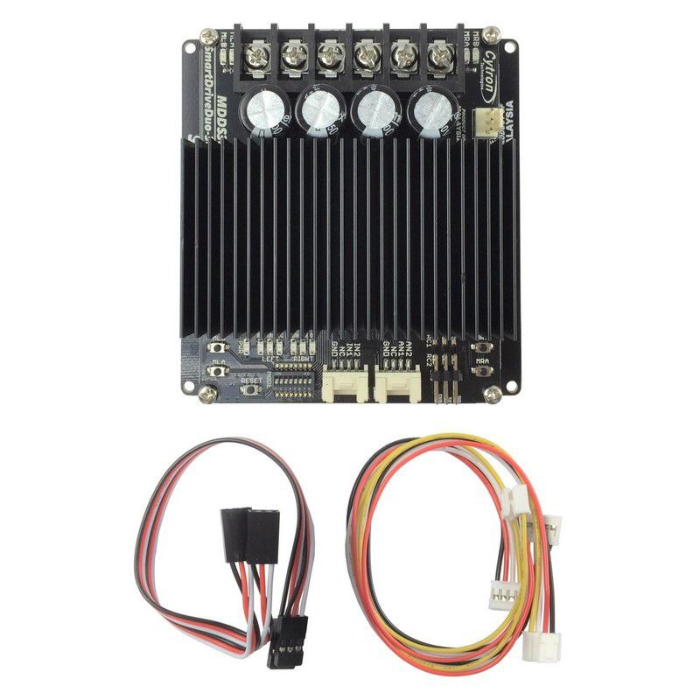

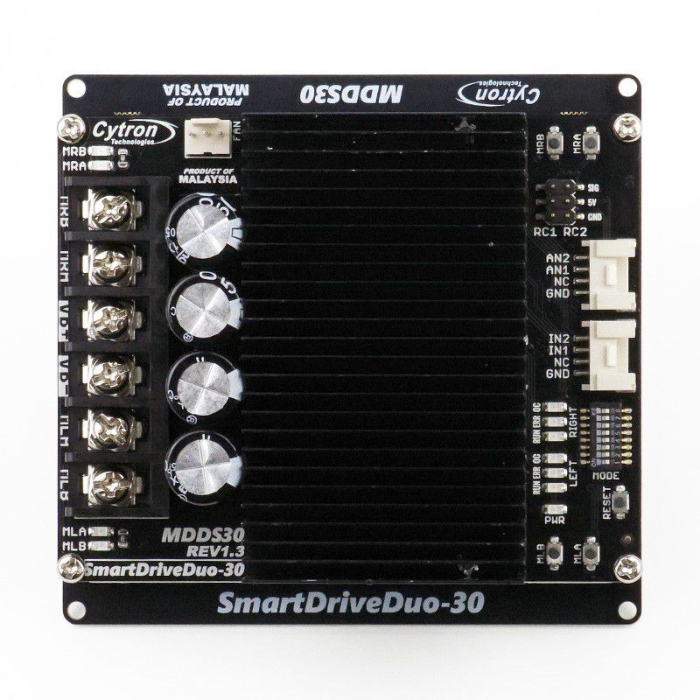

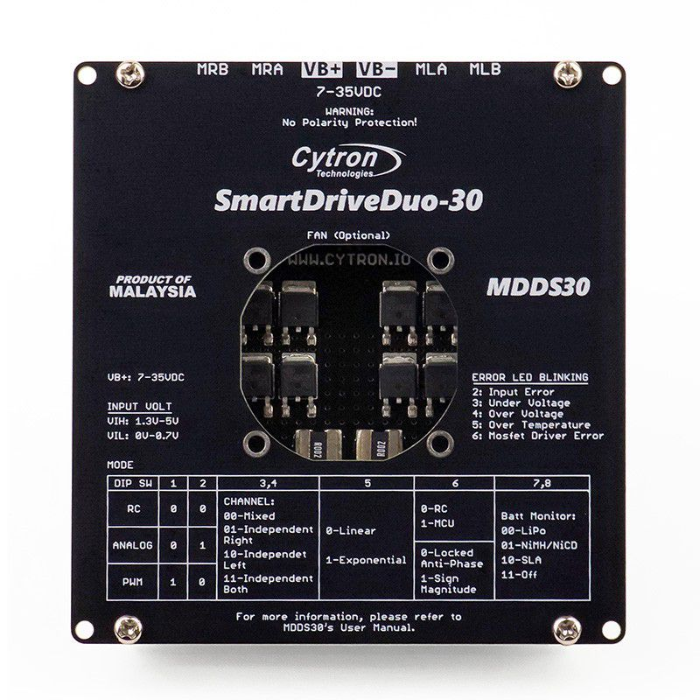

Cytron 30Amp 7V-35V Smart Drive Dual Channel DC Motor Driver The Cytron 30A motor driver, officially known as the Cytron Smart Drive 30A (MDDS30), is a high-performance dual channel DC motor driver designed for medium power brushed DC motors. It supports a wide input voltage range of 7V to 35V, delivering 30A of continuous current and up to 80A peak per channel for short durations. Optimized for differential drive mobile robots, this 30A motor driver 7V-35V supports multiple control interfaces including RC, PWM, Serial, and analog joystick, providing flexibility for a variety of applications. The onboard microcontroller adds smart features such as current limiting, thermal protection, and support for multiple input modes. With 18 kHz PWM frequency, it ensures silent motor operation without high-pitched noise. The Cytron smart drive 30A is the perfect solution for advanced robotics and automation projects demanding reliable, robust motor control. 30Amp 7V-35V DC Motor Driver Pinout Diagram: Features: Bidirectional control for a dual brushed DC motor. Motor voltage ranges from 7 to 35 VDC. Maximum current is 80A peak (1 second) and 30A continuous, per channel. MOSFETs on the board are switched at 18 KHz to ensure quiet operation. Battery low voltage indicator. Battery overvoltage indication. Thermal protection. Current limit protection. Input modes include RC, Analog/PWM, Serial Simplified, and Serial Packetized. GROVE-compatible connectors for control input. RC (Radio Control) compatible connections. On-board push buttons allow for quick testing and manual operation. For each channel, there are onboard LED indicators for error, RUN, overcurrent, and motor output.
