Cytron 30Amp 5V-30V DC Motor Driver

Name: Cytron 30Amp 5V-30V DC Motor Driver
Brand: Iotcart
SKU: IOT-3054
Price: 3820.04 INR
Availability: InStock
Rating: 5 (1 reviews)

(0)

Condition: NEW

As low as ₹3820.04 ₹6032.60 Incl. GST (No Hidden Charges)

Backorder Available Delivery: Next Day Delivery

IN STOCK SKU#: IOT-3054

Order Before 11 to for same day shipping

Delivery & Pickup Options

Get it Next Day on Order

Order now and we'll have it ready for delivery by the next business day.

For bulk orders or wholesale inquiries, please contact us at Email: support@iotcart.in or call/message us at Phone: 8050206487.

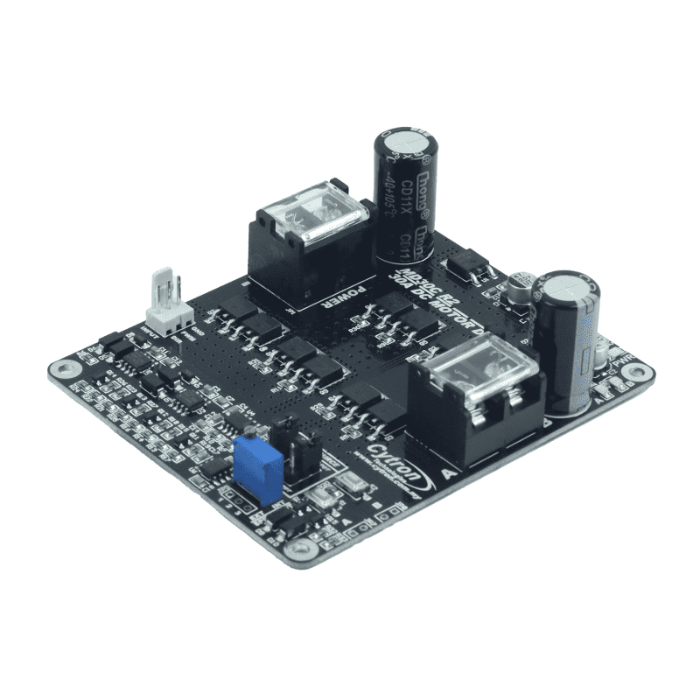

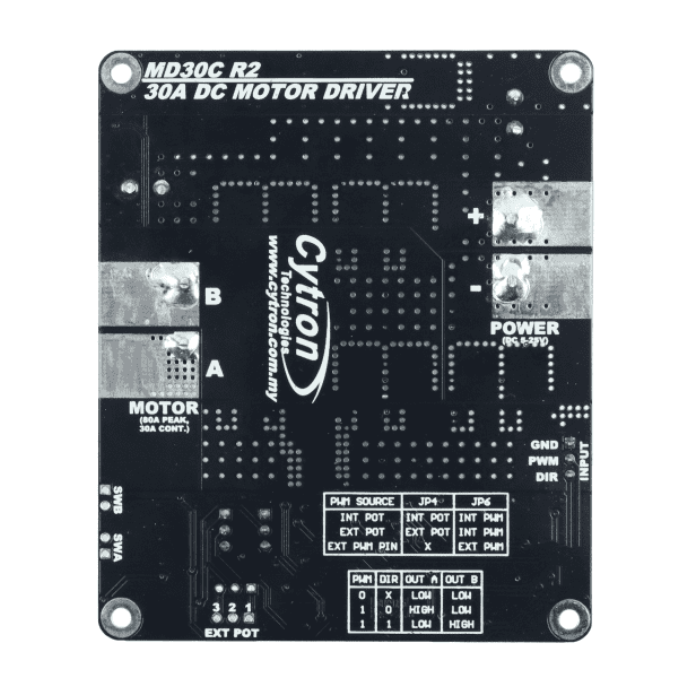

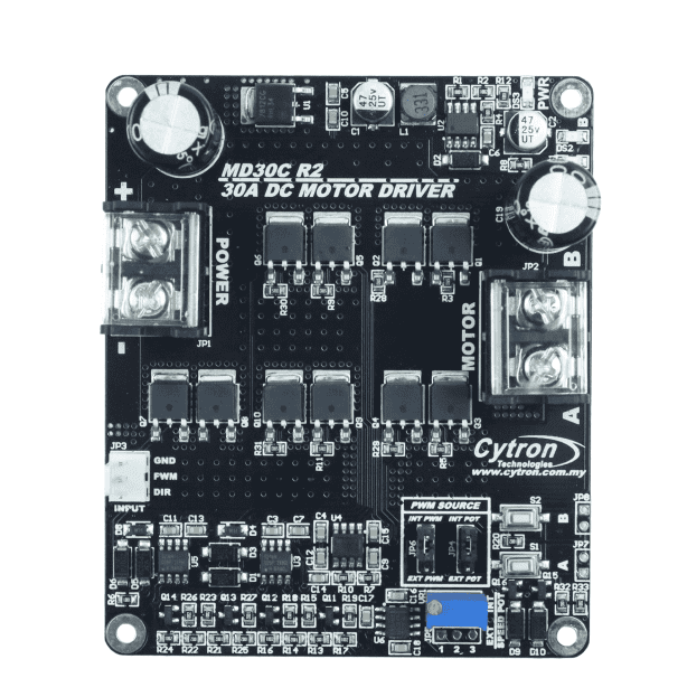

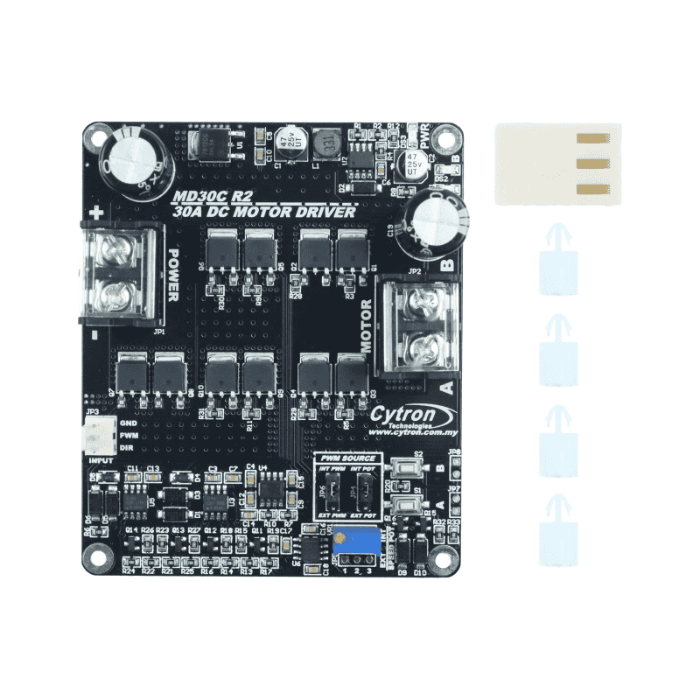

Cytron 30Amp 5V-30V DC Motor Driver The Cytron 30Amp DC Motor Driver (MD30C) is a high-performance upgrade to the MD30B, engineered for powering medium to high power brushed DC motors. This Cytron DC motor driver 30A handles a continuous current of 30A and can peak up to 80A, making it ideal for demanding applications. Operating across a voltage range of 5V to 30V, it qualifies as a versatile 30A motor driver 5V to 30V solution. The fully NMOS-based architecture ensures higher efficiency and faster switching speeds without requiring additional cooling systems like fans or heatsinks. As a Cytron single channel motor driver, it offers built-in features such as reverse polarity protection and an onboard PWM generator, enabling operation even without a microcontroller. Users can control motor direction and speed via onboard or external switches and potentiometers, making it a flexible and user-friendly choice for your next robotics or automation project. Features: Reverse polarity protection. Logic level inputs are 3.3V and 5V. For increased efficiency, a fully NMOS H-Bridge is used, with no heat sink required. Speed control PWM frequency up to 20KHz. Standalone operation is enabled by an onboard PWM generator with switches and a potentiometer. External PWM operation now supports both locked-antiphase and sign-magnitude modes. For more information, see the User Manual in Attachments and Links.

Cytron 30A motor driver for brushed DC motors
Supports wide operating voltage: 5V to 30V DC
Delivers continuous 30A current, up to 80A peak
Efficient fully NMOS design—no heatsink or fan needed
Built-in reverse polarity protection for safety
Includes onboard PWM generator—can operate without external controller
Cytron single channel motor driver with user-friendly interface
Control via onboard or external switches and potentiometer

Item Type	Motor Driver
Model Series	MD Series
Voltage Rating (V)	5 to 30
Operating Voltage (VDC)	5 ~ 30
Current Rating (A)	30 to 80
Continuous Current (A)	30
Peak Current (A)	80
Operating Mode	PWM (Lock-Antiphase & Sign-Magnitude): YesUART: NoAnalog: NoRC Servo Signal: No
No. of Channels	1
Cooling Fan	No
LED Indicator	Yes
Arduino Shield Compatible	Can be used via wire connection (not a shield)
Polarity Protection	Yes
