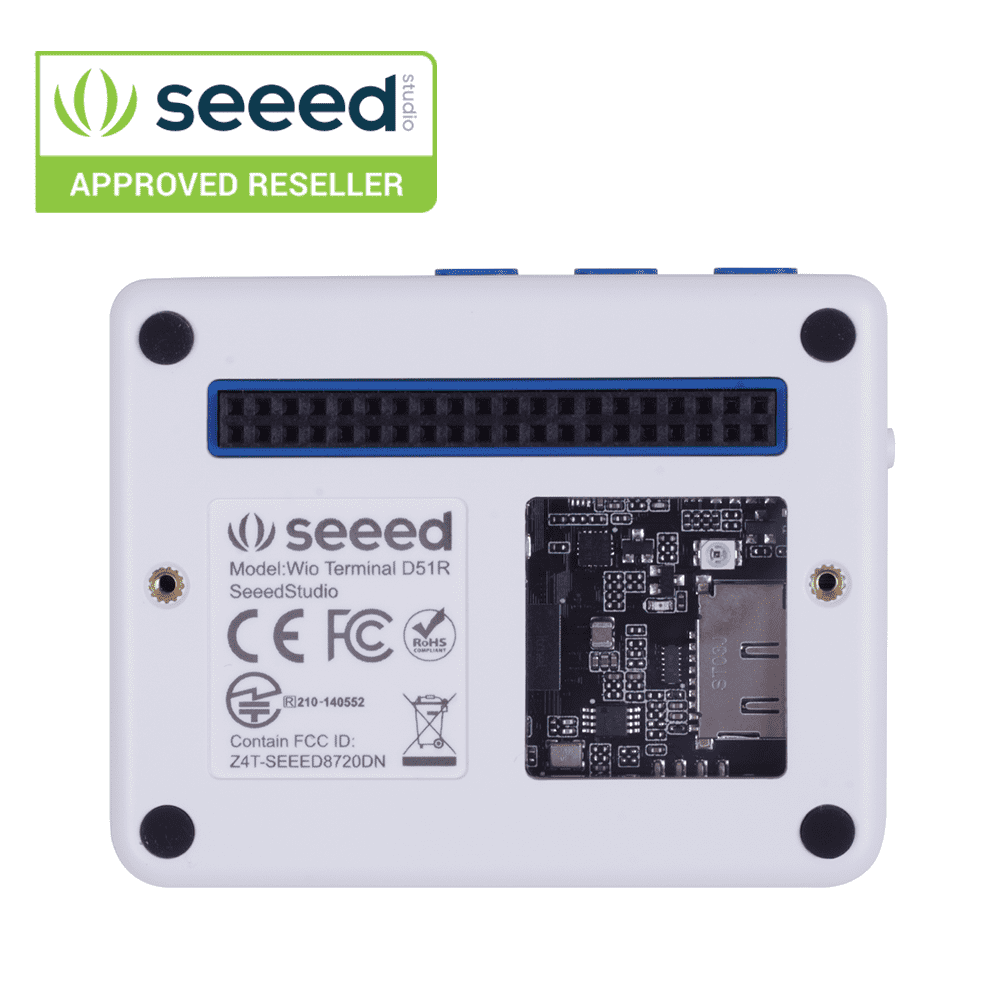

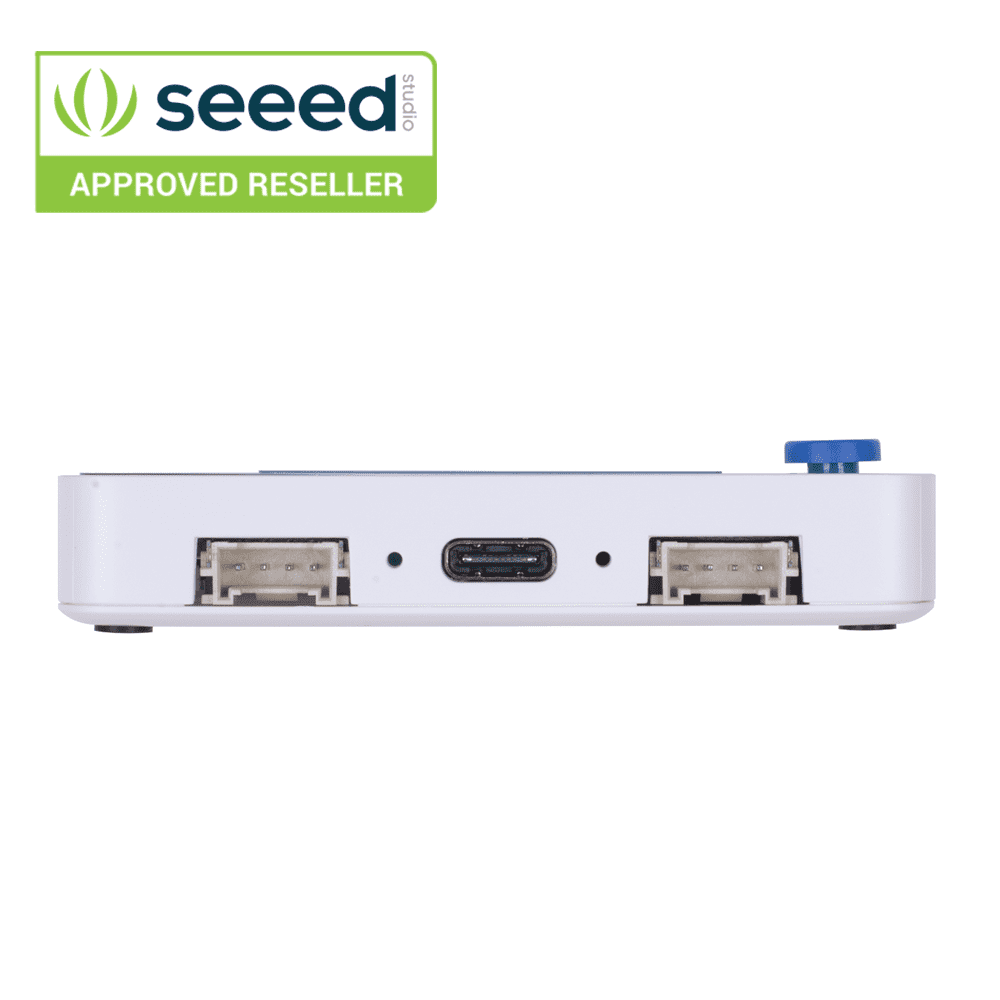

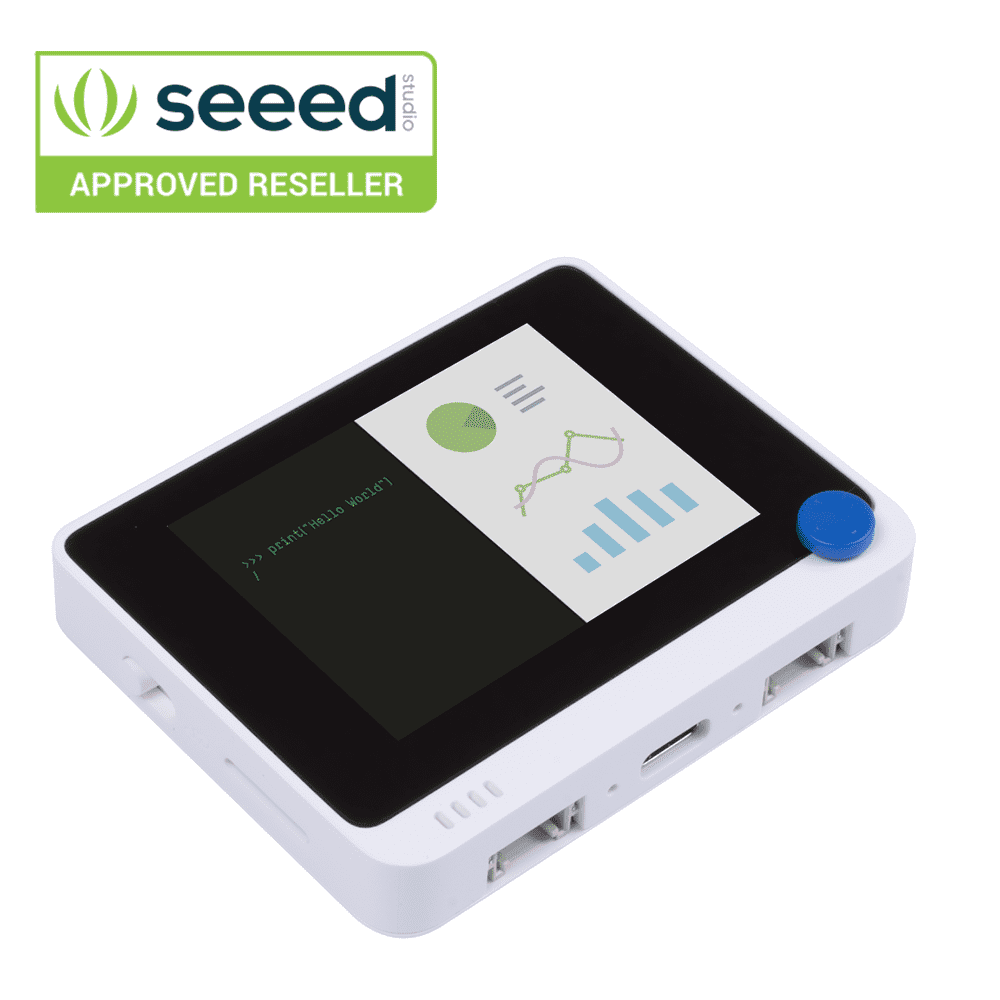

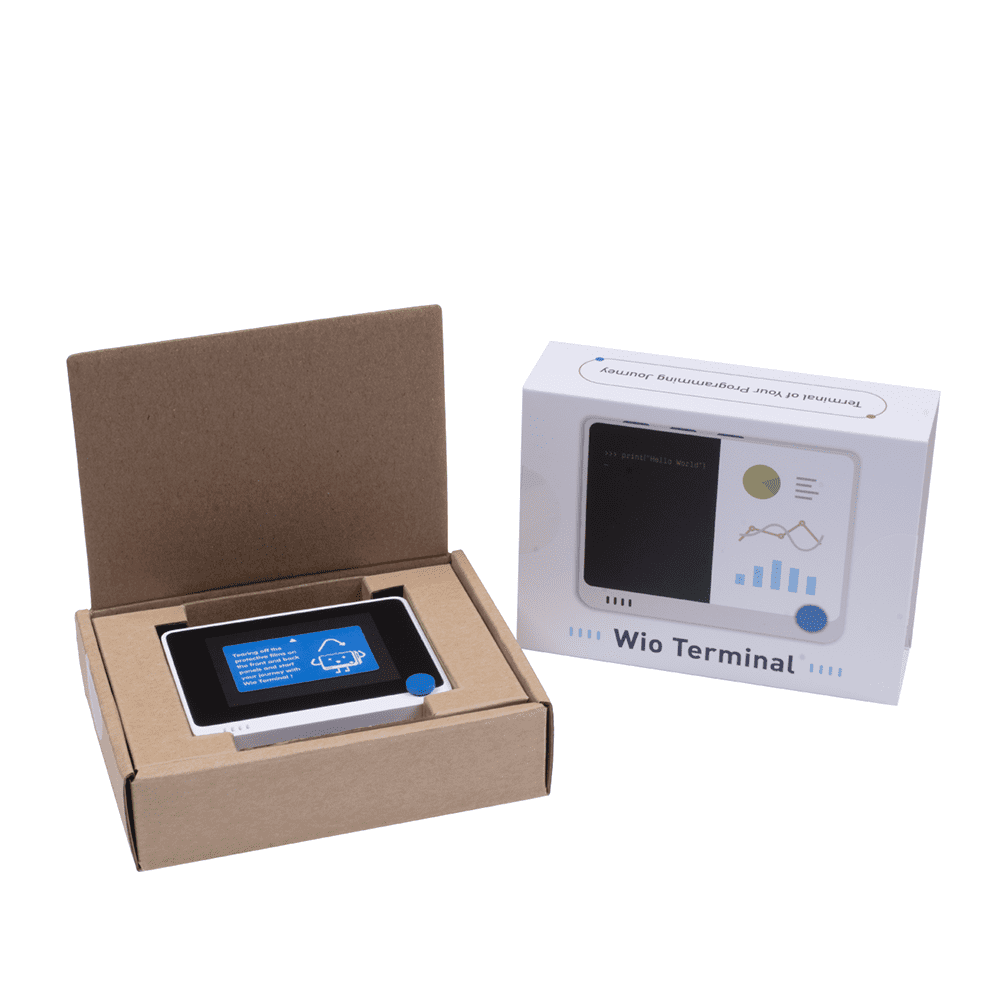

Wio Terminal Development Board ATSAMD51 Core with Realtek RTL8720DN Wio Terminal is an ATSAMD51-based microcontroller with wireless connectivity supported by Realtek RTL8720DN. Its CPU speed runs at 120MHz (Boost up to 200MHz). Realtek RTL8720DN chip supports both Bluetooth and Wi-Fi providing the backbone for IoT projects. Wio Terminal is more of a complete system equipped with a Screen + Development Board + Input/Output Interface + Enclosure, making it an efficient and Product-Ready Product. The Wio Terminal itself is equipped with a 2.4” LCD Screen, onboard IMU(LIS3DHTR), microphone, buzzer, microSD card slot, light sensor, and infrared emitter(IR 940nm). With Wio Terminal, you can: Sense and tag the Real-World data with over 300 Groves created by Seeed Use a 100% open-source Hardware in a pythonic way Build your program interpreter starting from 90% with LCD screen and compact enclosure Features All-in-one development board Equipped with an ATSAMD51-based microcontroller Wireless connectivity supported by Realtek RTL8720DN Compatible with Arduino and MicroPython 2.4'' LCD screen Onboard IMU, microphone, buzzer, microSD card slot, light sensor, and built-in magnets It can be used for various projects and interfacing with the real world Works with the standard Arduino IDE to develop applications Versatile board for DIY IoT projects, education, and more

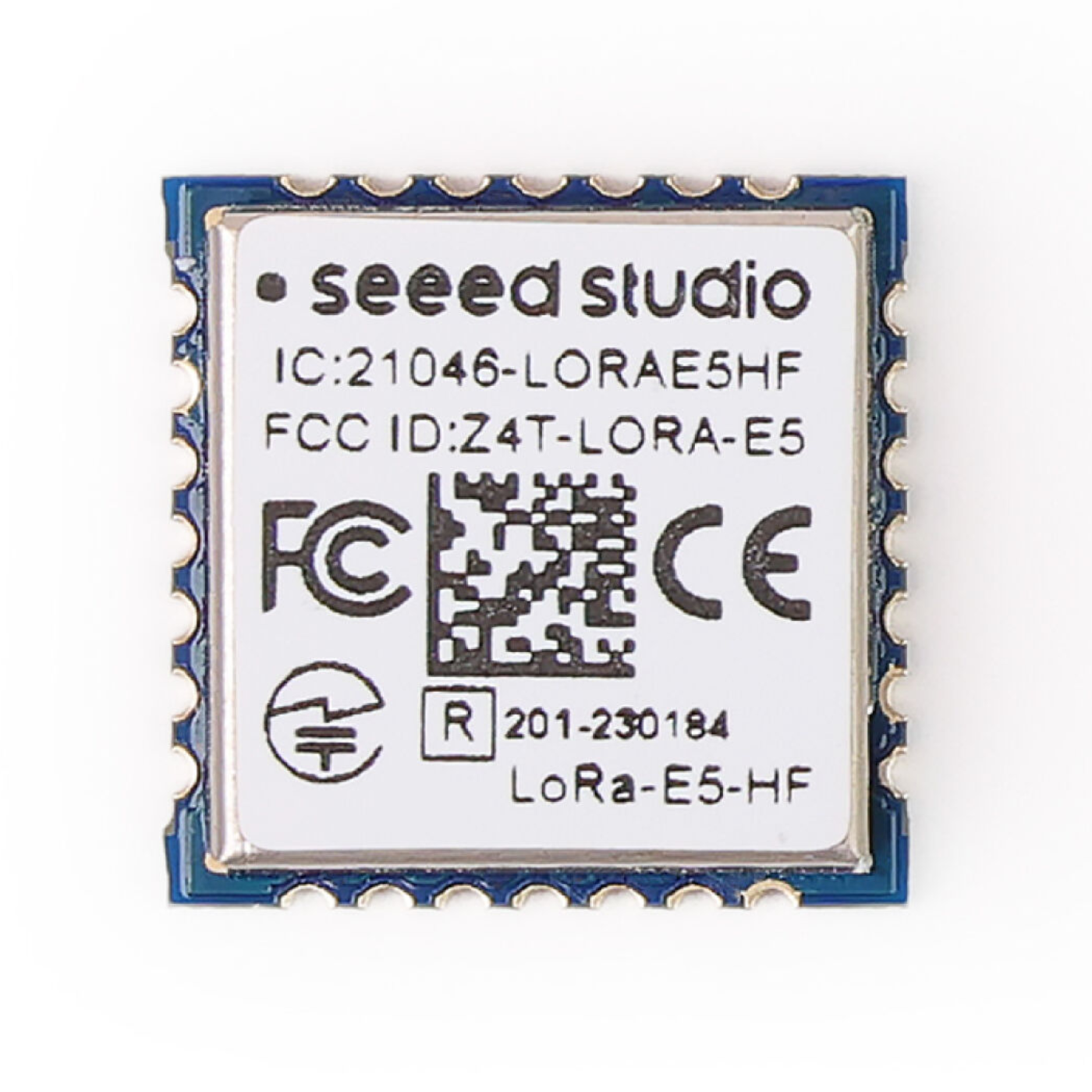

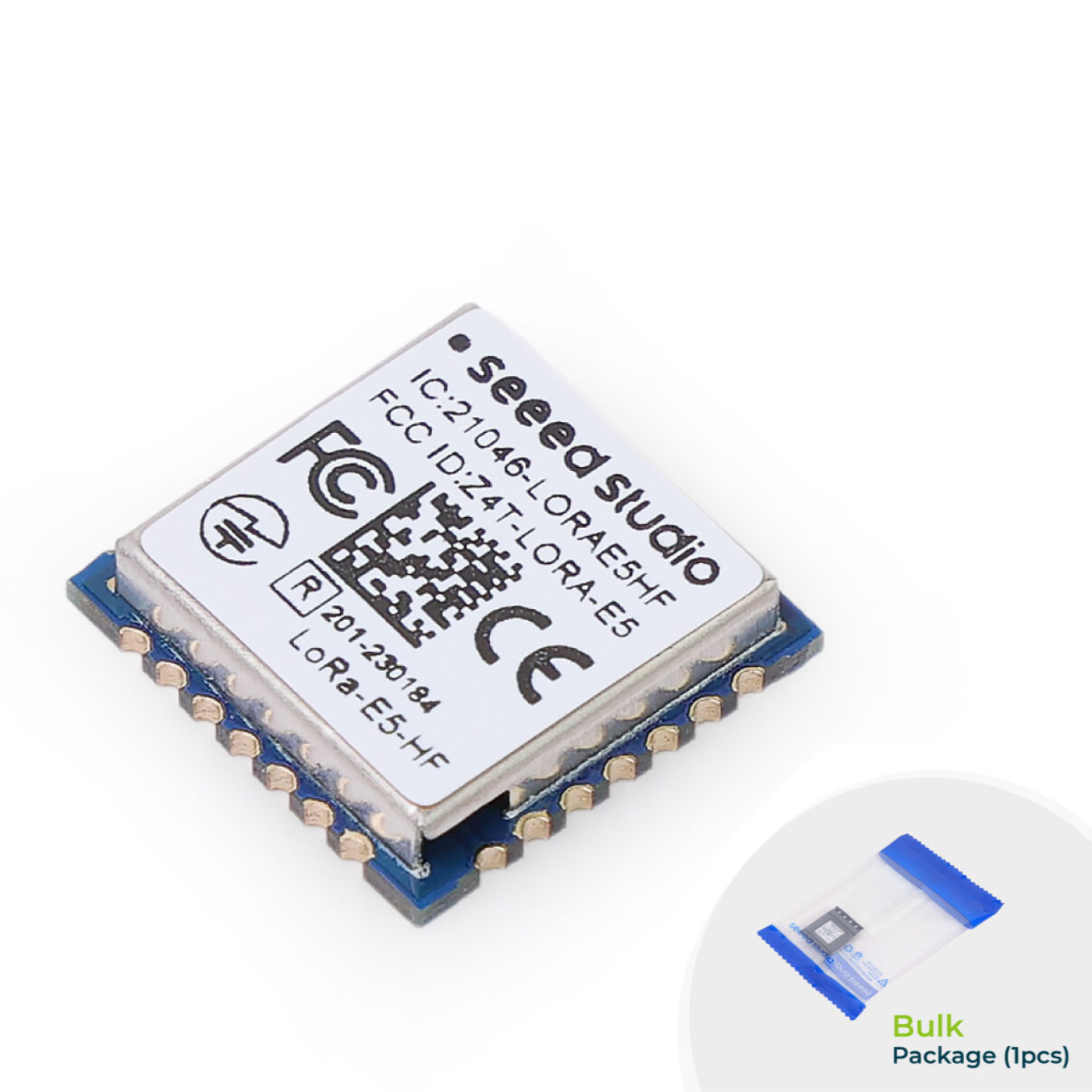

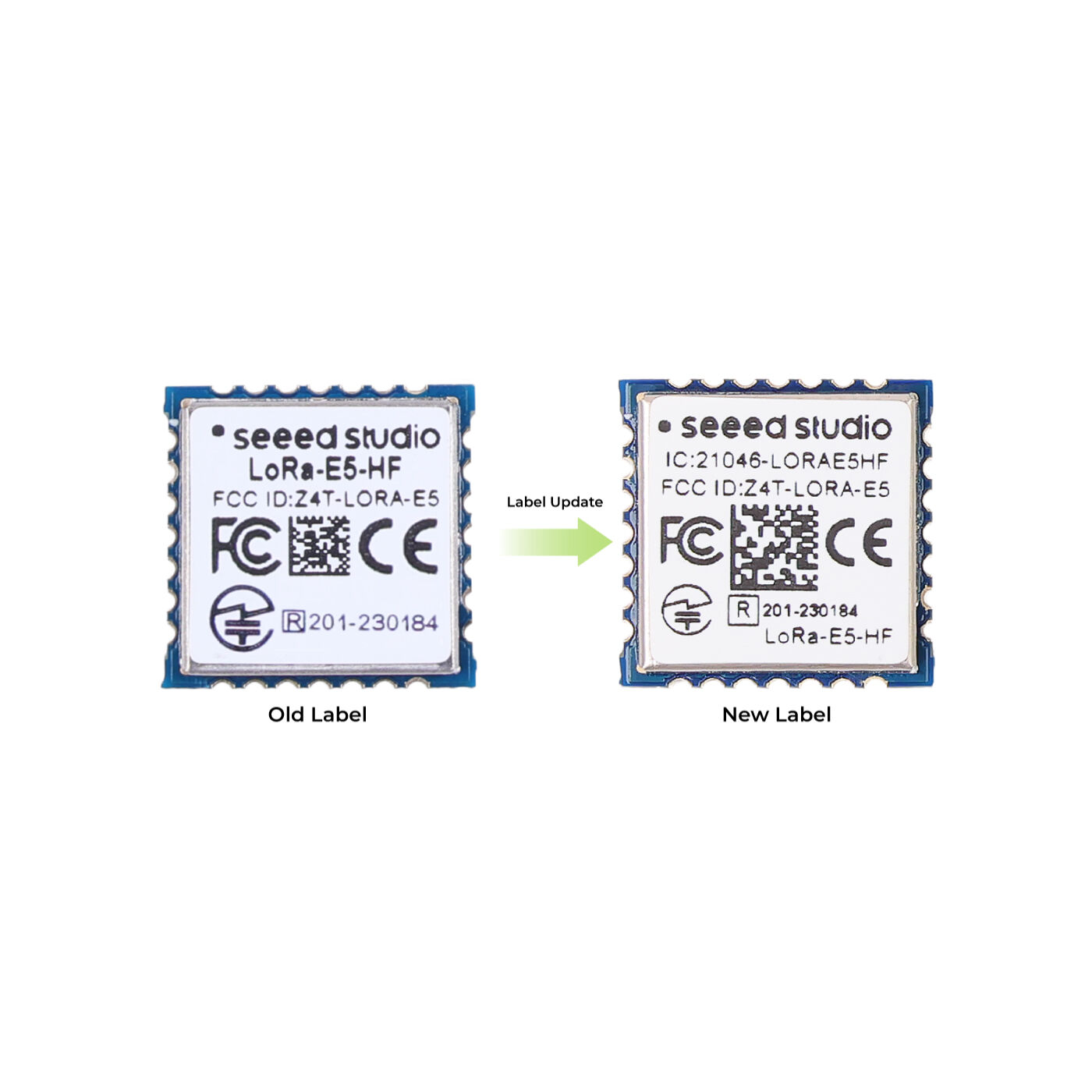

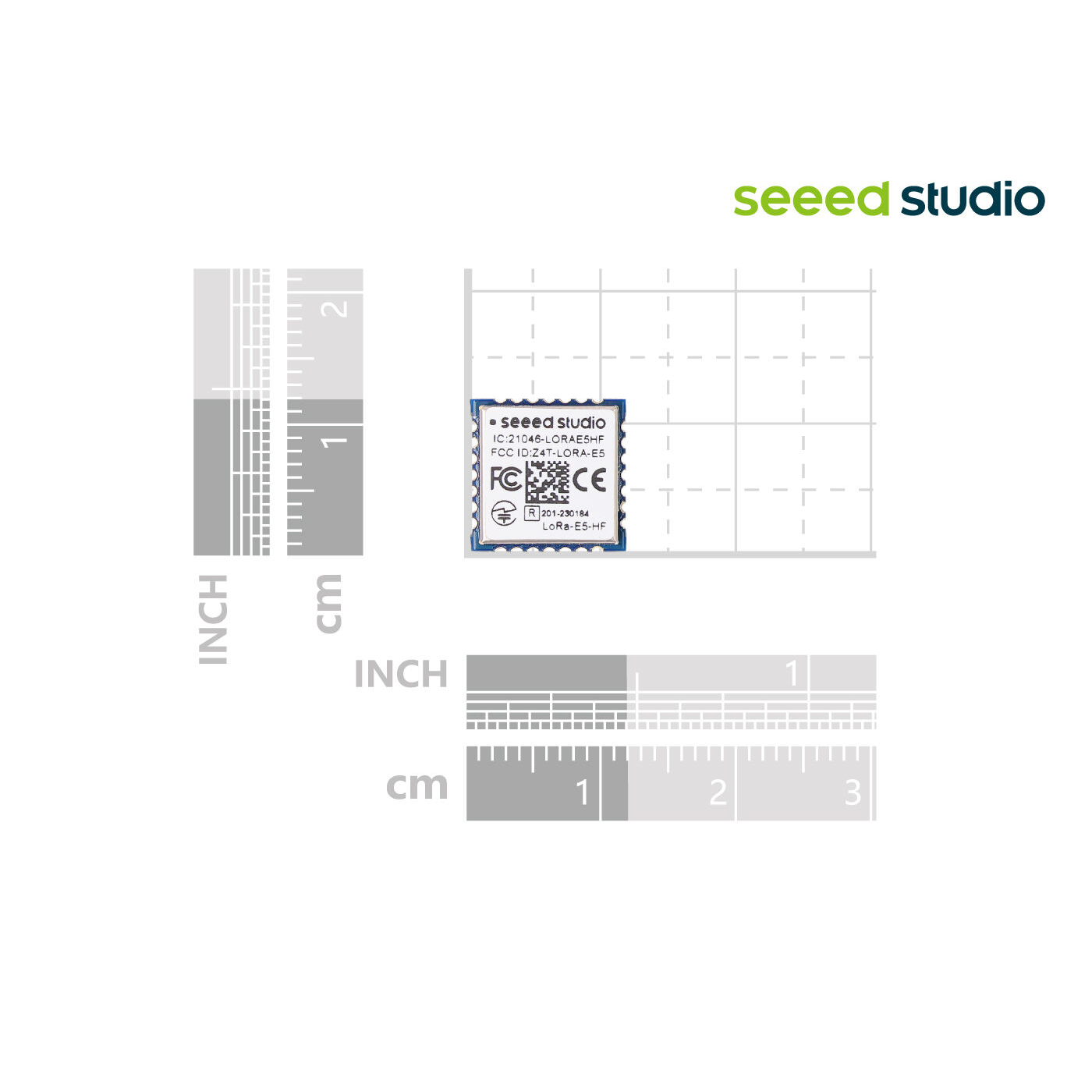

Wio-E5 LoRa Wireless Module (STM32WLE5JC) – ARM Cortex-M4 MCU with SX126x Transceiver, LoRaWAN Support for EU868 & US915 -Seeed Studio The Wio-E5 LoRa wireless module (STM32WLE5JC) is a powerful and compact long-range communication solution designed with a Stamp Hole form factor for easy integration into your device’s mainboard. Featuring the ARM Cortex-M4 MCU with SX126x LoRa transceiver, it supports multiple global frequency plans (EU868, US915, AU915, AS923, KR920, IN865) and is fully compatible with LoRaWAN® Class A/B/C protocols, making it suitable for diverse IoT applications. Its pre-certified design also ensures faster time-to-market while reducing certification costs. With built-in AT command firmware, the Wio-E5 allows beginners to prototype or deploy applications quickly using simple commands. At the same time, advanced developers can take advantage of the SDK to build fully customized solutions. Combining high performance, global compatibility, and ease of use, the Wio-E5 makes deploying reliable, scalable IoT systems more efficient than ever. Features: High performance communication with up to 22dBm transmit power at 868/915MHz and -136.5dBm sensitivity (SF12, 125KHz BW). Long-distance capability supported by a 158dB link budget for extended coverage. Global frequency support with embedded LoRa protocol, compatible with worldwide frequency plans. Flexible peripheral interfaces, including UART, I2C, and ADC for easy expansion and integration. Developer-friendly design featuring built-in AT command firmware and SDK support for custom product development. Pre-certified module with FCC, CE, IC, Telec, WPC, and RCM certifications for faster deployment and compliance.

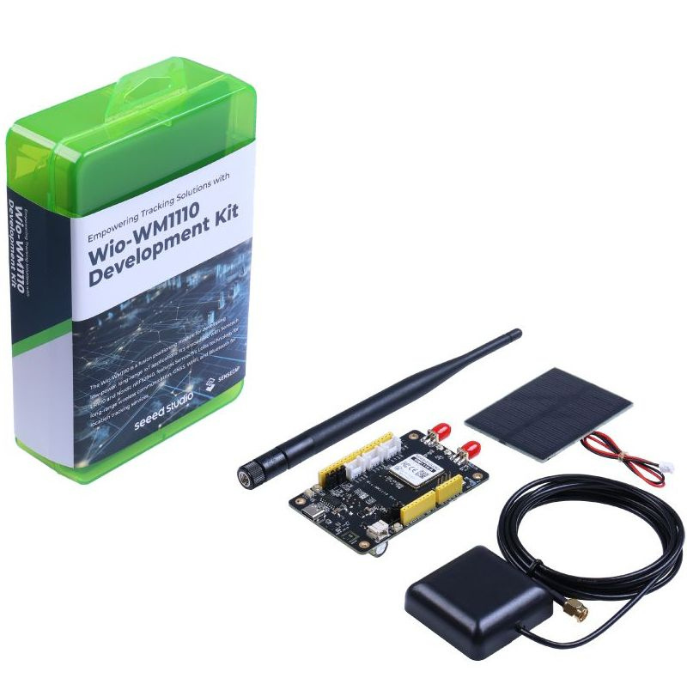

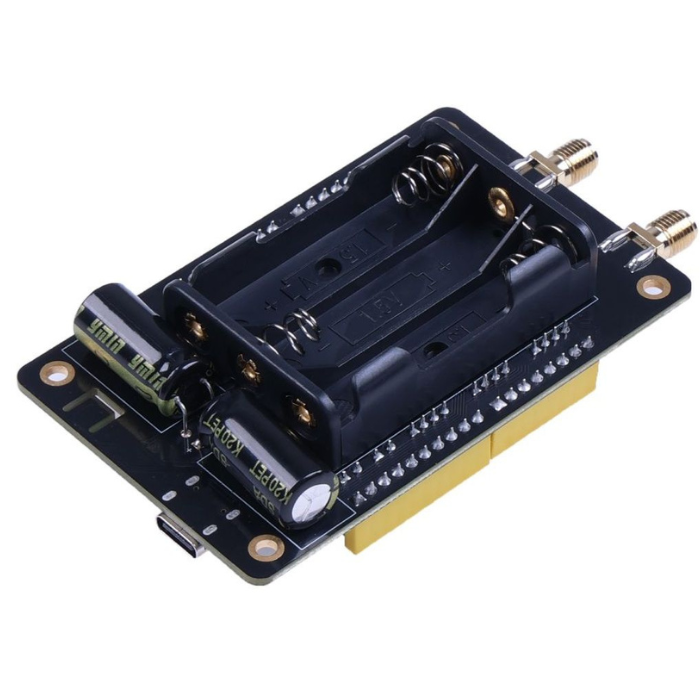

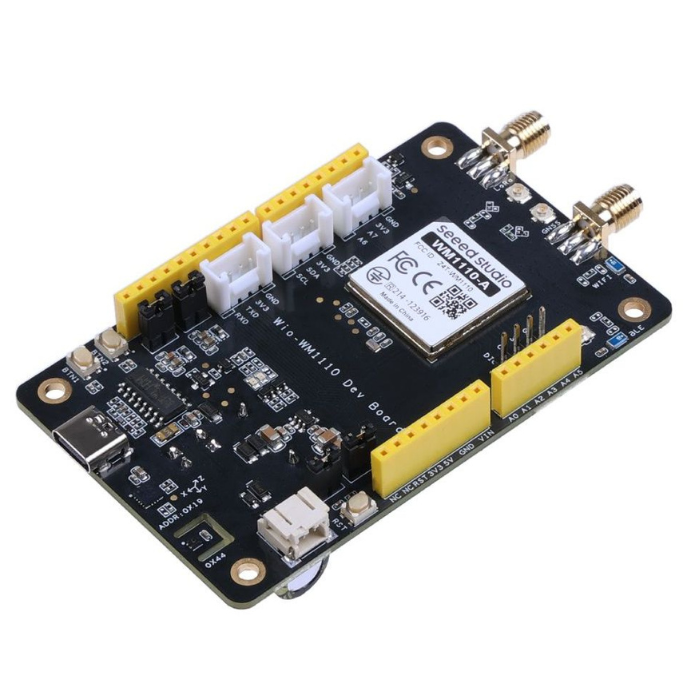

Wio-WM1110 Dev Kit, built-in Semtech LR1110 and Nordic nRF52840 The Seeed Studio Wio-WM1110 Dev Kit is the ultimate solution for your IoT projects, offering long-range communication, precise location tracking, and versatile customization options. With features like LoRa® technology, GNSS, and an extensive Grove-compatible interface, this dev kit empowers developers to create innovative solutions. The integration of sensors and multiple power supply modes ensures adaptability to diverse environmental conditions. Whether you're a seasoned developer or just starting, Wio-WM1110 provides the tools and capabilities you need. This dev kit guarantees top-notch quality and durability. Its open-source nature and compatibility with popular protocols make it an ideal choice for IoT enthusiasts and professionals alike. Note : Wio-WM1110 module has been perfectly applied to SenseCAP T1000 , SenseCAP T1000 is a LoRaWAN® card size tracker for seamless indoor & outdoor positioning. It boasts months of battery life and is equipped with temperature, light, and motion sensors, making it ideal for a variety of location-based applications. Features: Low-Power High-Sensitivity LoRa/(G)FSK Half-Duplex RF Transceiver: Frequency bands support in the range 863- 928MHz Multi-Purpose Radio Front-End for Geolocation: GNSS (GPS/ BeiDou)?Wi-Fi?Bluetooth Rich GPIOs and Compatible with Grove: Over 400 Grove-compatible for flexible expansion options. Open Source Platform: Leverage the extensive LR1110 and nRF52840 open-source ecosystem for infinite application possibilities. Built-in Sensors and Multiple Power Supply Modes: Temp&Humidity sensor and 3-Axis accelerometer, support both solar power and battery-powered. Applications: Long-Range Communication: Enables reliable wireless communication with Semtech's LoRa® technology, covering distances of up to 10km. Precise Location Tracking: Offers both outdoor and indoor positioning accuracy through integrated GNSS (GPS/BeiDou) and Wi-Fi scanning. Extensive Expansion Options: Provides over 400 Grove-compatible interfaces for customizable and flexible project applications. Open Source Platform: Allows for limitless application possibilities by leveraging the LR1110 and nRF52840 open-source ecosystem. Built-in Sensors: Facilitates comprehensive environmental data collection with temperature, humidity, and 3-axis accelerometer sensors. Power Flexibility: Supports both solar and battery power deployment, enhancing adaptability to diverse environmental conditions.

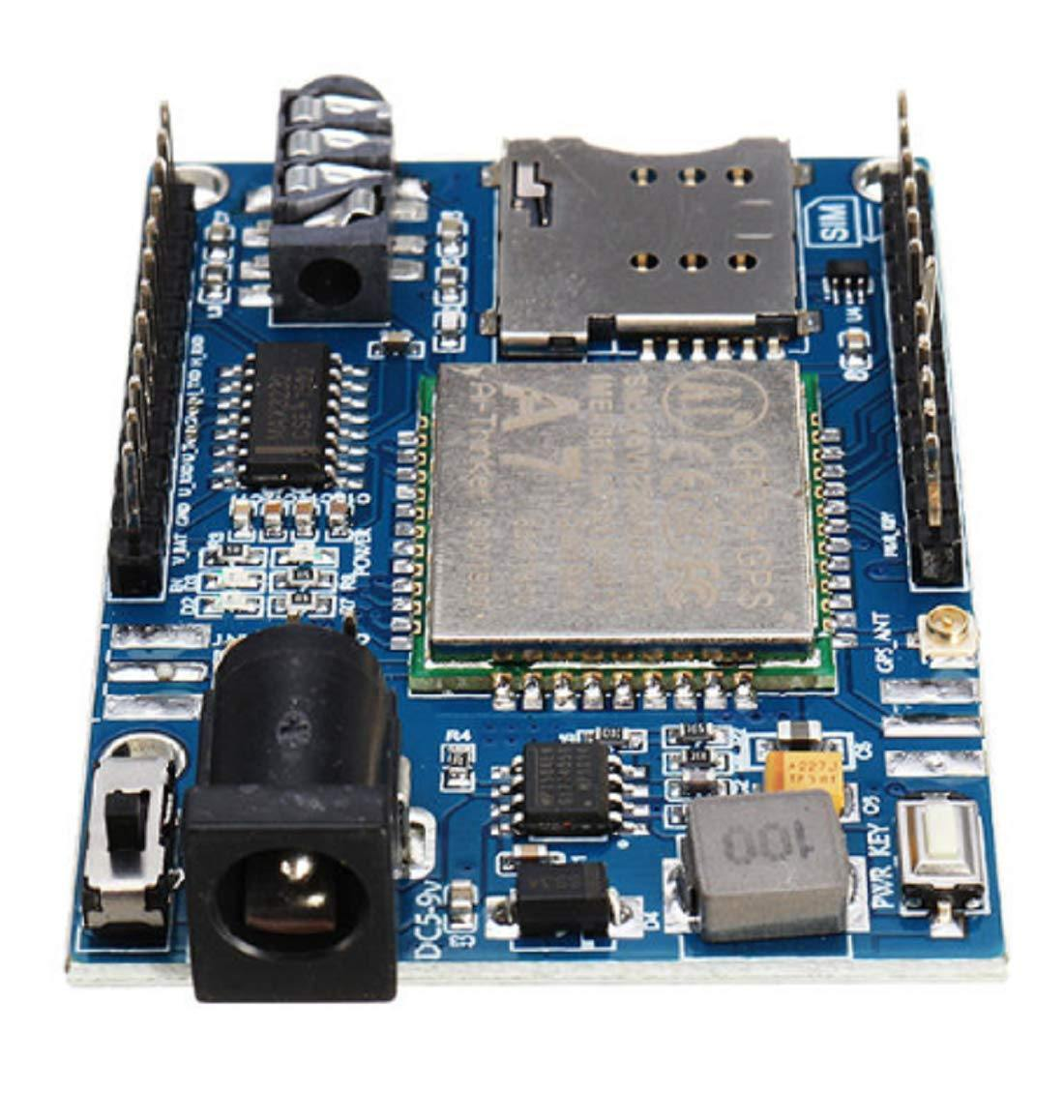

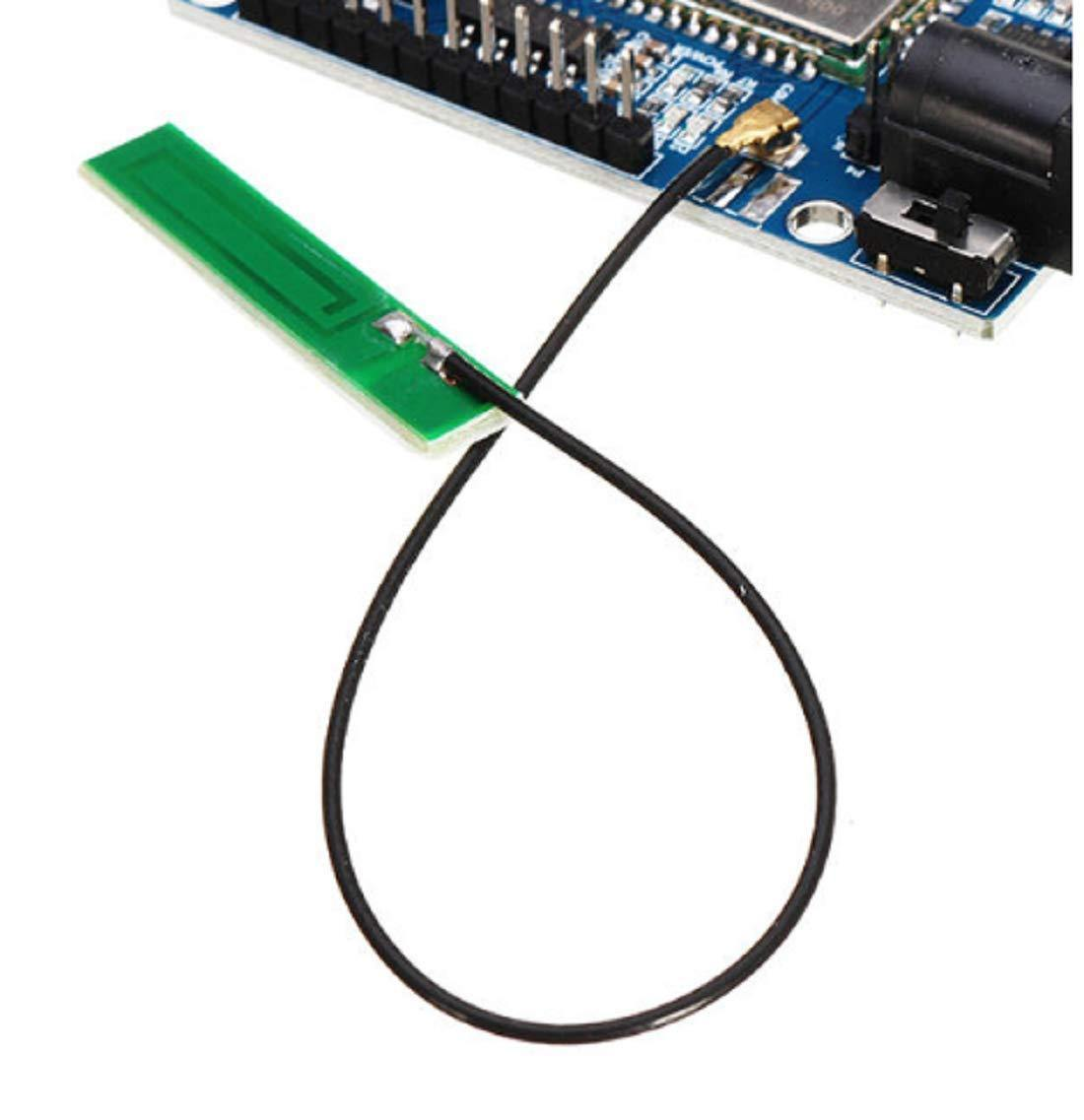

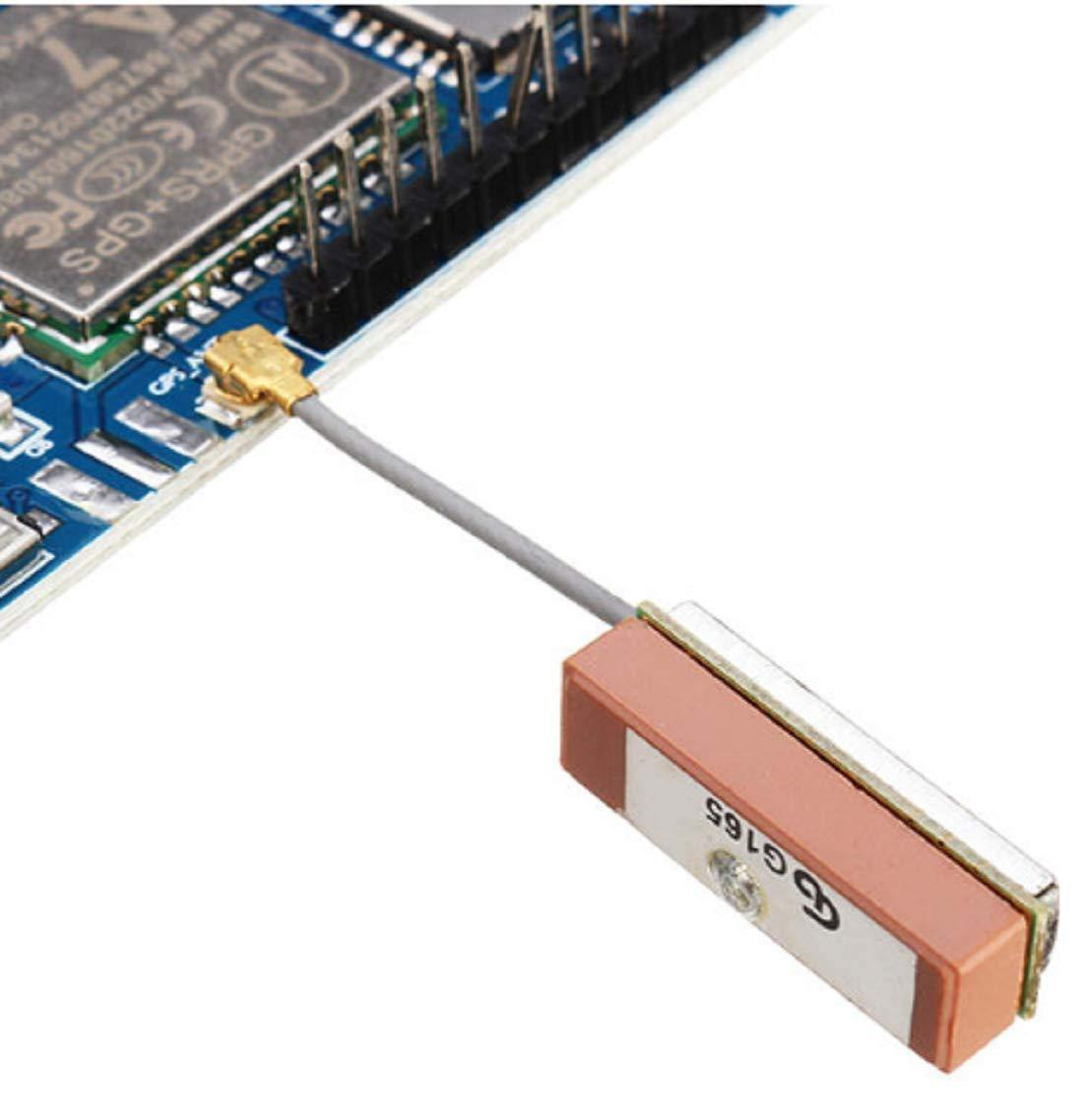

Wireless Module A7 GSM GPRS GPS This is a development board for serial GSM/GPS functionality, based on AI-Thinker's A7 module. It is designed to support dual-band GSM/GPRS networks, enabling remote transmission of GPRS and SMS message data. The A7 module is equipped with GSM/GPRS/GPS features, allowing it to operate on GSM/GPRS Quad-Band (850/900/1800/1900) networks. It supports voice calls, SMS messaging, GPRS data service, and GPS functionality. With this module, it is possible to create a basic phone. The module is controlled via UART using AT commands and supports logic levels of DC5-9V. Features: Support the GSM / GPRS four bands, including 850,900,1800,1900MHZ Support China Mobile and China Unicom’s 2G GSM network worldwide GPRS Class 10 Support voice calls Support SMS text messaging Support GPRS data traffic, the maximum data rate, download 85.6Kbps, upload 42.8Kbps Supports standard GSM 07.07,07.05 AT commands and extended commands Ai-Thinker Support GPS and AGPS Supports two serial ports, a serial port to download an AT command port AT command supports the standard AT and TCP / IP command interface Support digital audio and analog audio support for HR, FR, EFR, AMR speech coding Support ROHS, FCC, CE, CTA certification

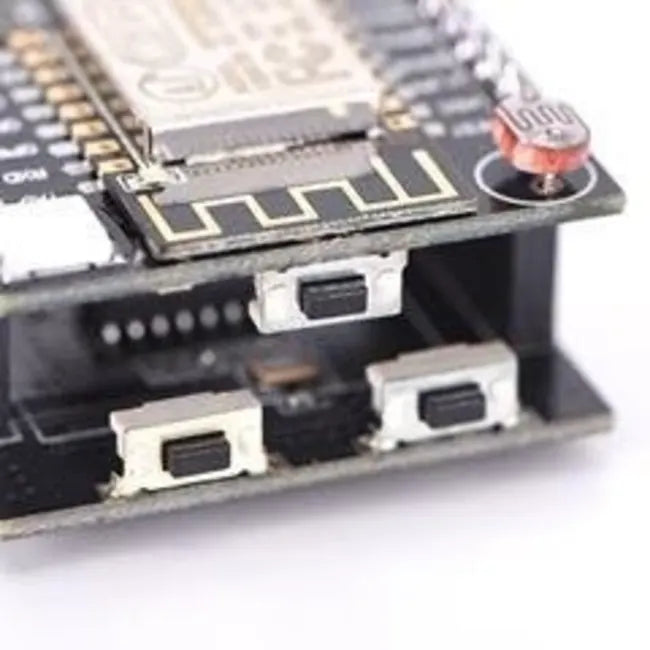

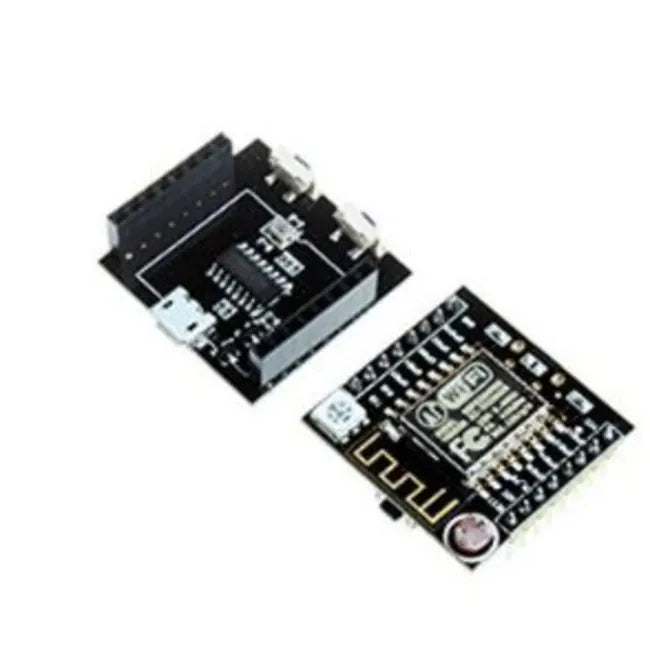

Witty Cloud ESP12F ESP8266 Serial WiFi Development Board (Mini Node MCU Module) The ESP8266/ ESP-12F Module/ Serial WIFI Witty Cloud Development Board + MINI nodeMCU is a cheap and small Wifi transceiver, a perfect solution for Home Automation and IoT applications. It can be the replacement for your NRF24L01, it can talk to your Wifi router directly through the UART MCUs (Rx, Tx). The upper board is the main board which consists of an ESP-12F module where the ESP8266 Wi-Fi microcontroller is located, an RGB LED, an LDR, a button, a micro USB port, and a 3.3V voltage regulator. The lower board mounts the CH340G USB-to-UART module that allows connection with a computer to the ESP8266 for programming the flash or for seeing debug messages. There are other two buttons RST (reset) and FLASH, and a micro USB port. It has an LDR and a WS2812 LED already on board for your projects. The esp board comes with a CH40 micro USB module to program it. The system equips ESP8266 and its features are: energy-saving VoIP quickly switch between the sleep/wake patterns, with low-power operation adaptive radio bias, and front-end signal processing functions. Witty Cloud ESP12F Module Circuit Diagram: ESP8266 Serial WiFi Witty Cloud Circuit Diagram Applications: Home Automation. IoT Devices.

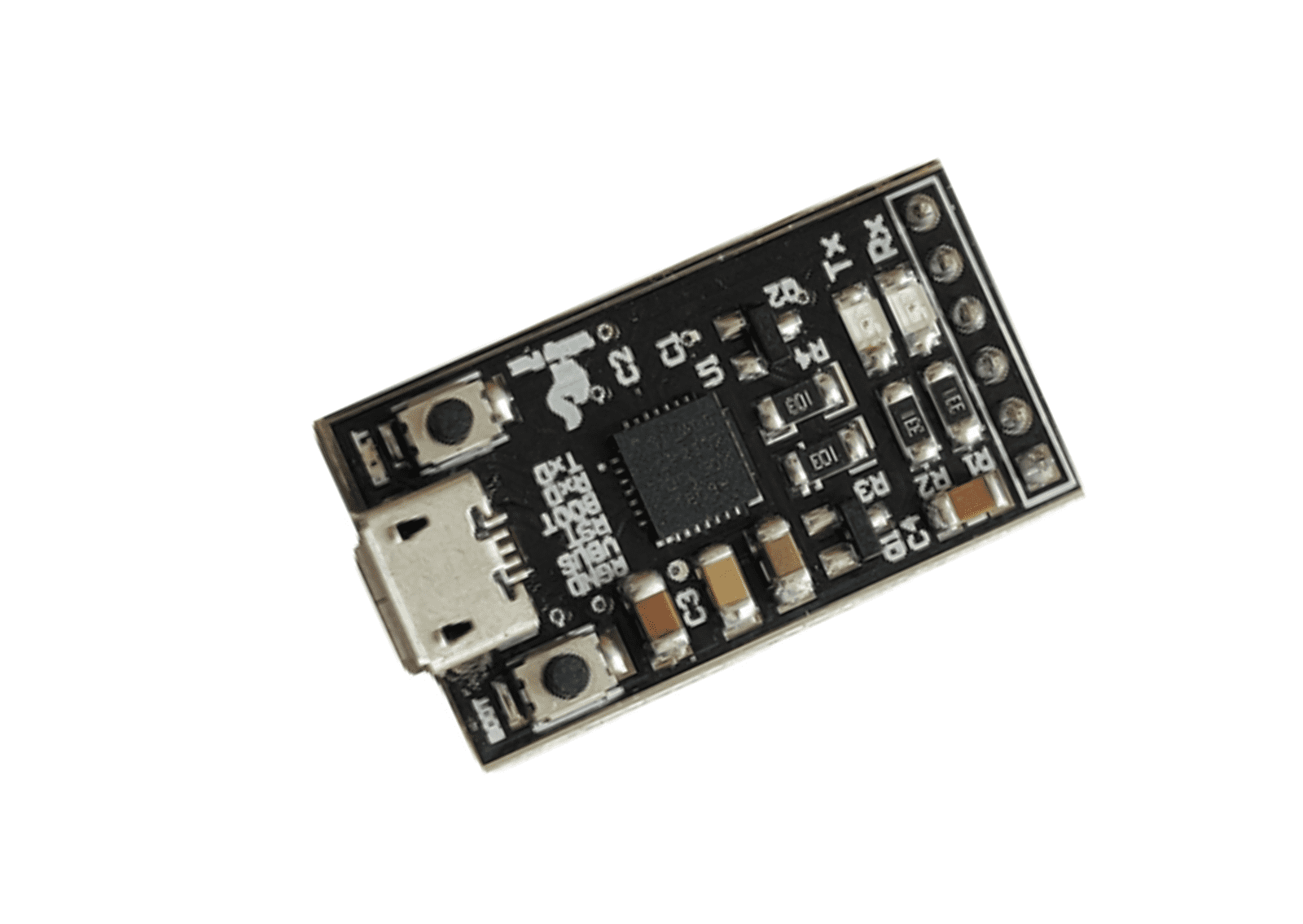

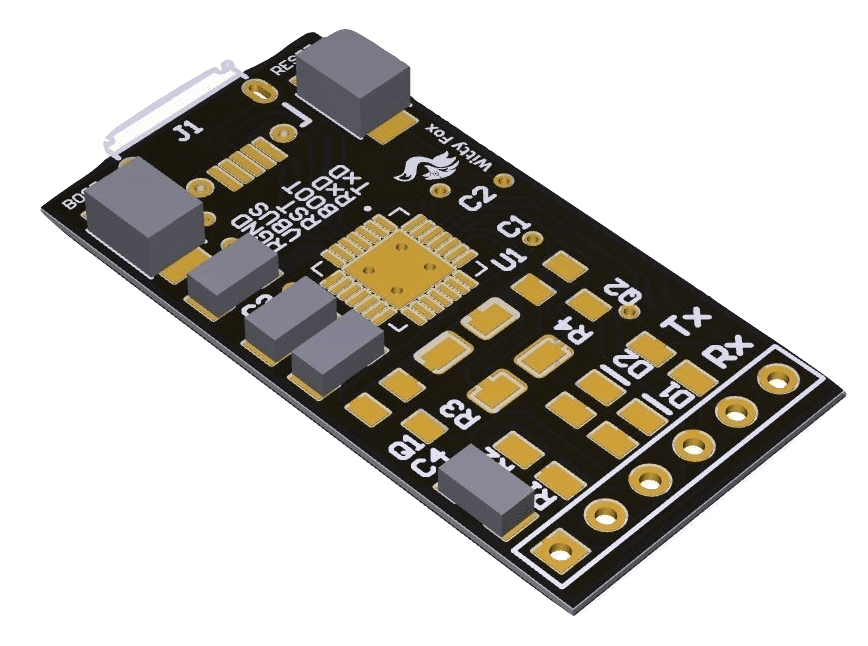

Witty Fox - ESP Programmer WittyFox ESP Programmer is a more convenient CP2102-based USB to UART converter with a built-in ESP reset circuit. It makes programming and debugging ESP series boards easier and more straightforward as the pin connections are 1:1 and can be directly connected to the ESP circuit. It also features a micro USB instead of a USB type A connector for flexibility. The Witty Fox ESP programmer allows developers to write code for the ESP microcontroller and upload it onto the device. This can be done using a variety of programming languages, such as C++, Python, and JavaScript. The ESP programmer typically connects to the microcontroller via a USB port or a set of pins, depending on the specific model of the ESP chip being used. Supported operating systems: Windows 98/Me/2000/7 MAC OS-9 MAC OS X-Windows CE Linux 2.40 or later Applications: Programming ESP8266/ESP32 Boards. Debugging and Testing. DIY Electronics.

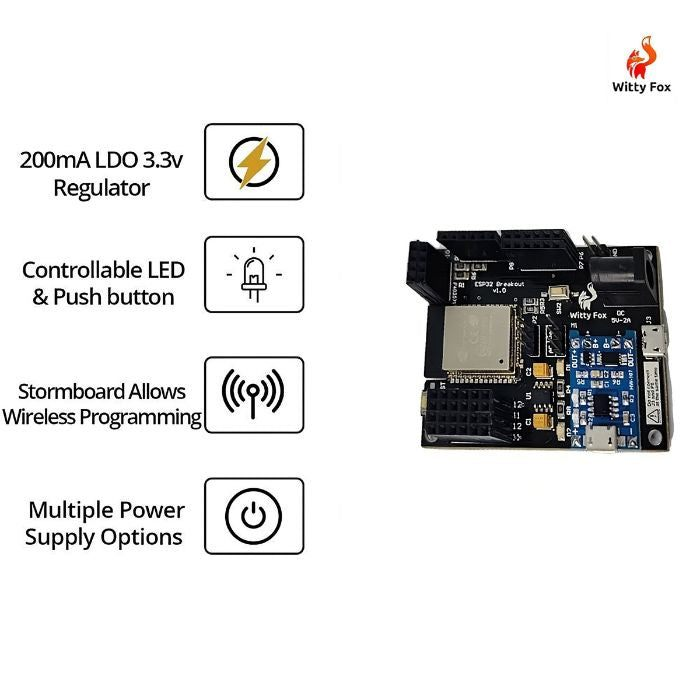

Witty Fox - ESP32 Storm Board The Witty Fox ESP32 Storm board is an easy-to-use prototyping board developed specially keeping IoT Applications in mind. It allows users to upload their program wirelessly (OTA) by default or connect to the laptop using Witty Fox ESP Programmer. Mostly all usable GPIO breakouts of ESP32 are neatly organized with power pins to aid the user in quick prototyping. It also has multiple breakouts for both SPI and I2C interfaces, as well as a dedicated breakout for the PIR sensor. If want you can make NFC based security door lock and for that you will need a few essential components like: Witty Fox NFC board 12V Solenoid lock 5V relay module Jumper Wires 5V micro USB Power adapter 12V Power adapter The in-built battery charging and protection board can be easily replaced by the user in case of any damage to the product caused during prototyping. It features a low dropout on-board linear regulator by Microchip Technology[TM] for operation with Li-Ion batteries. The board comes along with a 1000mAh Lithium-ion battery. read more : Advantages of Development Boards Video Tutorial of Witty Fox - ESP32 Storm Board: Over The Air (OTA) | Wirelessly Program Witty Fox ESP32 Storm Board using Arduino IDE

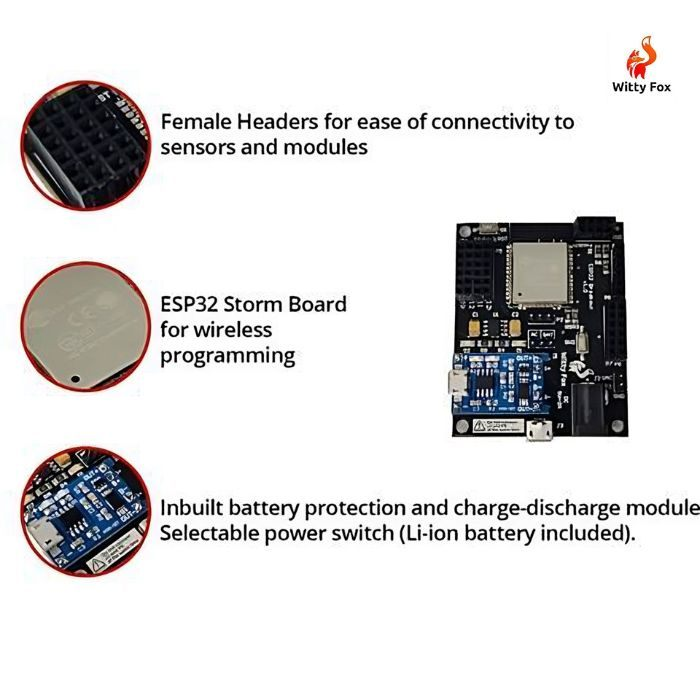

Witty Fox - ESP32 Storm Board The WittyFox ESP32 Storm board is easy to use prototyping board developed specially keeping IoT Applications in mind. It allows users to upload their program wirelessly (OTA) by default or connect to the laptop using Witty Fox ESP Programmer. Mostly all usable GPIO breakouts of ESP 32 are neatly organized with power pins to aid the user in quick prototyping. If want you can make NFC based security door lock and for that you will need a few essential components like: Witty Fox NFC board 1000mAh Li-ion battery 12V Solenoid lock 5V relay module Jumper Wires 5V micro USB Power adapter 12V Power adapter It also has multiple breakouts for both SPI and I2C interfaces, as well as a dedicated breakout for the PIR sensor. The in-built battery charging and protection board can be easily replaced by the user in case of any damage to the product caused during prototyping. It features a low dropout on-board linear regulator by Microchip Technology[TM] for operation with Li-Ion batteries. (Battery not included). Video Tutorial for Witty Fox - ESP32 Storm Board Over the Air (OTA) Wireless programming Applications: Programmable Logic Controllers (PLCs) Wearable health monitors HVAC and thermostats Including surveillance cameras Smart locks

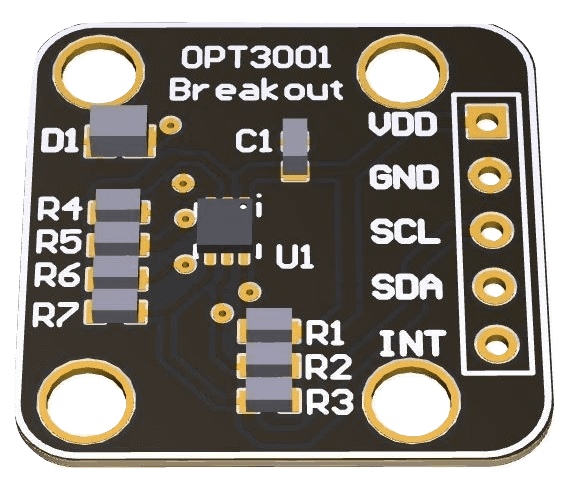

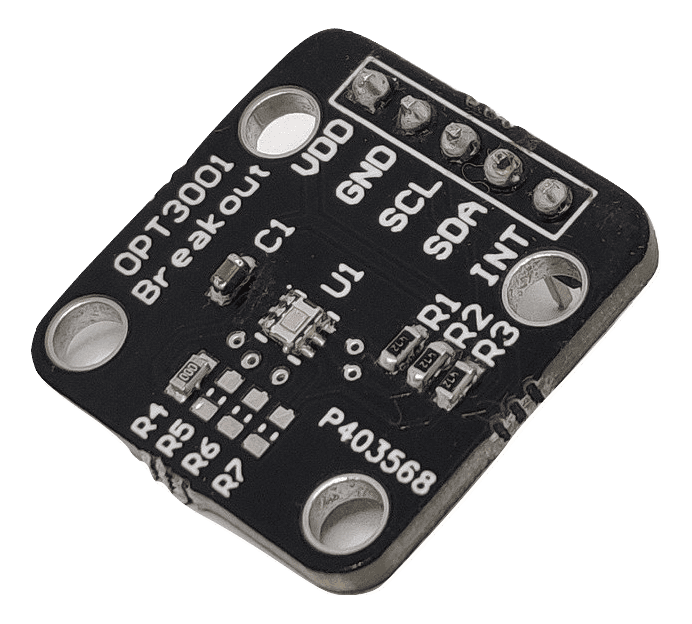

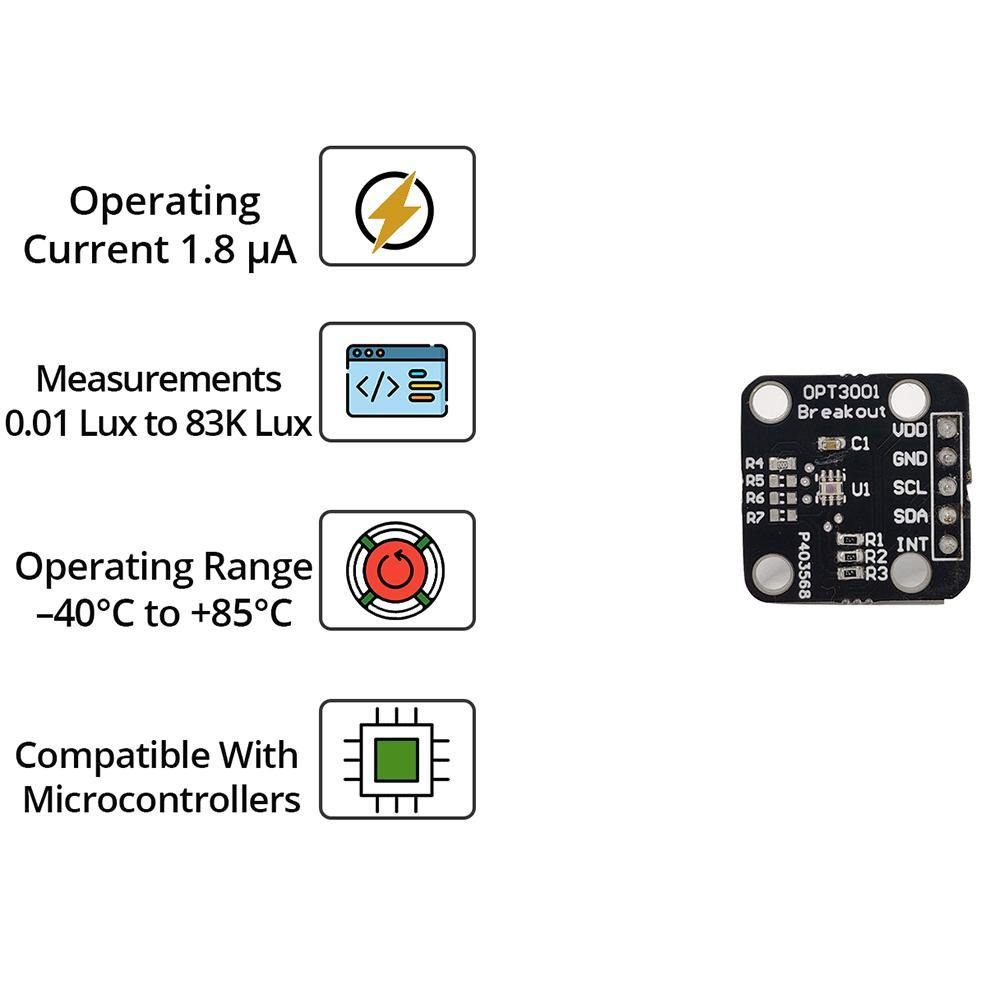

Witty Fox - OPT3001 Digital Ambient Light Sensor OPT3001 Digital Ambient Light Sensor is a single-chip lux meter that measures the intensity of light as visible by the human eye. Measurements can be made from 0.01 lux up to 83k lux without manually selecting full-scale ranges by using the built-in, full-scale setting feature. This capability allows light measurement over a 23-bit effective dynamic range. The OPT3001 is a sensor that measures the intensity of visible light. The spectral response of the sensor tightly matches the photopic response of the human eye and includes significant infrared rejection. The precision spectral response and strong IR rejection of the device enable the OPT3001 Light Sensor to accurately meter the intensity of light as seen by the human eye regardless of the light source. The strong IR rejection also aids in maintaining high accuracy when the industrial design calls for mounting the sensor under dark glass for aesthetics. The OPT3001 is designed for systems that create light-based experiences for humans and is an ideal preferred replacement for photodiodes, photoresistors, or other ambient light sensors with less human eye matching and IR rejection. Check out the entire range of Witty Fox Products at Iotcart. Applications: Display Backlight Controls Lighting Control Systems Tablet and Notebook Computers Thermostats and Home Automation Appliances Point-of-Sale Terminals Outdoor Traffic and Street Lights Cameras

Witty Fox - SI7021 Humidity Temperature Sensor Breakout Board Witty Fox Si7021 humidity temperature sensor offers better accuracy and a wider range for temperature and humidity readings, as compared to DHT11 and DHT22. It also comes in a significantly smaller r size as compared to the former 2 sensors. The Si7021 has ±0.4 °C temperature accuracy at a range of -10 to +85 °C± and 3% relative humidity measurements with a range of 0–80% RH. This sensor is perfect for environmental monitoring projects and uses the I2C interface for data transfer which makes it compatible with the majority of available microcontrollers. The Si7021 temperature and humidity sensor offer an accurate, low-power, factory-calibrated digital solution ideal for measuring humidity, dew-point, and temperature, in applications ranging from HVAC/R and asset tracking to industrial and consumer platforms. e. It can be used as hardware and software-compatible drop-in upgrades for existing RH/ temperature sensors. Check out the entire range of Witty Fox Products on robocraze. Video Tutorial of Witty Fox - SI7021 Sensor: Wireless Data logging humidity-temperature readings with Witty Fox Si7021 & ESP32 Applications: HVAC/R Thermostats/humidistats Respiratory therapy Indoor weather stations Micro-environments/data centers Automotive climate control and defogging Asset and goods tracking Mobile phones and tablets
