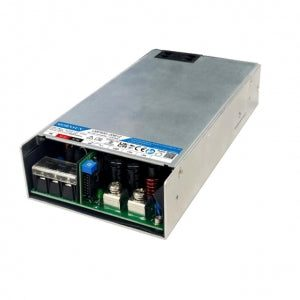

Mornsun LMF600-20B12 AC/DC 600W Enclosed Switching Power Supply The LMF600-20B12 is an enclosed AC-DC switching power supply from Mornsun. It features a universal AC input of 80-277VAC or 110-390VDC, a single output of 12V at 50A, and an efficiency of up to 92%. The LMF600-20B12 is also equipped with double or reinforced insulation for safety, and it meets a variety of safety standards, including IEC/EN/UL62368, EN60335, EN61558, IEC/EN60601, and GB4943.

Mornsun LMF600-20B15 AC/DC 600W Enclosed Switching Power Supply The LMF600-20B15 is a 600 watt, 15 volt, 40 amp enclosed AC-DC switching power supply from Mornsun. It features a universal input voltage of 80 to 277 VAC or 110 to 390 VDC, high efficiency up to 92%, low no load power consumption, high reliability, double or reinforced insulation, and excellent EMC performance. It meets IEC/EN/UL62368, EN60335, EN61558, IEC/EN60601, GB4943 standards.

Mornsun LMF600-20B24 AC/DC 600W Enclosed Switching Power Supply The LMF600-20B24 is a 600W enclosed AC/DC switching power supply from Mornsun. It features a universal AC input voltage of 80-277VAC or 110-390VDC, a single output voltage of 24VDC, and a maximum output current of 25A. The power supply also has a power factor correction (PFC) function, which helps to improve the efficiency of the power supply and reduce the amount of harmonics that are generated. The LMF600-20B24 is designed for use in a variety of applications, including industrial, medical, and security systems. It is also suitable for use in telecommunications and networking equipment. The power supply is housed in a rugged metal enclosure that protects it from the elements and provides a high level of safety.

Mornsun LMF600-20B36 AC/DC 600W Enclosed Switching Power Supply  The LMF600-20B36 is a 600W enclosed AC/DC switching power supply from Mornsun. It features a universal AC input voltage of 80-277 VAC or 110-390 VDC, a single output of 36 VDC at 16.7A, and an isolation voltage of 4000 VAC. The LMF600-20B36 is also equipped with a number of safety features, including overvoltage protection, undervoltage protection, overcurrent protection, and short-circuit protection.

Mornsun LMF600-20B48 AC/DC 600W Enclosed Switching Power Supply The LMF600-20B48 is a 600W enclosed AC/DC switching power supply from Mornsun. It features a universal AC input voltage of 80-277VAC or 110-390VDC, and a single output voltage of 48VDC at 12.6A. The power supply is also equipped with a number of features to improve its performance and reliability, including: High efficiency (up to 95%) Low no-load power consumption Double or reinforced insulation Excellent EMC performance Compliance with IEC/EN/UL62368, EN60335, EN61558, IEC/EN60601, GB4943 standards The LMF600-20B48 is a versatile power supply that can be used in a wide range of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home. Note: Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m All index testing methods in this datasheet are based on our company's corporate standards In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability The out case needs to be connected to the earth ( )of system when the terminal equipment in operating The output voltage can be adjusted by the ADJ, clockwise to increase Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment Package Includes: 1 x  Mornsun LMF600-20B48 AC/DC 600W Enclosed Switching Power Supply Specifications Power 600W Input voltage 80-277VAC or 110-390VDC Output voltage 48VDC Output current 12.6A Efficiency up to 95% No-load power consumption <0.5W

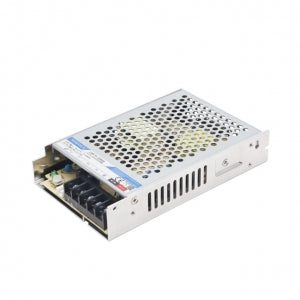

Mornsun LMF75-23B05 AC/DC 75W Enclosed Switching Power Supply The LMF75-23B05 is a 305RAC type (305VAC-input) enclosed SMPS power supply from Mornsun. It has a power output of 70W, an input voltage range of 85-305VAC, an output voltage of 5VDC, and an output current of 14A. The efficiency of the power supply is 85%, and the isolation voltage is 4000VAC. The power supply is also equipped with a number of safety features, including overvoltage protection, undervoltage protection, overcurrent protection, and short-circuit protection. Note: Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m All index testing methods in this datasheet are based on our company's corporate standards In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability The out case needs to be connected to the earth ( )of system when the terminal equipment in operating The output voltage can be adjusted by the ADJ, clockwise to increase Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment check out : Mornsun LM75-22B15 AC/DC 75W Enclosed Switching Power Supply Package Includes: 1 x  Mornsun LMF75-23B05 AC/DC 75W Enclosed Switching Power Supply Specifications Power output 70W Input voltage range 85-305VAC Output voltage 5VDC Output current 14A Efficiency 85% Dimensions 170 x 100 x 60mm Weight 1.5kg

Mornsun LMF75-23B12 AC/DC 75W Enclosed Switching Power Supply The LMF75-23B12 is a 72W AC/DC converter-enclosed SMPS power supply from Mornsun. It has a universal input voltage of 85-305VAC or 120-430VDC, and can output a regulated 12V DC at up to 6A current. The efficiency is up to 87%, and the isolation voltage is 4000VAC. The LMF75-23B12 is a versatile power supply that can be used in a variety of applications, such as industrial control, medical equipment, and LED lighting. It is also compliant with safety standards such as CE, FCC, and RoHS. check out : Mornsun LMF75-23B24 AC/DC 75W Enclosed Switching Power Supply Note: Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m All index testing methods in this datasheet are based on our company's corporate standards In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability The out case needs to be connected to the earth ( )of system when the terminal equipment in operating The output voltage can be adjusted by the ADJ, clockwise to increase Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment check out : Mornsun LM75-23B55 AC/DC 75W Enclosed Switching Power Supply Package Includes: 1 x  Mornsun LMF75-23B12 AC/DC 75W Enclosed Switching Power Supply Specifications Power output 72 watts Input voltage range 85-305 VAC or 120-430 VDC Output voltage 12 volts Output current 6 amps Efficiency 87% Isolation voltage 4000 VAC

Mornsun LMF75-23B15 AC/DC 75W Enclosed Switching Power Supply The LMF75-23B15 is a 75W enclosed AC-DC switching power supply from Mornsun. It features a universal AC input voltage of 85-305VAC or DC input voltage of 120-430VDC, built-in active PFC function, high efficiency, and high reliability. It also has output short circuit, over-current, over-voltage, and over-temperature protection. The LMF75-23B15 is designed to meet IEC/EN/UL62368, EN60335, GB4943 standards and is widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home, etc.

Mornsun LMF75-23B24 AC/DC 75W Enclosed Switching Power Supply The LMF75-23B24 is a 24V DC, 75W enclosed type AC/DC power supply from Mornsun. It has a universal input voltage range of 85-305VAC or 120-430VDC, and can be used in a wide range of applications. The LMF75-23B24 features built-in active PFC, high I/O isolation test voltage, high efficiency, high reliability, and a variety of protection features. It is also designed to meet IEC/EN/UL62368, EN60335, GB4943 safety standards. Note: Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m All index testing methods in this datasheet are based on our company's corporate standards In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability The out case needs to be connected to the earth ( )of system when the terminal equipment in operating The output voltage can be adjusted by the ADJ, clockwise to increase Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment check out : Mornsun LMF75-23B15 AC/DC 75W Enclosed Switching Power Supply Package Includes: 1 x  Mornsun LMF75-23B24 AC/DC 75W Enclosed Switching Power Supply Specifications Output voltage 24V DC Output current 3.2A Maximum power 75W Input voltage range 85-305VAC or 120-430VDC Operating temperature range -30℃ to +70℃ Efficiency 86% Dimensions 150 x 90 x 60mm Weight 0.4kg

Mornsun LMF75-23B48 AC/DC 75W Enclosed Switching Power Supply The LMF75-23B48 is a 75W AC/DC converter enclosed SMPS power supply from Mornsun. It has an input voltage range of 85-305VAC or 120-430VDC, an output voltage of 48VDC, and an output current of 1.6A. It is also 4000VAC isolated.
