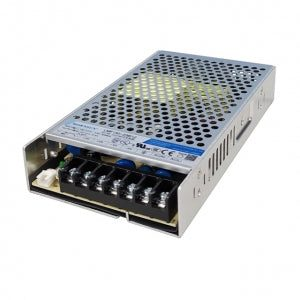

Mornsun LMF150-23B48 AC/DC Enclosed Switching Power Supply The LMF150-23B48 is an enclosed AC/DC converter from Mornsun America, LLC. It has a single output of 48V at 3.2A, for a total power output of 153.6W. The input voltage range is 85-305VAC or 120-430VDC. The efficiency is 88%, and the isolation voltage is 4000VAC. The converter is conformal coated for protection against harsh environments.

Mornsun LMF1500-20B24 AC/DC 1500W Enclosed SMPS The LMF1500-20B24 is a 1500W enclosed AC-DC switching power supply from Mornsun. It features a universal AC input voltage of 85-264VAC and a DC input voltage of 120-370VDC. The output voltage is adjustable from 12V to 24V with a maximum current of 62.5A. The power supply also has a 5V/2A output for powering peripherals. The LMF1500-20B24 is designed for use in a variety of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home. It is a cost-effective and reliable solution for a wide range of power needs. Note: Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m All index testing methods in this datasheet are based on our company's corporate standards In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability The out case needs to be connected to the earth ( )of system when the terminal equipment in operating The output voltage can be adjusted by the ADJ, clockwise to increase Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment check out : Mornsun LMF1500-20B48 AC/DC 1500W Enclosed SMPS Package Includes: 1 x Mornsun LMF1500-20B24 AC/DC 1500W Enclosed SMPS Specifications: Specification Value Model LMF1500-20B24 Power 1500W Input Voltage 85-264VAC Output Voltage 12V-24V Output Current 62.5A 5V/2A Output 2A Efficiency Up to 94% Dimensions 230 x 160 x 85mm Weight 4.5kg

Mornsun LMF1500-20B48 AC/DC 1500W Enclosed SMPS The LMF1500-20B48 is a 1500W AC/DC enclosed power supply from Mornsun. It has two outputs, one at 48V and one at 5V. The 48V output can provide up to 32A of current, while the 5V output can provide up to 2A of current. The power supply has a wide input voltage range of 85-264VAC or 120-370VDC. It is also protected against over-voltage, over-current, over-temperature, and short-circuit. The LMF1500-20B48 is a reliable and versatile power supply that can be used in a variety of applications, such as industrial control systems, LED lighting, and telecommunications. check out : Mornsun LMF1500-20B24 AC/DC 1500W Enclosed SMPS Note: Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m All index testing methods in this datasheet are based on our company's corporate standards In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability The out case needs to be connected to the earth ( )of system when the terminal equipment in operating The output voltage can be adjusted by the ADJ, clockwise to increase Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment Package Includes: 1 x  Mornsun LMF1500-20B48 AC/DC 1500W Enclosed SMPS Specifications: Sure, here is a table of the specifications for the LMF1500-20B48 power supply: Specification Value Output power 1500W Output voltage 48V/5V Output current 32A/2A Input voltage 85-264VAC or 120-370VDC Efficiency up to 94% Dimensions 250mm x 127mm x 40.5mm Weight 3.5kg

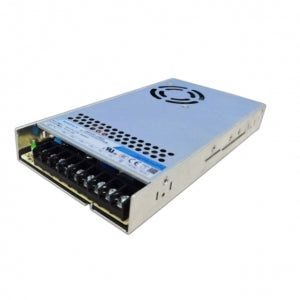

Mornsun LMF200-23B05 AC/DC 200W Enclosed Switching Power Supply The LMF200-23B05 is an enclosed AC/DC converter from Mornsun America, LLC. It has a single output of 5V at 40A, for a total power output of 200W. The input voltage range is 85-305VAC or 120-430VDC. The efficiency is 85%, and the isolation voltage is 4000VAC. The converter is conformal coated for protection against harsh environments.

Mornsun LMF200-23B12 AC/DC 200W Enclosed Switching Power Supply The LMF200-23B12 is an enclosed AC/DC power supply from Mornsun. It has a power output of 200W and an output voltage of 12V. The input voltage range is 85 to 305VAC, and the output current is 16.67A. The efficiency is 85.5%, and the isolation voltage is 4000VAC. The power supply is also protected against overvoltage, overcurrent, and short circuit. Features Enclosed design for protection from dust and moisture Wide input voltage range for compatibility with a variety of power sources High output current for powering a wide range of devices High efficiency for low power consumption Overvoltage, overcurrent, and short circuit protection for safety Note: Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m All index testing methods in this datasheet are based on our company's corporate standards In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability The out case needs to be connected to the earth ( )of system when the terminal equipment in operating The output voltage can be adjusted by the ADJ, clockwise to increase Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment Package Includes: 1 x  Mornsun LMF200-23B12 AC/DC 200W Enclosed Switching Power Supply Specifications: Power output 200W Output voltage 12V Input voltage range 85 to 305VAC Output current 16.67A Efficiency 85.5% Isolation voltage 4000VAC Dimensions 230 x 125 x 80mm Weight 3.2kg

Mornsun LMF200-23B15 AC/DC 200W Enclosed Switching Power Supply The LMF200-23B15 is an enclosed AC/DC converter from Mornsun. It has a single output of 15V at 13.4A, for a total power output of 201W. The input voltage range is 85-305VAC or 120-430VDC, and the efficiency is 88%. The isolation voltage is 4000VAC. The LMF200-23B15 is a versatile power supply that can be used for a variety of applications, including industrial control, medical equipment, and telecommunications. It is also suitable for use in harsh environments, thanks to its IP65 rating. Note: Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m All index testing methods in this datasheet are based on our company's corporate standards In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability The out case needs to be connected to the earth ( )of system when the terminal equipment in operating The output voltage can be adjusted by the ADJ, clockwise to increase Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment check out : Mornsun LMF200-23B24 AC/DC 200W Enclosed Switching Power Supply Package Includes: 1 x Mornsun LMF200-23B15 AC/DC 200W Enclosed Switching Power Supply Specifications Output voltage 15V Output current 13.4A Total power output 201W Input voltage range 85-305VAC or 120-430VDC Efficiency 88% Isolation voltage 4000VAC

Mornsun LMF200-23B24 AC/DC 200W Enclosed Switching Power Supply The LMF200-23B24 is an enclosed AC/DC converter from Mornsun. It has a single output of 24V at 8.33A, for a total power output of 201W. The input voltage range is 85-305VAC or 120-430VDC, and the efficiency is 88%. The isolation voltage is 4000VAC. The LMF200-23B24 is a versatile power supply that can be used for a variety of applications, including industrial control, medical equipment, and telecommunications. It is also suitable for use in harsh environments, thanks to its IP65 rating. check out : Mornsun LMF200-23B05 AC/DC 200W Enclosed Switching Power Supply Note: Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m All index testing methods in this datasheet are based on our company's corporate standards In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability The out case needs to be connected to the earth ( )of system when the terminal equipment in operating The output voltage can be adjusted by the ADJ, clockwise to increase Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment check out : Mornsun LMF200-23B48 AC/DC 200W Enclosed Switching Power Supply Package Includes: 1 x  Mornsun LMF200-23B24 AC/DC 200W Enclosed Switching Power Supply Specifications Output voltage 24V Output current 8.33A Total power output 201W Input voltage range 85-305VAC or 120-430VDC Efficiency 88% Isolation voltage 4000VAC

Mornsun LMF200-23B48 AC/DC 200W Enclosed Switching Power Supply The LMF200-23B48 is a 200W, 48V AC/DC power supply from Mornsun. It has a wide input voltage range of 85-305VAC or 120-430VDC, and can output up to 4.2A of current. The LMF200-23B48 is also equipped with a number of features that make it ideal for industrial applications, including a conformal coating that protects it from harsh environments, and a PFC circuit that helps to improve efficiency.

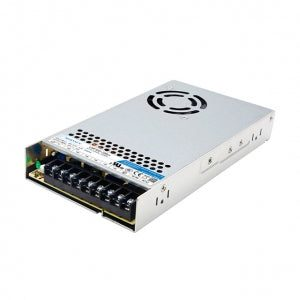

Mornsun LMF320-23B05 AC/DC 320W Enclosed Switching Power Supply The LMF320-23B05 is a 320W, 5V AC/DC power supply from Mornsun. It has a wide input voltage range of 85-305VAC or 120-430VDC, and can output up to 64A of current. The LMF320-23B05 is also equipped with a number of features that make it ideal for industrial applications, including a conformal coating that protects it from harsh environments, and a PFC circuit that helps to improve efficiency.

Mornsun LMF320-23B12 AC/DC 320W Enclosed Switching Power Supply The LMF320-23B12 is an enclosed AC/DC power supply from Mornsun. It has a power output of 320W and an output voltage of 12V. The input voltage range is 85 to 305VAC, and the output current is 26.7A. The efficiency is 85.5%, and the isolation voltage is 4000VAC. The power supply is also protected against overvoltage, overcurrent, and short circuit. Features Enclosed design for protection from dust and moisture Wide input voltage range for compatibility with a variety of power sources High output current for powering a wide range of devices High efficiency for low power consumption Overvoltage, overcurrent, and short circuit protection for safety Note: Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m All index testing methods in this datasheet are based on our company's corporate standards In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability The out case needs to be connected to the earth ( )of system when the terminal equipment in operating The output voltage can be adjusted by the ADJ, clockwise to increase Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment Also check Mornsun LMF320-23B15 AC/DC 320W Enclosed Switching Power Supply. The power supply has a universal input voltage and can accept AC or DC input. It also has a built-in active PFC function and high I/O isolation. The output voltage can be adjusted. Package Includes: 1 x  Mornsun LMF320-23B12 AC/DC 320W Enclosed Switching Power Supply Specifications: Power output 320W Output voltage 12V Input voltage range 85 to 305VAC Output current 26.7A Efficiency 85.5% Isolation voltage 4000VAC Dimensions 290 x 150 x 100mm Weight 4.5kg
