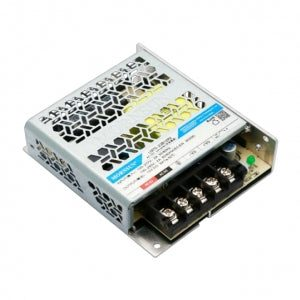

Mornsun LM75-23B24 AC/DC 75W Enclosed Switching Power Supply The LM75-23B24 is a 24V, 3.2A, 76.8W enclosed AC-DC switching power supply from Mornsun. It has a universal AC input voltage range of 85 to 305VAC and a DC input voltage range of 120 to 430VDC. The efficiency of the LM75-23B24 is up to 89%, and it has an isolation voltage of 4000VAC. The power supply is also equipped with a number of safety features, including overvoltage protection, undervoltage protection, overcurrent protection, and overload protection.

Mornsun LM75-23B24R2 AC/DC 75W Enclosed SMPS The LM75-23B24R2 is a compact, enclosed AC/DC power supply from Mornsun. It has a universal AC input voltage of 80-305 VAC or 100-430 VDC, and can output a regulated 24 VDC at up to 3.2 A. The power supply has a high efficiency of up to 91%, and is protected against overvoltage, overcurrent, undervoltage, and short circuit. It also has a built-in thermal overload protection. The LM75-23B24R2 is a versatile power supply that can be used in a variety of applications, including industrial control, LED lighting, and telecommunications. It is also compliant with a number of safety standards, including IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN/BSEN62368, EN60335, EN61558, EN62477, and GB4943. check out : Mornsun LM50-23B24R2 AC/DC 50W Enclosed SMPS Note: Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m All index testing methods in this datasheet are based on our company's corporate standards In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability The out case needs to be connected to the earth ( )of system when the terminal equipment in operating The output voltage can be adjusted by the ADJ, clockwise to increase Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment check out : Mornsun LM75-23B12R2 AC/DC 75W Enclosed SMPS Package Includes: 1 x Mornsun LM75-23B24R2 AC/DC 75W Enclosed SMPS Specifications Specification Value Power 75 W Input Voltage 80-305 VAC or 100-430 VDC Output Voltage 24 VDC Output Current 3.2 A Efficiency 91% Isolation 4000 VAC Dimensions 110 x 60 x 40 mm Weight 0.7 kg

Mornsun LM75-23B36 AC/DC 75W Enclosed Switching Power Supply The LM75-23B36 is a 36VDC, 2.1A, 75.6W, enclosed SMPS power supply from Mornsun. It has a universal input voltage of 85 - 305VAC or 120 - 430VDC, and can accept AC or DC input (dual-use of same terminal). It has an operating ambient temperature range of -30℃ to +70℃, low standby power consumption, high efficiency, high I/O isolation test voltage up to 4000VAC, low ripple and noise, output short circuit, over-current, and over-voltage protection, over-voltage class Ⅲ, and can operate at altitudes up to 5000m. Features Universal input voltage of 85 - 305VAC or 120 - 430VDC Accepts AC or DC input (dual-use of same terminal) Operating ambient temperature range of -30℃ to +70℃ Low standby power consumption and high efficiency High I/O isolation test voltage of up to 4000VAC Low ripple and noise Output short circuit, over-current, and over-voltage protection Over-voltage class Ⅲ Operating altitude up to 5000m Note: Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m All index testing methods in this datasheet are based on our company's corporate standards In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability The out case needs to be connected to the earth ( )of system when the terminal equipment in operating The output voltage can be adjusted by the ADJ, clockwise to increase Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment Package Includes: 1 x  Mornsun LM75-23B36 AC/DC 75W Enclosed Switching Power Supply Specifications Output voltage 36VDC Output current 2.1A Output power 75.6W Input voltage 85 - 305VAC or 120 - 430VDC Operating ambient temperature range -30℃ to +70℃ Standby power consumption <0.5W Efficiency 89% I/O isolation test voltage 4000VAC

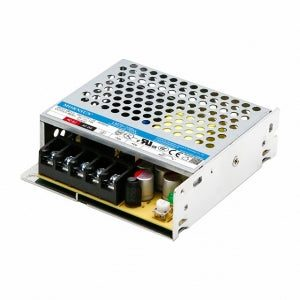

Mornsun LM75-23B48 AC/DC 75W Enclosed Switching Power Supply The LM75-23B48 is a 48V, 1A enclosed AC-DC switching power supply from Mornsun. It features a universal AC input of 85 to 305VAC or 120 to 430VDC, as well as a low no-load power consumption of less than 0.5W. The LM75-23B48 is also highly efficient, with a typical efficiency of over 90%.

Mornsun LM75-23B55 AC/DC 75W Enclosed Switching Power Supply The LM75-23B55 is a 75W, 230VAC input, 55VDC output, 1.36A current, 90.5% efficient enclosed SMPS power supply from Mornsun. It features a universal input voltage range of 85-305VAC or 120-430VDC, a ripple and noise <1%, and an isolation voltage of 4000VAC. The LM75-23B55 is perfect for a variety of applications, including industrial control, instrumentation, and networking. Note: Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m All index testing methods in this datasheet are based on our company's corporate standards In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability The out case needs to be connected to the earth ( )of system when the terminal equipment in operating The output voltage can be adjusted by the ADJ, clockwise to increase Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment Package Includes: 1 x  Mornsun LM75-23B55 AC/DC 75W Enclosed Switching Power Supply Specifications Power 75W Input voltage 85-305VAC or 120-430VDC Output voltage 55VDC Current 1.36A Efficiency 90.5% Ripple and noise <1% Isolation voltage 4000VAC

Mornsun LM90-12A15 AC/DC 90W Enclosed Switching Power Supply The LM90-12A15 series is a dual output, non-isolation, enclosed AC-DC switching power supply from Mornsun. It features a universal AC input, DC input voltage acceptance, cost-effectiveness, high efficiency, high reliability, double or reinforced insulation, excellent EMC performance, and compliance with IEC/EN61000-4, IEC/UL/EN62368, and GB4943 standards. It is not only used in the laser galvanometer industry, but also in current sensors, motors, and other fields. Features Universal AC input: The LM90-12A15 series can be used with a wide range of AC input voltages, making it suitable for use in a variety of locations. DC input voltage acceptance: The LM90-12A15 series can also be used with DC input voltages, providing additional flexibility. Cost-effectiveness: The LM90-12A15 series is a cost-effective solution for a variety of applications. High efficiency: The LM90-12A15 series is highly efficient, helping to reduce power consumption and costs. High reliability: The LM90-12A15 series is designed to be highly reliable, providing peace of mind for users. Double or reinforced insulation: The LM90-12A15 series features double or reinforced insulation, providing additional safety. Excellent EMC performance: The LM90-12A15 series has excellent EMC performance, making it suitable for use in a variety of environments. Compliance with IEC/EN61000-4, IEC/UL/EN62368, and GB4943 standards: The LM90-12A15 series complies with a variety of industry standards, ensuring its quality and performance. The LM90-12A15 series is a versatile and reliable power supply that can be used in a variety of applications. It is a cost-effective solution that offers excellent performance and features. Note: Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m All index testing methods in this datasheet are based on our company's corporate standards In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability The out case needs to be connected to the earth ( )of system when the terminal equipment in operating The output voltage can be adjusted by the ADJ, clockwise to increase Our products shall be cl assified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment Package Includes: 1 x Mornsun LM90-12A15 AC/DC 90W Enclosed Switching Power Supply Specifications: Type Enclosed Type Dual Output Output Power 90W Series LM90-12A Part Number LM90-12A15 Mount Enclosed IP Level  Non-Waterproof Output Voltage 15V, -15V Output Current 3A, 3A

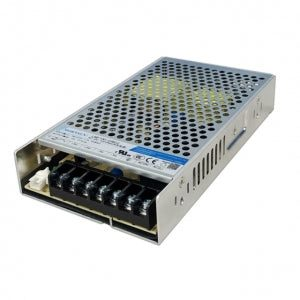

Mornsun LMF100-23B12 AC/DC 100W Enclosed Switching Power Supply The LMF100-23B12 is a 100W enclosed AC/DC power supply from Mornsun. It has a universal input voltage range of 85-305VAC and an output voltage of 12V. The power supply is also equipped with a power factor correction (PFC) circuit, which helps to improve the power efficiency of the device.

Mornsun LMF100-23B15 AC/DC 100W Enclosed Switching Power Supply The LMF100-23B15 is a 15V, 6.7A, 100.5W enclosed AC/DC converter from Mornsun. It has an input voltage range of 85-305VAC or 120-430VDC, and an output voltage of 15V. The efficiency is 86%, and the isolation voltage is 4000VAC. The converter is housed in a compact, rugged enclosure that is suitable for a variety of applications.

Mornsun LMF100-23B24 AC/DC 100W Enclosed Switching Power Supply The LMF100-23B24 is an enclosed AC/DC converter from Mornsun. It has a single output of 24V at 4.2A, for a total power output of 100.8W. The input voltage range is 85-305VAC or 120-430VDC. The converter is also conformal coated for protection in harsh environments.

Mornsun LMF100-23B48 AC/DC 100W Enclosed Switching Power Supply The LMF100-23B48 is a universal AC/DC power supply with a wide input voltage range of 85-305V AC or 120-430VDC. It can be used with AC or DC input, making it a versatile option for a variety of applications. The LMF100-23B48 has a built-in active PFC function, which helps to improve power factor and reduce energy consumption. It also has a high I/O isolation test voltage of up to 4000VAC, which provides protection against electrical hazards. The LMF100-23B48 is also energy efficient, with up to 87% efficiency. It has a number of safety features, including output short circuit, over-current, over-voltage, and over-temperature protection. It also has a remote ON-OFF control feature. The LMF100-23B48 is safety certified to IEC/EN60335, IEC/EN61558, CISPR32/EN55032 CLASS B, IEC/EN/UL62368, and GB4943.
