L293D 4 Channel DC Motor Driv…
L293D 4 Channel DC Motor Driver
Motor Drive Board L293D Module For Arduino UNO MEGA 2560 is a Device is a monolithic integrated high voltage, high current four channel driver designed to accept standard DTL or TTL logic levels and drive inductive loads (such as relays solenoids, DC, and stepper motors) and switching power transistors.
To simplify use as two bridges each pair of channels is equipped with an enable input. A separate supply input is provided for the logic, allowing operation at a lower voltage, and internal clamp diodes are included. This device is suitable for use in switching applications at frequencies up to 5 kHz.
It is a medium-power motor driver perfect for driving DC Motors and Stepper Motors. It uses the popular L293 motor driver IC. It can drive 4 DC motors on and off, or drive 2 DC motors with directional and speed control. L293D DC Motor Driver Module is fully compatible with Arduino and Raspberry Pi cards. Allows you to control 2 DC motors in 2 directions at the same time. L293D DC Motor Driver has become easy to use by being turned into a module. You can integrate them into your circuits very quickly by making the necessary connections to the output and input pins.
check out : L9110S H Bridge Stepper Motor Dual DC Driver Controller Module For Arduino
Applications:
Can be used to control motors of DIY Robot
Can be used to control motor speed and direction
Also, read our blog What is Motor Driver detailing an overview of motor drivers, including the different types available and how they work.
Package Includes:
1 x L293D 4 Channel DC Motor Driver
Specifications:
Model
L293D
Input Voltage (VDC)
4.5-25V
Output current (Per channel)
600mA
Dimensions mm (LxWxH)
40 x 35 x 12
Weight (gm)
11
₹88.19
₹110.24
Incl. GST
L293D Motor Driver Board
L293D Motor Driver Board
The L293D Motor Driver Module is a medium-power motor driver that is ideal for driving DC and stepper motors. It employs the well-known L293 motor driver IC. The l293d motor driver board can turn on and off four DC motors or control two DC motors with directional and speed control. The driver greatly simplifies and improves the ease with which microcontrollers can control motors, relays, and other devices. It has a total DC current of up to 600mA and can drive motors up to 12V.
To double the maximum current, connect the two channels in parallel, or in series to double the maximum input voltage. This motor driver is ideal for robotics and mechatronics projects that require controlling motors from microcontrollers, switches, relays, and other devices. Ideal for driving DC and Stepper motors in micro-mouse, line-following robots, robot arms, and other applications.
If you want to control the motor with this motor driver, for that you will need a few essential components like
Arduino
jumper wires
batteries or power supply
₹72.36
₹90.45
Incl. GST
L298N 2A Dual Motor Driver Mo…
2A Dual L298N Motor Driver Module with PWM Control
The L298N Motor Driver Module is a great choice for controlling motors! It contains a double H bridge L298N chip, which has a maximum voltage of 46V and a current of 2A. This L298N High-voltage Dual-channel motor driver works with a logic voltage of 5V and can drive motors with a voltage range of 5-35V, giving you good efficiency with a maximum power output of 25W.
One cool feature of the L298N-based motor driver module is that it has current sensing for each motor, so you can easily check how they’re doing. It also features a heatsink to keep it cool while running, which increases efficiency. Also, there is a power-on LED indicator that indicates when it is active. The L298N Motor Driver Module is perfect for controlling DC and Stepper motors, switches, relays, robotic cars, arms, etc.
₹118.71
₹148.39
Incl. GST
Mabuchi RS-555PH Motor DC12V-…
Mabuchi RS-555PH Motor DC12V-36V Large Torque
This is Mabuchi RS-555PH High Torque DC Motor, This is designed to be installed in portable drills and printers. This model features improved design to reduce external noise levels. This DC motor is excellent for high school, college, robotics, and engineering projects. Excellent for a variety of hobbyist projects including radio-controlled vehicles, robotics, model-building, home automation, and more! The 5-pole construction utilizes permanent magnets, so the motor produces high torque with high efficiency.
Package Includes:
1 x Mabuchi RS-555PH Motor DC12V-36V Large Torque
Specifications:
Operating Voltage
12-36V
Peak Voltage
40V
Input Voltage and Output Speed
12V - 2000RPM
Input Voltage and Output Speed
18V - 3085RPM
Input Voltage and Output Speed
24V - 4100RPM
Input Voltage and Output Speed
36V - 6150RPM
₹338.03
₹422.55
Incl. GST
Metal Ball Caster Wheel with …
Metal Ball Caster Wheel with Screw and Nut
Metal Ball caster wheel is an omnidirectional wheel. This caster wheel comes with a red cap over it. This wheel can be used as a neutral wheel for small robots.
The caster wheel makes the robot to walk or move at a more flexible and comfortable way.
The sphere caster can roll on all kinds of floors and doesn't make any noise. Inner rolling ball bearing can help the wheel swivel 360 degrees freely. Rollerblade steel material, heavy-duty. These wheels have strong load-bearing.
check out : Goli Castor Wheel (Pack of 4)
Applications:
Obstacle Avoider Robot
Line Follower Robot
Maze Solver Robot
Package Includes:
1 x Metal Ball Caster Wheel with Screw and Nut
Specifications:
Base plate diameter
27.5mm
Caster wheel diameter
13.5mm.
Wheel height
18mm
Ball Material
Steel.
Cap Material
Plastic.
Weight
15 gm.
Load Capacity
5 kg
₹20.35
₹25.44
Incl. GST

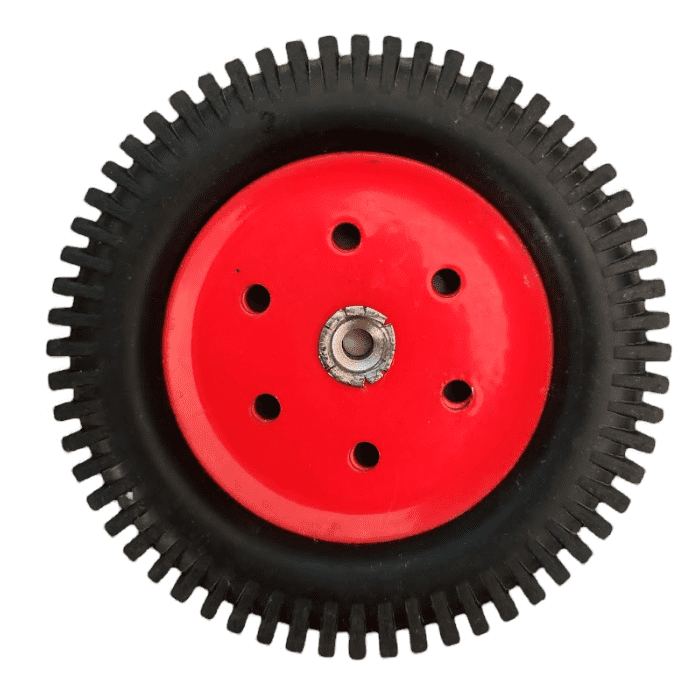

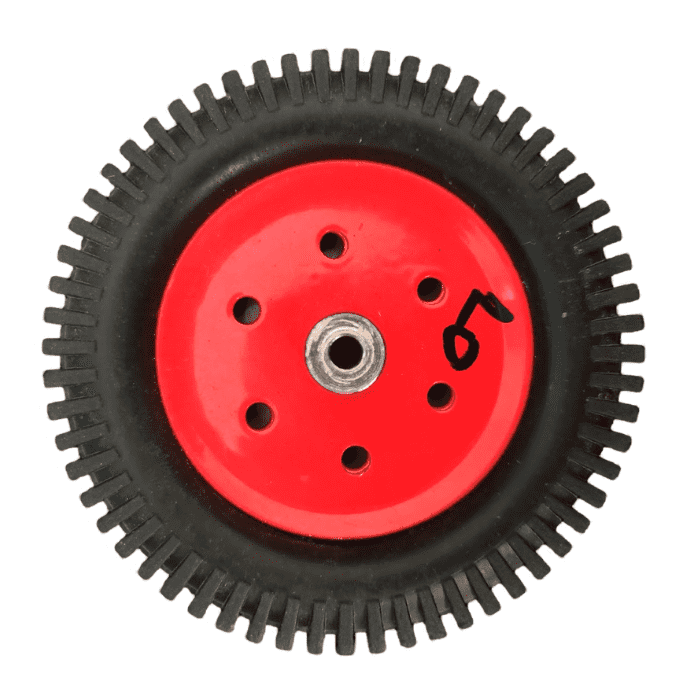

Metal wheel
Metal wheel
These tires are ideal for hand trucks, lawnmowers, utility carts, and other lawn and garden equipment
Semi-pneumatic tires are light weight, puncture-proof, and provide cushioning. They are designed to not pull away from their rim under use.
Package Includes:
1 x Metal wheel
Specifications:
Shaft Diameter (mm)
5

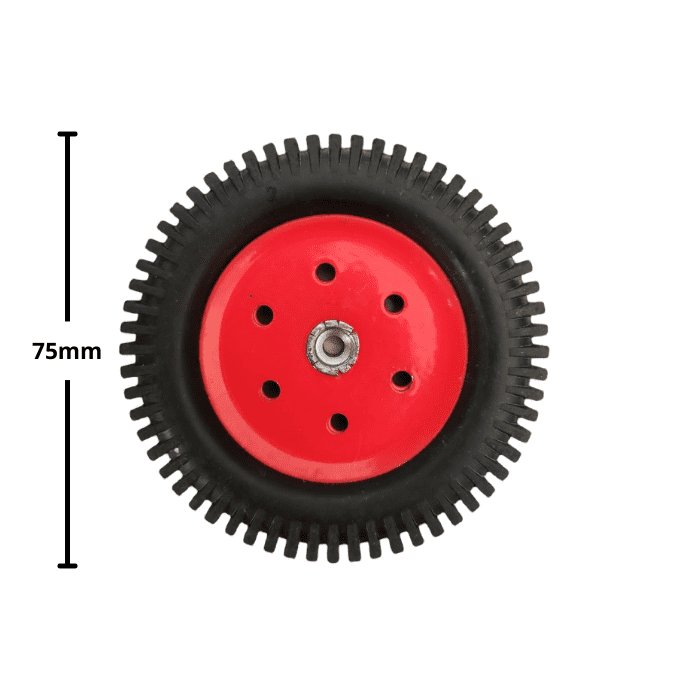

Wheel Diameter (mm)
75
Wheel Width (mm)
15
₹89.31
₹111.64
Incl. GST
MG90S Mini Servo Motor(180 De…
MG90S Mini Servo Motor(180 Degree)
The MG90S Mini Servo Motor(180 Degree) is designed for a wide range of applications, this compact motor provides an impressive 2.2kg/cm of torque, combined with rapid response times which makes it an excellent choice for working on RC planes, robotic arms, microrobots, and more. Its compact design allows it to fit into even the tightest of spaces seamlessly.
The MG90S is also known for its reliability for its water and dust-resistant construction. With a 3-wire JR servo plug it is compatible with Futaba connectors.
Operating efficiently within the voltage range of 4.8-6.6V, it delivers swift and precise movements with an operating speed of 0.1sec/60degree at 4.8V and 0.08sec/60degree at 6V.
Get precise control in your projects with the 180 Degree MG90S Mini Digital Servo Motor.
Also check our servo motor collection page, which features a variety of motors and related accessories.
₹140.18
₹175.23
Incl. GST
MG958 Servo Motor
MG958 Servo Motor
The TowerPro MG958 High-Speed Digital Servo Motor, It is a Digital Servo Motor that receives and processes PWM signals faster and better. You can control this servo motor with Arduino which is connect by jumper wires and powered by battery.
MG958 Servo Motor equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces. These TowerPro MG958 Metal Gear Servo Motors are high-speed servo motors with a mighty torque of 18 kg/cm.
This high torque servo motor is packed within a tight sturdy plastic case which makes them water and dust-resistant which is a very useful feature in RC planes, Boats, RC Monster Trucks, etc. It equips a 3-wire JR servo plug which is compatible with Futaba connectors too.
check out : VTS 08A Servo Motor (5 Kgf.cm Torque)
₹1209.69
₹1512.11
Incl. GST
MG995 High Speed Servo Motor(…
MG995 High Speed Servo Motor(180 Degree)
The TowerPro MG995 High-Speed Digital Servo Motor rotates 90° in each direction making it a 180° servo motor. It receives and processes PWM signals faster and better. You can control this servo motor with Arduino.
It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces. This TowerPro MG995 Metal Gear Servo Motor provides a high torque of 10 kg/cm (4.8V) and 12 kg/cm (6V).
It equips a 3-wire JR servo plug which is compatible with Futaba connectors too.
₹264.56
₹330.69
Incl. GST
MG995 High Speed Servo Motor(…
MG995 High-Speed Servo Motor(360 Degree)
TowerPro MG995 – Continuous Rotation 360° Servo Motor is a high-speed standard servo that can rotate 360 degrees. You can use any servo code, hardware or library to control these servos, so it’s great for beginners who want to make stuff move without building a motor controller with feedback & gearbox, especially since it will fit in small places. The MG995 Servo also comes with a selection of arms and hardware to get you set up nice and fast. The optimized performance and reliability of this servo have made it the favorite choice of many RC hobbyists.
It is a Digital Servo Motor which receives and processes PWM signal faster and better. You can control this servo motor with Arduino which is connect by jumper wires and powered by battery.
It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces.
This TowerPro SG90 Continuous Rotation 360 Degree Servo Motor is special among all the available servo motors because its operation is very different from that of a standard servo. As instead of going to a specified angle, this servo will be static at a 1.5ms pulse, a longer pulse gives forward rotation and a shorter pulse give backward rotation.
Wire Description:-
RED – Positive
Brown – Negative
Orange – Signal
Applications:
RC planes
RC Boats
RC Monster Trucks
Package Includes:
1 x TowerPro MG995 Servo Motor with Cable
1 x Set of Horns[One Point, Two Point, Four Point]
1 x Set of Screws
1 x Aluminum Servo Horn Arm
Specifications:
Control System:
Analog
Operation Voltage
4.8 – 7.2V
Servo type
analog servo
Speed
4.8V: 0.20 sec/60°, 6.0V: 0.16 sec/60°
Rotation angle
360°
Torque
4.8V: 130.5 oz-in (9.40 kg-cm), 6.0V: 152.8 oz-in (11.00 kg-cm)
Operating temperature:
30 ~ + 60 °
Dimension
40.7 × 19.7 × 42.9 mm
Weight
55g
₹349.34
₹436.67
