PICkit3 USB Debugger Programmer Emulator Controller Development Board The pickit3 debugger programmer is an emulator controller devlopment board used to program and debug microcontrollers, as well as program EEPROM. PICkit is a family of programmers for PIC microcontrollers made by Microchip Technology. The Pickit 3 debugger uses powerful graphical user interface of the MPLAB to allow debugging and programming of microcontrollers and development boards.  What is the difference between PICkit 2 and PICkit 3 debugger programmers? The Pickit 3 emulator programmer features a faster 16-bit PIC24F processor and a wider voltage regulation range which makes it more reliable than the Pickit 2. By integrating a multimeter to a Pickit3 programmer, you caliberate the ouput for or increased accuracy. Key

CH341A Series Burner Chip Programmer The CH341A series burner chip programmer is a low-cost mini USB  EEPROM Flash BIOS USB Programmer that was built and designed to support 24 EEPROM and 25 SPI flash 8pin/16 pin chip. This CH341A series programmer is integrated with a powerful CH341A chip that has the ability ro automatically recognize 25 series chip. This CH341A  EEPROM USB programmer is equipped with a indicator lamp that helps the user understand working status of the USB programmer.  You will require ComboTool app for performing: Writing & Executing JAVAScript in Android device and performing I/O directly. Plugin IR_Temper Sensor => Combotool change to be a temperature meter. Plugin RS485 Converter =>It can capture/send RS485 Modbus frame. Plugin => It can be a UV meter. Types of modes used in the CH341A EEPROM USB programmer: UART Mode: The UART mode in the CH341A series USB programmer provides a different control signal rate such as serial transfer enable, serial receive in ready. This mode provides the CH341A USB programmer with common MODEM communication signal in order to expand UART for computer. Printer Port Mode: The standard printer port in the CH341A EEPROM programmer compounds USB relevant protocol and Windows operating system used to upgrade ordinary parallel printer to USB bus directly. Parallel Mode: The CH341A USb programmer provides 8-bit parallel in EPP or MEM mode which can be used to input/output data directly without MCU/DSP. How do you program a BIOS CH341A chip? You need to first reboot your computer since you need to outside of your normal operating system while entering the BIOS utility. Pay attention to the screen as your computer loads up to press the indicated key during the startup messages to enter the BIOS. Navigate through the BIOS menu screens, using the arrow keys. Highlight the setting to be reprogrammed with the arrow keys and press "Enter". This will display a list of valid settings for the particular option. Highlight the option that you wish to select and press "Enter" again. Exit BIOS when done making your changes by pressing the "Esc" key. Press "Y" to save and confirm your changes. Package Includes: 1 x CH341A 24 25 Series EEPROM Flash BIOS USB Programmer  1 x PCB board 2 x Header pins Specifications: Chip  CH341A chip Supports  24 EEPROM and 25 SPI flash 8pin or 16pin chip Compatible OS Windows XP, Vista, Win7 and Win8 (32/64bit) system Power Supply 3.3V - 5V Weight 24g Dimensions 8 x 4 x 10 cm

ST-Link/V2 Programmer and Debugger ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board. STM8 applications use the USB full-speed interface to communicate with ST Visual Develop (STVD) or ST Visual Program (STVP) software. STM32 applications use the USB full-speed interface to communicate with Atollic, IAR, Keil or TASKING integrated development environments. In addition, to provide the same functionalities as the ST-LINK/V2, the ST-LINK/V2-ISOL features digital isolation between the PC and the target application board. It also withstands voltages of up to 1000 Vrms.   Note: This ST-Link Programmer will not get detected in the STM32CubeIDE as they are clones. Check out our entire range of Universal Programmer Applications: Automotive Communications Equipment Computers and Peripherals IoT Applications Personal Electronics Package Includes: 1 x ST-LINK/V2 debugging and programming Unit 1 x USB standard A to mini-B cable 1 x Connecting Cable 1 x Flat ribbon with a standard ERNI connector at one end (A JTAG or SWD and SWV flat ribbon with a 20-pin connector) Specifications: Operating Supply Voltage 1.65V - 5.5V Type Debugger, Programmer (In-Circuit/In-System) Interface USB Data Bus Width 8b Height 29.972mm Width 109.982mm Weight 145g

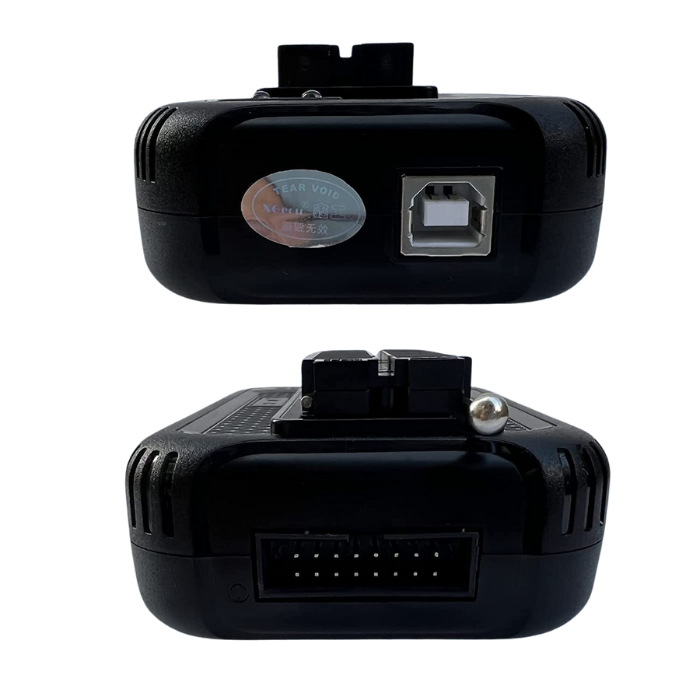

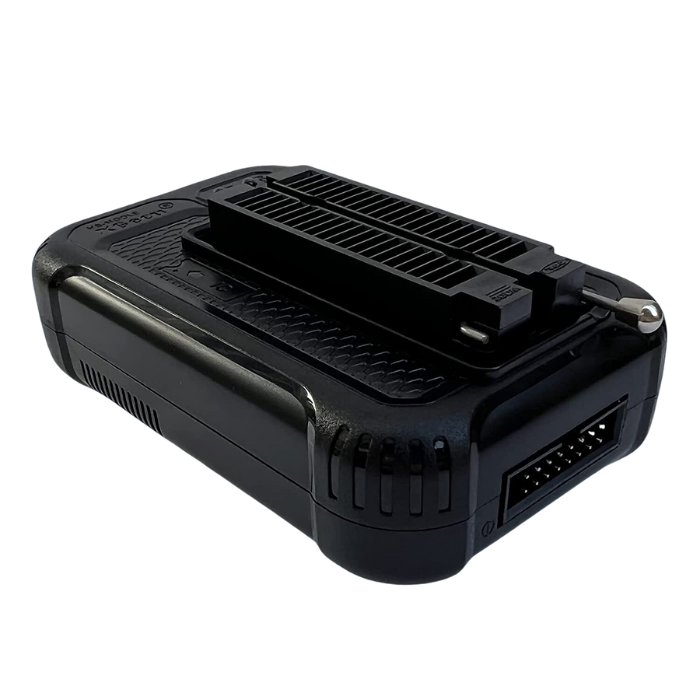

TL866 - Universal IC Programmer The TL866II plus universal programmer is a well designed programmer of high density SMD technology, developed with an easy to use interface. TL866II plus USB programmer support 15000+ic spi flash and EEPROM 8051 MCU pic AVR gal. TL866ii plus programmer is the advanced version of TL866CS and TL866A programmer. The programming speed is much higher (up to double) of high-capacity memories as compared to TL866CS and TL866A programmers. It supports multiprogramming mode (up to four). Well-designed cheap professional programmer, Production of high-density SMD technology, a unified user interface, easy to use, fully functional, reliable program running of application software, ultra-small code -runs faster, supports bilingual (English and Chinese), it can automatically identify the operating system to install and run under win 2000/win XP/win 2003/win 2008/win vista /win7/win8/win10 (32biit/64bit). Key

ULINK2 ARM USB JTAG Programmer ARM USB Compatible JTAG Adapter Debugger Ulink-II Ulink 2 deos not need any specific drivers. It is automatically configured as a HID by Plug and Play in Windows. Overview: Latest Upgraded version of the ULink emulator. Not only has the ULINK2 emulator all the features of ULINK, but also serial wire debug (SWD) support, Clock support and features such as real-time agent.  Package Includes: 1 x ULINK2 ARM USB JTAG Programmer Specifications: Product  Universal Programmer  Model  ULINK 2 Dimensions  11 x 5 x 3cms Weight  100 grams

CP2102 USB to TTL Converter Cable This cable is easiest way ever to connect to the serial console port of your microcontroller, Raspberry Pi or router. The USB connector contains a USB - Serial converter chip and at the other end of the 90cm long cable are four header connectors: red = power, black = ground, white = RX (to USB port) and green = TX (from USB port). The power connector provides 5V at 500mA directly from the USB port and the RX / TX connectors are 3.3V for interfacing with most 3.3V components. Because of the separated pin plugs, this cable is ideal for powering and connecting up to the debug/login console on the Raspberry Pi or BeagleBone Black.

Universal Programmer TOP2013 The TOP2013 is a universal programmer from Seeit. The TOP2013 is designed to work with components with up to 32 pin, from a range of manufacturers. These components include EPROMs, EEPROMs and FLASH memories. A full list of compatible devices can be found on the product datasheet. The Top2013 Universal programmer featuring an ARM Cortex 32 core and is housed in a compact package. It also offers low-power loss and overcurrent protection. Simply plug the TOP2013 into a PC via USB cable. The TOP2013 automatically starts programming once it detects a device has been inserted correctly into the ZIF40 socket. Package Includes: 1 x TOP2013 Universal Programmer Features of TOP2013 Universal Programmer Model TOP2013 Universal Programmer Dimensions 11.5 x 9 x 2.5 cm Weight  250g Power < 2.5w (5v/500mA) Pins 40-pin Universal locking socket Operating System WINDOWS XP / WIN7 / WIN8 / WIN10 Transmission Speed 12MHz/s

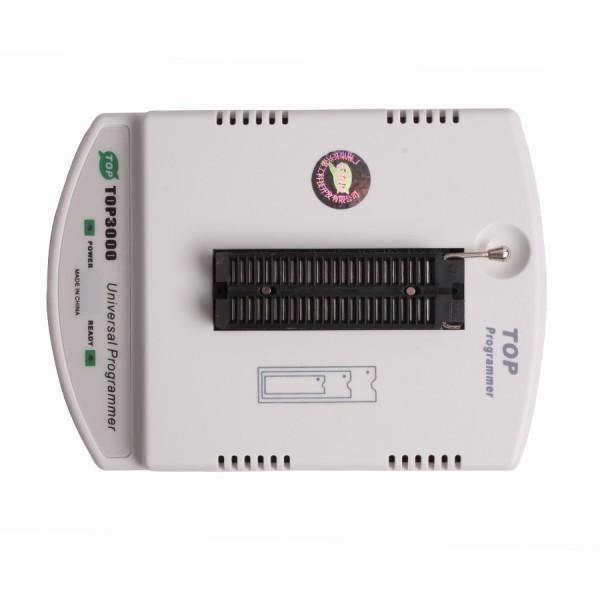

TOP3000 Universal Programmer The Top3000 Universal Programmer is powered by a USB interface or a 5V power supply. This universal programmer is a Top3000 programmer which is small, lighweight, highly reliable, and consumes low power. The Top3000 Universal Programmer is highly compatible with notebooks and desktop computers.  The TOP3000 programmer supports 2.5 ~ 6.5V device, Powered by your USB interface or the included 5V external power supply. With the fast transmission speed of 12MHz/s via the USB port, Auto detects the device's manufacturer and part number. It is easily compatible with Notebooks and desktop computers. The in-built connection inspection checks the connection for every pin in the unit. The current protection function protects both the programmer and connected devices, it has 48-pin self-lock sockets, a Compact programmer with a tough plastic casing Package Includes: 1 x TOP3000 Universal Programmer Specifications: Model Top3000 Universal Programmer Transmission speed 12MHz/s  Power supply input 110 ~ 240VAC Compatible Operating Systems Windows 2000, Windows 2003, Windows XP, Windows Vista and Windows 7 (32bit) Material  Tough Plastic Dimensions 155*110*26mm Weight  275g

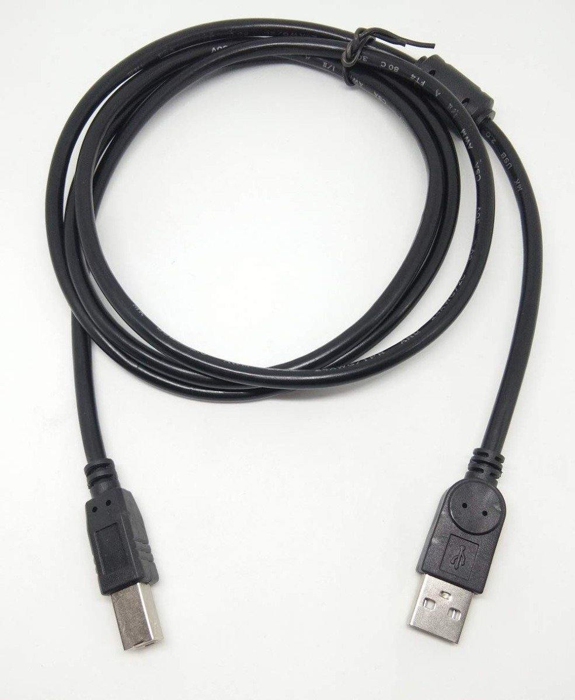

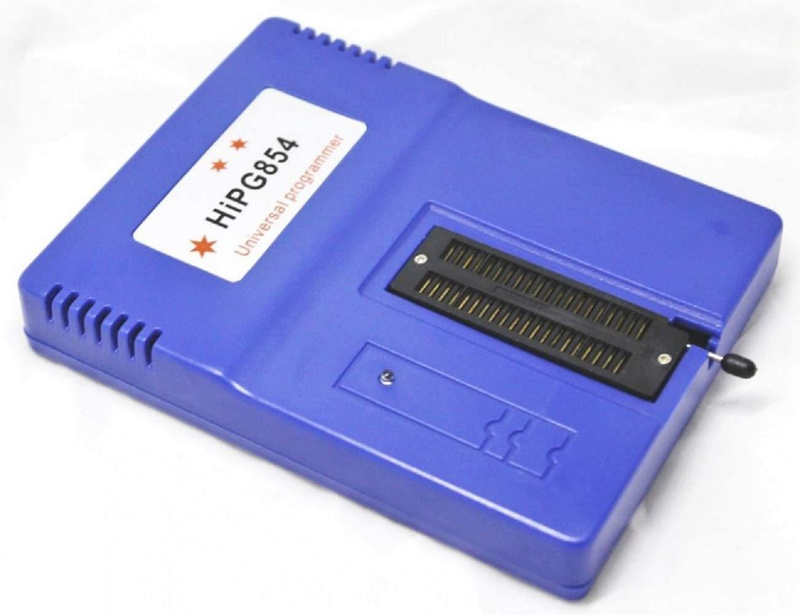

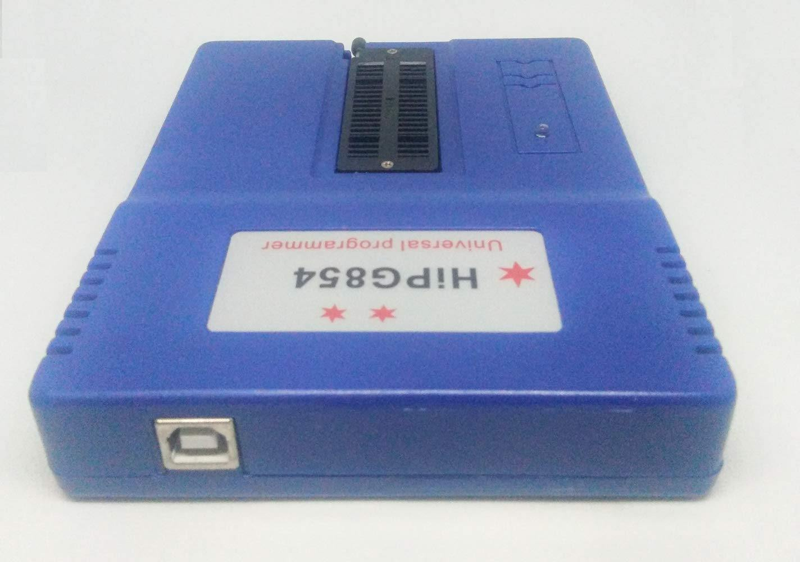

HIPG854 Universal Programmer The HIPG854 Universal programmer is good economical universal programmer that supports wide range of ATMEL,AVR,PIC,EPROM,EEPROM many more ICS. Universal programmers are used for programming a wide variety of devices without requiring family-specific modules and are suited to development projects and low volume production programming. The HIPG854 Universal programmer comes with a USB cable for easy usage.   Package Includes: 1 x HIPG854 Universal programmer 1 x USB cable Features of the HIPG854 Universal programmer Model HIPG854 Universal programmer Supports ATMEL,AVR,PIC,EPROM,EEPROM many more ICS Dimensions  10 x 8 x 8 cm Weight  75 grams

Elementz AVR USB Programmer with Cable USB AVR USBISP programmer will allow users to painlessly transfer hex programs to most ATMEL AVR microcontrollers. It is more reliable than most other AVR programmers available. Entire AVR programmer has been built with using common parts and fits in the case of the serial connector. This AVR programmer is compatible with AVRdude GUI software.  This can be used to program : AT90S1200,2313,2323,2343,4414,4433,4434,8515,8535, ATMEGA103,128,1280,1281,16,161,162,163,165,168,169, ATMEGA 2560,2561,32,323,325,3250,328,329,3290,406,48,64, ATMEGA 640,644,645,6450,649,6490,8,8515,8535,88, ATTINY 11,12,13,15,22,2323,25,26,261,28,44,45,461,84,85,86, AT90CAN128,32,64, AT90PWM2, CAPABLE OF PROGRAMMING BOTH 3.3V & 5V AVR MICROCONTROLLERS read more : Implementation of PWM in AVR Package Includes: 1 x Elementz AVR USB Programmer 1 x Cable Specifications: Operating Voltage  5V (Drawn from USB - No external power required) Item Weight 50g

SMD IC Adapters Set for Programmers By using the SMD IC adapter set, you can easily convert your SMD component into DIP format which makes the mounting process much easier. The set of 9 SMD IC adapter pieces are perfect for students, hobbyist & professionals who are trying to stream line their prototype-to-production process.  Package Includes: 1 set of 9 SMD IC Adpater Pieces. Specifications Product  SMD IC Adapters Dimensions  5 x 3 x 1cms  Weight  25 grams

ST-LINK/V2 Debugger and Programmer USB The ST-Link V2 debugger and programmer is designed for STM8 and STM32 and is manufactured with PCB installed inside of aluminum alloy U disk shell. This factory firmware has been upgraded to support the full-range STM32 SWD and a full-range STM8 SWIM.  This ST-Link programmer is equipped with a 500MA internal resettable fuse that provides complete protection for your expensive computer motherboard. This programmer has a programming speed rate of 9.7 Kbytes/s in low speed and 12.8 Kbytes/s in high speed. It has a red and blue LED indicator that allows users to observe the working condition of the Programmer. The ST-Link device can be used to send program code to the 32-bit STM32 ARM Cortex or 8-bit STM8 microcontrollers. It contains connections for 5V, 3.3V, SWCLK, SWDIO, SWIM, Reset (RST/NRST), and GND. With the help of the USB connector, it can connected to a computer.   Click here to download the Drivers. Package Includes: 1 x ST Link V2 Programmer Specifications: Case Material Aluminium Alloy Input Voltage 3.3V - 5V Programming Speed 9.7 Kbytes/s - 12.8 Kbytes/s  Operating temperature 0 to 50°C Fuse  500MA  Dimensions 5.5 x 1.5 x 0.5cm Weight 15 grams
