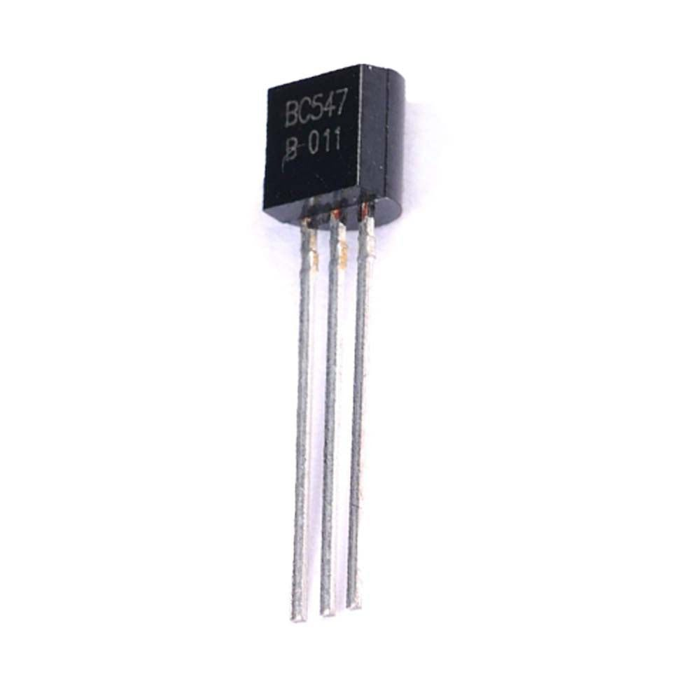

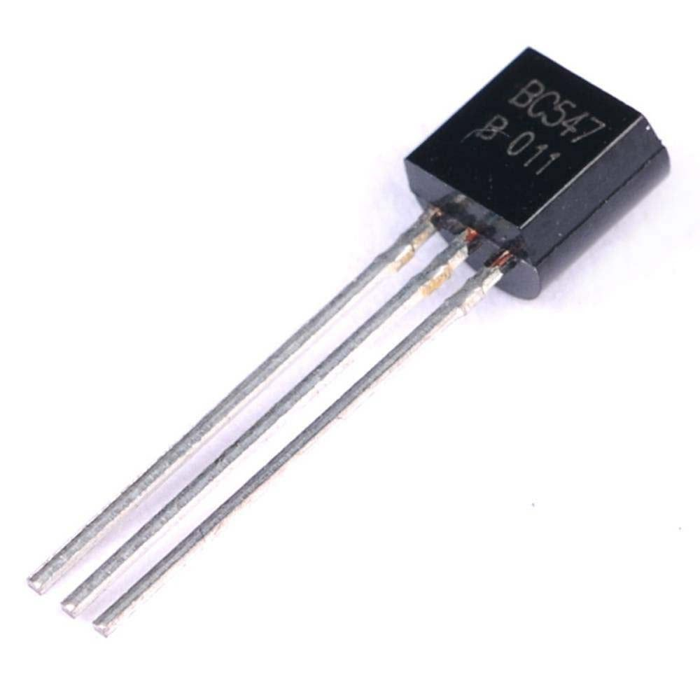

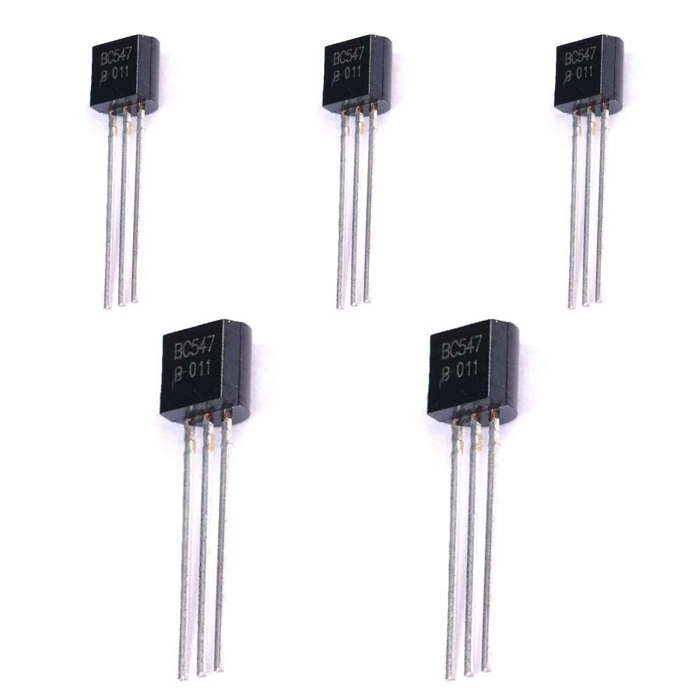

BC547 Transistor(Pack of 5) The BC547 transistor is a versatile negative-positive-negative (NPN) transistor that can be used for a multitude of purposes. It acts as the active component for switches and amplifiers when used alongside electronic components like resistors, coils, and capacitors. As with all NPN transistors, this transistor features an emitter terminal, a base or control terminal, and a collector terminal.The BC547 transistor is classified as a bipolar junction transistor (BJT), and there exist other types of transistors as well. For example, the junction field-effect transistor (JFET) features a single junction, while the metal oxide field-effect transistor (MOSFET) doesn't have any junctions at all. During the design and manufacturing of transistors, their characteristics can be predefined and achieved.The negative (N)-type material inside the NPN transistor contains an excess of electrons while the positive (P)-type material has a deficiency of electrons, both due to the doping process. This type of transistor is commonly used in general-purpose switching and amplification and is part of the BC847/BC547 series of 45 V, 100 mA NPN general-purpose transistors. Features Advanced process technology Low error voltage Fast switching speed Full-voltage operation High power and current handling capability read our blog explaining BC547 Transistor: Basic Knowledge, Pin Configuration & Features, provides comprehensive information about the BC547 transistor. Package Includes: 5 x BC547 Transistor IC Specifications: Transistor  BC547 Transistor IC Transistor Polarity NPN Collector-Base Voltage (VCBO) 50VDC Continuous Collector Current (IC) 100mA Output Capacitance (Cobo) 4.5pF Transition Frequency (fT) 300MHz Dimensions  5 x 4 x 3cms  Weight  5 grams

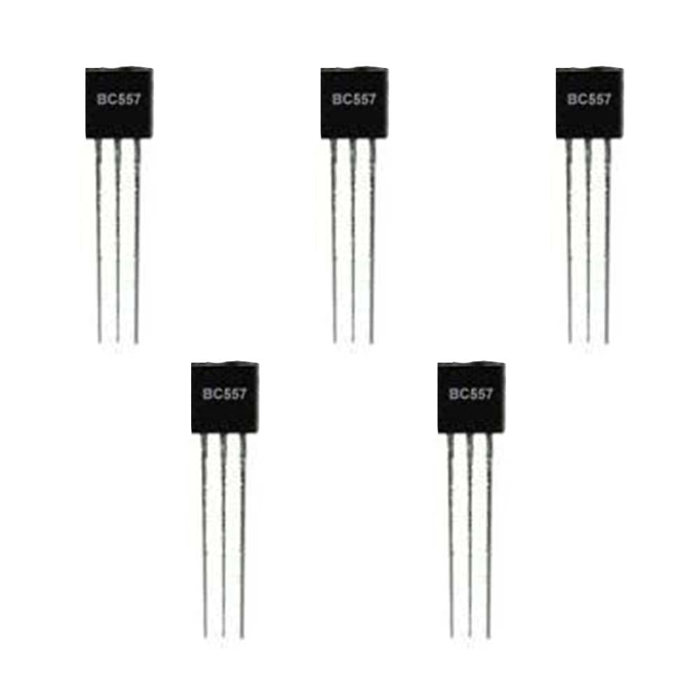

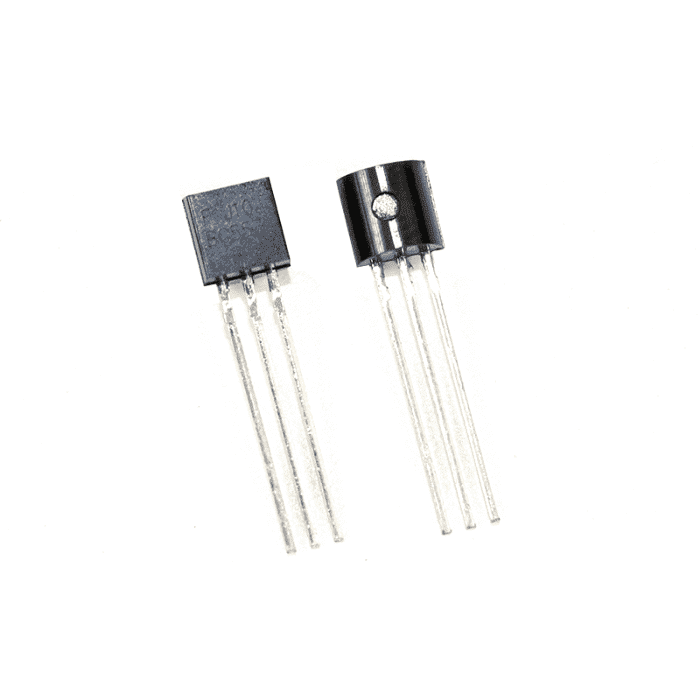

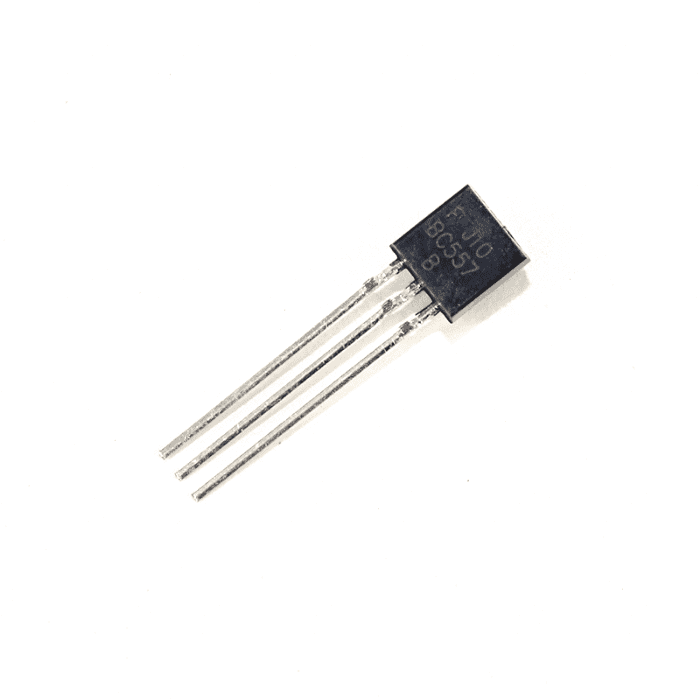

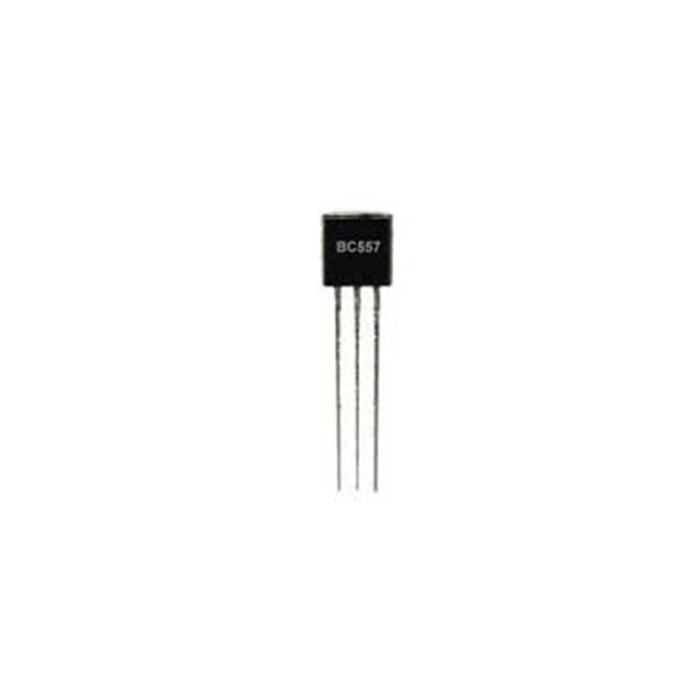

BC557 PNP Transistor - (Pack of 5) A transistor is a semiconductor device used to amplify and switch electronic signals and electrical power. It is composed of semiconductor material with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals changes the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. The BC557 (RM0385) is a PNP transistor and a heavy-duty drop-in replacement for a 2N2222 or 2N3906. The three terminals of a bipolar transistor are called the emitter, base, and collector. A small current into the base controls a large current flow from the collector to the emitter. The current at the base is typically one-hundredth of the collector-emitter current. Moreover, the large current flow is almost independent of the voltage across the transistor from collector to emitter. read our blog explaining the bc547 transistor pinout, which provides comprehensive information about the BC547 transistor, covering its role as a switch, working states, circuit diagrams, pin diagram. Package Includes: 5 x BC557 PNP Transistor Specifications: Collector-Base Voltage (Vcb) (V) 50 Collector-Emitter Voltage (Vce) (V) 45 Emitter-Base Voltage (Veb) (V) 6 Dimensions  5 x 4 x 3cms  Weight  5 grams

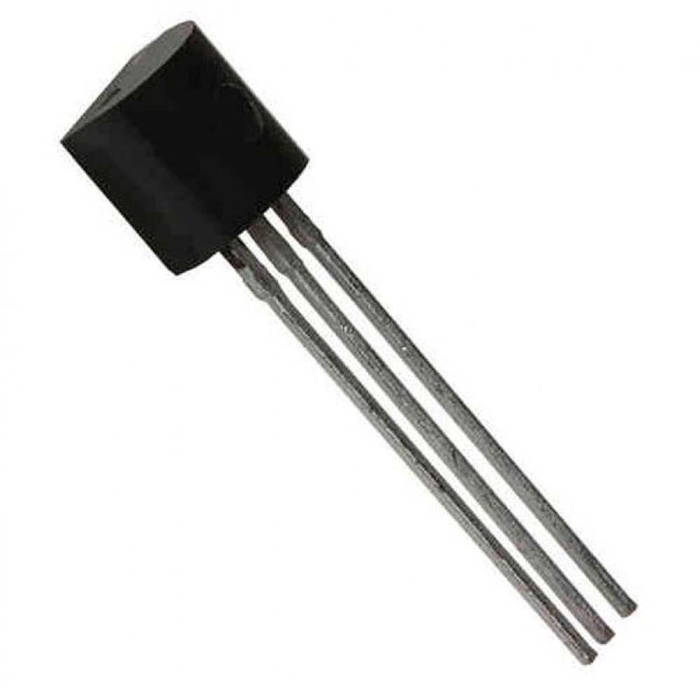

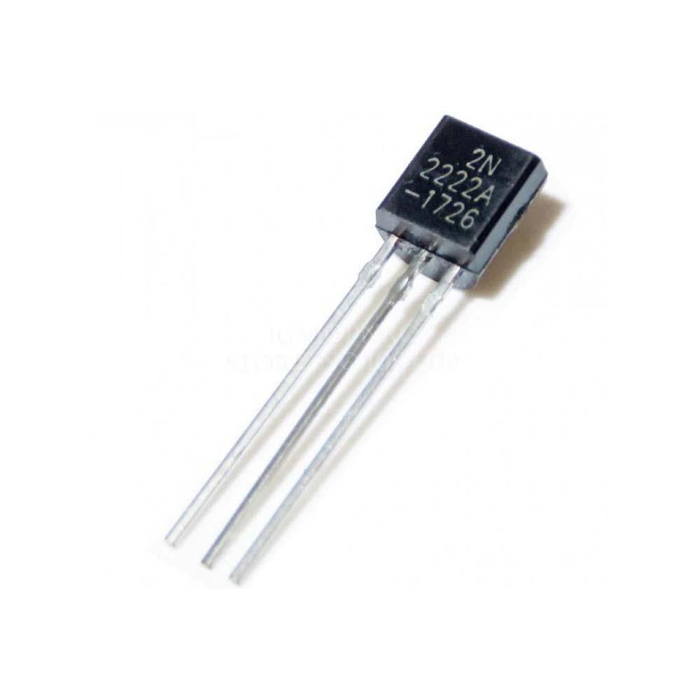

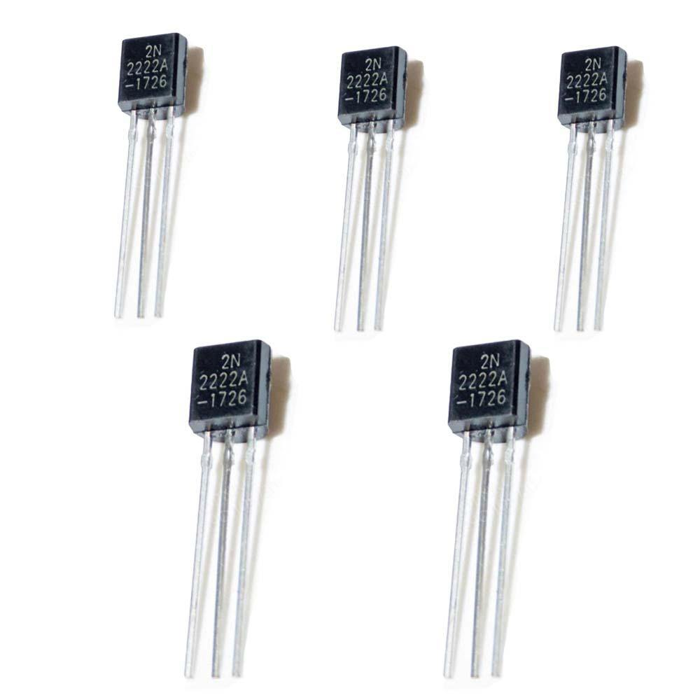

2N2222A NPN Transistor (Pack of 5) The PN2222A is a common NPN BJT used for general purpose low-power amplifying or switching applications. It is designed for low to medium current, low power, and medium voltage, and can operate at moderately high speeds. 2N2222A is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits. The 2N2222 NPN Transistor is made in the TO-18 metal can as shown in the picture. Replacements are commonly available now in the cheaper TO-92 packaging, where it is known as the PN2222 or P2N2222, which has similar specifications except for the lower maximum collector current. read more : What is a 2N2222A Transistor & Its Working Applications: This transistor can be used as a switch for automatically switch ON/OFF any appliances. It is used for PWM due to its quick response Because of its fast response time, it can be used for pulse width modulation. Home automation & embedded projects. Audio Preamplifiers Audio Amplifier Stages Used to switch several loads simultaneously Darlington Pairs These transistors are used in Motor drive circuits like VFD or variable frequency drives. Used in Rectifier Circuits & DC Inverters It is used as an amplifier to amplify voltage, current & power. Package Includes: 5 x 2N2222 NPN Transistor Specifications: Transistor Polarity NPN Collector-Base Voltage (VCBO) 75V Collector-Emitter Voltage (VCEO) 40V Transition Frequency (fT) 300MHz Power Dissipation (PD) 1.8W Dimensions  5 x 4 x 3cms  Weight 5 grams

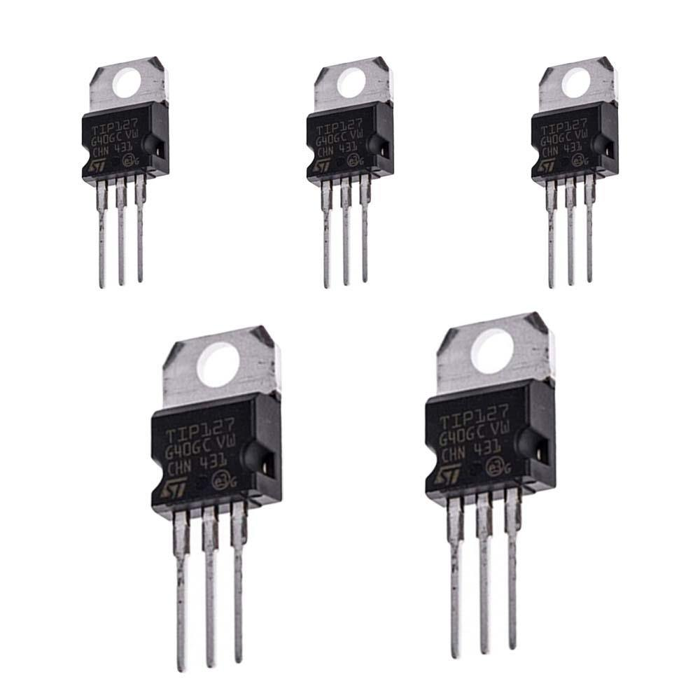

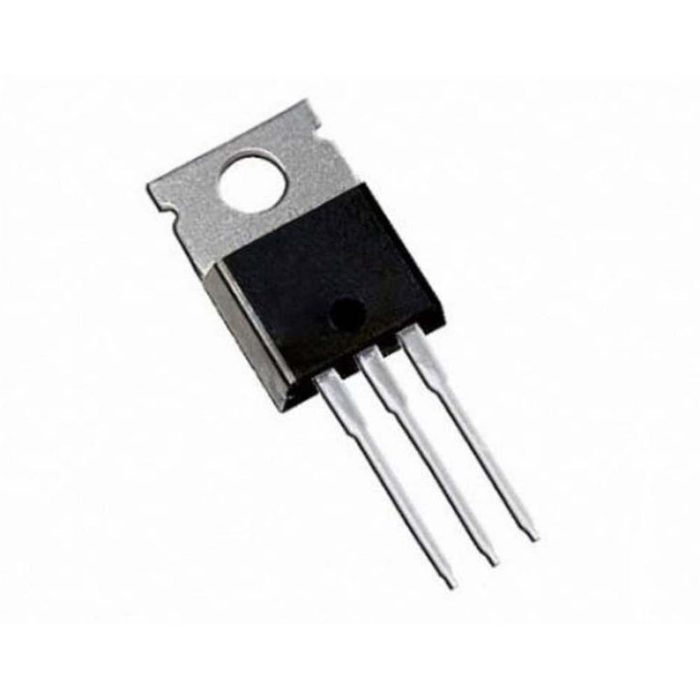

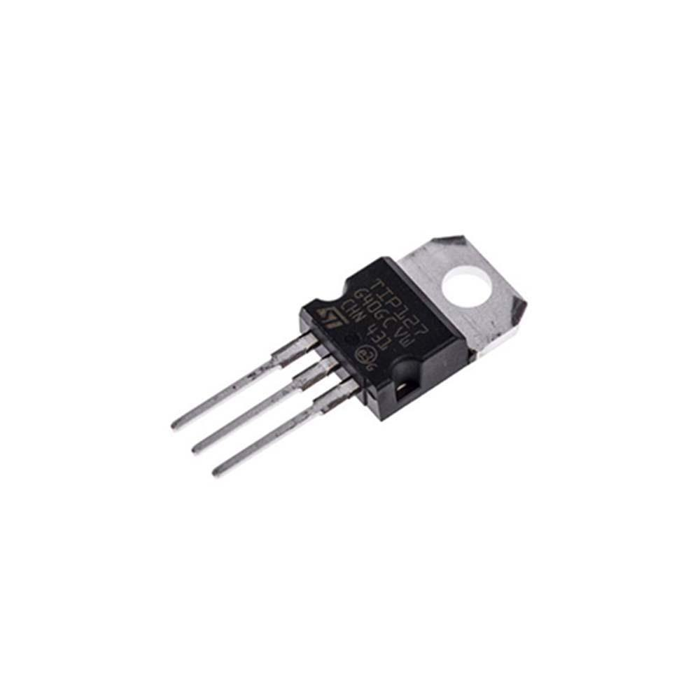

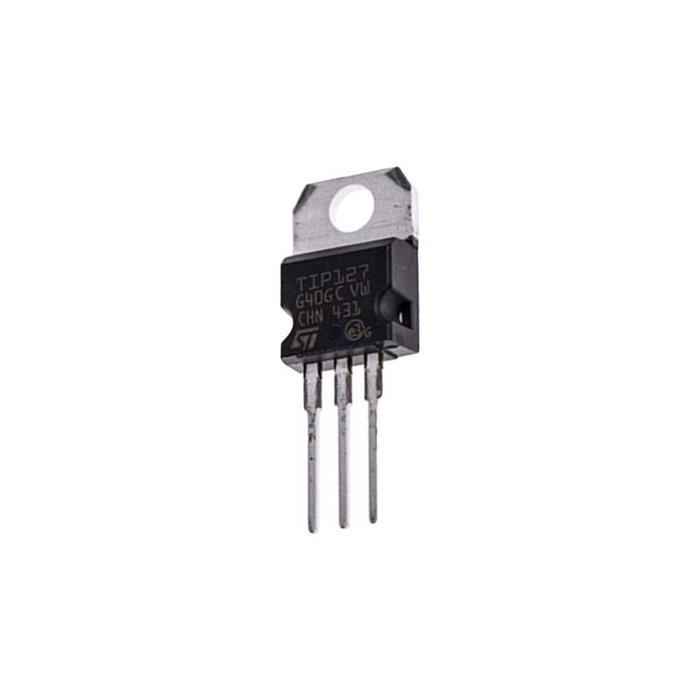

TIP127 Darlington PNP Transistor - (Pack of 5) TIP127 is a three-layer PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector-emitter voltage VCE. What is a Transistor? A transistor is a semiconductor device used to amplify and switch electronic signals and electrical power. It is composed of semiconductor material with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals changes the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Package Includes: 5 x TIP127 Darlington PNP Transistor Specifications: Transistor Polarity PNP Collector−Emitter Voltage (VCEO) 100V Collector−Base Voltage (VCBO) 100V Emitter Base Voltage (VEBO) 5V Continuous Collector Current (Ic) 5A Power Dissipation (Pd) 65W Dimensions  5 x 4 x 3cms  Weight  5 grams

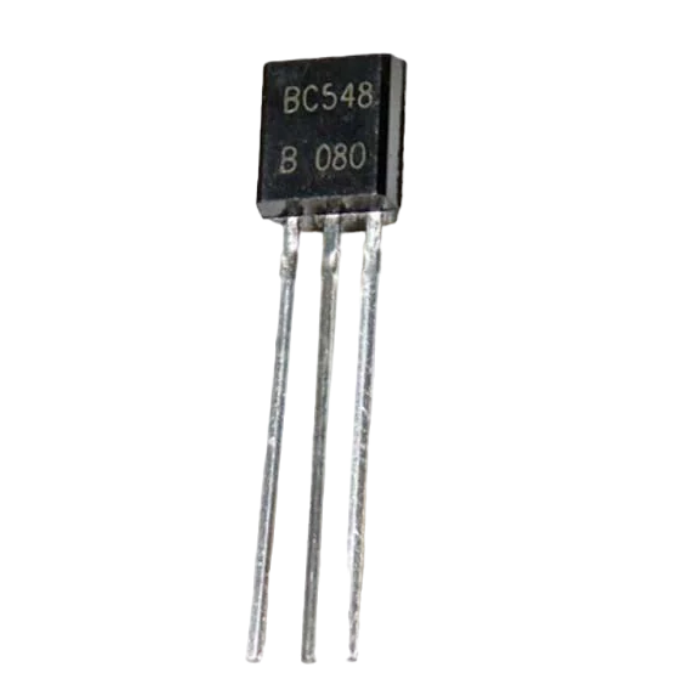

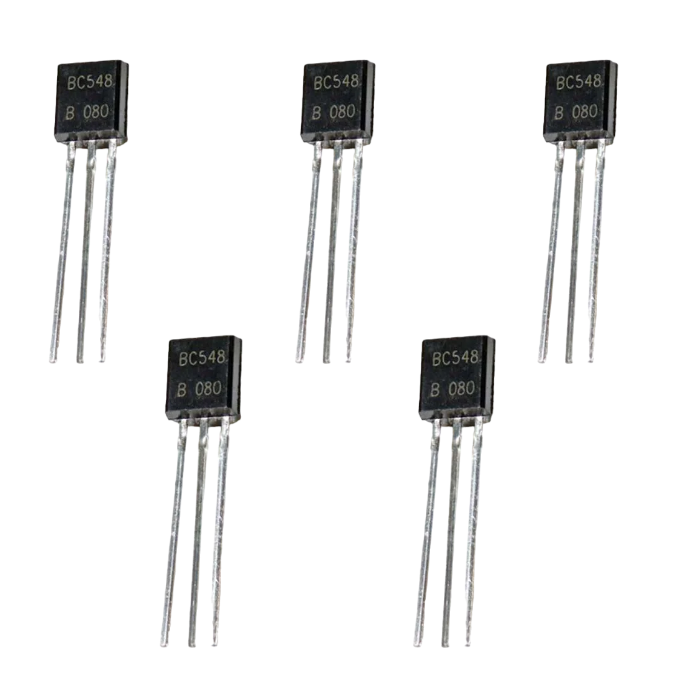

BC548 NPN Transistor (Pack of 5) A BC548 transistor is a negative-positive-negative (NPN) transistor that is used for many purposes. Together with other electronic components, such as resistors, coils, and capacitors, it can be used as the active component for switches and amplifiers. Like all other NPN transistors, this type has an emitter terminal, a base or control terminal, and a collector terminal. In a typical configuration, the current flowing from the base to the emitter controls the collector current. A short vertical line, which is the base, can indicate the transistor schematic for an NPN transistor, and the emitter, which is a diagonal line connecting to the base, is an arrowhead pointing away from the base. Read our blog explaining the bc 547 transistor pinout, which provides comprehensive information about the BC547 transistor, covering its basic knowledge, pin configuration, features, working states, circuit diagrams, and applications. Package Includes: 5 x BC548 NPN Transistor Specifications Transistor Polarity NPN Collector-Base Voltage (VCBO) 30VDC Emitter-Base Voltage (VEBO) 6VDC Continuous Collector Current (IC) 100mA Output Capacitance (Cobo) 4.5pF Transition Frequency (fT) 300MHz Power Dissipation (PD) 625mW Dimensions  5 x 4 x 3cms  Weight  5 grams

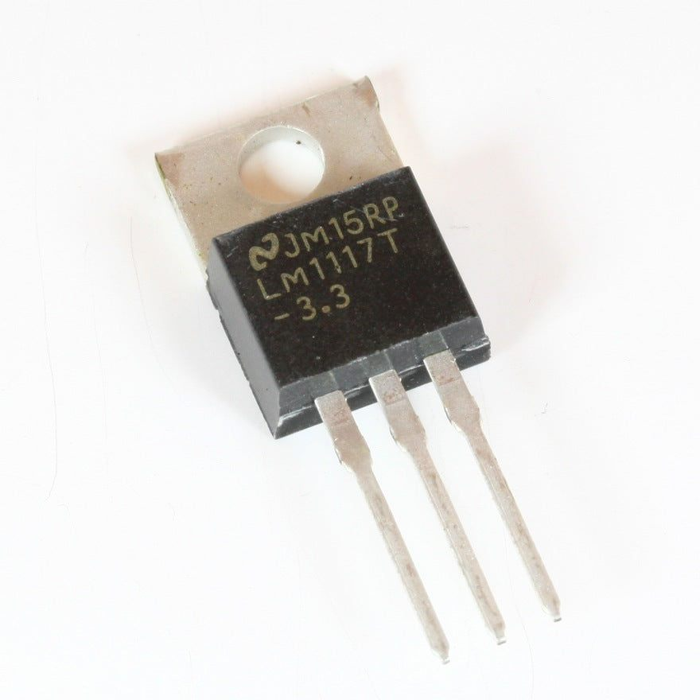

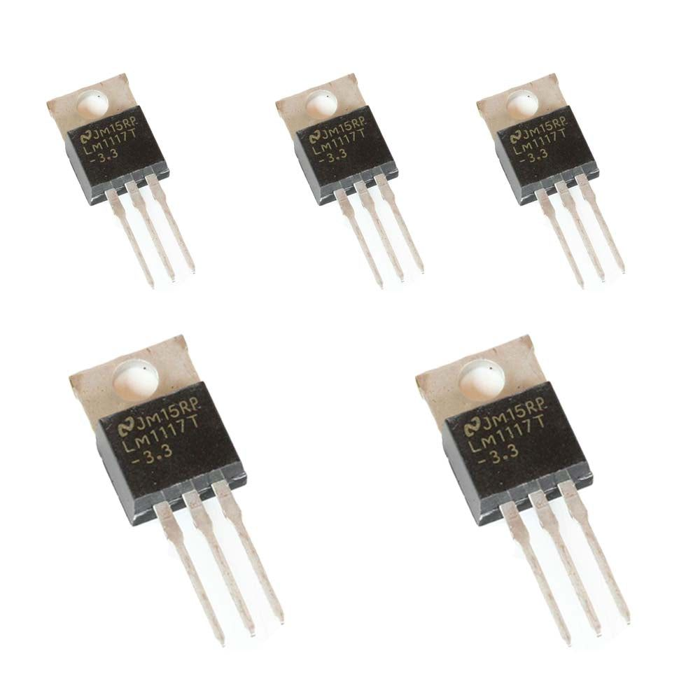

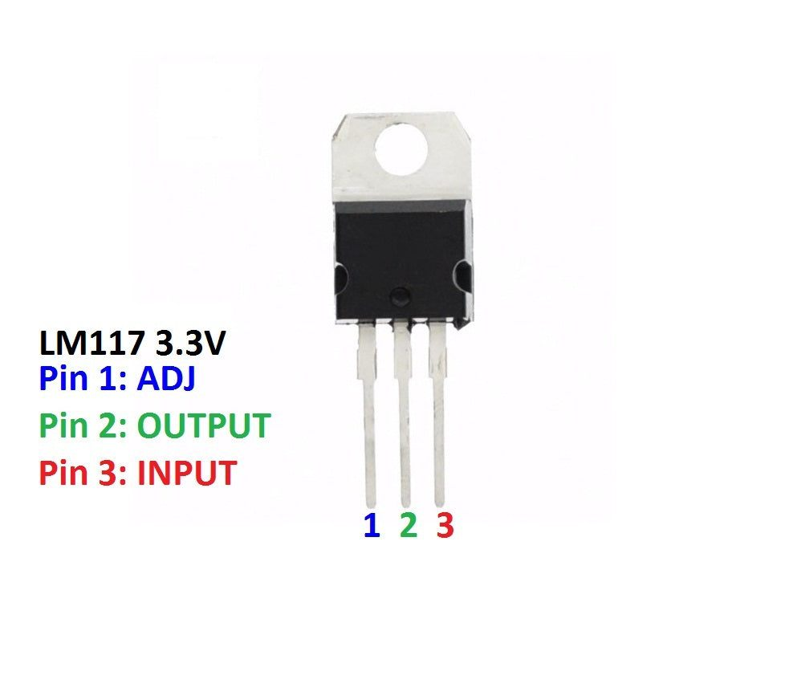

LM1117 IC Transistor - 3.3V Voltage Regulator The LM1117 is a low dropout voltage regulator with a dropout of 1.2 V at 800 mA of load current. The LM1117 is available in an adjustable version, which can set the output voltage from 1.25 to 13.8 V with only two external resistors. LM1117 offers current limiting and thermal shutdown. Its circuit includes a Zener trimmed bandgap reference to assure output voltage accuracy to within ±1%. Package Includes: 5 x LM1117 IC Transistor Specifications: Voltage Regulator  3.3V Low Voltage Dropout Line Regulation 0.2% Load Regulation 0.4% Temperature Range 0°C to 125°C Dimensions 5 x 4 x 3cms  Weight  5 grams

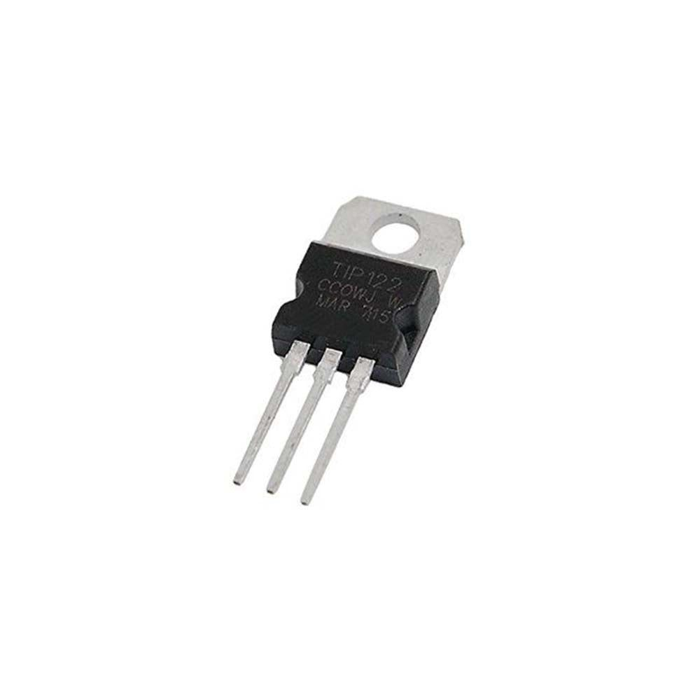

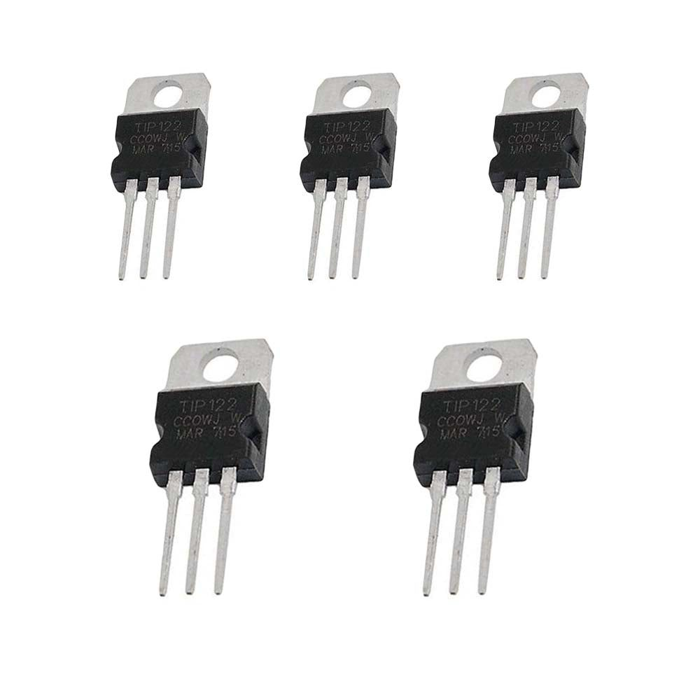

TIP122 Darlington NPN Transistor - (Pack of 5) The TIP122(RM0387) is an NPN Epitaxial Darlington Transistor. Mainly used for Medium Power Linear Switching Applications and Complements to TIP125/126/127. In electronic, the Darlington transistor (often called a Darlington pair) is a compound structure consisting of two bipolar transistors (either integrated or separated devices) connected in such a way that the current amplified by the first transistor is amplified further by the second one. This configuration gives a much higher common/emitter current gain than each transistor taken separately and, in the case of integrated devices, can take less space than two individual transistors because they can use a shared collector. Integrated Darlington pairs come packaged singly in transistor-like packages or as an array of devices (usually eight) in an integrated circuit. Package Includes: 5 x TIP122 Darlington NPN Transistor Specifications: Transistor Polarity NPN Collector−Emitter Voltage (VCEO) 100V Collector−Base Voltage (VCBO) 100V Continuous Collector Current (Ic) 5A Emitter Base Voltage (VEBO) 5V Power Dissipation (Pd) 65W Dimensions  5 x 4 x 3cms  Weight  5 grams

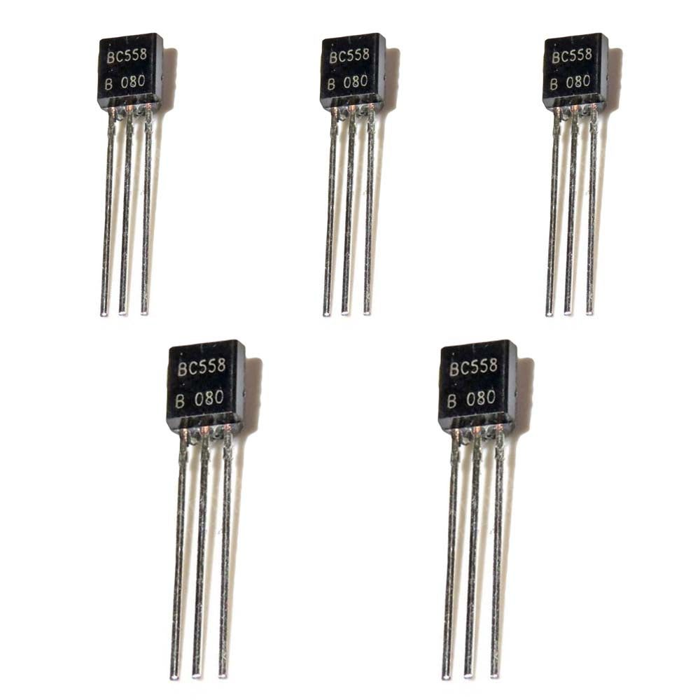

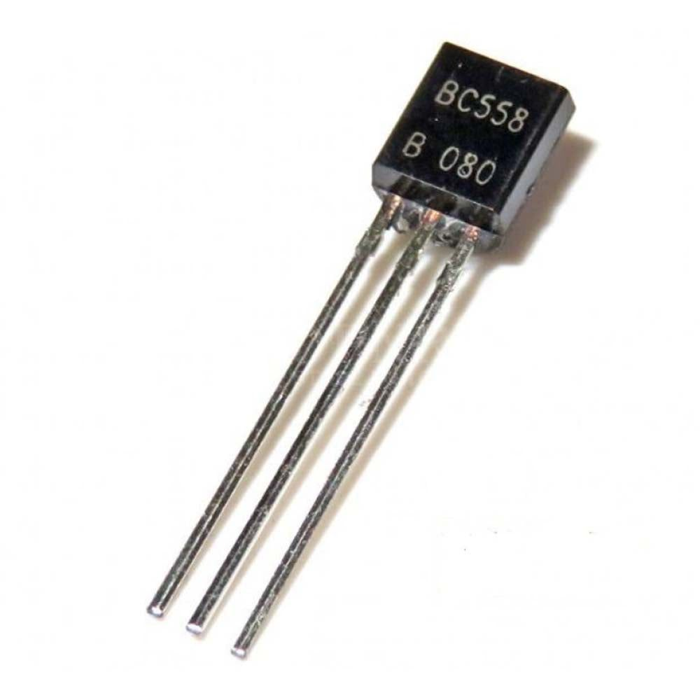

BC558 Transistor (Pack of 5) The BC558 is a PNP transistor and a heavy-duty drop-in replacement for a 2N2222 or 2N3906. The three terminals of a bipolar transistor are called the emitter, base, and collector. A small current into the base controls a large current flow from the collector to the emitter. The current at the base is typically one-hundredth of the collector-emitter current. Moreover, the large current flow is almost independent of the voltage across the transistor from collector to emitter. This makes it possible to obtain a large amplification of voltage by taking the output voltage from a resistor in series with the collector. read our blog explaining the BC547 Transistor: Basic Knowledge, Pin Configuration & Features. Package Includes: 5 x BC558 Transistor Specifications: Transistor Polarity PNP Collector-Base Voltage (VCBO) 30V Collector-Emitter Voltage (VCEO) 30V Continuous Collector Current (IC) 100mA Transition Frequency (fT) 150MHz Power Dissipation (PD) 500mW Dimensions  5 x 4 x 3cms  Weight  5 grams
