SN04-N NPN NO Distance Proximity Sensor Switch Module The SN04-N NPN Distance proximity sensor switch module is a 5mm distance detector that will detect the presence of a metallic object within 4mm of the surface of the sensor. The distance that the proximity sensor switch detects may vary with respect to the size and material of the object.  This SN04-N NPN distance detector features an LED indicator and is manufactured with materials that antivibration, dust, water, and oil prevention. Connections: Brown wire: 5 ~ 30 VDC (+Ve). Blue wire: 0 V (GND). Black wire: signal. Package Includes: 1 x SN04-N NPN distance detector Specifications: Operating Voltage 5-30V Current Consumption  5mA (Max) Detection distance 5mm Type of detection Induction Cable Length 145 cm Response Frequency 500Hz Max Dimensions  3.6 x 1.8 x 1.8cms Weight  100 grams

5 CHANNEL IR INFRARED CTRT5000 LINE DETECTION MODULE 5 channel IR sensor: Based on the TRCT5000 infrared reflection sensor, the TCRT5000L 5 Channel Tracking Sensor Tracking Module Infrared Sensor is frequently used to produce tracking smart cars. The TRCT5000 sensor's infrared emitting diode continually emits infrared light. A CTRT 5000 is a  Boiler Controller for an Electric water heater. Based on the TRCT5000 infrared reflective sensor, the  TCRT5000L 5 IR Tracking Module Infrared Sensor is frequently used to produce tracking smart cars. The TRCT5000 sensor's infrared emitting diode continually emits infrared light. The infrared receiver picks up the emitted infrared rays that are reflected by the object and produces analogue values. The output analogue value depends on the colour and distance of the item. Calculating the analogue value of the five outputs allows one to determine the location of the tracking line. Key

HC-SR04 Ultrasonic Sensor Holder This mounting bracket is made from good-quality Acrylic. It has mounting holes of a diameter of 3.8mm. It is simple, compact, lightweight, and provides more rigidity than most. With this Ultrasonic Sensor Mounting Case Holder, you can attach the HC-SR04 module to your application such as small robots or DIY projects very quickly and conveniently. This module is Only suitable for HC-SR04 Ultrasonic Sensor. This Bracket has a flexible arm and there is no need for any screws to fit the sensor. It fits the HC-SR04 ultrasonic sensor perfectly.  Note: This bracket only supports Ultrasonic Module HC-SR04, It DOES NOT support other types of Ultrasonic modules. HCSR04 Ultrasonic sensor is not included in the package. read our blog explaining ultrasonic sensor application, which provides comprehensive information about ultrasonic sensors, covering their working principle, applications, advantages, limitations. Application: Small Robots DIY Projects Package Includes: 1 x HC-SR04 Sensor Holder Specifications Colour Transparent  Thickness 2.8mm - 3.1mm Inner diameter 16mm Fixing hole diameter 3mm Material Plastic Weight 25gm

HC-SR04 Ultrasonic Sensor The HC-SR04 Ultrasonic Sensor Module is a popular tool for measuring distance and detecting objects. It’s small, easy to use, and combines everything you need—a transmitter, receiver, and control circuit—in one module. It works like a sonar, sending out sound waves to measure the distance to objects, just like how bats and dolphins sense their surroundings. This HC-SR04-Ultrasonic Range Finder can measure distances from 2 cm up to 400 cm with high accuracy, about 3 mm. It’s reliable for many projects, from robotics to simple object detection, and works well even in different lighting conditions.  Ultrasonic Ranging Module module has two main pins, Trigger and Echo, which connect easily to microcontrollers like Arduino, making it perfect for projects where you need non-contact distance sensing. Get your HCSR04 Ultrasonic Sensor today and take your DIY projects to the next level. Order now and enjoy free shipping on orders above Rs 500/- within India. Note: The HC-SR04 has a 5V output (which needs to be reduced to 3.3V to work with the Raspberry Pi). Read our blog on how to connect ultrasonic sensor to Raspberry Pi.

Sharp GP2Y0A02 F 23 Digital Distance Measuring Sensor The Sharp GP2Y0A02 F 23 Digital Distance Measuring Sensor is a popular choice for many projects that require accurate distance measurements. This IR sensor is more economical than sonar rangefinders, yet it provides much better performance than other IR alternatives. Interfacing to most microcontrollers is straightforward: the single analog output can be connected to an analog-to-digital converter for taking distance measurements, or the output can be connected to a comparator for threshold detection. The detection range of this version is approximately 20 cm to 150 cm (8″ to 60″). The sensor comes with a standard JST.  Applications: Obstacle Avoider Robot Maze solver Home Automation IoT Projects Package Includes: 1 x Sharp GP2Y0A02 F 23 Digital Distance Measuring Sensor. 1 x Connecting Cable. Specifications: Distance Measuring Range 20 to 150 cm Current 33 mA Voltage 4.5 to 5.5 V Dimensions 29.5 x 13 x 21.6 mm Weight 5g

LJ18A3-8-Z-BX 8mm Inductive Proximity Sensor The LJ18A3-8-Z/BX proximity sensor will detect large metal fields at an 8mm distance with great precision. This allows you to accurately measure the distance to an (aluminum) heated bed for example. If you are using a glass plate as your print surface, you can use aluminum foil right below the glass, which will also be detected by the sensor (mirrors however are not detected). The sensor is equipped with a small red detection LED, indicating a nearby object. The sensor has M18 threading and includes a nut for easy mounting to your 3D printer or CNC machine. The LJ18A3 is a PNP Normally Open (NO) type of proximity sensor. This means that the signal lead will output a positive voltage (same as the input voltage) when a metal mass is detected. When nothing is detected, the signal is equal to ground. Most modern 3D printer firmware has some sort of auto bed leveling procedure available, but you will need to enable it. You can use this sensor as the z_min_endstop for example, replacing your current end stop. Most firmware will also use the min end stop as a probe, but some allow a separate probe to be defined. This sensor operates at 5-36V, so as the signal voltage is the same as the input voltage, also the signal will be 5-36V. You will need to down-convert the voltage to an acceptable level for your electronics. Please see the linked schematic on how to connect this sensor to the end stop pins of your electronics board. Read our blog Proximity Sensor Types where we explained what is a proximity sensor, different types of Proximity Sensors and their working principle. Wiring: Wire - red or brown - supply voltage - V 5 Wire - green or blue - ground - GND Wire - yellow or black - digital output - OUT there is no object - high status the object detection - low status Application: Mine metallurgy. Plastics, textile, and Chemical Industry. Light industry, tobacco, electric power, railway, and war industry. Read our blog about how does a proximity sensor work where we discuss what proximity sensors are, the features of proximity sensors, how does proximity sensor work, and the different types of proximity sensors. Also check out the blog Interfacing Proximity Sensors with Arduino, where you can get the proximity sensor code. Package Includes: 1 x Inductive Proximity Switch Specification: Diameter of Head 18mm Detecting Distance 8mm Supply Voltage DC 5-36V Current Output 300mA Detect Object Iron Cable Length 103cms Dimensions  7 x 3 cms Weight  100 grams

E18-D80NK Infrared Sensor Module The E18-D80NK Adjustable Infrared Sensor Switch 3-80cm is a set of transmitters and receivers in one of the photoelectric switch sensors. The detection distance can be adjusted according to the demand. The sensor has a detection range of 3-80cm. The Adjustable Infrared Sensor Switch is small, easy to use, inexpensive, easy to assemble and can be widely used in a robot to avoid obstacles, interactive media, industrial assembly lines, and many other occasions. The switching signal output differs in accordance with the obstacles. It remains high when no obstacles and remains low when there are obstacles. There is a bright light behind the probe to detect the scope of 3cm – 80cm. Connection: Red wire: +5V Green wire: GND Yellow wire: Digital output Application: In the food and pharmaceutical industries, and in packaging plants to detect product size to spot any errors, or simply spot their absence Detection of colours Monitoring bigger areas for objects with light grids Logistics and materials handling: Automatic doors for building and public transport Package Includes: 1 x E18-D80NK Adjustable Infrared Sensor Switch 3-70cm. Specifications: Light source Infrared Sensing Range 3cm to 80cm Input Voltage (V) 5 Current Consumption 300mA Dimensions (Dia.xLength.) mm 23.2 x 69 Weight 100 grams  Cable Lenght 70 cms

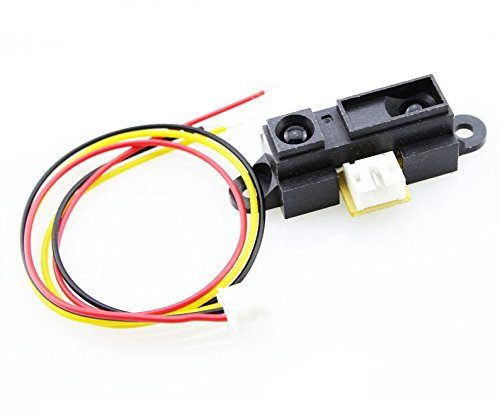

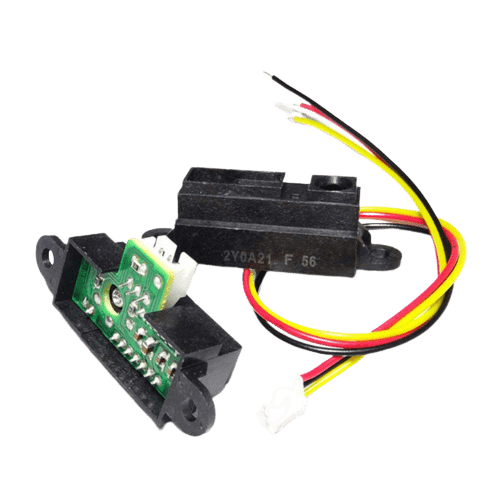

Sharp GP2Y0D810Z0F Digital Distance Sensor It is one of Sharp's fastest distance sensors - with a sample rate of almost 400 Hz and is an attractive alternative to short-range phototransistors and longer-range analog distance sensors. Output is high normally and low when the sensor detects an object. This sensor only tells if the object's nearby - not how near or far the sensor is - so they're great for break-beam, obstacle detection, and object counting.This sensor comes with a 3-pin male header and a 3-pin right-angle male header. You can connect these pins with a servo cable. The square pad is ground, the middle is VIN, and the remaining pad is output. If you place a large capacitor (more than 10uF) between power and ground you should see an increase in performance.

HC-SR04 Ultrasonic Distance Sensor Module (Pack of 20) This is a Ultrasonic Distance Sensor Module of 20 Quantity. Ultrasonic Module HC-SR04 Distance Sensor can measure the distance to an object by using echo. It can measure the distance between the sensor and the object by the time from the sound wave of a specific frequency to the time when the sound wave is heard to bounce back. The HC-SR04 Ultrasonic Distance Sensor Pack of 20 is perfect for all kind of projects that need distance measurements, e.g. avoiding obstacles. HC-SR04 provides 2cm-500cm non-contact measurement function, the ranging high accuracy can reach to 3mm.

HC-SR-04 Ultrasonic Sensor The HC SR04 ultrasonic sensor is used to detect the distance of an object between 2-400cm with an accuracy of up to 3mm. This hc sr04 ultrasonic sensor is based on the SONAR principle and hence its working is not affected by sunlight or other ambient lighting conditions making it ideal for outdoor applications also. The sensor works by transmitting a signal and starting a timer simultaneously, it then stops the timer when the receiver receives the signal after bouncing back from the object. Note: The HC-SR04 has a 5V output (which needs to be reduced to 3.3V to work with the Raspberry Pi). Applications: Used to avoid and detect obstacles with robots like biped robots, obstacle avoider robots, path finding robots, etc. Used to measure the distance within a wide range of 2cm to 400cm Can be used to map the objects surrounding the sensor by rotating it Depth of certain places like wells, pits, etc. can be measured since the waves can penetrate through the water Package Includes: 25 x HC-SR04 Ultrasonic sensor Specifications: Power Supply +5V DC Working Current 15mA Output Signal Electrical frequency signal Ranging Distance 2cms – 400 cms Resolution 0.3 cm Measuring Angle 30 degree Dimensions  3 x 2 x 1cms Weight  15 grams

KY033 TCRT5000 Sensor The TCRT5000 Single Channel Line Tracking Sensor Module is a great detector for a line-following robot. Potentiometer to adjust the sensitivity of the individual sensors. TCRT5000 infrared sensor emits infrared emitting diode continuously when no infrared rays emitted or reflected back is reflected back but the strength is not large enough, the phototransistor has been in the off state, and the output terminal of the module is high, indicating that the diode has been in the off state; in the object to be detected within the detection range, and the intensity of the reflected infrared rays is large enough, phototransistor saturated, and the output terminal of the module is low, the indicator LED is lit. TCRT5000 Single Channel Line Tracking Sensor Module is a carrier board for the TCRT5000 reflective optical sensor. Although it is designed for use with line-following robots, it can be used in mini-sumo robots for line control. The board has a digital output. Applications: Position sensor for shaft encoder  Detection of reflective material such as paper, IBM cards, magnetic tapes etc. Limit switch for mechanical motions in VCR General purpose - wherever the space is limited Package Includes: 1 x KY033 TCRT5000 Sensor Specifications: Operating Voltage (VDC) 3.3 ~ 5 Supply Current (A) 20mA Output Format Analog and Digital Voltage Dimensions 4.2 x 1 x 1cms  Weight  5 grams

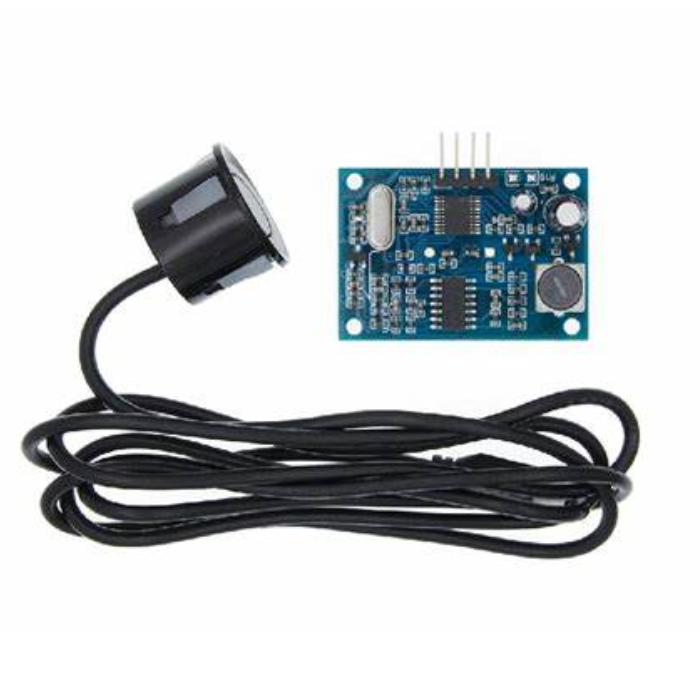

Waterproof Ultrasonic Sensor This Waterproof ultrasonic sensor is very similar to the Ultrasonic sensor which is found in cars. This Waterproof Ultrasonic Obstacle Sensor shows some important constructional advantages over the conventional sensors. It comes in two separate parts one being the transducer which is the sensing element and the other being the control board. The module is capable of providing information on the objects between the distance range of 250 mm to 4500 mm. The great advantage of using this Waterproof Ultrasonic sensor is you can put the sensing element far away from all the control circuitry. This Ultrasonic Distance Sensor is an industrial-grade sensor to measure distance. Interfacing with it is the same as another cheap ultrasonic sensor, but it offers better performance and is compatible with harsher environments and is waterproof too. There are many ultrasonic distance sensors on the market, but sometimes, this kind of sensor needs to work in vulnerable conditions.  It is very easy to use, a control port with a 10US above high level can wait for high-level output at the receiving port. An output can drive the timer when this port is low can read the timer value, this time for the location of the time can be distance measurement. Constantly cycle tests that can achieve the measurement of the value of your mobile. It allow us to measure the distance between stationary objects such as walls, floors or ceilings with unparalleled accuracy. These advanced technology-packed devices detect changes in humidity levels, temperature fluctuations and other environmental conditions that could compromise safety of our valuables stored inside buildings we own or manage.  The environmentally sealed waterproof bodies provide protection against dust particles while allowing full access to settings at all times making it very easy for anyone to use them even without technical knowhow. Iotcart's range of waterproof ultrasonic sensors guarantees high precision performance both indoors and outdoors regardless of how wet your environment gets - be it rainwater flooding waters from rivers or oceans! Wiring of the Waterproof Ultrasonic Sensor +5V(positive) Trig(control) Echo(receive) GND(negative)

3 Channel IR Infrared CTRT5000 Line Detection Module The 3 Channel IR Infrared CTRT5000 Line Detection Module uses Infrared to detect the line so it has anti-interference ability, visible light will not interfere with its operation. The TCRT5000 is a reflective sensor that includes an infrared emitter and phototransistor in a leaded package that blocks visible light. It has indicator LEDs on it, when tracing sensor senses a key signal, LED lights, otherwise off. 3 channel line-following sensor modules are necessary parts for making a robot. Adopt Infrared detection, high ability of anti-interference. Using the CTRT5000 sensor, high sensitivity, and stability. Fine workmanship, with indicator light. Come with bolt holes for easy installation. It has 3 TCRT5000 Infrared Line Tracking sensors with an onboard comparator, LED indicators, and other signal conditioning components, and yes it is Arduino-compatible! Application: Line follower robot Obstacle detector robot Grid navigating robots Maze Solving Robot Home automation Smart parking system Package Includes: 1 x 3 Channel IR Infrared CTRT5000 Line Detection Module Specifications: Power supply 5V DC Number of channels 3 Dimensions(LxWxH) 3x2x1cm Weight 5gm
