Radiolink AT10II with R12DS – Transmitter and Receiver for Drones, Cars & Boats
Expected restock within 5-7 business days. We'll ship immediately once available.
For urgent inquiries, please contact us .
Delivery & Pickup Options
Expected to be in stock within 5-7 business days. We'll ship immediately once available.

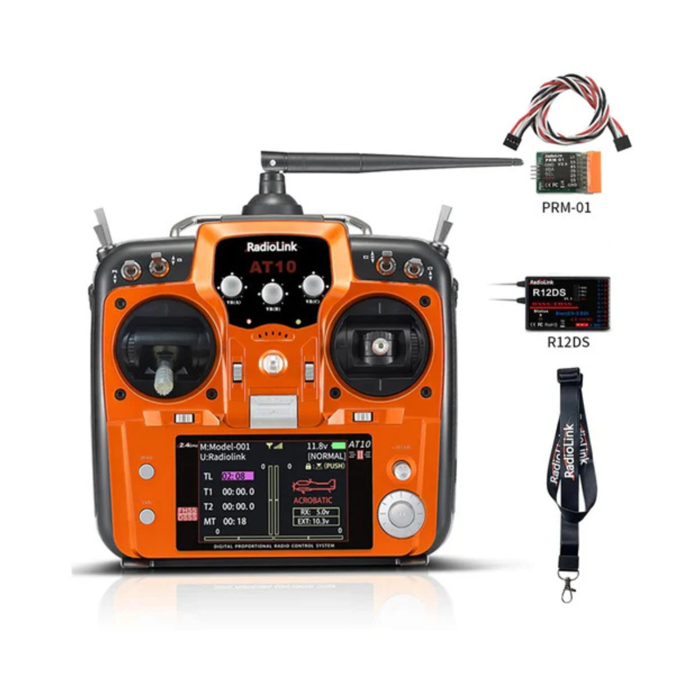

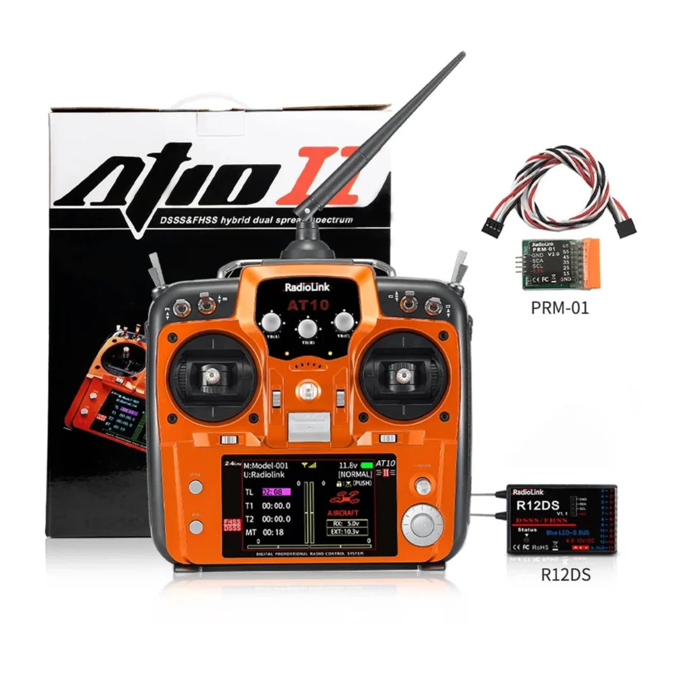

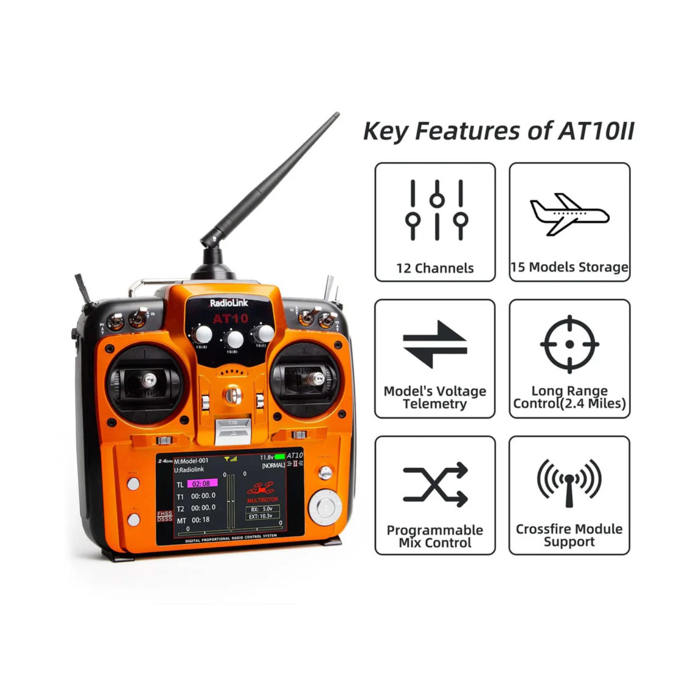

Radiolink AT10II with R12DS – Transmitter and Receiver for Drones, Cars & Boats The Radiolink AT10II Transmitter with R12DS 12-Channel Receiver is a high-performance receiver and transmitter for drone applications, as well as helicopters, airplanes, cars, and boats. Designed for precision and reliability, it features an ergonomic design, backlit LCD screen, and interference-free 2.4GHz connection. Ideal as an RC transmitter and receiver for drone enthusiasts, it supports telemetry for real-time data monitoring (sensors sold separately). The compact R12DS receiver offers PWM, PPM, and SBUS output modes, with advanced anti-interference technology (DSSS, FHSS, QPSK). With 16-channel frequency hopping and fully customizable programming, the AT10II delivers stable long-range control for beginners and pros alike. Features Excellent Anti-Interference: Only 3ms for 12 channels synchronously, with DSSS & FHSS working together for strong interference resistance. Real-Time Information: LCD screen displays model voltage, RSSI, speed, altitude, distance, and more. Supports telemetry feedback (with PRM-01 module) for GPS, speed, and voltage when paired with APM or PIX flight controllers. Multiple Alarms: Low RSSI, transmitter voltage, receiver voltage, and motor voltage alarms with sound and backlit screen alerts for added safety in noisy environments. Voltage Protection System: Built-in protection circuit prevents damage from incorrect plugging. Low battery consumption enables 12+ hours of use with a 3S 1800mAh LiPo battery. Wide Compatibility: Supports Radiolink receivers (R9DS, R12DSM, R6DS, R6DSM, R12DS), making it ideal for FPV racing drones, helicopters, multirotors, cars, and boats. Programmable Mix Control: 5–12 channels adjustable for precise customization of aircraft functions. Variety of Switches: Multiple switch types for flexibility, including 3 VR switches, 3 three-way position switches, 4 two-way position switches, 1 reset trainer switch, plus multi-antenna and 2 PTZ* control support.
- 12-channel 2.4GHz transmitter with R12DS receiver
- 3ms ultra-low latency for 12 channels
- DSSS + FHSS dual anti-interference technology
- Backlit LCD with real-time telemetry display
- Supports PWM, PPM, and SBUS output modes
- Compatible with APM, PIX, and most flight controllers
- 16-channel frequency hopping for signal stability
- Low battery and RSSI alarms with visual/audio alerts
- Ergonomic transmitter design with adjustable grip
- Real-time voltage, RSSI, speed, and altitude monitoring
- Multiple alarm systems for safety
- Programmable channel mixing and curve adjustment
- Trainer port for pilot training
- Wide compatibility with Radiolink receivers
- Voltage protection against reverse polarity
| Channels | PWM 12 channels, SBUS 12 channels |
|---|---|
| Control Distance | Up to 4000 meters in the air |
| Frequency | 2.4GHz ISM band (2400MHz to 2483.5MHz) |
| Channel Bandwidth | 5.0MHz |
| Spread Spectrum | DSSS & FHSS |
| Adjacent Channel Rejection | 38dbm |
| Transmitter Power | <100mW (20dbm) |
| Working Current | 38–45mA (input voltage: 5V) |
| Working Voltage | 4.8–10V |
| Section Precision | 4096 |
| Screen | 3.5 inch color display, 320×480 pixels |
| Supported Receivers | R12DS, R9DS, R6DS, R6DSM, R12DSM |
| Signal | SBUS, PWM |
| Input Voltage Range | 1S–6S LiPo Battery |
| Compatible Receivers | R12DS, R9DS (Old version: R10DS, R10D, R9D) |
| Compatible Transmitters | AT10II, AT10, AT9S Pro, AT9S, AT9 |
Is the Radiolink AT10II compatible with Pixhawk and APM flight controllers?
Yes, the AT10II supports telemetry with APM and PIX flight controllers when used with the optional PRM-01 module.
What output modes does the R12DS receiver support?
The R12DS supports PWM, PPM, and SBUS output modes for versatile integration with drones and RC systems.
Can I use the AT10II for FPV racing drones?
Yes, the low-latency 3ms response and SBUS support make it ideal for high-speed FPV racing and freestyle drones.
Does the transmitter include telemetry feedback?
Telemetry is supported with the optional PRM-01 module for real-time GPS, voltage, and speed data.
