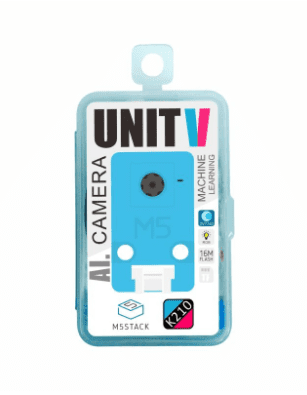

M5Stack UnitV AI Camera (OV7740) UnitV(OV7740) is the new AI Camera powered by Kendryte K210, an edge computing system-on-chip(SoC) with a dual-core 64bit RISC-V CPU and state-of-art neural network processor.UNIT-V AI Camera features its integration with machine vision capabilities, featuring the unprocessed acceptability to AI Visioning with high energy efficiency and low cost. We co-oped with Sipeed providing the MicroPython environment makes programming on UNIT-V easier.Support MicroPython development environment, which makes the program code more concise when you use UNIT-V for project development. Equipped with an OV7740 image sensor, it is an ideal choice for a machine vision project.It is equipped with two programmable keys and an RGB LED indicator on the front for a convenient status display. At the bottom, there is an HY2.0*4P interface and a type-C interface compatible with grove, which is convenient to connect with the main controller. Support TF card to expand the memory, related material, and model file call more convenient. On-board Hardware resources: Flash: 16M Camera :OV7740 Button: button * 2 Indicator light: WS2812 LED External storage: TF card/Micro SD Interface: HY2.0/compatible GROVE Applications: Face recognition/detection Object detection/classification Obtaining the size and coordinates of the target in real-time Obtaining the type of detected target in real-time Shape recognition Video recorder Package Includes: 1x UNIT-V(include 20cm 4P cable and USB-C cable) Specifications: Kendryte K210 Dual-Core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal) SRAM 8MiB Flash 16M Input voltage 5V @ 500mA KPU Neural network parameter size 5.5MiB - 5.9MiB Interface TypeC x 1, GROVE(I2C+I/0+UART) x 1 RGB LED WS2812 x 1 Button x 2 Image Sensor OV7740(30W pixels) FOV 65deg External storage TF Card/Micro SD Dimensions 40 x 24 x 13mm Weight 45gm

M5StickV K210 AI Camera (without wifi) M5Stack recently launched the new AIoT(AI+IoT) Camera powered by Kendryte K210 -an edge computing system-on-chip(SoC) with dual-core 64bit RISC-V CPU and advanced neural network processor.M5StickV AI Camera possesses machine vision capabilities, equips OmniVision OV7740 image sensor, adopts OmniPixel®3-HS technology, provides optimum low light sensitivity, supports various vision identification capabilities. (e.g. Real-time acquisition of the size, type, and coordinates of the detected target ) In addition to an OV7740 sensor, M5StickV features more hardware resources such as a speaker with built-in I2S Class-D DAC, IPS screen, 6-axis IMU, 200mAh Li-po battery, and more.It is able to perform convolutional neural network calculations at low power consumption, so M5StickV will be a good zero-threshold machine vision embedded solution. It is in support of MicroPython, which makes your code to be more concise when you use M5stick-V for programming. Switching operations： Power on: Long press power button for 2 secondsPower off: Short press power button for 6 seconds Applications: Face recognition/detection Object detection/classification Obtaining the size and coordinates of the target in real-time Obtaining the type of detected target in real-time Shape recognition Video/Display Game simulator Package Includes: 1x M5StickV1x USB Type-C(100cm)1x Bracket1x HEX KEY Specifications: Kendryte K210 Dual core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal) SRAM 8MiB Flash 16M Power input 5V @ 500mA KPU Parameter size of neural network 5.5MiB - 5.9MiB Port TypeC x 1, GROVE(I2C+I/0+UART) x 1 RGB LED RGBW x 1 Button Custom button x 2 IPS screen 1.14 TFT, 135*240, ST7789 Camera OV7740(30W pixels) FOV 55deg PMU AXP192 Battery 200mAh External storage TF-card(microSD) MEMS MPU6886 Dimension 48*24*22mm Weight 82gm

M5 Stick Unit Cam Wi-Fi Camera (OV2640) Unit CAM M5 launched a very cost-effective Wi-Fi camera, using ESP32-WROOM-32E control core + 2MegaPixel image sensor (OV2640) solution on the hardware, using the most simplified design, no extra peripherals. The factory software integrates image transmission firmware, provides image data acquisition, image parameter (white balance, exposure, gain, size, and other attributes) adjustment interface, users can directly acquire image data through UART or Wi-Fi, and interact with the camera. Support UIFlow graphical programming call, realize zero development, out-of-the-box user experience. The compact design and cost performance are suitable for various wireless camera application scenarios. Applications: Wi-Fi camera Remote monitoring Package Includes: 1 x M5 Stick Unit Cam Specifications: Flash 4M Firmware default communication method UART: 115200bps 8N1 Camera OV2640 Maximum resolution 2MegaPixel Unit CAM firmware default picture transfer rate 12fps OV2640 supports output format YUV(422/420)/YCbCr422, 8-bit compressed data, RGB565/555, 8-/10-bit Raw RGB data OV2640 supports the maximum image transfer rate UXGA/SXGA: 15fps, SVGA: 30fps, CIF: 60fps DFOV 66.5° Dimensions 45 x 20 x 12mm Weight 5.3gm
