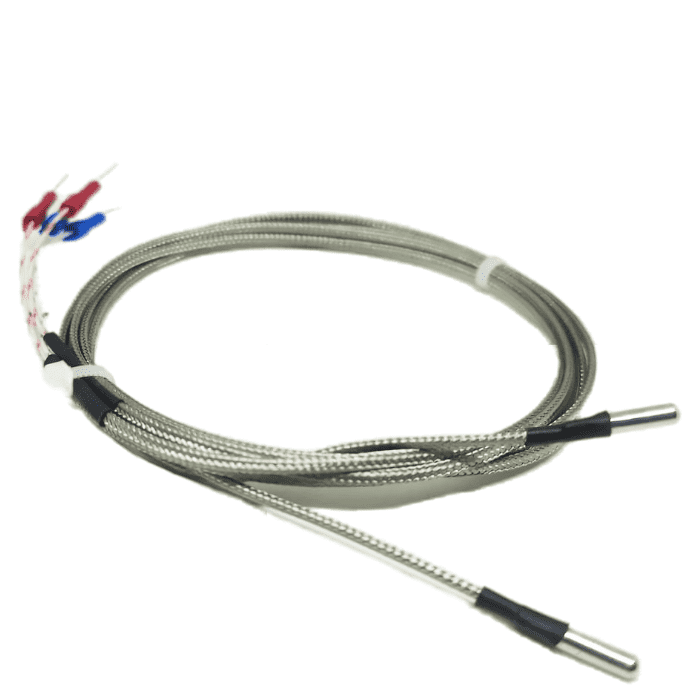

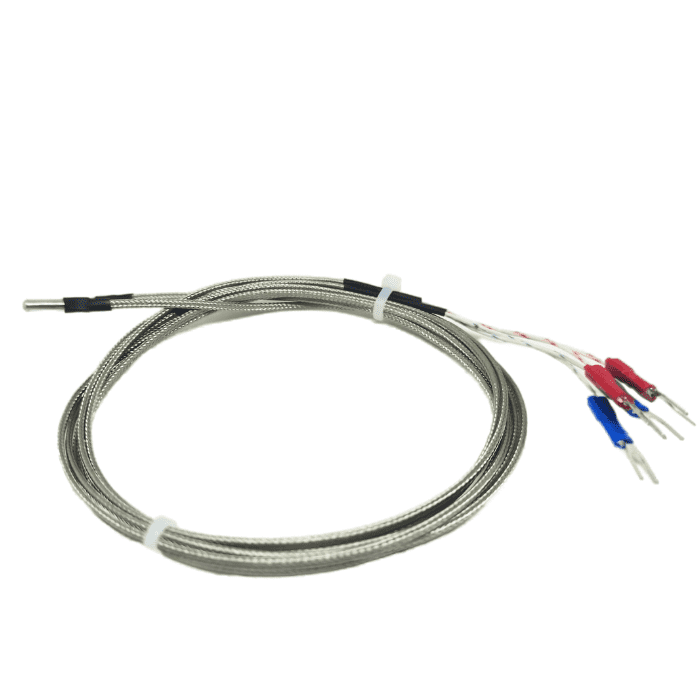

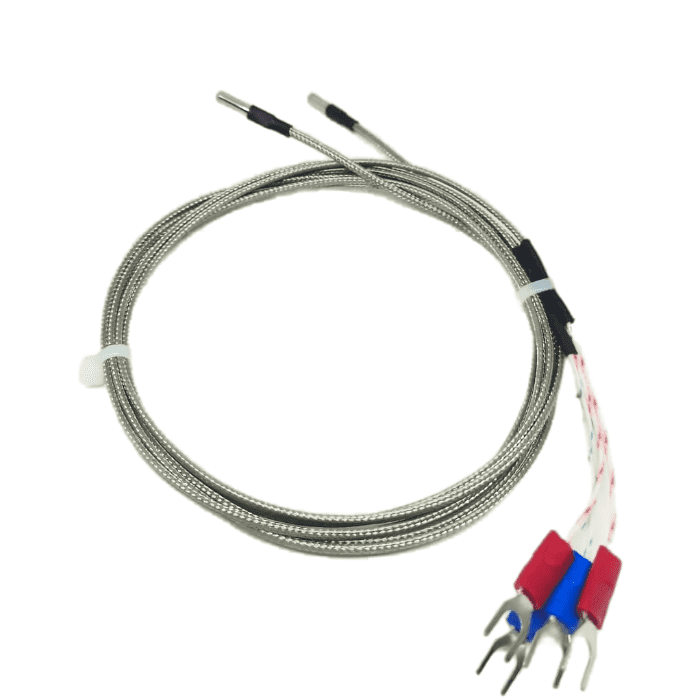

K-type Temperature Thermocouple with Metal Shield Insulation (1 Meter) A Type K thermocouple refers to any temperature sensor containing Chromed and Alumel conductors, that meets the output requirements as stated in ANSI/ASTM E230 or IEC 60584 for Type K thermocouples. This may be an immersion sensor, a surface sensor, wire, or another style of sensor or cable. Temperature Sensor, Shielded K Type Thermocouple High Accuracy for Control. Whereas a J Type Thermocouple is made up of iron and constantan, K type Thermocouples are composed of a nickel/chromium alloy (chrome) and a nickel/aluminum alloy (alumni) which gives them much better protection …
Sale Accelerators
Hurry up! Only 5 left in stock
Condition:NEW
As low as₹140.88₹257.60Incl. GST (No Hidden Charges)
Backorder Available
In Store Pickup
Same Day Shipping
Delivery: Next Day Delivery
IN STOCKSKU#: IOT-44
Order Before 11 to for same day shipping
Low Stock
Only 5 items in stock. Additional quantity can be backordered.
K-type Temperature Thermocouple
with Metal Shield Insulation
(1 Meter)
A Type K thermocouple refers to any temperature sensor containing Chromed and Alumel conductors, that meets the output requirements as stated in ANSI/ASTM E230 or IEC 60584 for Type K thermocouples. This may be an immersion sensor, a surface sensor, wire, or another style of sensor or cable. Temperature Sensor, Shielded K Type Thermocouple High Accuracy for Control.
Whereas a J Type Thermocouple is made up of iron and constantan, K type Thermocouples are composed of a nickel/chromium alloy (chrome) and a nickel/aluminum alloy (alumni) which gives them much better protection against oxidation and acidity than the iron limbs of the Type J
Type K consists of two metal alloys Chromel (90% Nickel, 10% Chromium) and also Alumel (95% Nickel, 2% Manganese, 2% Aluminium and 1% Silicon). Due to the thermocouple having a Nickel base; this means that it has good corrosive resistance-meaning that it can be widely used in many applications and situations.
Also check Surface
Thermocouple K Type High-Temperature Resistance Probe with a 1-meter cable
. It has a temperature measuring range of 0 to 600 °C and features a K-type connector with an insulated wire.
Packages Includes:
1 x K-type Thermocouple
Wide temperature range: 0°C to 600°C
Shielded 1-meter cable with EMI protection
Compatible with Arduino, Raspberry Pi, and ESP32
Chromel-Alumel alloy construction for corrosion resistance
Standard K-type connector for easy integration
High-accuracy temperature sensing
EMI-shielded for industrial environments
Durable nickel-alloy construction
Plug-and-play with amplifier modules
Ideal for automation, labs, and prototyping
Length
1 Meter
Item Type
K Type Thermocouple
Model
Probe type
Probe Length
2in
Measuring Range
0-400 degrees Celsius
What is the temperature range of the K-type thermocouple?
The thermocouple measures temperatures from 0 to 600°C with high accuracy.
Is this thermocouple compatible with Arduino?
Yes, it works with Arduino and Raspberry Pi using a thermocouple amplifier module.
What materials are used in the K-type thermocouple?
It uses Chromel (Nickel-Chromium) and Alumel (Nickel-Aluminium) alloys for durability and accuracy.
Can this sensor be used in high-interference environments?
Yes, the metal shield insulation protects against EMI for stable readings.
Do I need additional hardware to connect this to a microcontroller?
Yes, a thermocouple amplifier (e.g., MAX6675 or AD8495) is required to interface with Arduino or Raspberry Pi.
To rate this product please login!
About K-type Temperature Thermocouple (1 Meter) by Iotcart
Buy K-Type Thermocouple 1m shielded sensor. Compatible with Arduino & Raspberry Pi. 0–600°C range. Ideal for industrial & DIY projects in India.
