Arcade 2Pin Joystick switchable to 4/8 Ways This joystick can support the 8 way and 4-way models. The default is round 8 ways. If you need to use the 4 way, you just need flip No.5 small accessories. The NO interface is a Signal/Function Pin to a 4.8mm Connector. The COM interface is Ground Loop. Each joystick includes 4 high-quality micro switches. The service life is 1.000.000 times Be sure to assemble the joystick in the numerical order in the picture. Because it missed any of the steps. It will lose its job. Package Includes: 1 x Arcade 2Pin Joystick switchable to 4/8 Ways Specifications: Dimensions  105 x 85 x 145 mm Weight 50 gm

Joystick Module This is a dual axis high quality JoyStick Module . It can be used to sense movements in 2 directions(axes). It also has a inbuilt switch which can be activated by pressing the stick.Directional movements are simply two potentiometers - one for each axis. Pots are ~10k each.  With the help of this Joystick Module, you can measure position coordinates on the X and Y axis by moving the "hat". It also contains a switch that is press-able by pushing the "hat".It also contains a switch that is press-able by pushing the "hat" down. Similar to the XBOX controller. The X and Y axes are two 10k potentiometers which control 2D movement by generating analog signals. When the module is in working mode, it will output two analog values, representing two directions. This module uses the 5V power supply, and value, when reading through analog input, would be about 2.5V, a value will increase with joystick movement and will go up till maximum 5V; the value will decrease when the joystick is moved in other direction till 0V. Joystick module biaxial keys use SONY Corporation PS2 gamepad buttons on the original high-quality  metal rocker potentiometer, analog output module and one ad hoc Road digital output interface, the output value corresponding to (X, Y) pairs axis offset which is of analog type; coordinate identifiers clear, concise, accurate positioning; using it can easily control objects (such as two degrees of freedom servo head ) movement in two-dimensional space, sensor expansion board connectors etc.  A joystick is an input device that consists of a stick that can be tilted in multiple directions to control an on-screen object. The most common use of a joystick is in video gaming. In a video game, the player uses the joystick to move their character around the game world. Joysticks can also be used to control other on-screen objects, such as a cursor in a word processing program. Joysticks are usually designed to be ergonomic and comfortable to use. They typically have a large number of buttons and controls that can be programmed to perform different functions. Joysticks come in a variety of shapes and sizes, and can be plugged into a computer via a USB port, or wirelessly connected. There are a number of different types of joystick modules available on the market. The joystick price in India ranges from around Rs. 30/- to Rs. 45/-. One can easily buy Joystick Online from Iotcart. Iotcart offers customers the ease of shopping from home for their needs. This joystick modules typically offer the best performance and features, such as multiple analog outputs, all the way to digital output, and X, Y-axis output for the two potentiometers. However, even the cheapest joystick modules can provide a good level of performance and functionality. Applications: Camera Pan/Tilt Control. Game Input/Control. Robot Control. Widely use in DIY projects. Package Includes: 1 x Joystick Module Specifications: Operating Voltage (VDC) 5 Dimensions (mm) 40 x 27 x 15 (LxWxH) Weight (gm) 10

1x4 Matrix Keypad 1x4 Key Matrix Membrane Switch Keypad is a high-quality product at a very low cost for your application needs. This 4-button keypad provides a useful human interface component for microcontroller projects. Convenient adhesive backing provides a simple way to mount the keypad in a variety of applications. The Keypad 1x4 features a total of 4 buttons in Matrix form. This is a membrane keypad with no moving parts. A female 5-pin berg connector is required for interfacing it with your microcontroller circuits. Features : Ultra-thin design & adhesive backing provides easy integration to any project Excellent price-performance ratio Easy communication with any microcontroller This allows a microcontroller to ‘scan’ the 5 output pins to see which of the 4 buttons is being pressed Product Includes: 1 x 1x4 Membrane Keypad Specifications: Voltage(V) DC 35V Operating Current (A) 100mA Contact Resistance 500Ω Dimensions(mm) 110 x 70 x 1 (L x B x H) Weight (gm) 2 g

4x4 Membrane Keypad This 4×4 Membrane is a high-quality soft-touch feeling button keypad with 100 million life-stroke lifespans and good resistance to environmental conditions. This 4×4 Membrane Keypad is a high-quality product at a very low cost for your application needs. This 16-button keypad provides a useful human interface component for microcontroller projects. Convenient adhesive backing provides a simple way to mount the keypad in a variety of applications. The Keypad 4×4 features a total of 16 buttons in Matrix form. This is a membrane keypad with no moving parts. A female 8-pin berg connector is require for interfacing it with your microcontroller circuits. Package Includes: 1 x 4x4 Membrane Keypad Specifications: Keypad Matrix  4x4 Keypad Matrix Operating Voltage 12V (DC) Dimensions 7.9 x 6.9 x 1cms  Weight  25 grams

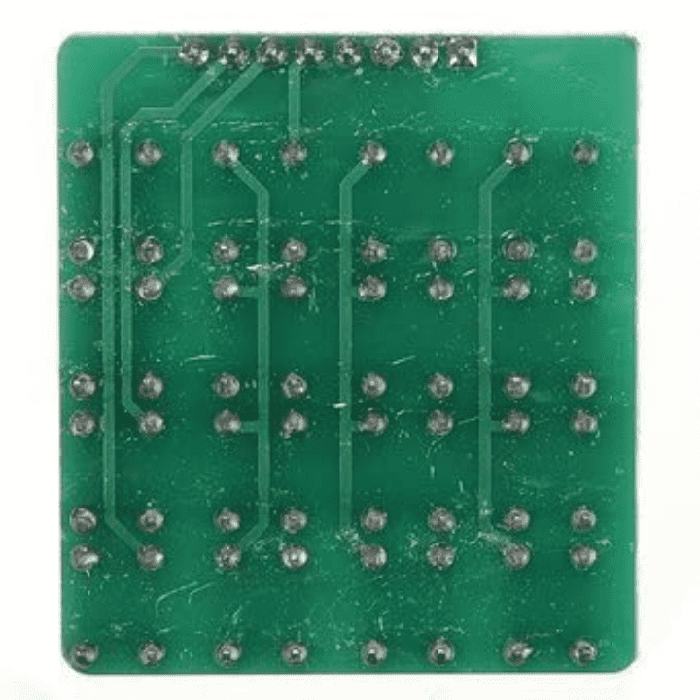

Matrix 16 Button Keypad Module (4x4 Keypad) The 4 X 4 Matrix Keypad (RM0947) is a very simple one from have 16 tactile keys connected to the male headers across the resisters on the same board. It is very small and easy to carry. Its simplicity is hexadecimal to give the power to the keypad and connect the headers to the microcontroller's input port with whenever pin female connecting wire. When one tactile key is pressed its corresponding pin with Rows and column intersection gets high logic. The connection to the keypad is divided into rows and columns. There are four rows and 4 columns that provides HexaDecimal Output is generated whenever any switch is pressed. The hexadecimal generated can be sent directly to the control unit for logical operation.This 4 X 4 matrix keypad is compatible with most of the controller boards available on Iotcart.com that ranges from 8051 to Arduino Boards. Since the Output and the input of the keypad is digital in nature so, it can also be interfaced to motor driver circuit available on Iotcart.com. How it Works? First test whether any key is pressed down. Connect power to rows, so they are High level. Then set all the rows R1-R4 as Low and then detect the status of the columns. Any column of Low indicates there is key pressing and that the key is among the 4 keys of the column. If all columns are High, it means no key is pressed down. Next, locate the key. Since the column in which the pressed key lies is identified, knowing the line would finalize the testing. Thus, set the rows as Low in turns until any is unveiled accordingly – other rows will still be High. Now the row can be identified. Detect the status of each column in turns. The column tested Low is the one intersecting with the line – their cross point is just the key pressed. Applications: Password Protected Door Security System Wired Remote Controlled Robot Electronic Voting Machine Generating External Interrupt Musical Keypads and many more Package Includes: 1 x 4x4 Matrix Keypad Specifications: Switch Type Momentary Pin Spacing (mm) 2.54 Dimensions (mm) 42 x 39 x 11 Weight (gm) 9
