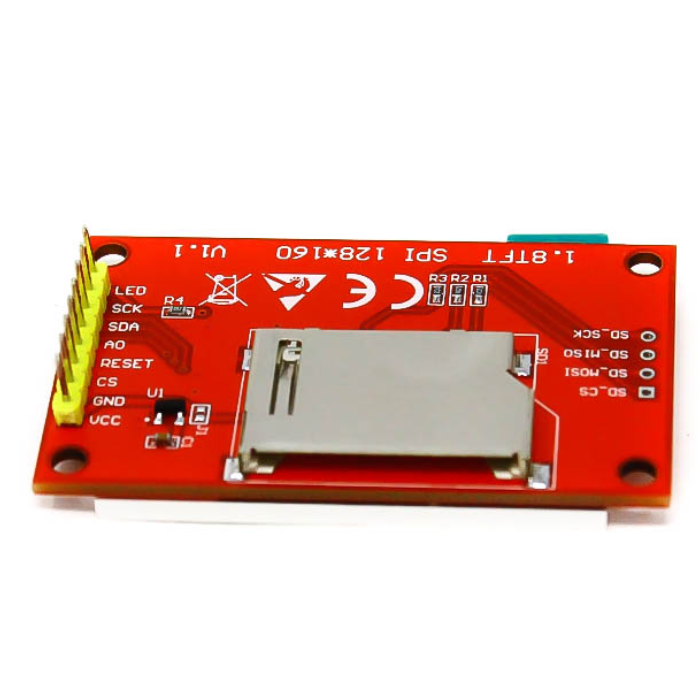

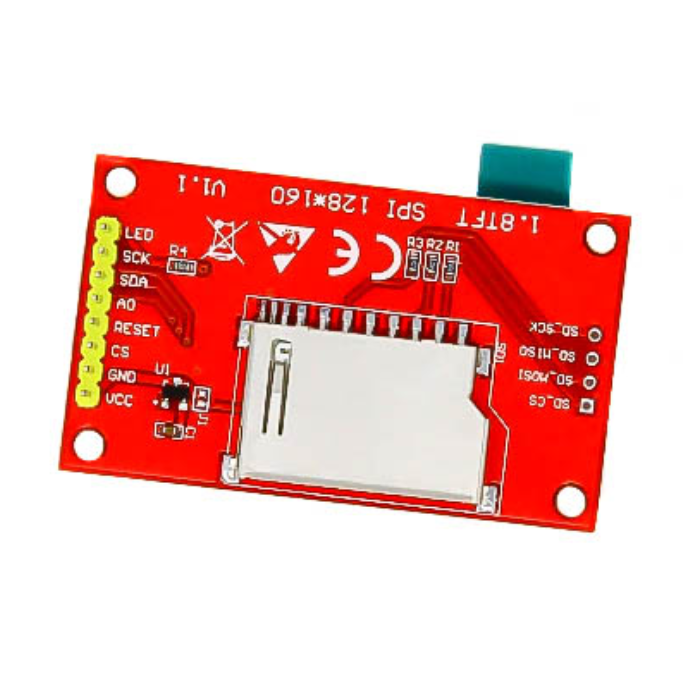

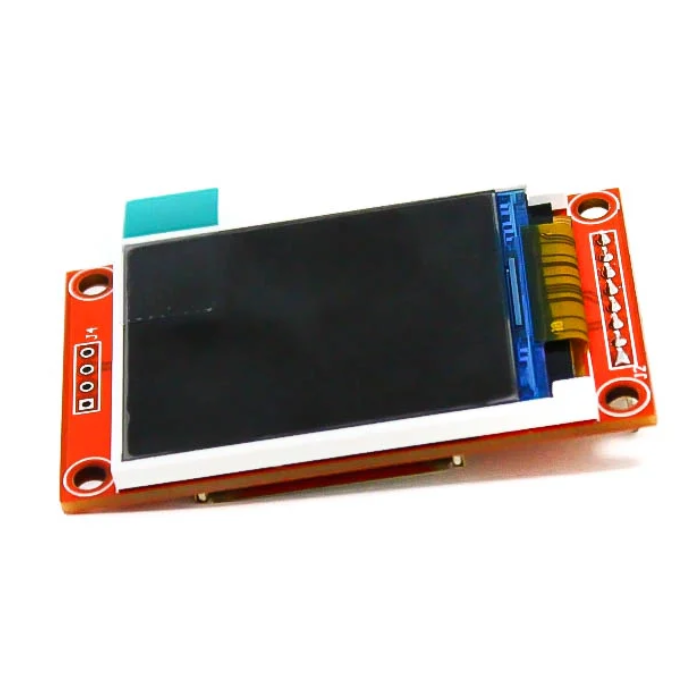

1.8 inch TFT LCD Module This is the 1.8 inch TFT LCD Module, This TFT LCD display Module communicates via 4-wire SPI and has its own pixel-addressable frame buffer; it can be used with any type of microcontroller. Even a very small one with limited memory and few available pins! The 1.8?? TFT LCD display features 128160 colour pixels. This display is a true TFT, unlike the low-cost "Nokia 6110" and similar LCD displays, which are CSTN type and thus have poor colour and slow refresh. The ST7735R TFT driver can display full 18-bit colour (262,144 shades!). And the LCD will always come with the same driver chip, so you won't have to worry about your code not working from one to the other. The TFT display is soldered to the breakout (it uses a delicate flex-circuit connector), as well as an ultra-low-dropout 3.3V regulator and a 3/5V level shifter, allowing you to use it with 3.3V or 5V power and logic. If you want to use this 1.8 inch TFT LCD display Module with Arduino , in your project for that you will need few essential components like breadboard jumper wires

1/2 Inch Brass Water Flow Sensor SEN-HZ21WI The SEN-HZ21WI water flow sensor is a device that is used to measure the flow rate of water. It consists of a turbine-type rotor that is placed in the water stream, and as the water flows past the rotor, it causes the rotor to spin. The sensor measures the speed of the rotor and converts it to a flow rate. The sensor has a digital output, which means that it provides a digital signal that can be read by a microcontroller or other host device. The sensor is commonly used in applications such as irrigation systems, water treatment plants, and industrial process control. It can easily measure water (liquid) flow in your application using this 1/2" Brass water flow sensor . This is a good quality flow sensor with a brass body and can be used for industrial and commercial applications. This half-inch water flow sensor is used extensively in various types of vending machines. Working of a Flow Sensor: The water flow sensor consists of a copper body, a water rotor, and a hall-effect sensor. When water flows through the rotor, the rotor rolls, its speed changes with different rates of flow. And the hall-effect sensor outputs the corresponding pulse signal. This water flow sensor is connected in line with the liquid whose flow rate has to be measured. There is a simple rotating wheel with a magnet and when the liquid flows the wheel is rotated and a hall effect sensor measures how many times the wheel is rotated and accordingly gives pulses. By counting the number of pulses you can easily calculate the flow rate as well as the amount of liquid dispensed. Note: When magnetic material is close to the sensor, its characteristics may vary. In order to avoid particle debris, the sensor must be installed after a filter. The flow sensor installation has to avoid strong vibration and shaking of the environment, so as not to affect the sensor's measurement accuracy. Applications: Widely used in water industrial fields Thermostatic water heaters Water purifiers Water dispensers Smart card equipment Coffee machines Electric hot water heater Gas water heater Instrument meter

1/2 Inch Water Flow Sensor - YF-S201 The YF-S201 water flow sensor is a device that is used to measure the flow rate of water. It consists of a turbine-type rotor that is placed in the water stream, and as the water flows past the rotor, it causes the rotor to spin. The sensor measures the speed of the rotor and converts it to a flow rate. The sensor has a digital output, which means that it provides a digital signal that can be read by a microcontroller or other host device. The sensor is commonly used in applications such as irrigation systems, water treatment plants, and industrial process control. It is often preferred over other types of flow sensors because it is easy to install and has a low cost. Water flow sensors are installed at the water source or in pipes to measure the rate of flow and calculate the amount of water that has passed through the pipe. Water flow is measured in liters per hour or cubic meters. Working: A water flow sensor is made up of a plastic valve through which water can pass. A water rotor and a hall effect sensor are used to sense and measure the flow of water. When water flows through the valve, it causes the rotor to rotate. The motor's speed can be changed as a result of this. The hall effect sensor calculates this change and outputs it as a pulse signal. The rate of flow of water can thus be measured. The Hall effect is the primary operating principle of this sensor. The rotation of the rotor induces a voltage difference in the conductor in this sensor, according to this principle. This induced voltage difference runs in the opposite direction of the electric current. When the moving fan rotates due to the flow of water, the rotor rotates, inducing a voltage. The hall effect sensor measures the induced voltage and displays it on the LCD display. read more : What is a Water Sensor? The water flow sensor can be used with hot, cold, or warm water, as well as clean or dirty water. A microcontroller board such as Arduino , Raspberry pi , a LCD display or OLED Display , Breadboard and connecting wires are required for this. The sensor is installed at the water source inlet or the pipe opening. Three wires are connected to the sensor. The red wire connects to the supply voltage. A black wire connects to the ground, and a yellow wire collects the Hall effect sensor output. 5V to 18V DC is required for supply voltage. Also, read our blog on the Water Level Sensor explaining the different types of water sensors, working, and applications. Connection details: Red wire : +5V Black wire : GND Yellow wire : PWM output. Features: Lightweight, small in size, and simple to install. Durable wearable impeller shaft The upper and lower force structure seal ring never leaks. Chemical erosion and nonviolent shock No hitting or throwing. Vertically mounted Applications: This sensor can be used in water heating systems Automatic water dispensers Irrigation systems Other flow metering equipment.

1/2 Inch Water Flow Sensor SEN-HZ21WA The SEN-HZ21WA water flow sensor is a device that is used to measure the flow rate of water. It consists of a turbine-type rotor that is placed in the water stream, and as the water flows past the rotor, it causes the rotor to spin. The sensor measures the speed of the rotor and converts it to a flow rate. The flow sensor has a digital output, which means that it provides a digital signal that can be read by a microcontroller or other host device. The sensor is commonly used in applications such as irrigation systems, water treatment plants, and industrial process control. It is often preferred over other types of flow sensors because it is easy to install and has a low cost. The SEN-HZ21WA sensor is designed to be installed in a pipe with a diameter of 1/2 inch (12.7mm). A pinwheel inside the sensor moves as the liquid flows through the sensor. A hall effect sensor within the sensor senses the rotation of the pinwheel and outputs a digital pulse for every rotation. By counting the pulses from the sensor, you can easily sense liquid flow through the sensor. This allows easy interface to microcontroller, Arduino , Raspberry Pi , etc. Applications: Water testing Water cooling systems Measure liquid flow

1/4 Inch Brass Water Flow Sensor SEN-HZ41WC The SEN-HZ41WC water flow sensor is a device that is used to measure the flow rate of water. It consists of a turbine-type rotor that is placed in the water stream, and as the water flows past the rotor, it causes the rotor to spin. The sensor measures the speed of the rotor and converts it to a flow rate. The sensor has a digital output, which means that it provides a digital signal that can be read by a microcontroller or other host device. The sensor is commonly used in applications such as irrigation systems, water treatment plants, and industrial process control. It is often preferred over other types of flow sensors because it is easy to install and has a low cost. Now easily measure water (liquid) flow in your application using this 1/4" Brass water flow sensor. This is a good quality flow sensor with a brass body and can be used for industrial and commercial applications. This 1/4 inch water flow sensor is used extensively in various types of vending machines. Note: When magnetic material is close to the sensor, its characteristics may vary. In order to avoid particle debris, the sensor must be installed after a filter. The flow sensor installation has to avoid strong vibration and shaking of the environment, so as not to affect the sensor's measurement accuracy. Applications: Widely used in water industrial fields Thermostatic water heaters Water purifiers Water dispensers Smart card equipment Coffee machine

1/4 Inch Water Flow Sensor YF - S402 The YF-S402 water flow sensor is a device that is used to measure the flow rate of water. It consists of a turbine-type rotor that is placed in the water stream, and as the water flows past the rotor, it causes the rotor to spin. The sensor measures the speed of the rotor and converts it to a flow rate. The sensor has a digital output, which means that it provides a digital signal that can be read by a microcontroller or other host device. The frequency of the pulses is proportional to the flow rate of the liquid passing through the sensor. That digital signal, whose frequency is in the range between 0Hz and 100Hz, can be read directly through one of the digital input/output pins of a microcontroller. ID 8.5mm / OD 11mm. The water flow sensor measures the rate of a liquid flowing through it. The YF-S402 water flow sensor consists of a plastic valve body, flow rotor, and hall effect sensor. It is usually used at the inlet end to detect the amount of flow. When liquid flows through the sensor, a magnetic rotor will rotate and the rate of rotation will vary with the rate of flow. The hall effect sensor will then output a pulse width signal. Connect it to a microcontroller and you can monitor multiple devices such as your coffee maker, sprinkler, or anything else, and control the water flow rate to suit your needs. Features: Compact and Lightweight: Easy to install and integrate into various systems. High Sealing Performance: Designed to prevent water leaks with a sealing ring. Stainless Steel Axis: Durable and abrasion-resistant. Digital Output: Provides a series of digital pulses proportional to the flow rate. Wide Voltage Range: Operates between 5V to 24V. RoHS Compliant: Meets environmental and safety standards. High Precision: Accurate measurement of water flow. Wide Flow Range: Measures flow rates from 0.3 to 6 liters per minute. Applications: Agriculture: Used in irrigation systems to monitor and control water usage. HVAC Systems: Helps in monitoring water flow in heating, ventilation, and air conditioning systems. Plumbing: Used to detect and measure water flow in residential and commercial plumbing systems. Water Treatment: Monitors water flow in treatment plants to ensure proper processing. Environmental Monitoring: Measures water flow in natural water bodies for environmental studies. Smart Home Automation: Integrated into smart home systems for monitoring water usage and detecting leaks. Automatic Water Dispensers: Used in vending machines and dispensers to control water flow. Coffee Machines: Ensures precise water flow for brewing coffee.

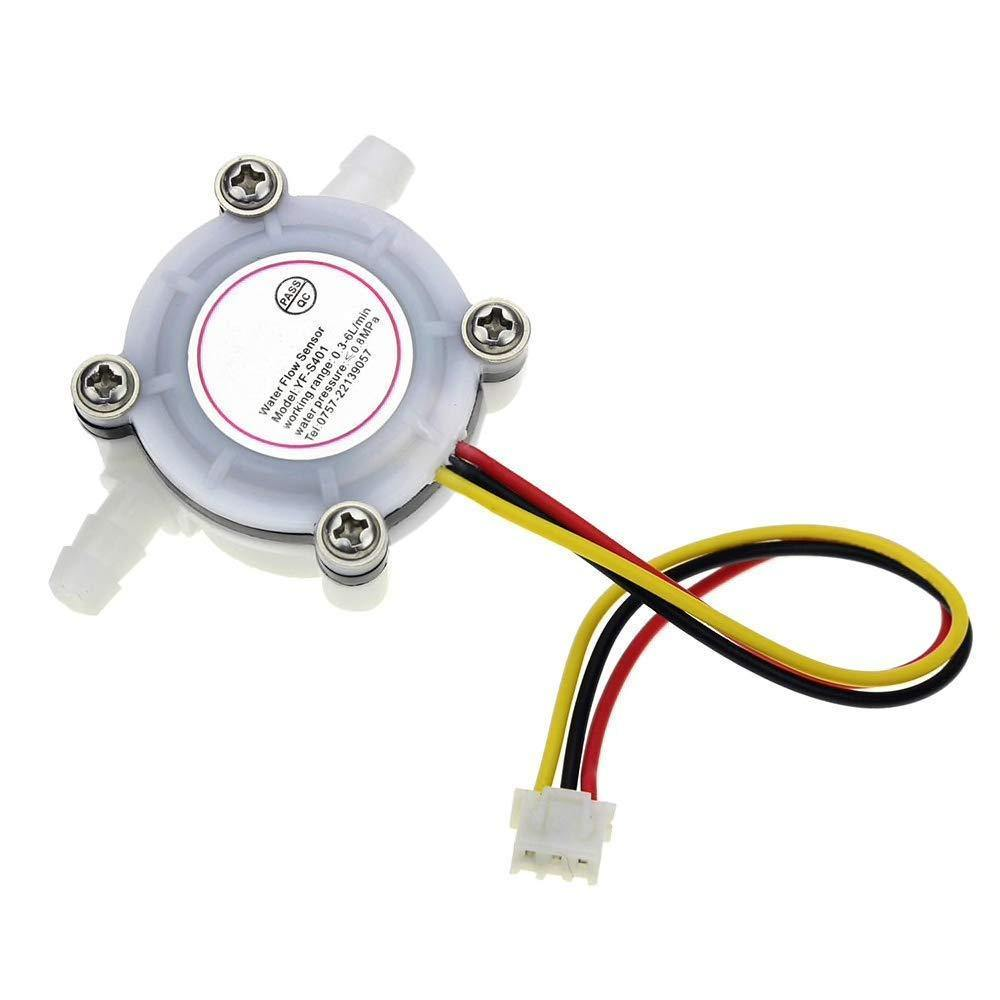

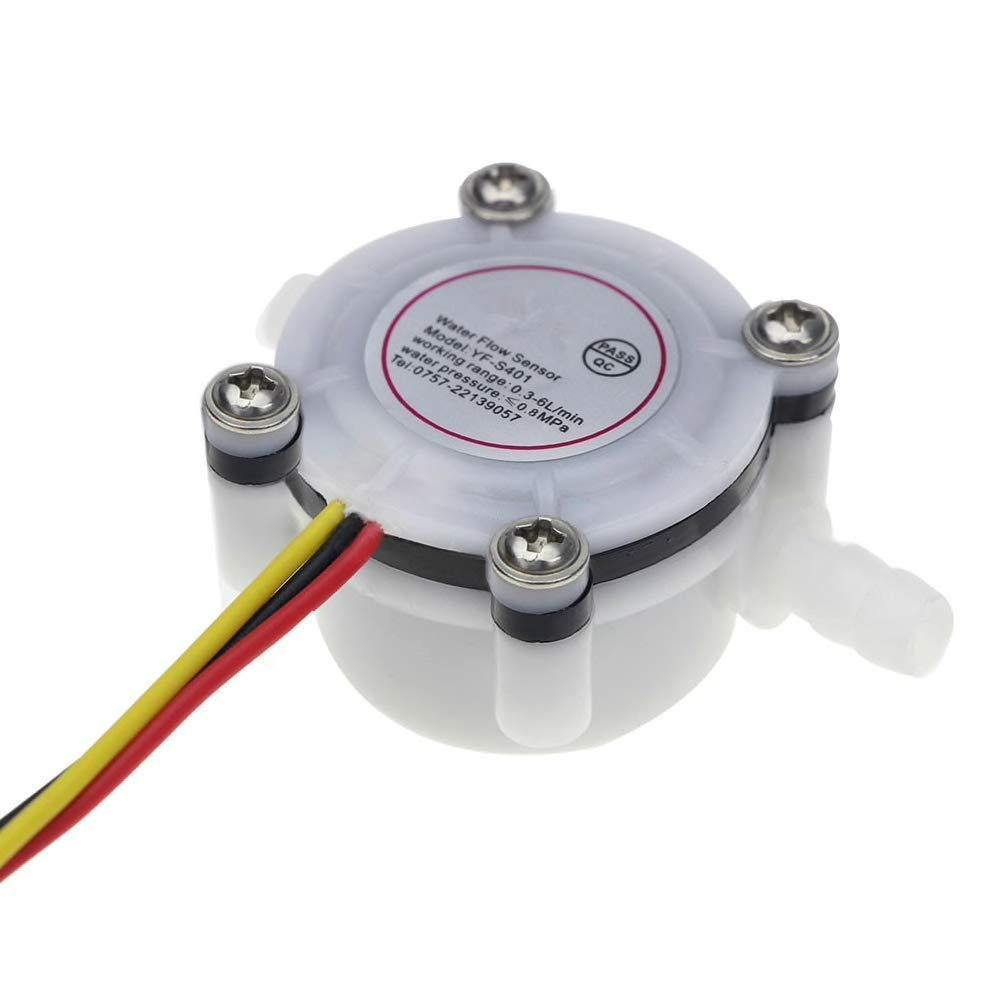

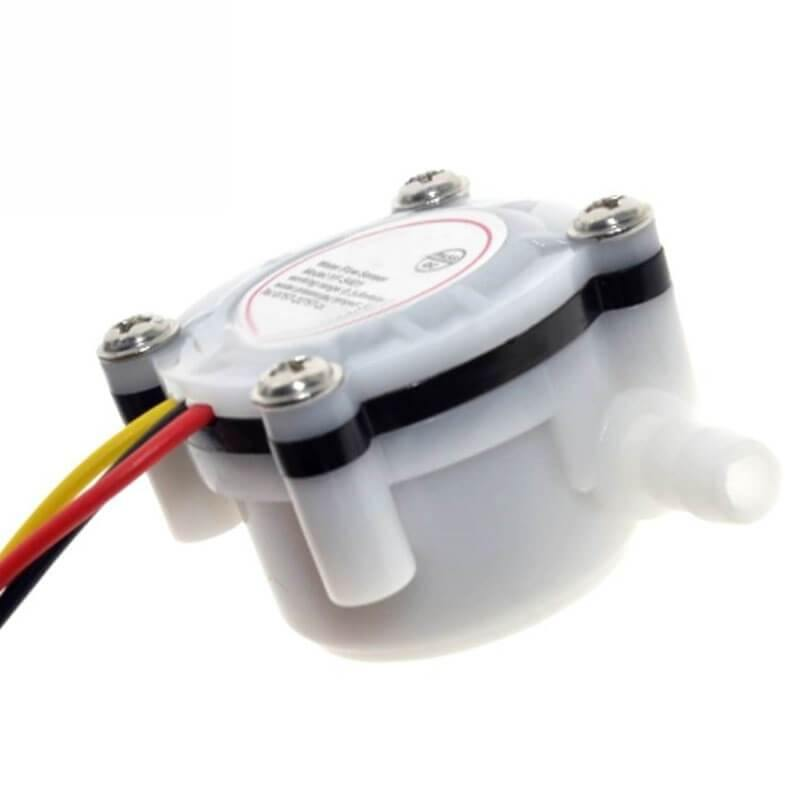

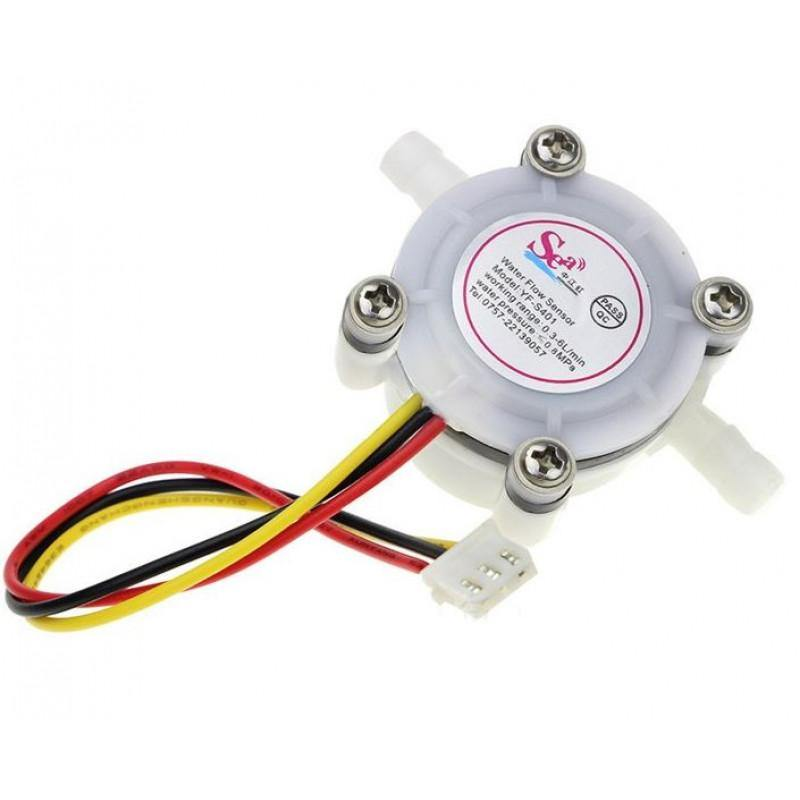

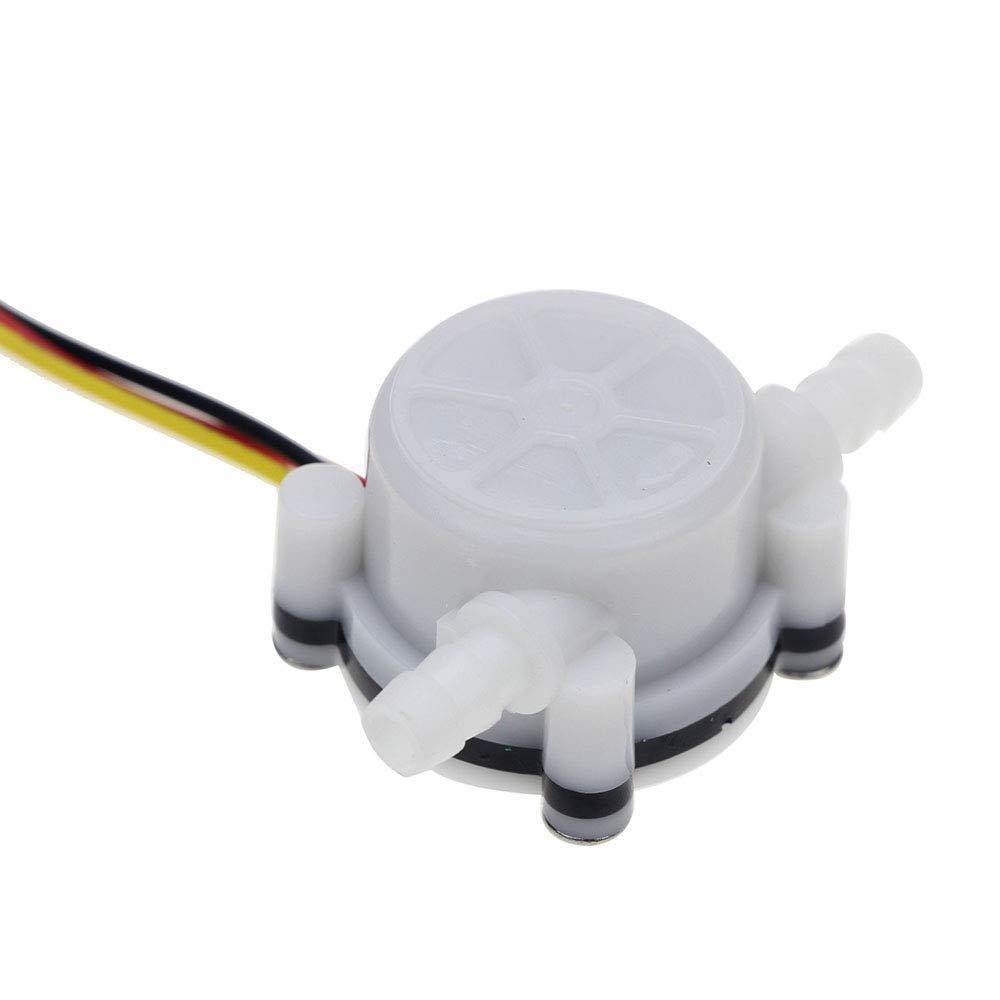

1/8 Inch Water Flow Sensor YF-S401 The YF-S401 Water flow sensor is a small device comprising a plastic valve body, a water rotor, and a hall effect sensor. As water flows through the Water flow sensor, the internal rotator changes its speed in accordance with the rate of flow, and the hall effect sensor outputs a series of digital pulses. This allows the flow rate to be accurately measured using a microcontroller. This Water flow sensor is ideal for use with laser cutters or CNC machines to monitor the flow of water through the laser tube or spindle for cooling. This Water Flow Sensor has a flow rate of 0.3-6 litres per minute and outputs a pulse for every revolution of the pinwheel sensor. These pulses are approximately 2.25 millilitres each and can be easily counted to calculate the water flow. One of the key advantages of the YF-S401 Water flow sensor is that the hall effect sensor is sealed from the water pipe, ensuring it stays safe and dry. This makes it a reliable and accurate option for measuring water flow in various applications. Connections: Red: Power In Black: Ground Yellow: Signal Output Applications : Water heaters Water vending machine Flow measurement device Automatic water dispenser Agriculture Food processing Coffee/Tea makers Water Management

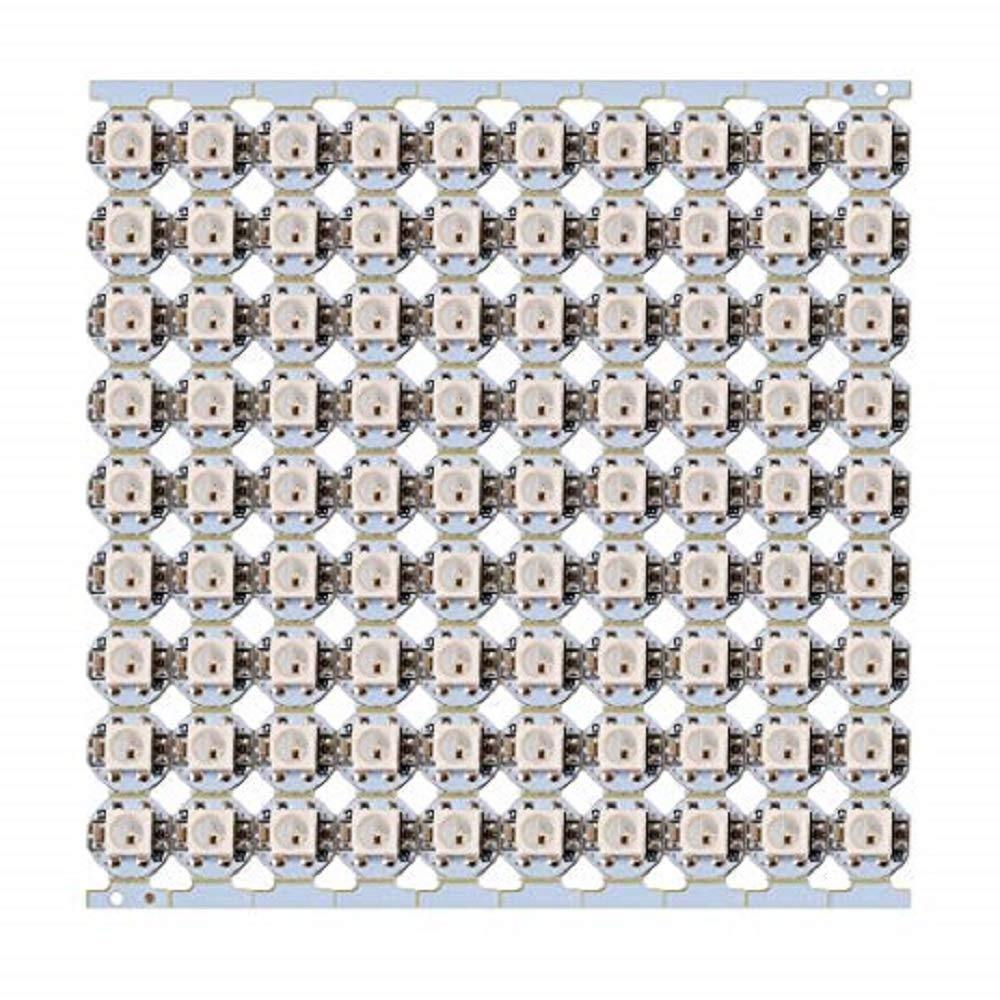

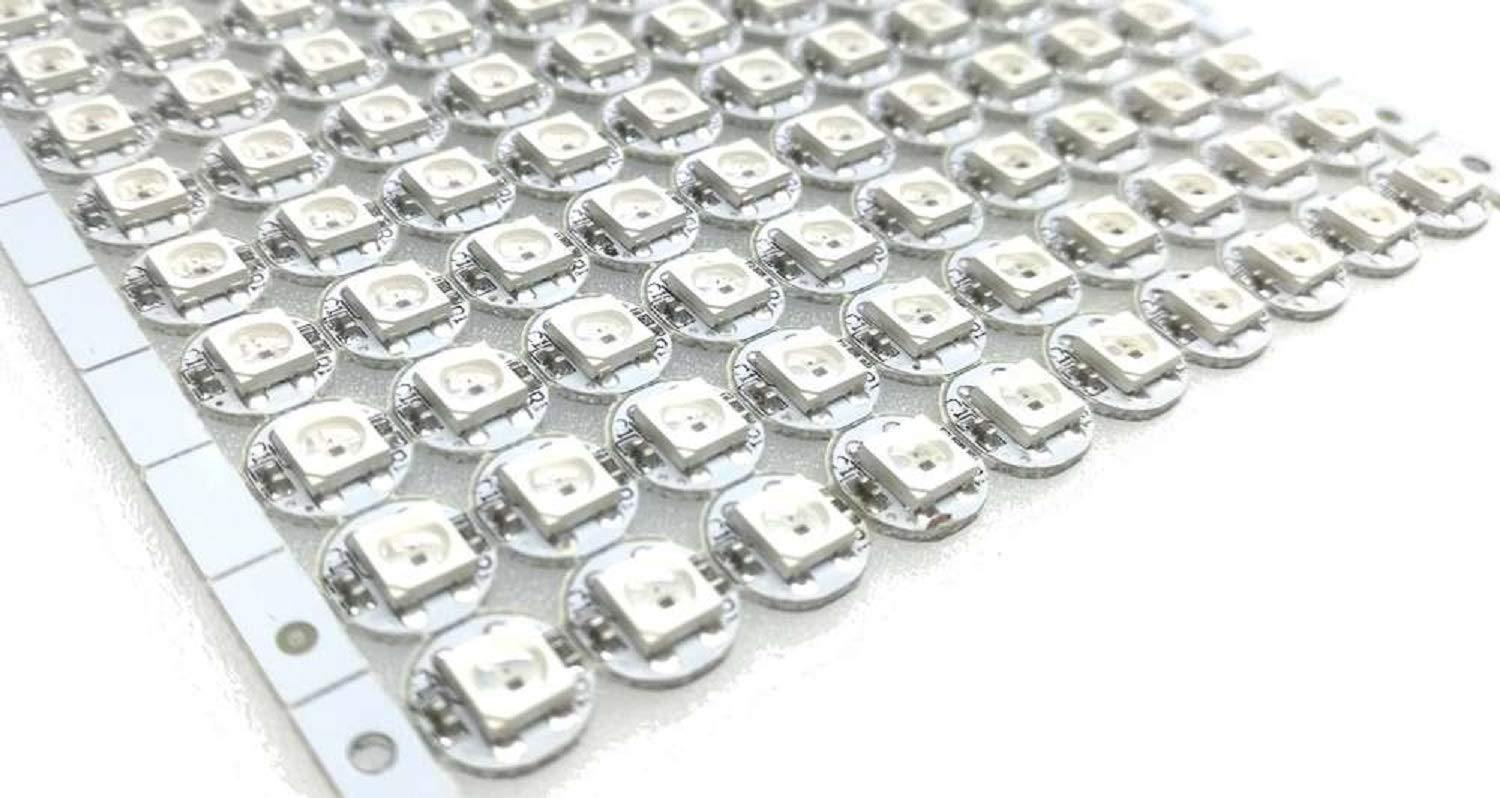

10 Bit WS2812 5050 RGB LED Built-in signal shaping circuit, any one pixel after receiving the signal through the waveform shaping and then output to ensure line waveform distortion will not accumulate. Trichromatic color of each pixel can realize 256 highlighted, complete 16777216 colors of all true color display, the scanning frequency is not less than 400Hz/s.

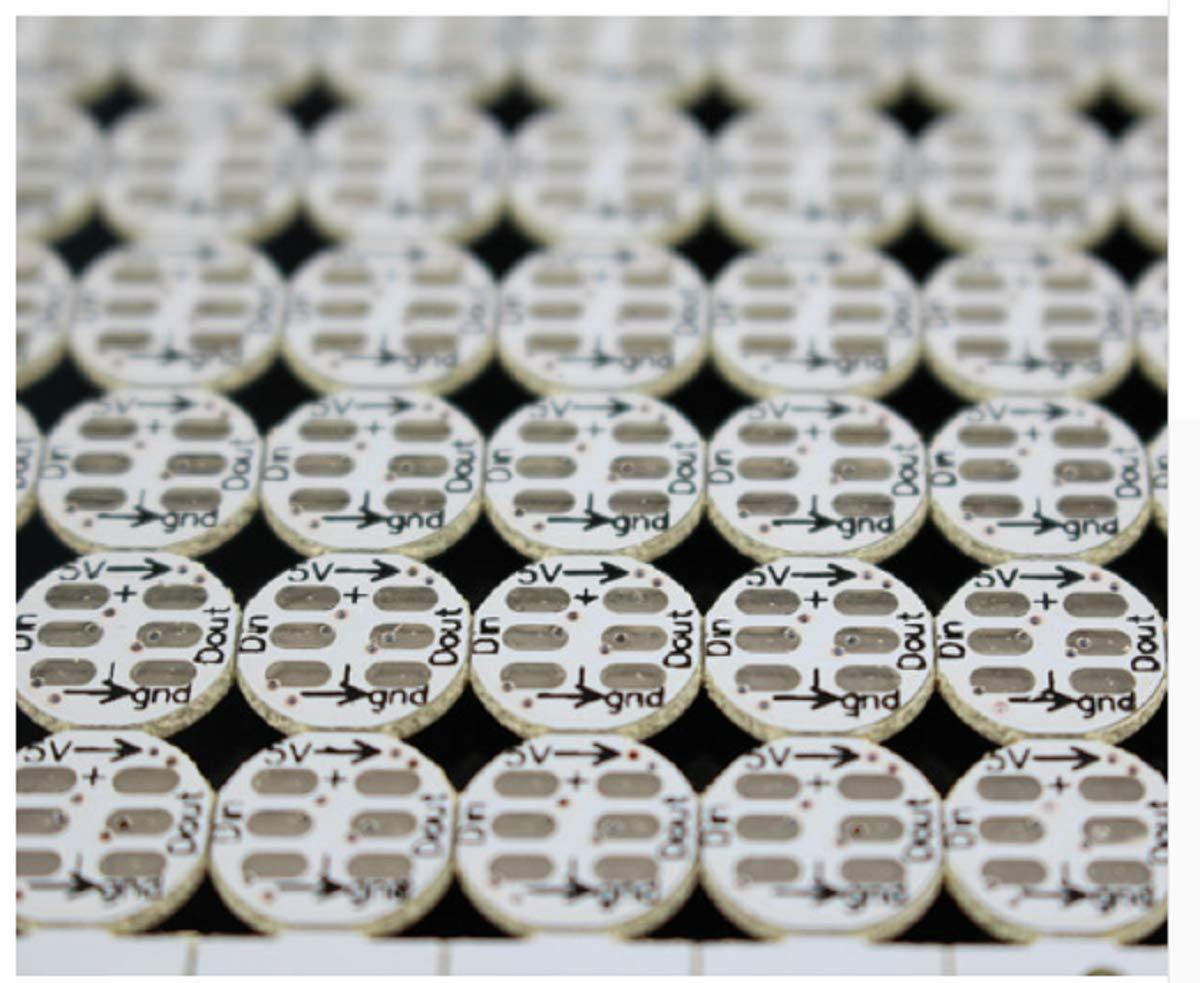

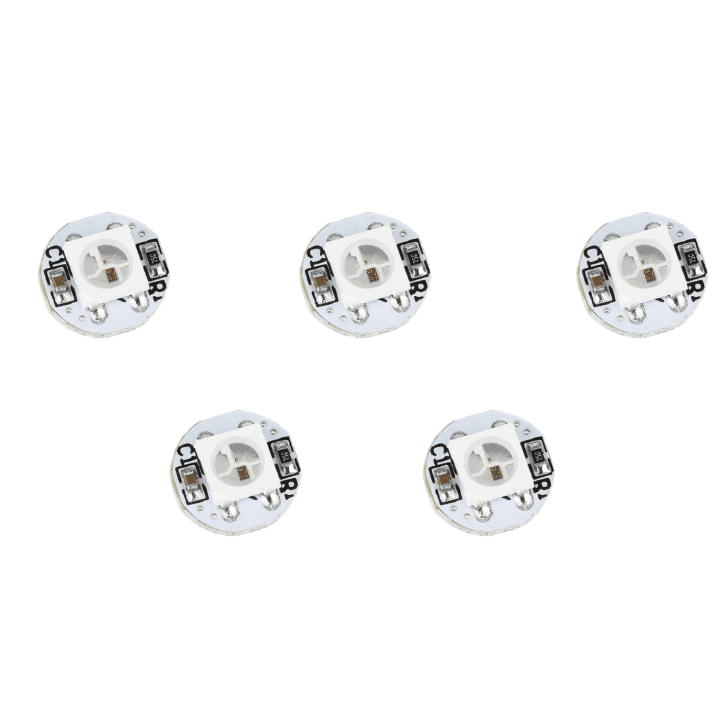

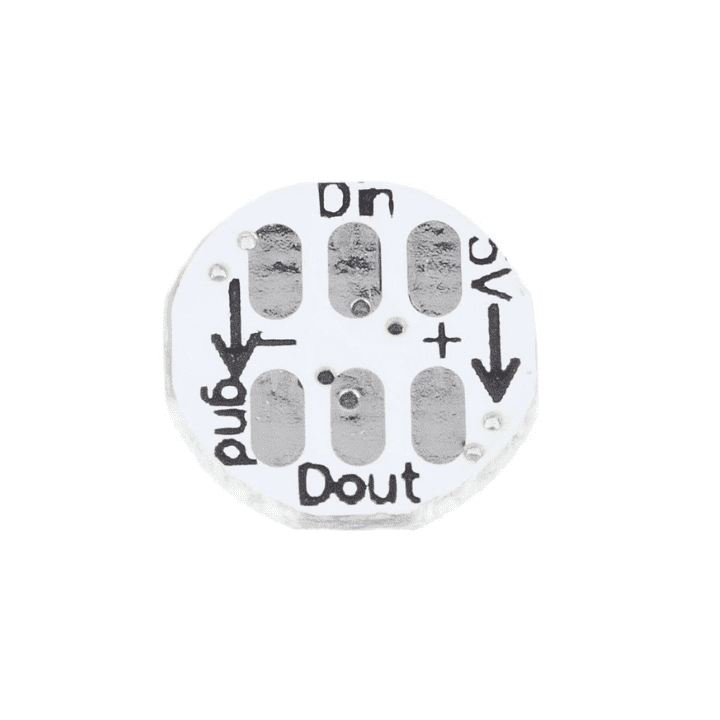

10 Bit WS2812 5050 RGB LED (Pack of 5) Built-in signal shaping circuit, any one pixel after receiving the signal through the waveform shaping and then output to ensure line waveform distortion will not accumulate. Trichromatic color of each pixel can realize 256 highlighted, complete 16777216 colors of all true color display, the scanning frequency is not less than 400Hz/s. When the refresh rate is 30fps, cascade number are not less than1024 points. Send data at speeds of 800Kbps. The color of the light were highly consistent, cost-effective..

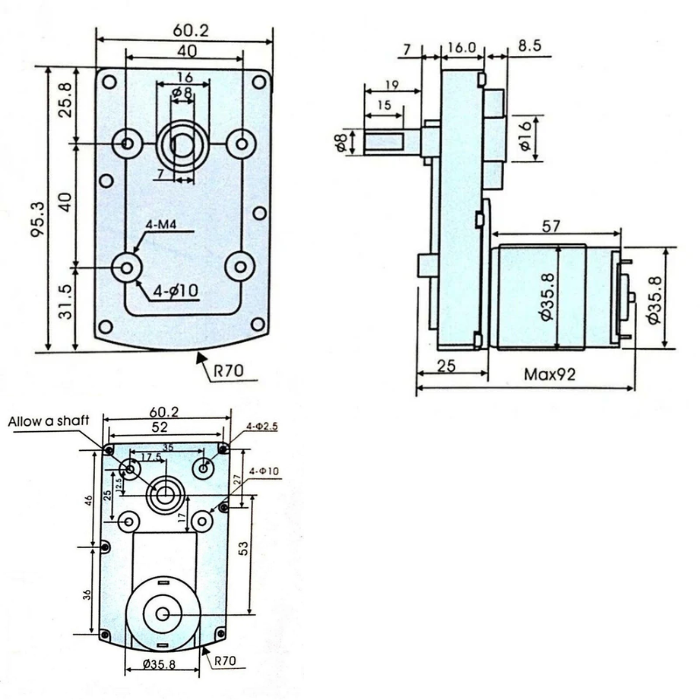

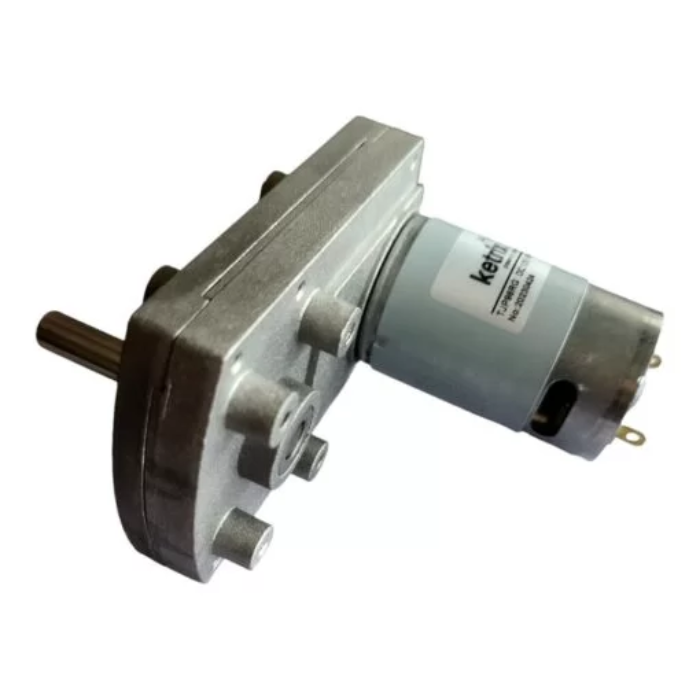

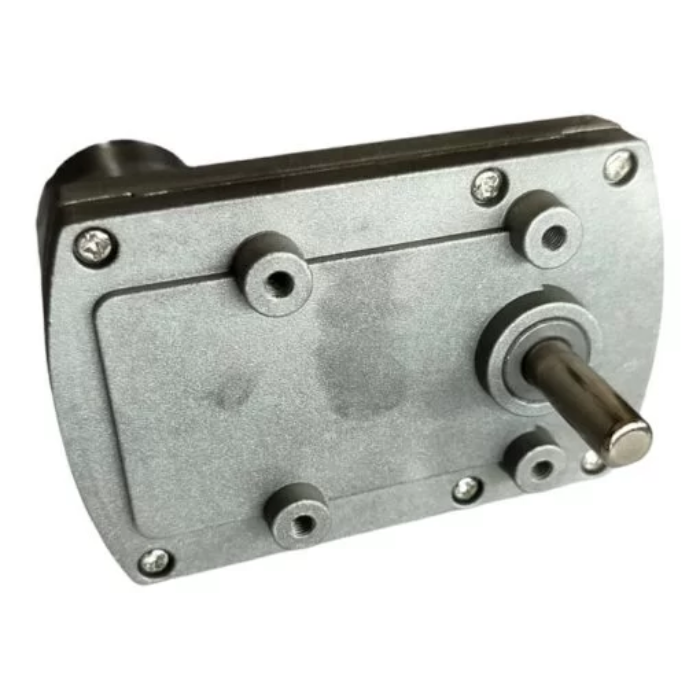

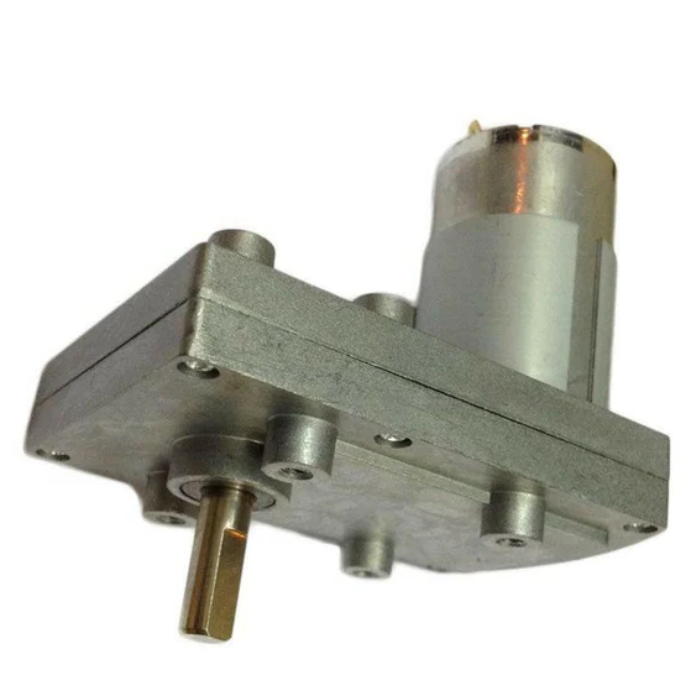

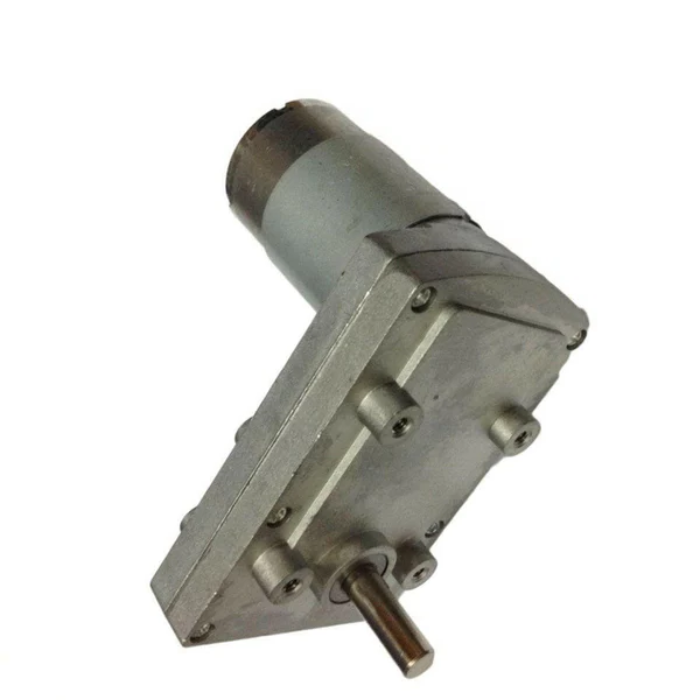

10 RPM 12V DC Rectangle Geared Motor with High Torque The 10 RPM 12V DC Rectangle Geared Motor (formerly known as Square Gear) with High Torque is a powerful and durable gear motor designed for demanding applications such as heavy robots and motorized platforms. Featuring a robust square gear motor casing and high-quality internal gears, it delivers exceptional torque while maintaining a low RPM. The DC motor includes a reinforced drive shaft supported by metal bushes, ensuring long-lasting performance and stability even under high load conditions. If you’re building a robot that demands precision and power, this 10 rpm gear motor is an excellent choice. Applications: Pan/ Tilt camera Auto shutter Welding machines Water meter IC Card Grill Oven Cleaning machine Garbage disposers Household appliances Features: Heavy-duty metal gears. Uniformity of parts. Elastic compliance allows for the absorption of shock and vibration. Because of its natural lubricity, it can operate with little to no lubrication. A relatively low coefficient of friction. Corrosion resistance; removal of plating or protective coatings.
