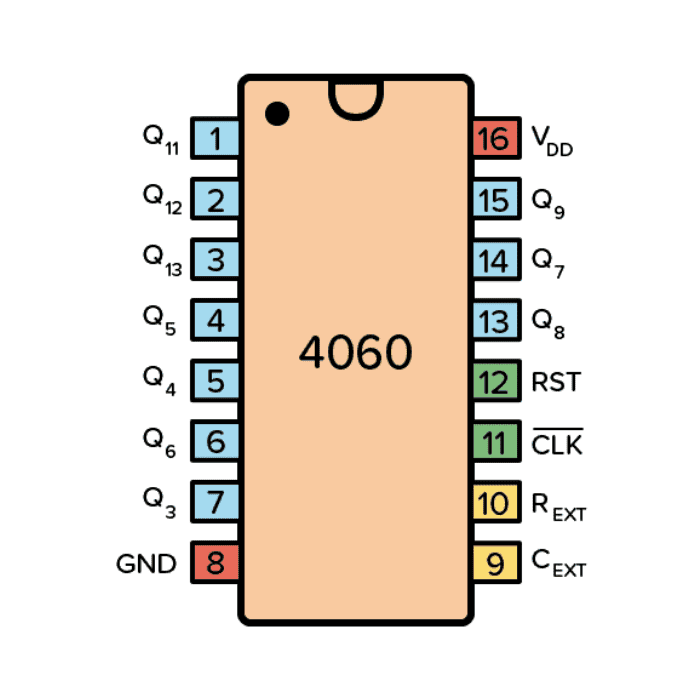

CD4060 - 14 stage Ripple Carry Binary Counter IC The CD4x Series CD4060 IC consists of an oscillator section and 14 ripple-carry binary counter stages. The oscillator configuration allows the design of either RC or crystal oscillator circuits. A RESET input is provided which resets the counter to the all-O's state and disables the oscillator. A high level on the RESET line accomplishes the reset function. All counter stages are master-slave flip-flops. The state of the counter is advanced one step in binary order on the negative transition. All inputs and outputs are fully buffered. Schmitt trigger action on the input-pulse line permits unlimited input-pulse rise and fall times. The CD4060-series types are supplied in 16-lead hermetic dual-in-line ceramic packages (F3A suffix), 16-lead dual-in-line plastic packages (E suffix), 16-lead small-outline packages (M, M96, MT and NSR suffixes), and 16-lead thin shrink small-outline packages (PW and PWR suffixes). check out : CD4015 - Dual 4-Stage Shift Register IC Pinout: Pinout of CD4060 IC Pin Name Pin # Type Description VDD 16 Power Supply Voltage (+3 to +15V) GND 8 Power Ground (0V) Q3-Q9 1-7 Output Counter outputs Q11-Q13 13-15 Output Counter outputs C EXT 9 Input Connection for an external capacitor R EXT 10 Input Connection for external resistor CLK 11 Input Clock input/Oscillator pin RST 12 Input Resets the counter Applications: Control counters Timers Frequency dividers Time-delay circuits check out : CD4013 - Dual D Type Flip-Flop IC

CD4066 - Quad Bilateral Switch IC The CD4066 device is a quad bilateral switch intended for the transmission or multiplexing of analog or digital signals. It is pin-for-pin compatible with the CD4016 device but exhibits a much lower on-state resistance. In addition, the on-state resistance is relatively constant over the full signal-input range. The CD4x Series CD4066 device consists of four bilateral switches, each with independent controls. Both the p and the n devices in a given switch are biased on or off simultaneously by the control signal. The well of the n-channel device on each switch is tied to either the input (when the switch is on) or to V SS (when the switch is off). This configuration eliminates the variation of the switch-transistor threshold voltage with the input signal and, thus, keeps the on-state resistance low over the full operating-signal range. The advantages over single-channel switches include peak input-signal voltage swings equal to the full supply voltage and more constant on-state impedance over the input-signal range. However, for sample-and-hold applications, the CD4016 device is recommended. check out : CD4016 - Quad Bilateral Switch IC Pinout: Pinout of CD4066 IC

CD4069 - Hex Inverter IC The CD4069 IC device consists of six CMOS inverter circuits. These devices are intended for all general-purpose inverter applications where the medium-power TTL drive and logic-level-conversion capabilities of circuits such as the CD4009 and CD4049 hex inverter and buffers are not required. check out : CD4049 - Hex Inverting Buffer/Converter IC Pinout: Pinout of CD4069 - Hex Inverter IC

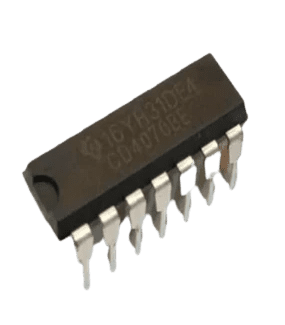

CD4070 - Quad 2-Input Exclusive-OR (XOR) Gate IC The CD4070 IC contains four independent Exclusive OR gates inside a single package. It is oftentimes referred to as a quad package 2-Input XOR gate IC. All four gates share the same power rail and each gate has two input lines and one output line. This IC gives the system designer a way to directly implement the Exclusive-OR Boolean function. The CD4070 makes use of complementary MOS (CMOS) transistors to achieve a broad power supply operating range, low power consumption, and a high noise margin. The IC operates at 5V, 10V, 15V, and even 20V. When operating at 5V the maximum low-level input voltage is 0.5 and the minimum high-level input voltage is 4.5. check out : CD4078 - 8 Input NOR Gate IC Pinout: Pinout Of CD4070 IC Pin Name Pin # Type Description VDD 14 Power Supply Voltage (+3 to +15V) GND 7 Power Ground (0V) A1 to A4 1, 5, 8, 12 Input Inputs A of the four XOR gates B1 to B4 2, 6, 9, 13 Input Inputs B of the four XOR gates Q1 to Q4 3, 4, 10, 11 Output Outputs from the four XOR gates

CD4078 - 8 Input NOR Gate IC The CD4078 NOR/OR Gate IC provides the system designer with direct implementation of the positive logic 8-input NOR and OR functions and supplements the existing family of CMOS gates. The CD4078 types are supplied in 14-lead hermetic dual-in-line ceramic packages (F3A suffix), 14-lead dual-in-line plastic packages (E suffix), 14-lead small-outline packages (M, MT, M96, and NSR suffixes), and 14-lead thin shrink small-outline packages (PW and PWR suffixes). check out : Quad 2-input OR gate IC - CD4071 Application: Mixer tank Memory circuits File registers

CD4081 - Quad 2 Input AND Gate IC CD4081 Quad 2 Input AND gates IC provides the system designer with direct implementation of the AND function and supplements the existing family of CMOS gates. The CD4081 types are supplied in 14-lead hermetic dual-in-line ceramic packages (F3A suffix), 14-lead dual-in-line plastic packages (E suffix), 14-lead small-outline packages (M, MT, M96, and NSR suffixes), and 14-lead thin shrink small-outline packages (PW and PWR suffixes). check out : CD4532 - 8 Bit Priority Encoder IC (Original) Pinout: Pinout Of CD4081 IC check out : CD4030 - Quad 2-Input Exclusive OR (EXOR) Gate IC

CD4093 - Quad 2-Input NAND Schmitt Trigger IC CD4093 consists of four Schmitt-trigger circuits. Each circuit functions as a two-input NAND gate with Schmitt-trigger action on both inputs. The gate switches at different points for positive- and negative-going signals. The difference between the positive voltage (V P ) and the negative voltage (V N ) is defined as hysteresis voltage (V H ) (see Fig. 2). The CD4093 types are supplied in 14-lead hermetic dual-in-line ceramic packages (F3A suffix), 14-lead dual-in-line plastic packages (E suffix), 14-lead small-outline packages (M, MT, M96, and NSR suffixes), and 14-lead thin shrink small-outline packages (PW and PWR suffixes). check out : Dual 4-Input OR Gate IC - CD4072 Pinout: Pinout of CD4093 - Quad 2-Input NAND Schmitt Trigger IC Pin Name Pin # Type Description VDD 14 Power Supply Voltage (+3 to +15V) GND 7 Power Ground (0V) A1 to A4 1, 5, 8, 12 Input Inputs A of the four NAND gates B1 to B4 2, 6, 9, 13 Input Inputs B of the four NAND gates Q1 to Q4 3, 4, 10, 11 Output Outputs from the four NAND gates Applications: Wave and pulse shapers High-noise-environment systems Monostable multivibrators Astable multivibrators NAND logic

CD4094 - 8-Stage Shift and Store Bus Register IC The CD4094 IC belongs to the CD4000 IC series. This IC is composed of an 8-bit shift register and a 3- State 8-bit latch. In this IC, Data shifted serially through the shift register on the positive transition of the clock. The CD4082 IC operates at a wide range of working voltage, a wide range of working conditions. And directly interfaces with CMOS, NMOS, and TTL. The output of the IC always comes in TTL which makes it quite easy to function with other TTL devices and microcontrollers. CD4094 offers features such as ESD barring and high noise immunity. Each output is protected against static damage by using clamping diodes. CD4094 Operates at a supply voltage of range between 3V to 20V. This IC is designed for operation over the full military temperature range of 0°C to 70°C. The IC CD4094 comes as smaller in size and offers much faster speed which makes it highly reliable in every kind of device. CD4094 IC can be soldered directly to the circuit board or easily mounted on a 16 pin IC base. Shift-and-Store Bus Register is designed as a digital memory circuitry available in devices such as calculators, computers, and data processing systems. Using a Shift-and-Store Bus Register, data or bits enter into the system in a serial or parallel manner. Data entry is performed from one direction, and as more data is added, it shifts positions until the data gets to the output end. The two ends are referred to as the left and right ends. Whereas the movement of data occurs from left to right, from right to left. Or in both directions to make a bidirectional register. check out : CD4099 - 8 bit Addressable Latch IC Pinout: Pinout of CD4094 - 8-Stage Shift and Store Bus Register IC Applications: Serial-to-Parallel data conversion Remote control holding register Dual rank shift, hold, and bus register

CD4099 - 8 bit Addressable Latch IC The CD4099 8-bit addressable latch IC is a serial-input, parallel-output storage register that can perform a variety of functions. Data are inputted to a particular bit in the latch when that bit is addressed (by means of input A0, A1, A2) and when WRITE DISABLE is at a low level. When WRITE DISABLE is high, data entry is inhibited; however, all 8 outputs can be continuously read independently of WRITE DISABLE and address inputs. A master RESET input is available, which resets all bits to a logic "0" level when RESET and WRITE DISABLE is at a high level. When RESET is at a high level, and WRITE RESET is at a low level, the latch acts as a 1-of-8 demultiplexer; the bit that is addressed has an active output that follows the data input, while all unaddressed bits are held to a logic "0" level. The CD4099 types are supplied in 16-lead hermetic dual-in-line ceramic packages (F3A suffix), 16-lead dual-in-line plastic packages (E suffix), 16-lead small-outline packages (M, M96, MT, and NSR suffixes), and 16-lead thin shrink small-outline packages (PW and PWR suffixes). check out : Quad NOR R-S Latch Tri-state IC - CD4043 Pinout: Pin No Pin Name Description 1 Q7 Output Pin 7 of Latch 2 CL Clear Output Pin 3 D Data Input 4 E’ Enable Pin 5 A0 Input Pin 0 of Latch 6 A1 Input Pin 1 of Latch 7 A2 Input Pin 2 of Latch 8 VSS Source Supply 9 Q0 Output Pin 0 of Latch 10 Q1 Output Pin 1 of Latch 11 Q2 Output Pin 2 of Latch 12 Q3 Output Pin 3 of Latch 13 Q4 Output Pin 4 of Latch 14 Q5 Output Pin 5 of Latch 15 Q6 Output Pin 6 of Latch 16 VDD Drain Supply Applications: Multi-line decoders A/D converters

CD4504 - Hex Voltage-Level Shifter IC The CD4504 hex voltage level shifter IC consists of six circuits that shift input signals from the V CC logic level to the V DD logic level. To shift TTL signals to CMOS logic levels, the SELECT input is at the V CC HIGH logic state. When the SELECT input is in a LOW logic state, each circuit translates signals from one CMOS level to another. The CD4504 types are supplied in 16-lead hermetic dual-in-line ceramic packages (F3A suffix), 16-lead dual-in-line plastic packages (E suffix), 16-lead small-outline packages (M, M96, and MT suffixes), and 16-lead thin shrink small-outline packages (PW and PWR suffixes). Pinout: Pin No Pin Name Description 1 VCC Collector supply voltage 2 AOUT output of level shifter A 3 AIN input of level shifter A 4 BOUT output of level shifter B 5 BIN input of level shifter B 6 COUT output of level shifter C 7 CIN input of level shifter C 8 VSS source supply 9 DIN input of level shifter D 10 DOUT output of level shifter D 11 EIN input of level shifter E 12 EOUT output of level shifter E 13 SELECT select pin 14 FIN input of level shifter F 15 FOUT output of level shifter F 16 VDD Drain supply
