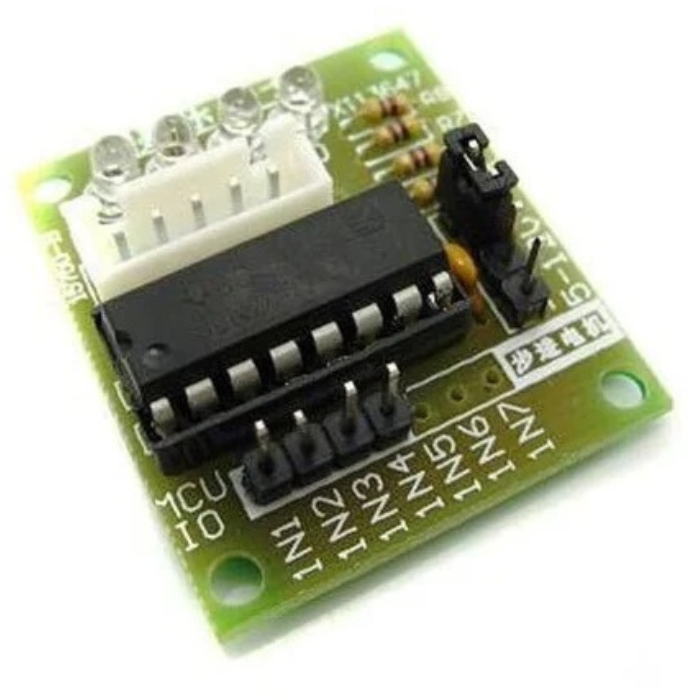

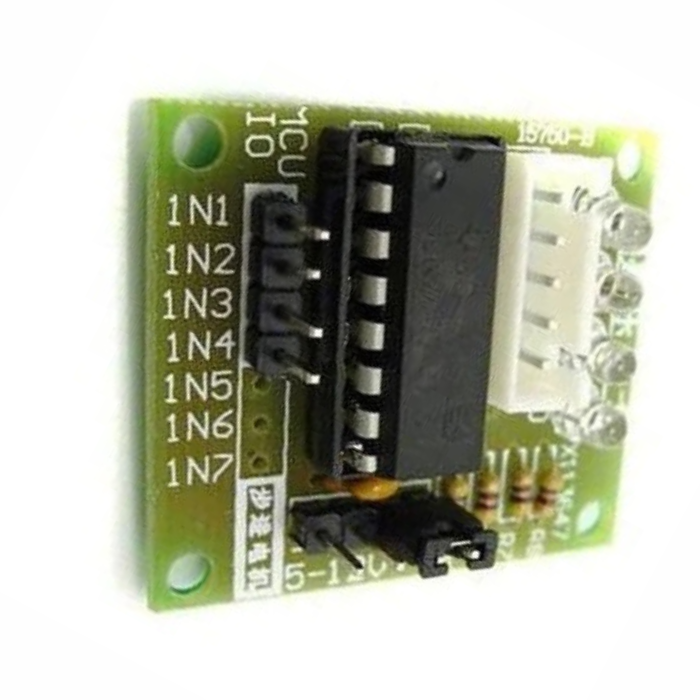

ULN2003 Stepper Motor Driver Module

SmartElex DRV8825 Stepper Motor Driver Module with Aluminum Heat Sink The SmartElex DRV8825 Stepper Motor Driver Module with Aluminum Heat Sink is a compact and efficient solution for controlling bipolar stepper motors with high precision. Built around the trusted TI DRV8825 IC, it supports microstepping up to 1/32 step, enabling smoother motion and finer positional accuracy in applications like 3D printing, CNC machining, and robotics. The module can deliver up to approximately 2.2A peak current with proper cooling, while the integrated aluminum heat sink ensures effective thermal management during continuous operation. Its adjustable current limiting feature protects the motor and driver, improving overall system reliability. With a simple STEP and DIR interface, the module easily integrates with popular platforms such as Arduino, ESP32, and Raspberry Pi, making it an excellent choice for both DIY enthusiasts and professional motion control systems. Features: Based on the TI DRV8825 microstepping bipolar stepper motor driver. Onboard adjustable current limiting potentiometer Supports microstepping up to a 1/32 step. Simple STEP/DIR control interface. Thermal shutdown, overcurrent, and undervoltage protection. Works with 3.3 V and 5 V logic systems. Compact breakout board with an aluminum heat sink for improved cooling.

A4988 Stepper Motor Driver Module with Heat Sink For 3D Printer (Green) The A4988 driver Stepper Motor Driver is a complete micro-stepping motor driver with a built-in converter, easy to operate. It operates from 8 V to 35 V and can deliver up to approximately 1 A per phase without a heat sink or forced air flow (it is rated for 2 A per coil with sufficient additional cooling). A4988 driver Stepper Motor Driver includes a fixed off-time current regulator, the regulator can be in slow or mixed decay mode. The converter is the key to the easy implementation of the A4988. There are no phase sequence tables, high-frequency control interface programming, etc. The application of the A4988 interface is very suitable for a complex microprocessor is not available or overloaded. In the stepping operation, the chopping control in the A4988 automatically selects the current decay mode (slow or mixed). The mix decay current control scheme can reduce the audible motor noise, increase step accuracy, and reduce power consumption. Provide internal synchronous rectification control circuitry, in order to improve the pulse width modulation (PWM) power consumption during operation. Internal circuit protection includes thermal shutdown with hysteresis, under-voltage lockout (UVLO), and crossover current protection. Don’t need special power-up sequencing. A4988 uses a surface mount QFN package (ES), the size is 5 mm × 5 mm, nominal overall package height is 0.90 mm, with an exposed thermal pad to enhance the heat dissipation function. If you want to control the stepper motor with the stepper motor driver, for that you will need a few essential components like Arduino Breadboard jumper wires batteries or power supply Features: Automatic current decay mode detection/choice. Mixed with slow current decay mode. The low power dissipation of synchronous rectifier. Internal UVLO(ultra voltage lockout). Crossover current protection. Thermal shutdown circuit. Ground fault protection. Loading and short circuit protection. The optional five-step mode: full, 1/2, 1/4, 1/8, and 1/16.

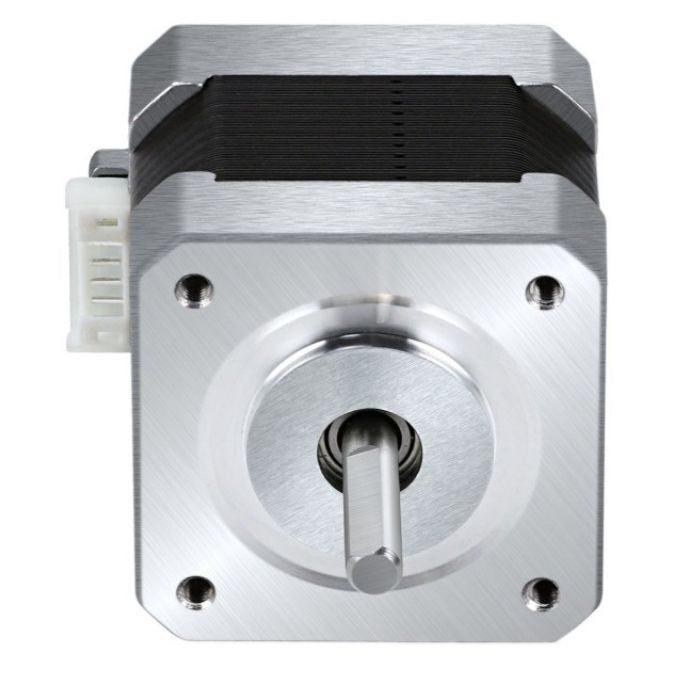

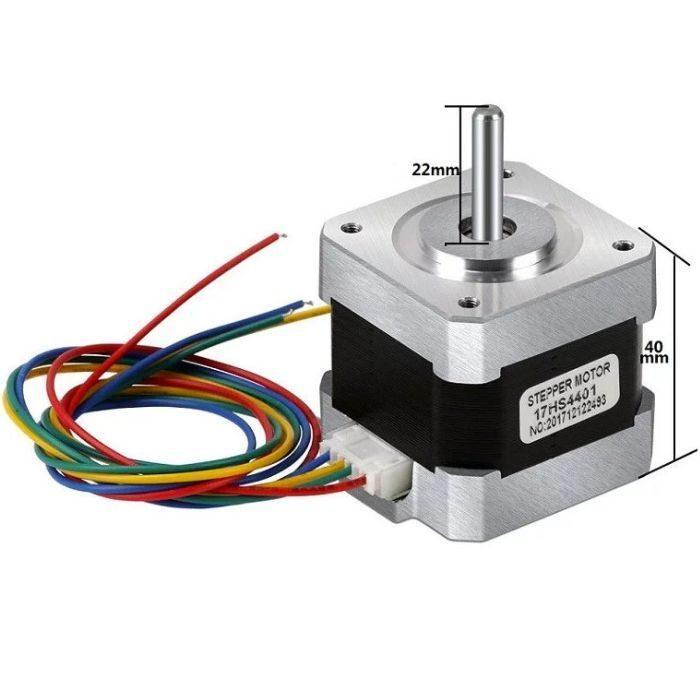

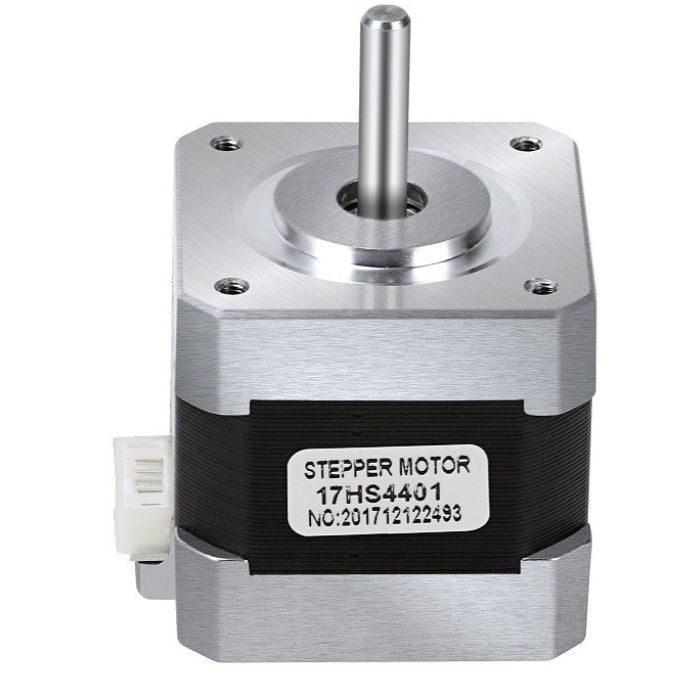

17HS4401 NEMA17 Stepper Motor - 40mm The 17HS4401 NEMA17 Stepper Motor - 40mm is engineered for smooth and precise movement. This motor is engineered to deliver outstanding performance and dependability. If you are constructing a 3D printer , CNC machine, or any other automation apparatus, this motor is guaranteed to surpass your anticipations. This NEMA17 stepper motor delivers high torque and low noise. With a maximum Detent torque of 38mN.m, this stepper motor is capable of handling even the most demanding applications. Because of its noiseless functioning, you need not be concerned about disrupting your home or workplace surroundings. Installing and using the 17HS4401 NEMA17 Stepper Motor is very easy even if you're not an experienced engineer. It is easy to connect to your control board. This motor's streamlined and lightweight construction makes it effortless to incorporate into your project. Check out : Dual Shaft NEMA 34 CNC Stepper Motor Features: Delivers strong torque of 38 mN.m with quick response. Lower resistance helps keep the motor cooler. Works in 3D printers, lights, and various machines. CE certified and thoroughly tested for quality. Runs quietly for a good balance of power and low noise. Applications: Printers CNC devices 3D printers Laser devices Manipulators

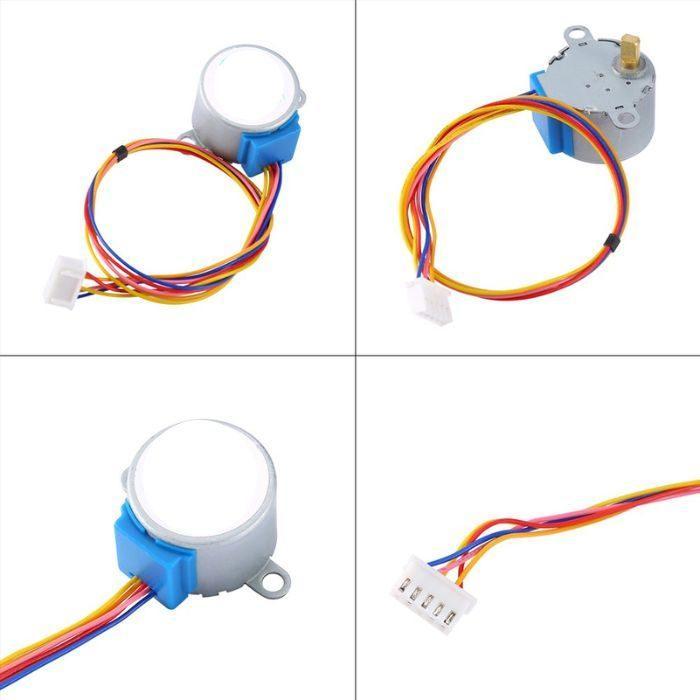

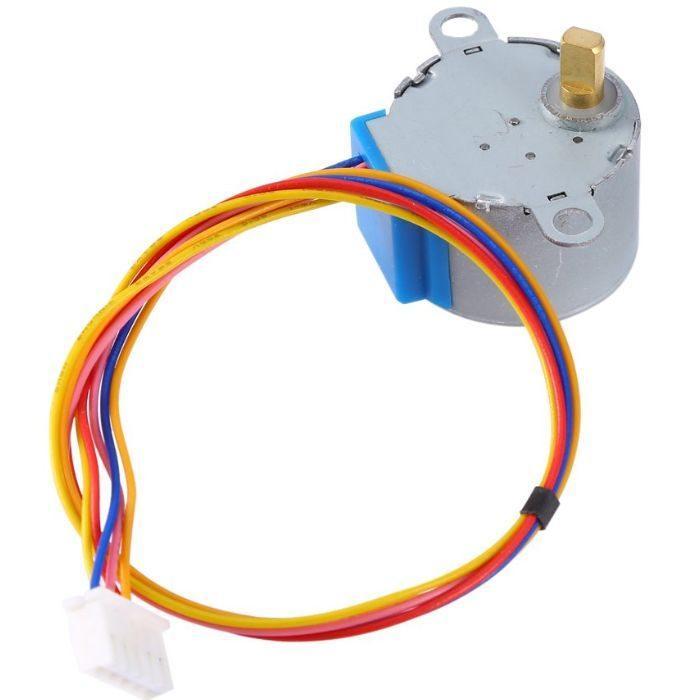

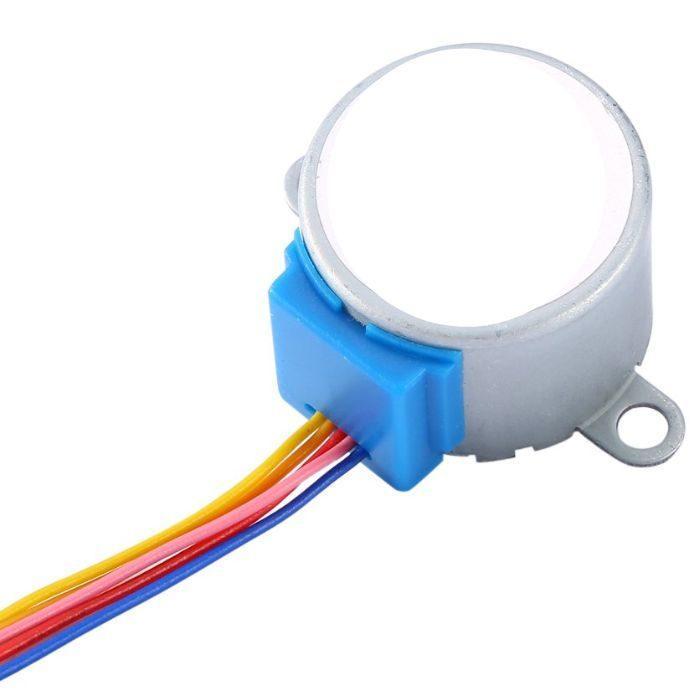

28BYJ-48 12V Valve DC Gear Stepper Motor This 12V DC 28BYJ-48 Stepper Motor is a small, inexpensive, and high-quality geared stepper motor. This is a widely popular combination of the stepper motors , that provided the stability and reliability of the system. The control of the Stepper Motor movement angle is done by controlling the number of stepper motor driver pulses. The speed of the stepper motor rotation is also controllable by controlling the frequency of the pulses. If you want to use this stepper motor in your projects, for that you will need a few essential components like Arduino Motor driver jumper wires batteries or power supply Features: Stepper motor with a standard interface, when used directly pluggable. A, B, C, D four-phase LED indicator which indicates the status of the stepper motor work. Compact-size stepper motor perfect for small robotics applications.

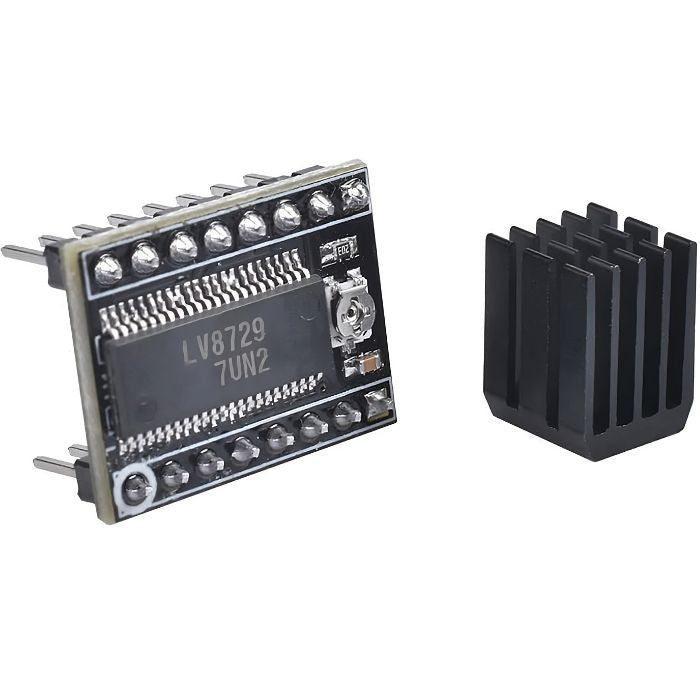

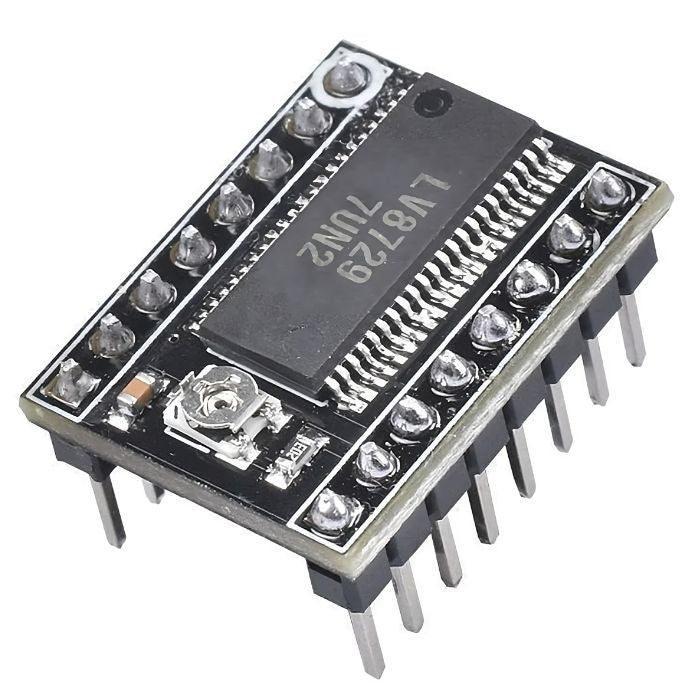

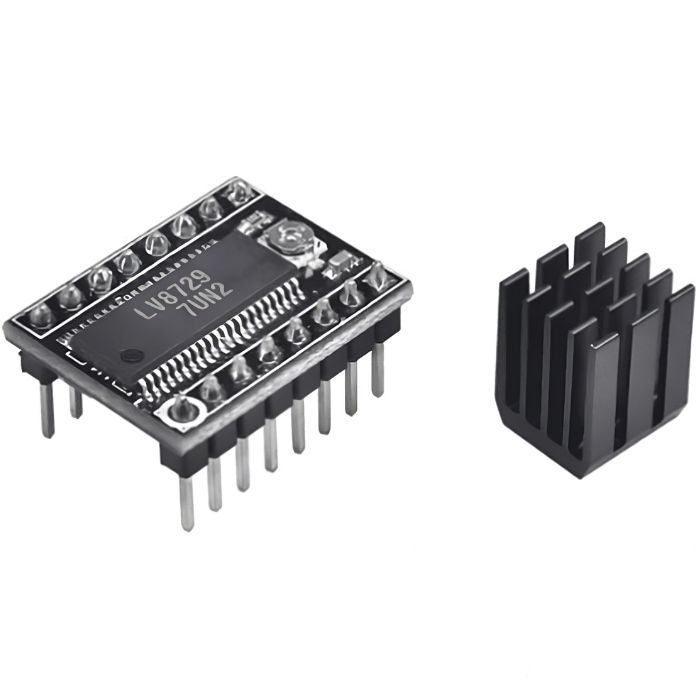

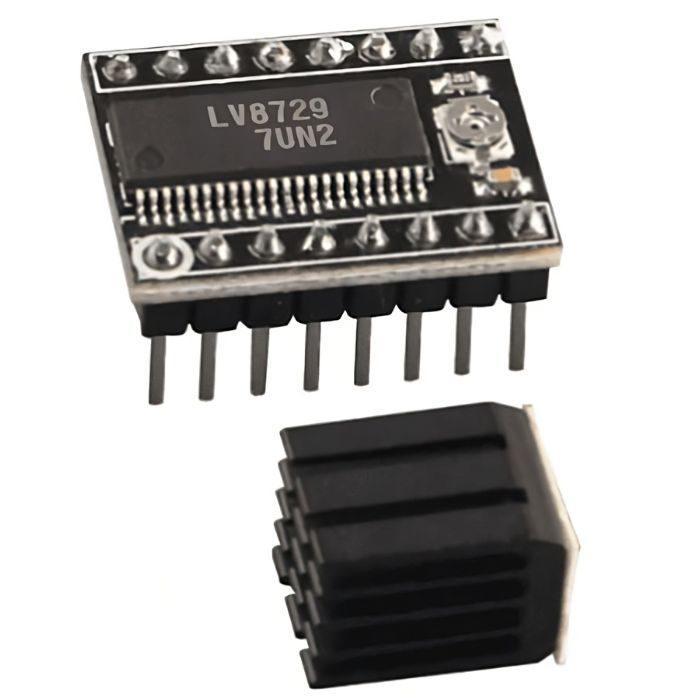

Ultra-silent 4-layer Substrate MKS-LV8729 Stepper Motor Driver with Heat Sink The Ultra quiet LV8729  4-layer Substrate Stepper Motor Driver Module with 128 subdivisions is used in 3d printers and is a Best suited Moter Driver for Nema stepper motor whose current is less than 1.5A, which makes the motor steady, quiet, and precise. The LV8729 is a PWM current-controlled micro step bipolar stepping motor driver. This driver can perform eight times of excitation of the second phase to 32W1-second phase and can drive simply by the CLK input. It has a wide range of Operating voltage range i.e. 6V-36V, the proposed voltage is 12V Support subdivisions of 1, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128 with product Process of four-layer PCB board. In the 64 subdivision or 128 subdivision controller, it has a better ultra-quiet effect. Note: Please make sure the connecting direction is right, or it will probably burn the driver chip and controller board. Recommend doing a good job of cooling the module Driver current algorithm and its adjustment : Driver current algorithm: i=Vref/0.5, the default Vref about 0.4V, so the default current 0.8A, and maximum current 1.5A Please DO NOT connect the motors when measuring the voltage, or it’s easy to burn the drive. Please connect both the power supply and the USB for power when measuring the voltage. Minor adjustment for potentiometer driver. Adjust it again after measurement to avoid burning the driver by excessive current. To increase the current by rotating the potentiometer clockwise slowly, and anticlockwise to reduce. MKS-LV8729 Stepper Motor Driver Pinout:

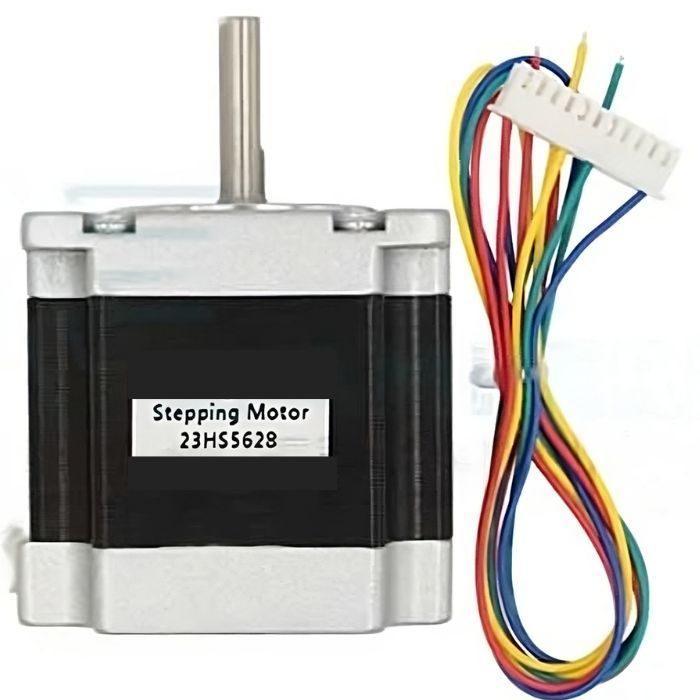

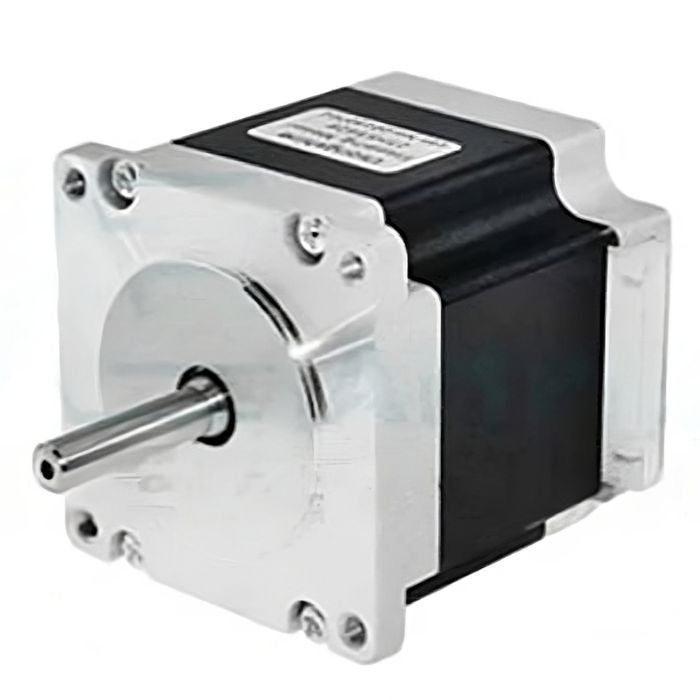

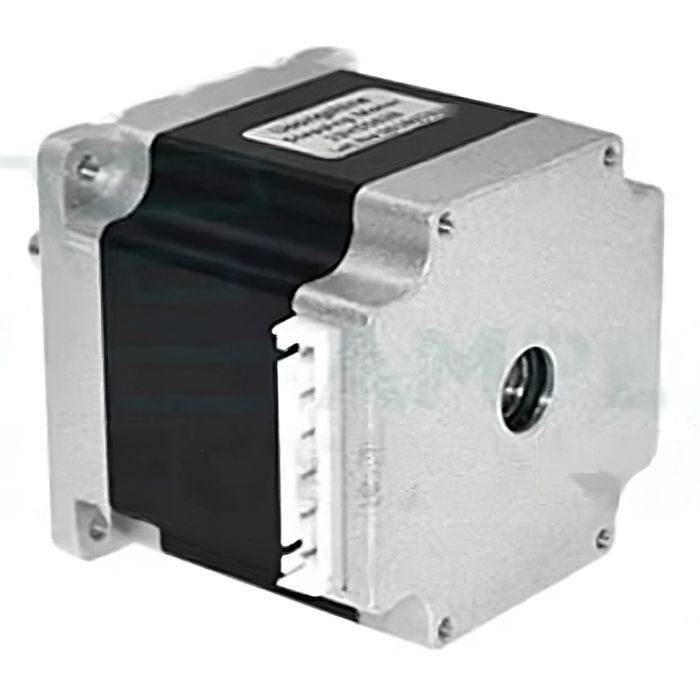

23HS5628 Nema 23 Stepper Motor The 23HS5628 Nema 23 Stepper Motor is a prodigious contraption of unparalleled power and reliability, perfectly suited for a multitude of applications. Its uncanny ability to deliver smooth and consistent torque at high speeds, thanks to its bipolar configuration and Nema23 frame size, sets it apart from its peers. The motor's compact size makes it effortless to integrate into your pre-existing setup, while its unyielding construction ensures its resilience in the most challenging operating conditions. With a step angle of 1.8 degrees and a holding torque of 12.6 kg.cm, the Nema23 Stepper Motor proves itself as a versatile and tenacious taskmaster. Its noise and vibration profile are virtually imperceptible, ensuring that your machinery runs with the utmost serenity and fluency. Without a doubt, the Nema23 Stepper Motor stands out as a paragon of excellence in the world of machinery. Its compact form belies its prodigious might, delivering a performance that leaves no room for mediocrity. Thus, if you're seeking a first-rate stepper motor that boasts precision and reliability in an astoundingly compact package, look no further than the 23HS5628 Nema23 Stepper Motor. Features: Widely used in 3D printers , surveillance equipment, medical / textile/packaging machinery and stage lighting, etc. The motor wire is made of pure copper, with a uniform copper wire layout and corrosion resistance. The motor adopts 4 pin cable outlet method, easy to connect. Made of high-quality materials, durable and long service.

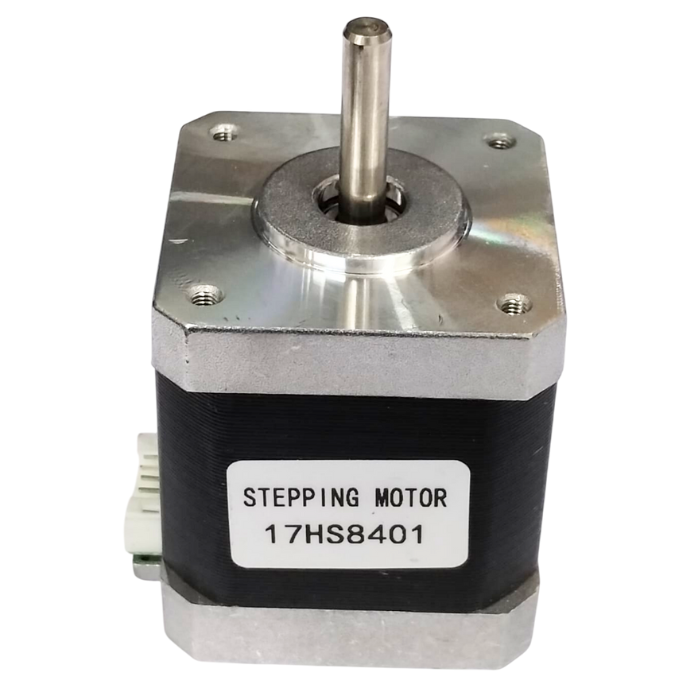

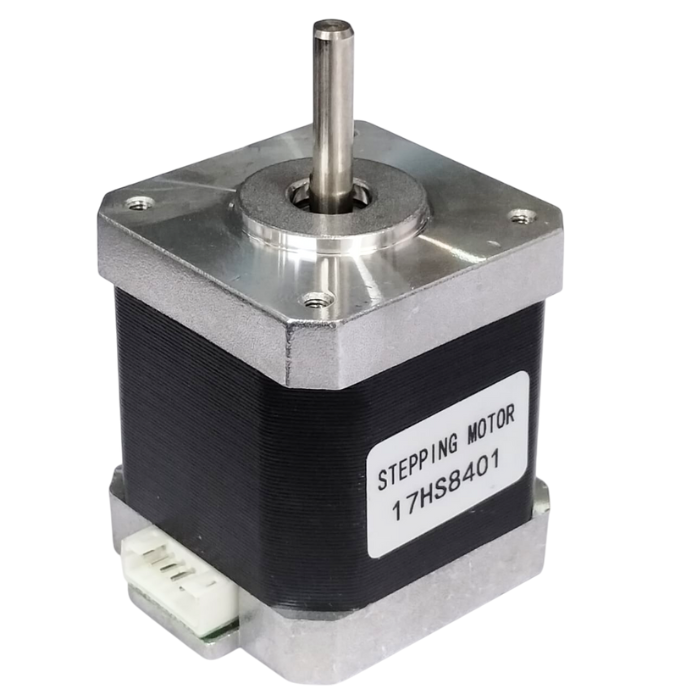

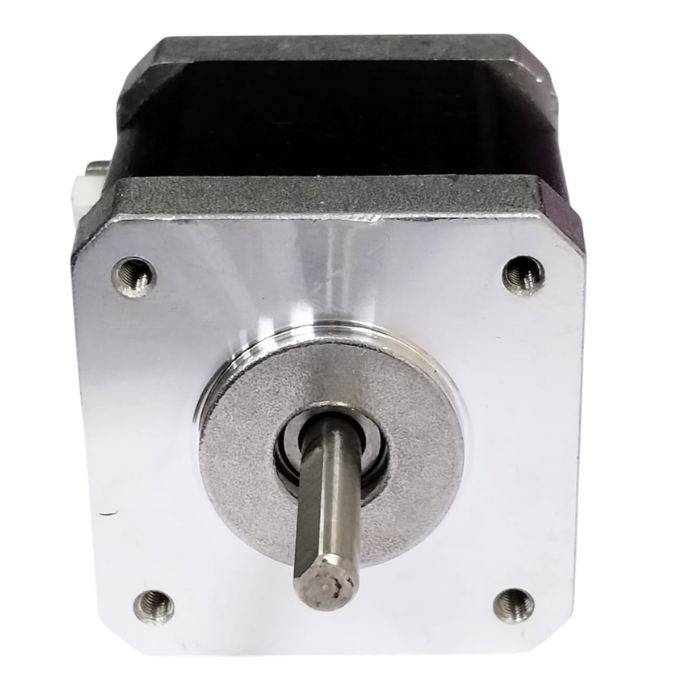

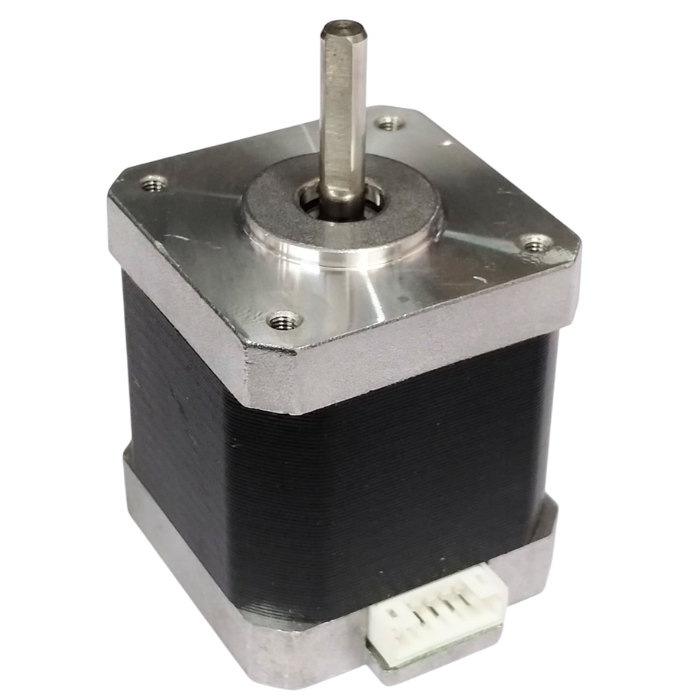

17HS8401S NEMA17 Stepper Motor (48mm) The 17HS8401S NEMA17 Stepper Motor is designed to deliver smooth and precise performance for a wide range of applications. With a Detent torque of 59 mN.m , this NEMA17 motor provides exceptional accuracy and stability, ensuring that your projects are completed with the utmost precision. This stepper motor is an excellent option for various automation projects, including 3D printers and CNC machines. Its high torque and small size make it a perfect fit for space-constrained applications. Furthermore, its dependable performance ensures that your project operates flawlessly on every occasion. When it comes to industrial automation, durability and reliability are key. That's why the NEMA17 Stepper Motor is built to last. With a high-quality construction and robust design, this 3D printer motor is capable of withstanding even the toughest conditions. From high temperatures to harsh environments, this stepper motor is engineered to perform in even the most demanding situations. And with its low noise and vibration levels, it provides a comfortable and reliable working environment, ensuring that you can focus on what matters most - getting the job done. Features: The input pulse decides the rotation angle of the motor. High accuracy of around 3 to 5% a step. It provides good starting, stopping, and reversing. Control of this motor is less costly because of the exclusion of complex control circuitry. The speed is proportional to the frequency of the input pulses.

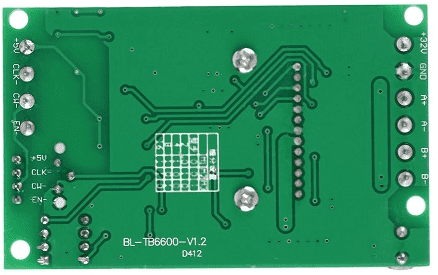

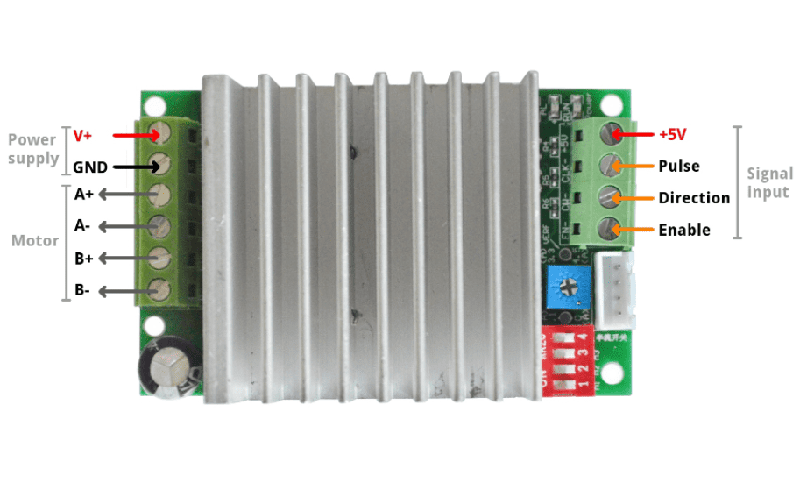

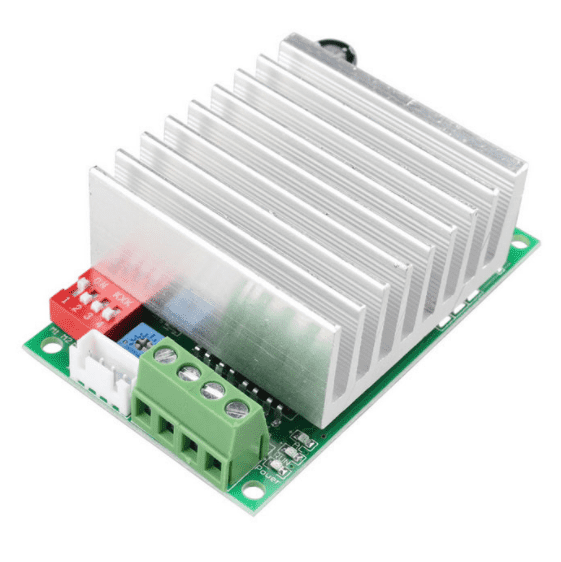

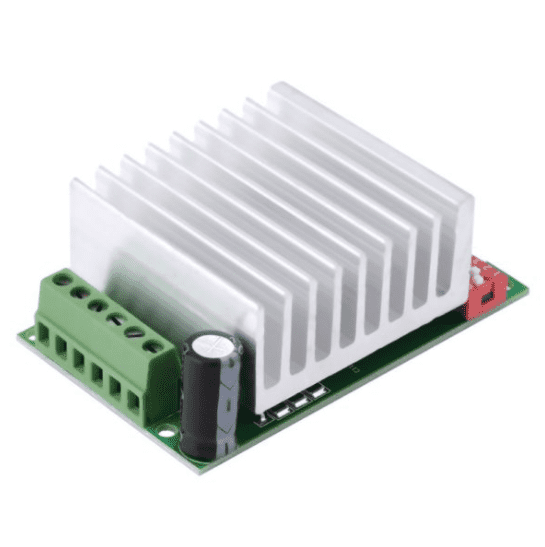

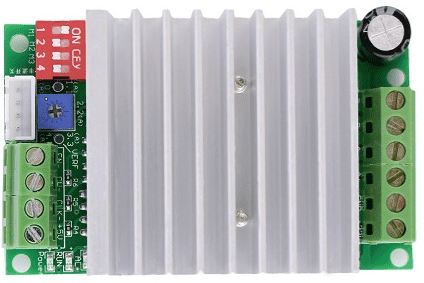

TB6600 Stepper Motor Driver Controller 8~50V 4.5A TB6600 stepper motor Driver Controller 4.5A 8~50V TTL 16 Micro-Step CNC Single-Axis Based on the TB6600HG chip, the new BL-TB6600-V1.2 driver model replaces the popular BL-TB6560-V2.0 driver. This driver controller is suitable for building not only amateur CNC systems but also professional ones based on high-power engines. Compared to the previous generation of the TB6560AHG, the output of the TB6600HG has increased to 200W (as we see a practical doubling in power value), the operating voltage is raised from 35V (TB6560AHG) to 50V, the operating current is increased to 4.5A (5A peak value). The main aspects of this driver include intelligent current control and the use of PWM modulation, which makes it possible to connect stepper motors of any supply voltage and current to the driver – at a fixed level; the chip itself will limit the maximum current. If you want to control the stepper motor with this motor driver, for that you will need a few essential components like Arduino jumper wires , batteries or power supply . Features: Supply Voltage: 8V – 50V DC (36V recommended) Output Current: 0.3A – 4.5A (peak value of 5A) Micro Step Settings: Supports 1, 2, 8, and 16 micro steps Maximum PWM Frequency: 200kHz Current Adjustments: Adjustable for maximum current settings of 1A, 2.2A, 3.3A, and 4.5A High-Speed Optocoupler Isolation: For signal terminals, enhancing anti-high-frequency interference ability Protection Features: Overheat, overcurrent, and short circuit protection Heat Dissipation: Large area heat sink for better heat dissipation Control Type: Supports speed and direction control Operating Temperature: -10 to +45 °C Applications: CNC Machines: Used in controlling stepper motors for precise movements in CNC milling, engraving, and cutting machines. 3D Printers: Essential for driving stepper motors in 3D printers, ensuring accurate layer deposition and movement. Robotics: Ideal for robotics projects requiring precise motor control, such as robotic arms and automated guided vehicles (AGVs). X-Y Tables: Used in X-Y tables for accurate positioning and movement in various industrial applications. Laser Cutters: Controls stepper motors in laser cutting machines for precise cutting and engraving. Pick-and-Place Devices: Employed in pick-and-place machines for accurate component placement in electronics manufacturing. Labeling Machines: Used in labeling machines for precise label application.

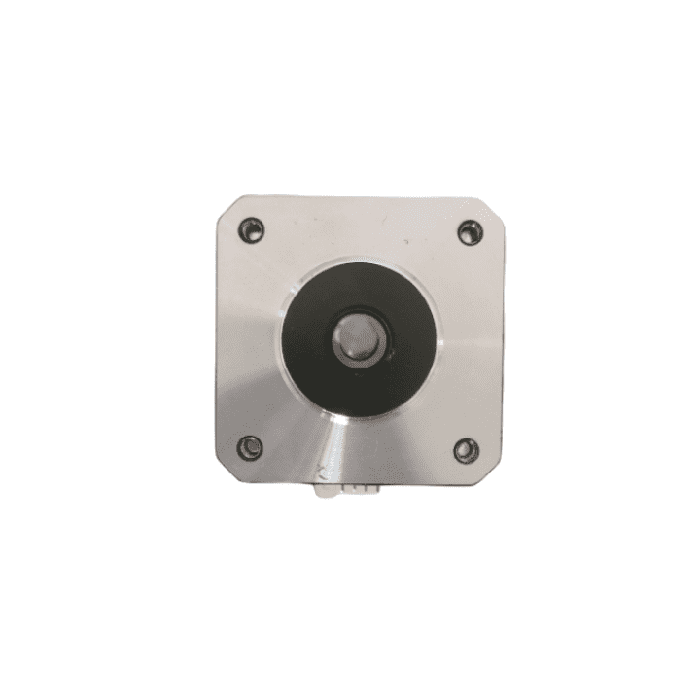

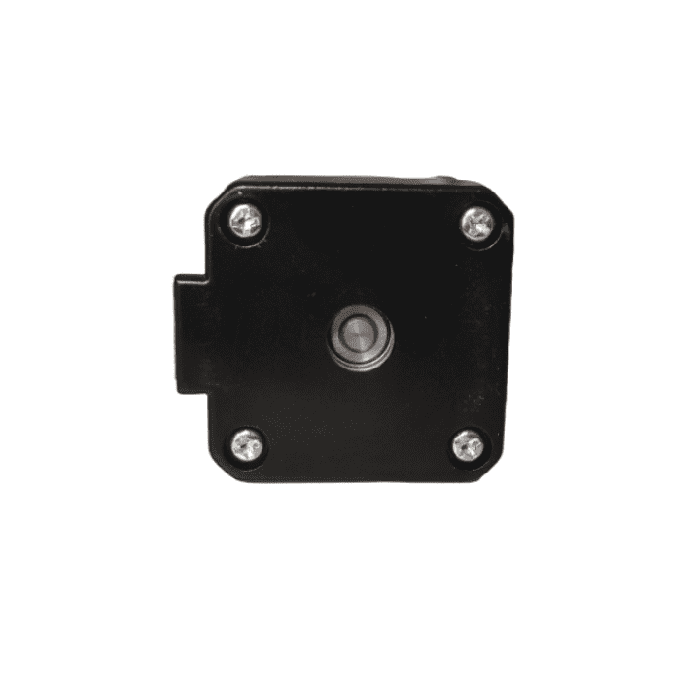

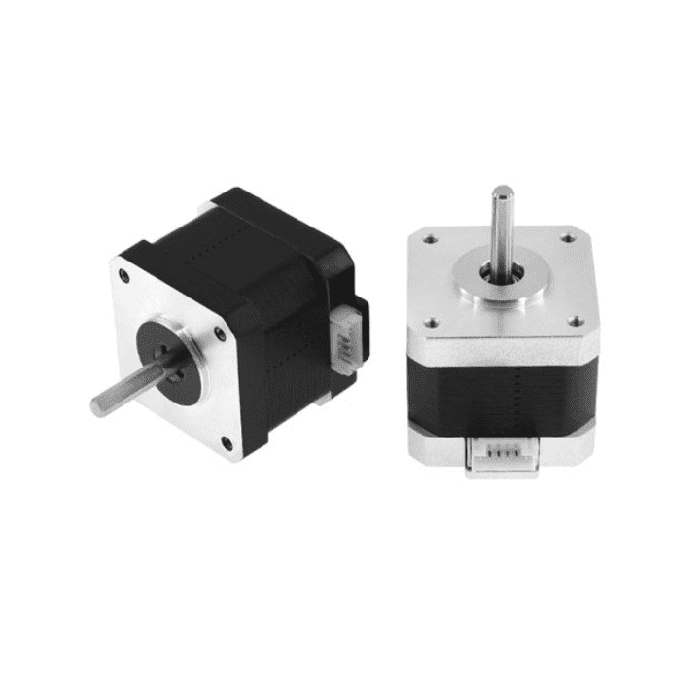

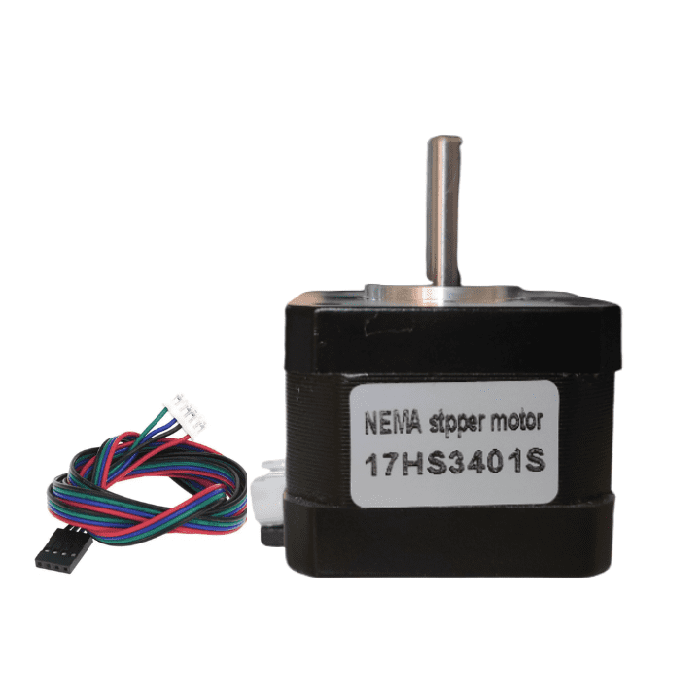

17HS3401S NEMA17 Stepper Motor The 17HS3401S NEMA17 Stepper Motor is known for its high precision and outstanding performance. It is perfect for a wide range of applications due to its 1.8-degree step angle and 18 mN.m detent torque. It's a great option for building CNC machines or 3D printers because of its precision and dependability. This solid build of this motor is meant to withstand the demands of long-term use. Its sophisticated bearing mechanism ensures smooth operation while reducing the danger of failure. Also, the motor's effective heat dissipation mechanism helps to extend its operating life. This NEMA17 Stepper Motor is a versatile motor that can be used in a wide range of applications. It is compatible with a variety of control systems and can be easily adapted to fit your specific needs. Whether you are building a robotics project or a custom automation system, this motor is a perfect choice. With its compact size and powerful performance. Read more : NEMA 17 - The High Torque Stepper Motor Working Principle Features: Low noise. Low heat. Smooth operation. Good acceleration performance. Applications: 3D printers Monitoring devices Packaging machines Stage lighting DIY projects CNC machines Robotics projects Custom automation systems

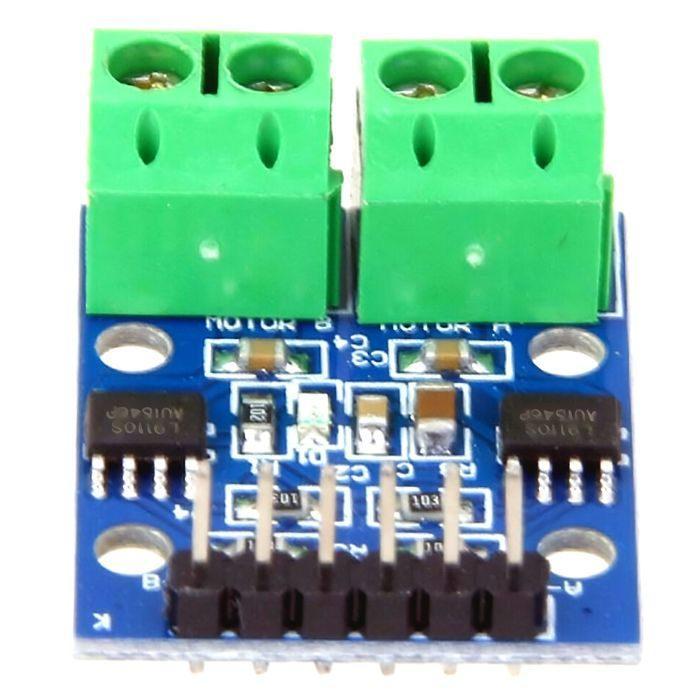

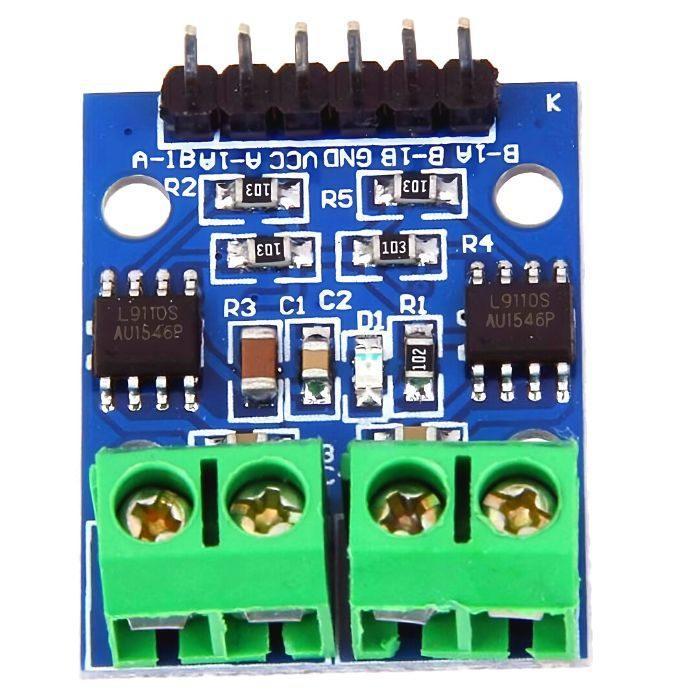

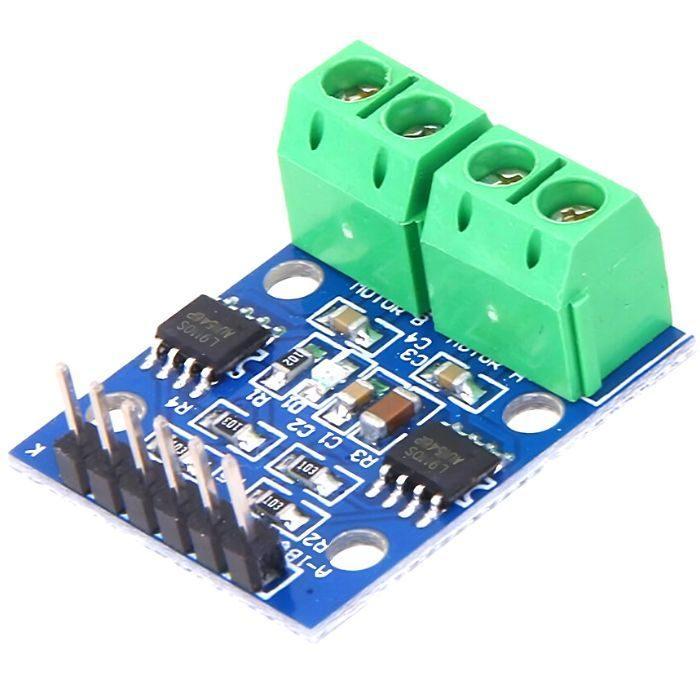

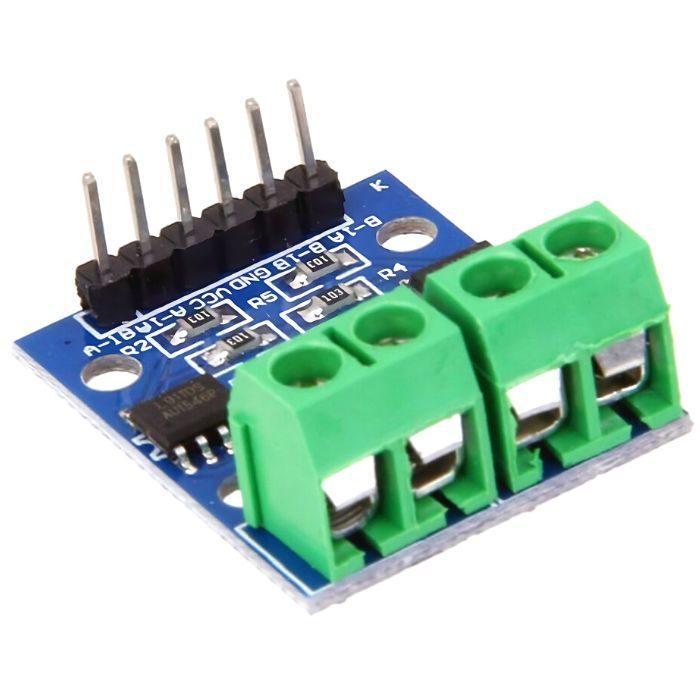

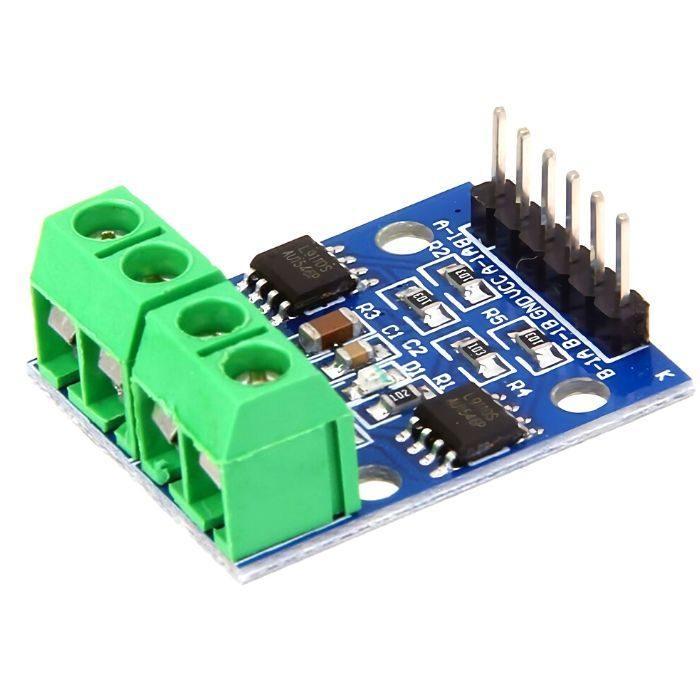

L9110S H Bridge Stepper Motor Dual DC Driver Controller Module For Arduino The L9110S dual channel h-bridge motor driver module is a compact board that can be used to drive small robots. This module is based on L9110 Motor Driver IC. This module has two independent motor driver chips which can each drive up to 800mA of continuous current. The boards can be operated from 2.5 volts to 12 Volts enabling this module to be used with both 3.3 Volts and 5 Volts microcontrollers. A set of female header pins and jumper wires are used to connect this module to a microcontroller like Arduino . The motors are attached via two sets of screw terminals. A PWM Pulse Width Modulation signal is used to control the speed of a motor and a digital output is used to change its direction. This module can also be used to drive a single four-line two-phase stepper motor. Four holes make this board easy to mount onto your robot or other projects. This dual-motor driver comes in a compact form factor and it is ideal for use in small robots. The actual direction of “forward” and “reverse” depends on how the motors are mounted and wired. You can always change the direction of a motor by reversing its wiring. The HG7881 (L9110) Dual Channel Motor Driver Module uses two of these motor driver chips. Each driver chip is intended to drive one motor, so having two means that this module can control two motors independently. Each motor channel uses the same truth table as above. Each set of screw terminals is used to connect a motor. Refer to the table below for pin header connections. Pin diagram of L9110S H Bridge Stepper Motor Dual DC Driver Controller Module: L9110S DC Stepper Motor Driver Board Pin Diagram Module Interfaces: 6P black bent pin description: 1 VCC external voltage 2.5V-12V 2 GND External GND 3 AIA external microcontroller IO port 4 AIB external microcontroller IO port 5 BIA external microcontroller IO port 6 BIB external microcontroller IO port 4P green terminal: 1 OA1 OB1 contact DC 2-pin, non-directional 2 OA2 OB2 contact DC 2-pin, non-directional Use: ON VCC, GND module power indicator light AIA input high, AIB input low, [OA1 OB1] motor is transferred; AIA input low, AIB input high, [OA1 OB1] motor reversal; BIA input high, BIB input low, [OA2 OB2] motor is transferred; BIA input low, BIB input high,] [OA2 OB2] motor reversal Features: L9110S-chip motor drive Small-sized, suitable for assembly This can drive two DC motors or a 4-wire 2-phase stepping motor This is provided with fixed mounting holes

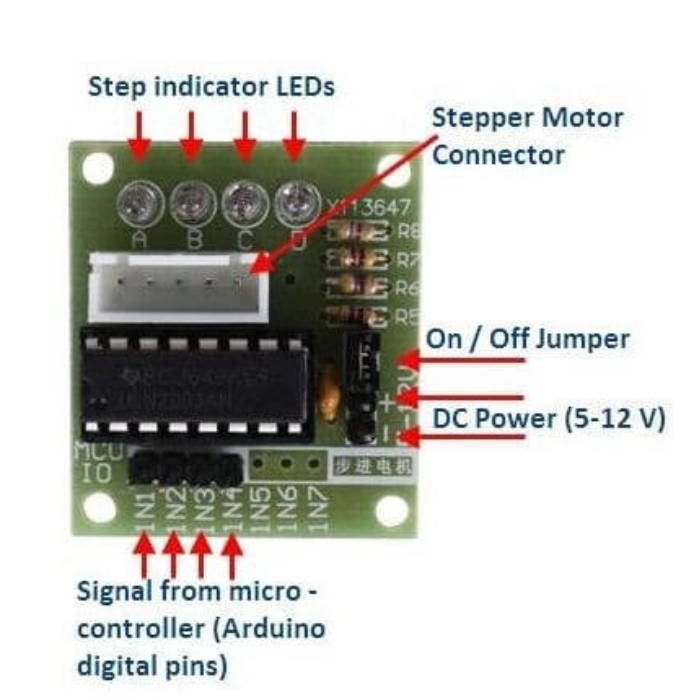

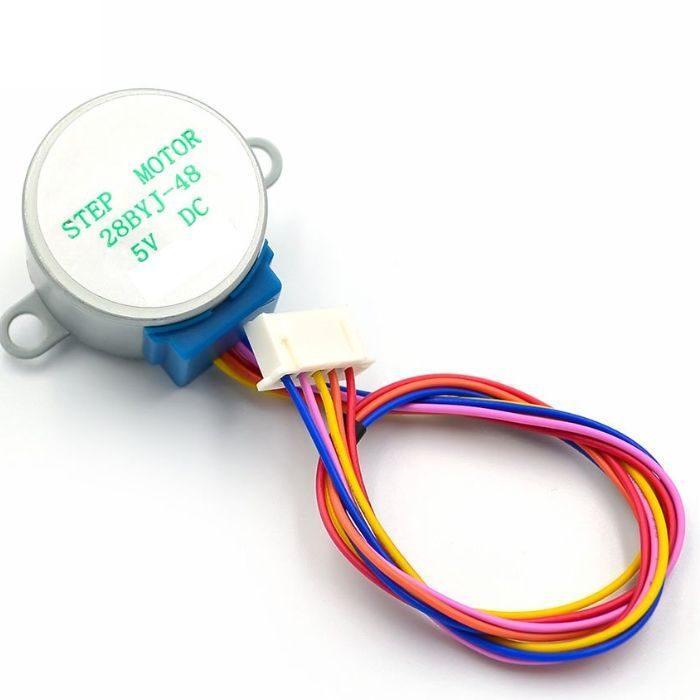

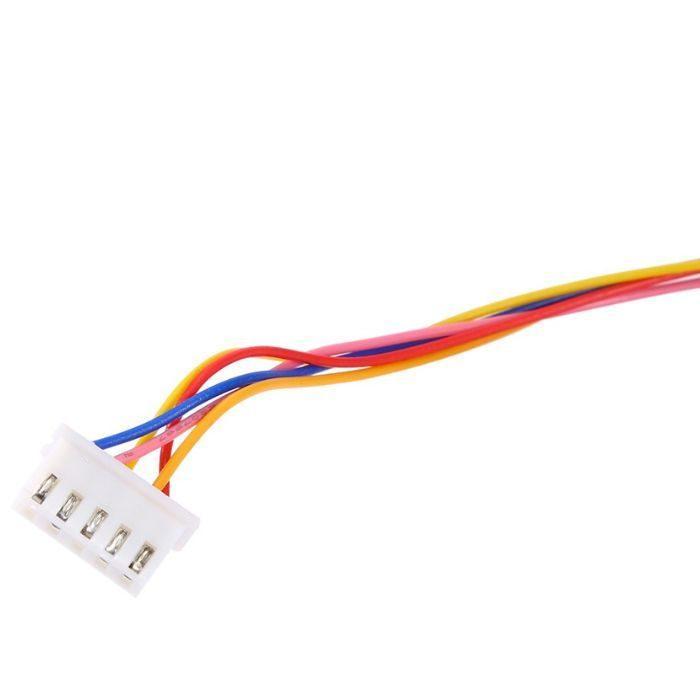

28BYJ-48 5V DC Stepper Motor This 5V DC 28BYJ-48 Stepper Motor is small, inexpensive and high-quality geared step motor. The 28BYJ-48 Stepper Motor and ULN2003 Stepper Motor Driver is a widely popular combination of the stepper motor and stepper driver, because of the stability and reliability of the system. The motor has a reduction ratio of 64:1, so it offers a decent torque for its size at speeds of about 15 RPM. It is a unipolar stepper motor which has 5-wires. As stated before the pack contains ULN2003 Stepper motor driver which is a Mini Stepper Motor Driver.The main purpose of ULN2003 is to amplify the control signals from the Arduino, so as to drive the 28BYJ-48 Stepper Motor. If you will give the ULN2003 Stepper motor driver a certain pulse signal, it will drive step motor to a certain angle.The control of Stepper motor movement angle is done by controlling the number of stepper motor driver pulses. The speed of the stepper motor rotation is also controllable by controlling the frequency of the pulses. Connect the 28BYJ-48 motor with the ULN2003 motor driver then interface this combination of motor and driver with Arduino , do some coding and your 28BYJ-48 Stepper Motor is ready to listen to your commands Features: Stepper motor with a standard interface, when used directly pluggable. A, B, C, D four-phase LED indicator which indicates the status of the stepper motor work. Compact-size stepper motor perfect for small robotics applications. Applications: Cameras for providing precise control and positioning. Tilting of car side mirrors can be controlled using these motors. CNC Machines Robotic Arms Home Automation

NEMA17 Two Phase Hybrid Stepper Motor This NEMA17 two-phase hybrid stepper motor uses two phases, or two sets of coils, to generate motion. The "hybrid" designation refers to the use of both a permanent magnet and electromagnetic coils in the motor design. NEMA17 refers to the size of the motor, with the "17" indicating that the motor has a 1.7-inch square faceplate and a 1/4-inch shaft. These motors are typically used in precision motion control applications such as 3D printing, CNC machines and Robotics. Applications: 3D printing CNC machines Robotics Medical equipment Manufacturing Security systems Automation

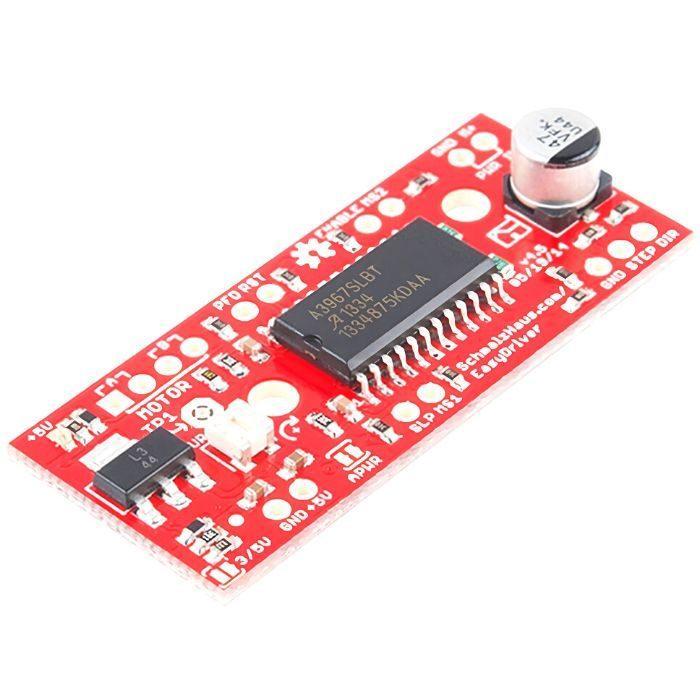

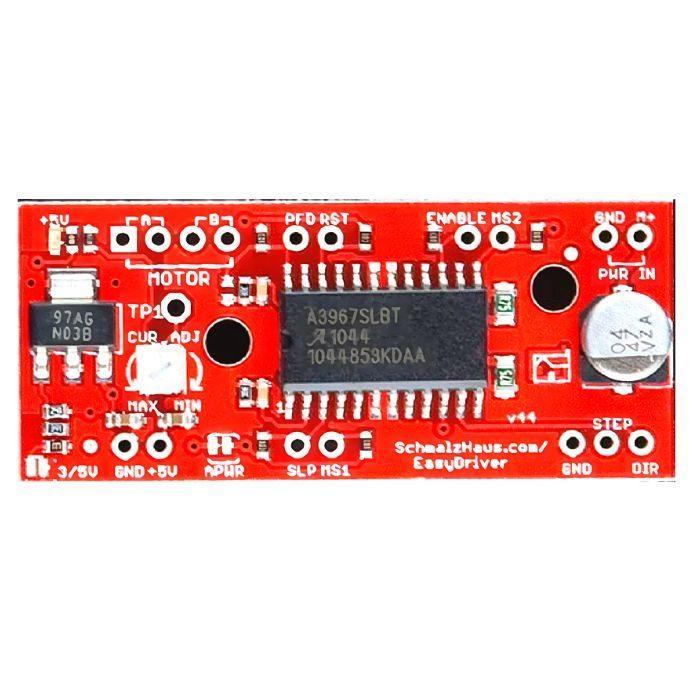

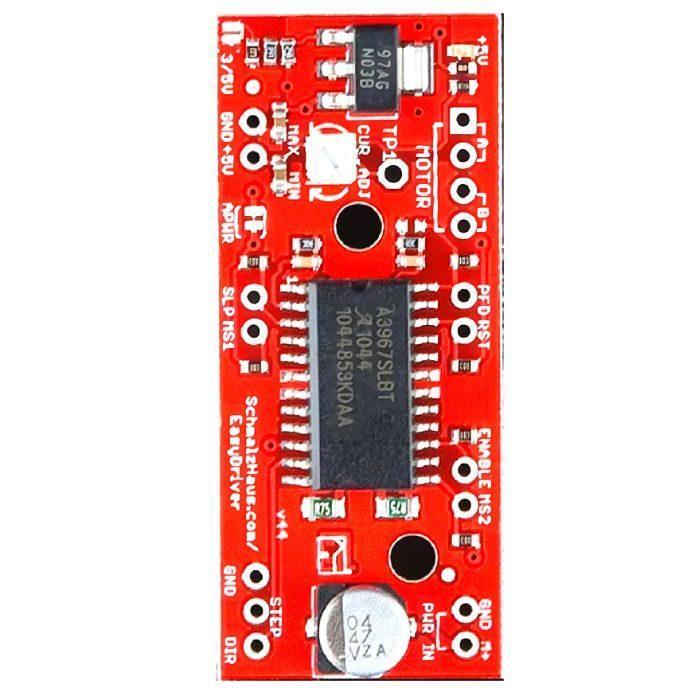

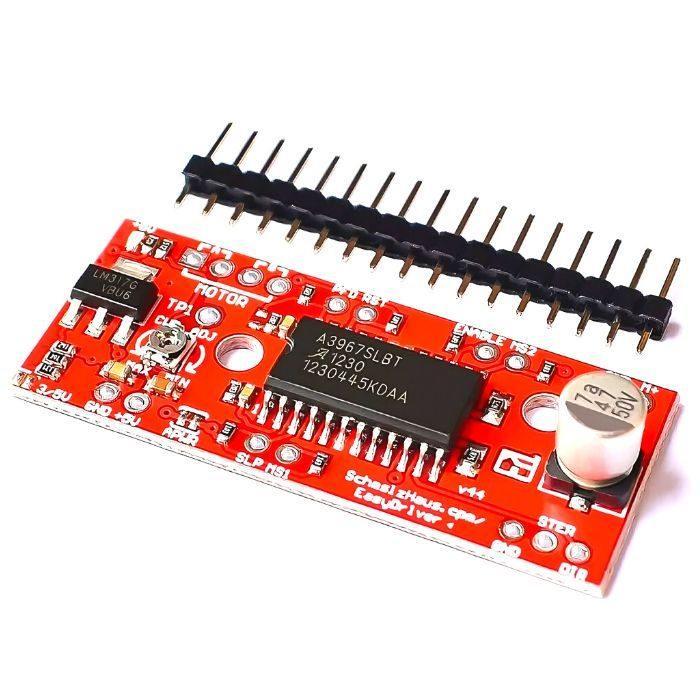

A3967 Stepper Motor Driver This A3967 Stepper Motor Driver For Arduino is the most recent version of EasyDriver v44, which was created in collaboration with Brian Schmalz. When compared to previous versions, it offers more flexibility and control over your stepper motor . It is a simple stepper motor driver that is compatible with most microcontrollers and capable of producing a digital 0 to 5V pulse (0 to 3.3V pulse if you solder SJ2 closed on the EasyDriver). A 7V to 30V power supply is required for the module's motor. The digital interface is powered by an onboard voltage regulator that can be set to 5V or 3.3V. The A3967 is a full-featured microstepping motor driver with an integrated transistor. It is intended for use with bipolar stepper motors in full-, half-, quarter-, and eighth-step modes, with output drive capabilities of 30 V and 750 mA. The A3967 comes with a fixed off-time current regulator that can operate in slow, fast, or mixed current-decay modes. This current-decay control scheme produces less audible motor noise, higher step accuracy, and lower power dissipation. The transistor is essential to the A3967's simple implementation. Simply sending one pulse to the STEP input causes the motor to move one step (full, half, quarter, or eighth depending on two logic inputs). It is not necessary to programme phase-sequence tables, high-frequency control lines, or complex interfaces. The A3967 interface is ideal for applications where a complex P is either unavailable or overburdened. Features: A3967 microstepping driver Adjustable current control from 150mA/phase to 750mA/phase MS1 and MS2 pins are broken out to change microstepping resolution to full, half, quarter and eighth steps (defaults to eighth) Compatible with 4, 6, and 8-wire stepper motors of any voltage Breadboard-compatible pins.

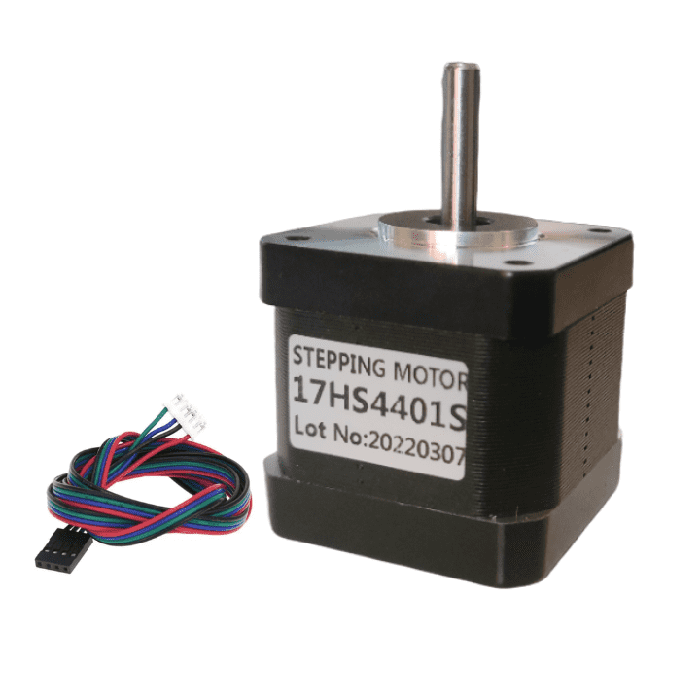

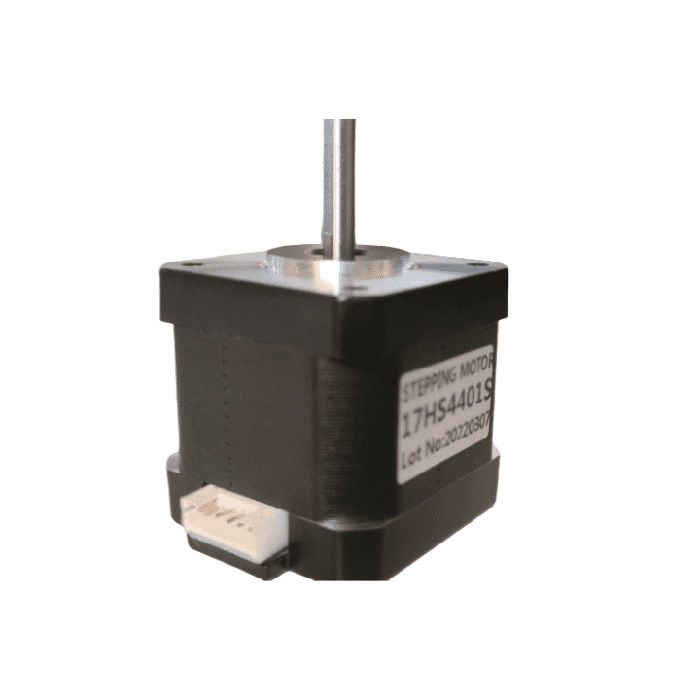

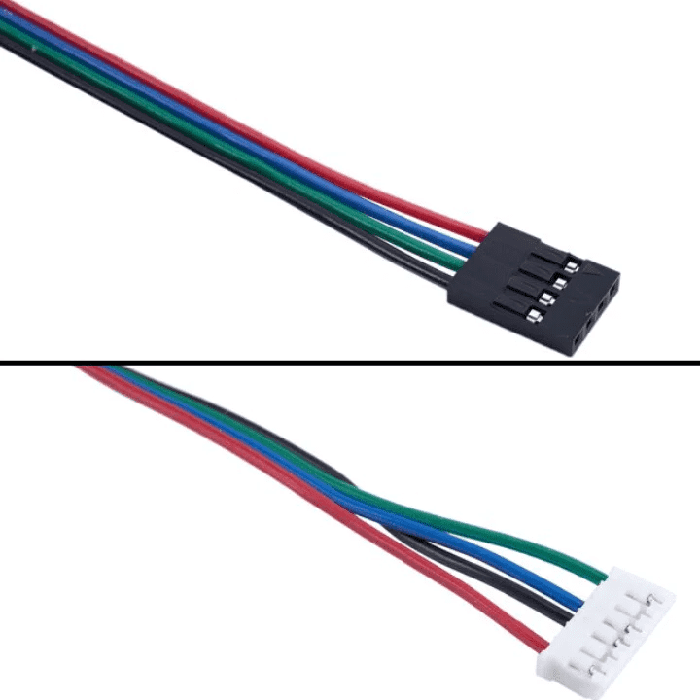

17HS4401S NEMA17 Stepper Motor 40mm A great option for those looking for a strong and trustworthy stepper motor is the 17HS4401S NEMA17 Stepper Motor. It steps at an exact 1.8-degree angle and has a c, which makes it perfect for activities demanding both strength and accuracy. This NEMA 17 stepper motor motor is simple to install and use, so you should have no problem getting it up and running. Its small size makes it easy to include into any project, even if space is restricted. If you’re working on a 3D printer , CNC machine, or other automated equipment, this small stepper motor is up to the task. It’s versatile enough to be used in many different areas, like robotics and automation. With its strong torque and precise movement, you can count on it to deliver consistent, high-quality performance. Features: The input pulse decides the rotation angle of the motor. High accuracy of around 3 to 5% a step. It provides good starting, stopping, and reversing. Control of this motor is less costly because of the exclusion of complex control circuitry. The speed is proportional to the frequency of the input pulses. Applications: 3D printers CNC machines Robotics projects Automation systems DIY projects requiring precise motion control

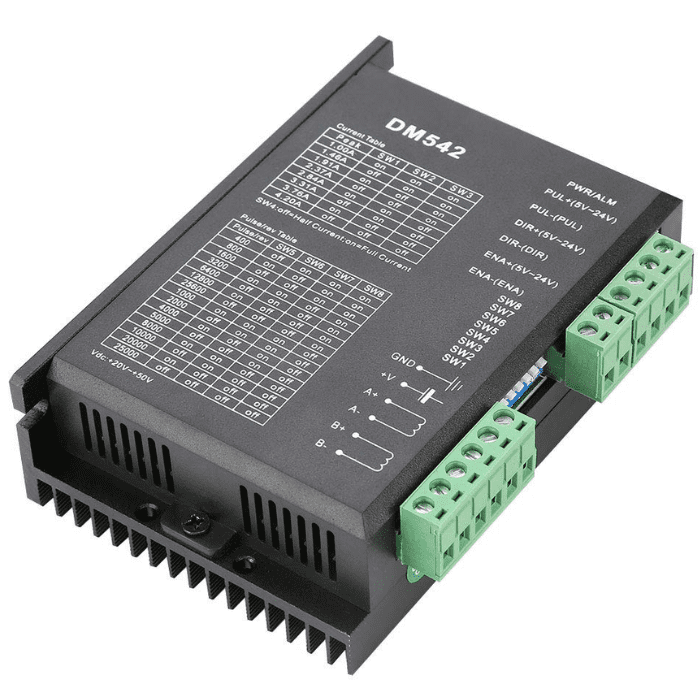

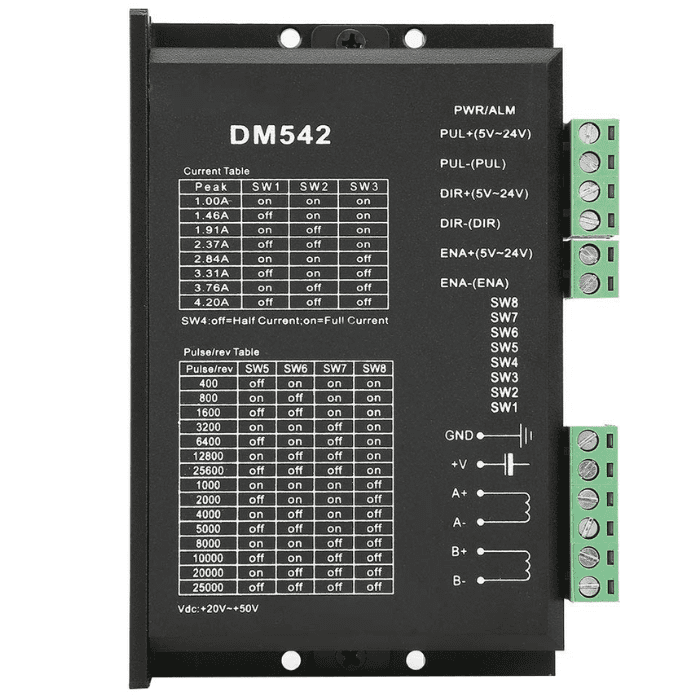

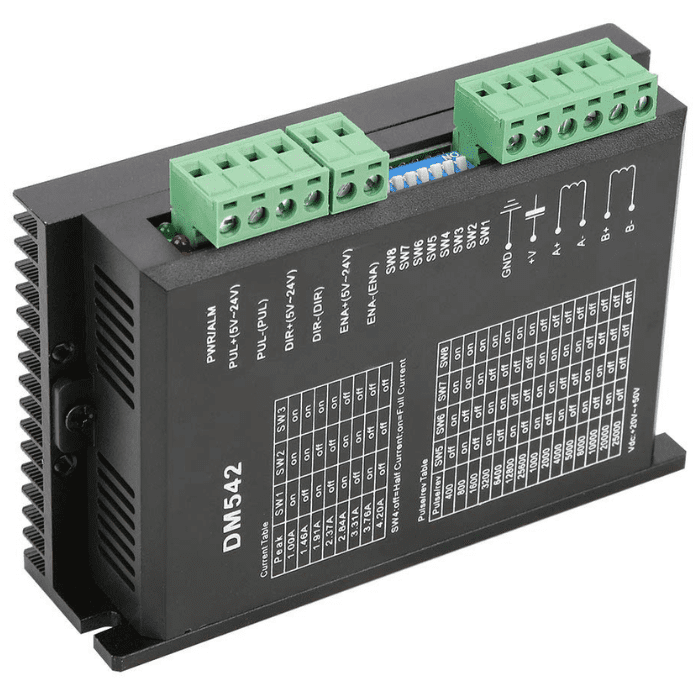

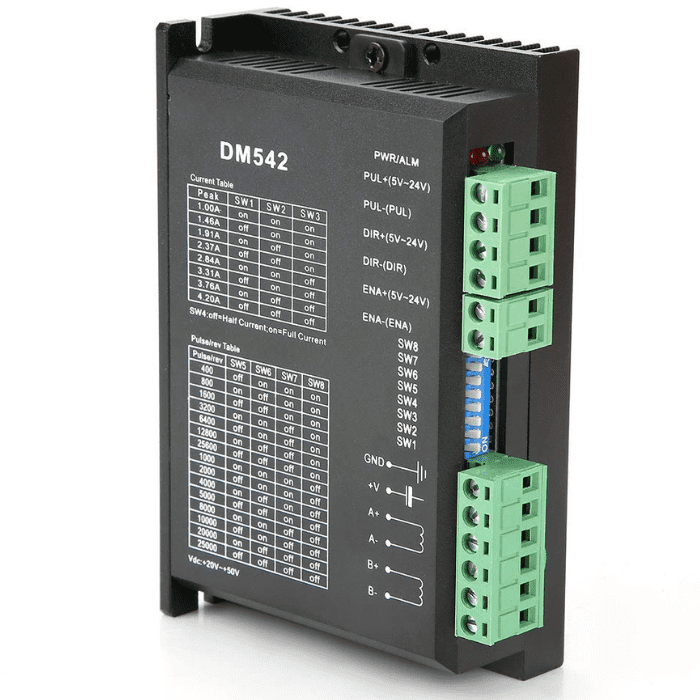

DM542 Digital Stepper Motor Driver for CNC Drivers Controller 3D Printer Accessories The DM542T is a digital stepper motor driver with an advanced DSP control algorithm, incorporating the latest motion control technology. This driver boasts unparalleled system smoothness, delivering optimal torque and eliminating mid-range instability. Its motor auto-identification and parameter auto-configuration features also facilitate quick and easy setup to optimal modes for different motors. Compared to traditional analogue drives, the DM542T operates with much lower noise and heating and offers smoother movement when driving a stepper motor. Its unique characteristics make it the perfect choice for high-requirement applications. The DM542T is highly recommended as a motor driver for NEMA 17 and NEMA 23 motors. Features: 20KHz chopping frequency Optical isolation signal input Output current DIP switch is adjustable Bipolar constant current chopping method High segmentation: 2,4,8,16,32,64,128,256. 5,10,25,50,125,200 TTL input signal compatible,while accepting differential signal input 57 series 4.5A or less (including 4.5A) two-phase four-wire, six-wire, eight-wire stepper motor also can be used The drive uses a discrete component structure that supports two-phase 4-wire, 6-wire, and 8-wire as long as there is no overvoltage and wiring
