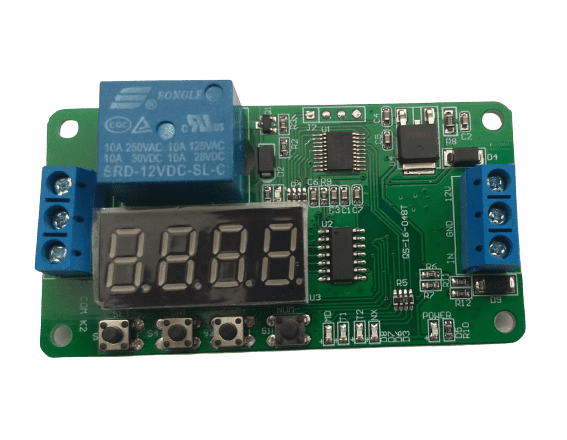

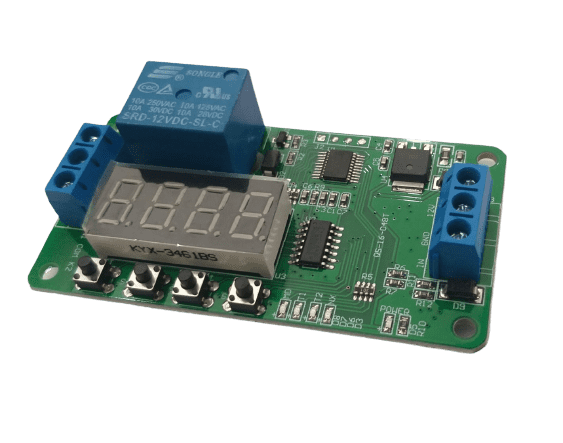

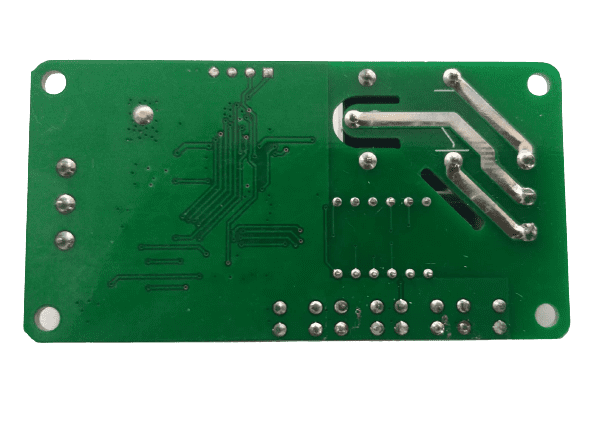

Multifunction Delay Relay Switch Module

SmartElex 12V 20A Single Channel Power Relay Module The SmartElex 12V 20A Single Channel Power Relay Module is a high-current switching solution designed to control heavy electrical loads using low-voltage control signals. It helps safely operate high-power devices without directly exposing microcontrollers or control circuits to high current, reducing risk and improving system reliability. This module is suitable for students, makers, engineers, educators, and startups who are working on power control, automation, or embedded electronics projects that demand robust switching capability. This single channel power relay module is ideal for robotics, IoT systems, home and industrial automation, and power management applications where devices such as motors, heaters, pumps, or high-load appliances need reliable control. It can be easily interfaced with popular platforms like Arduino, Raspberry Pi, and ESP32, making it convenient for both prototyping and deployment. The strong build quality and straightforward integration make it a dependable choice for projects requiring consistent and safe high-current switching. Features: Single channel power relay module for high-current load control Operates on 12V, suitable for industrial and automation systems Supports heavy load switching up to 20A Electrical isolation between control and power circuits for safety Compatible with Arduino, Raspberry Pi, ESP32, and similar controllers Robust design for reliable operation in power control applications

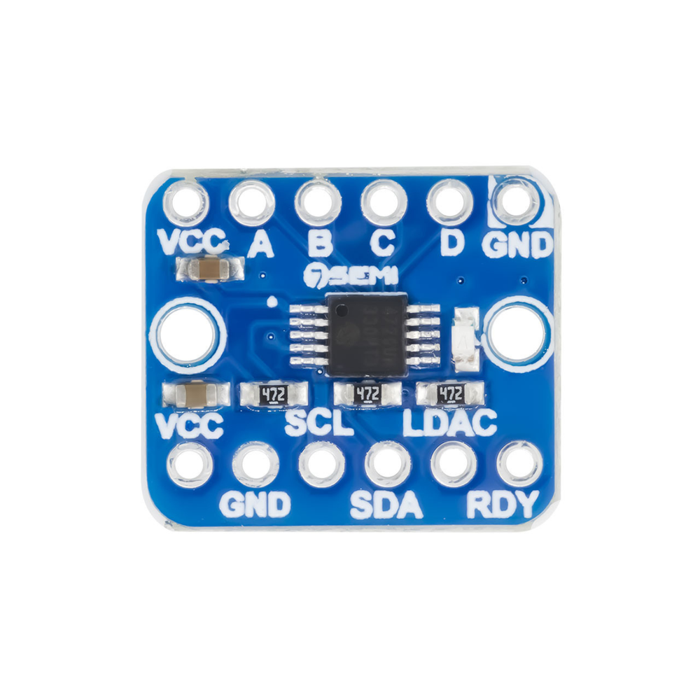

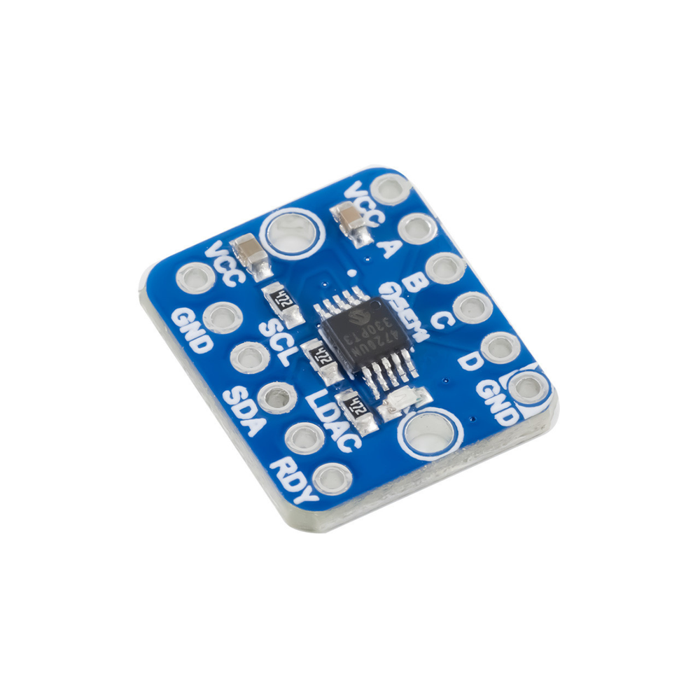

7Semi MCP4728 Quad DAC Module The 7Semi MCP4728 Quad DAC Module is a compact and reliable DAC module designed to convert digital signals into precise analog voltage outputs. Based on the MCP4728 IC, this digital-to-analog converter breakout board allows users to generate up to four independent analog outputs using simple I²C communication, making it an efficient solution for applications where microcontrollers lack sufficient analog output pins or require higher accuracy. This module offers easy integration with popular microcontrollers, stable performance, and flexible voltage output control, making it ideal for signal generation, sensor simulation, audio control, and calibration tasks. With its user-friendly design and dependable operation, it is well suited for students learning embedded systems, hobbyists building DIY electronics, and professionals developing prototypes or compact analog control systems. Features: Powered by the Microchip MCP4728 Quad DAC IC 12-bit resolution on all four DAC output channels (A–D) Onboard non-volatile EEPROM retains DAC settings after power-off I²C interface with Fast Mode support up to 400 kHz Low-power operation, ideal for battery-powered projects Compact 7Semi breakout with clearly labeled pinouts Supports LDAC and RDY pins for real-time DAC updates and monitoring Applications: Signal generation (sine, square, and triangle waveforms) Audio voltage control for synthesizers and mixers Programmable and adjustable reference voltage sources Lab instruments, testing, and control systems Industrial automation and process control applications Multi-channel analog and neural interface testing

7Semi FT232 USB-C To UART TTL Communication Module The 7Semi FT232 USB-C To UART TTL Communication Module is a compact and dependable FT232 USB UART module designed for smooth and efficient serial communication between USB devices and TTL-level hardware. Powered by the original FT232RL chipset, this USB to UART TTL module ensures excellent compatibility across Windows, Linux, Mac OS, and Android systems. It features a flexible VCCIO power selection that allows users to choose between 5V and 3.3V output using a jumper, or draw power directly from the target board within a 3.3V to 5V range. The onboard TX, RX, and PWR LEDs provide clear visual feedback during data transmission, while accessible pin headers and drilled holes make integration easy for prototyping, debugging, and embedded development projects. Designed with a standard pin pitch, this module is a reliable choice for developers, engineers, and electronics enthusiasts seeking stable USB-to-TTL communication. Features: Original FT232RL onboard. Supports MacOS, Linux, Android, WinCE, and Windows 7/8/8.1/10/11. 3x VCCIO power mode with jumper settings: VCCIO - 5V: 5 volt output VCCIO - 3.3V: 3.3 volt output Open the jumper: powered by the target board (3.3V-5V). 3x LED indicators: TX, RX, and PWR Pins accessible on pinheaders: TX, RX, RTS, and CTS Other pins are accessible through drilled holes and can be simply connected to the user's application system.

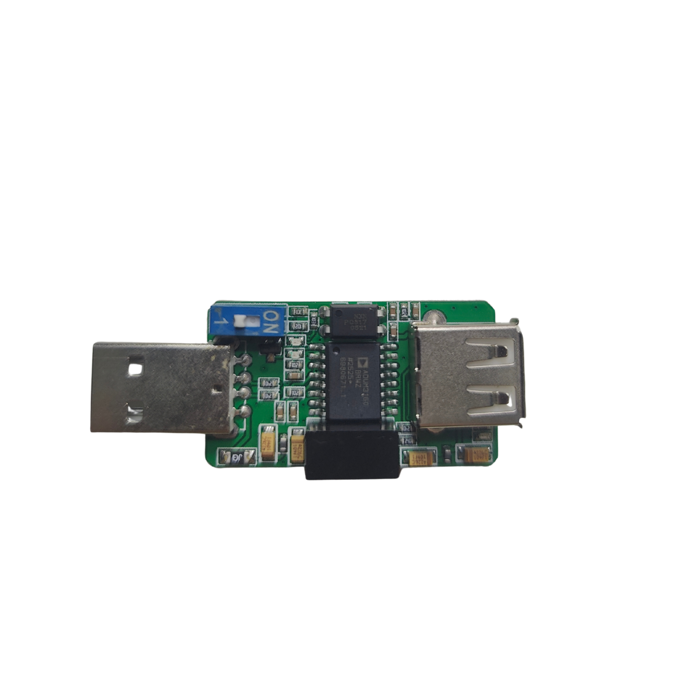

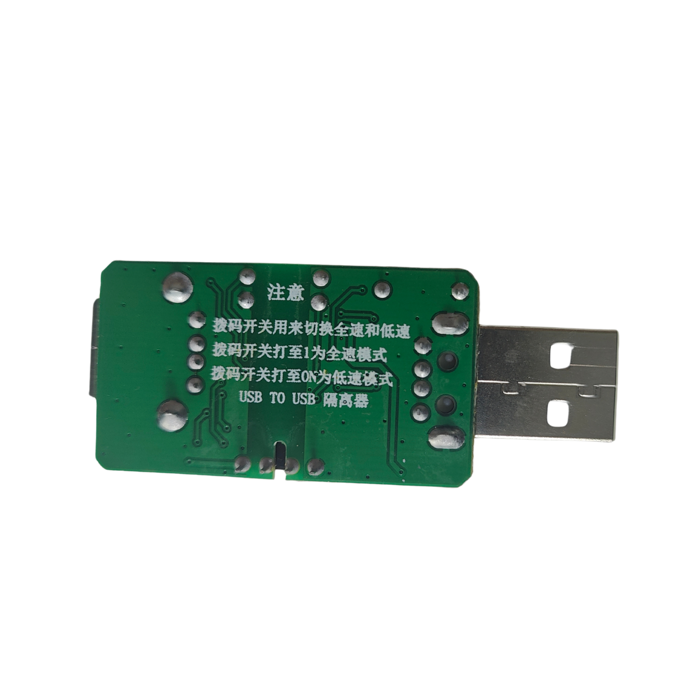

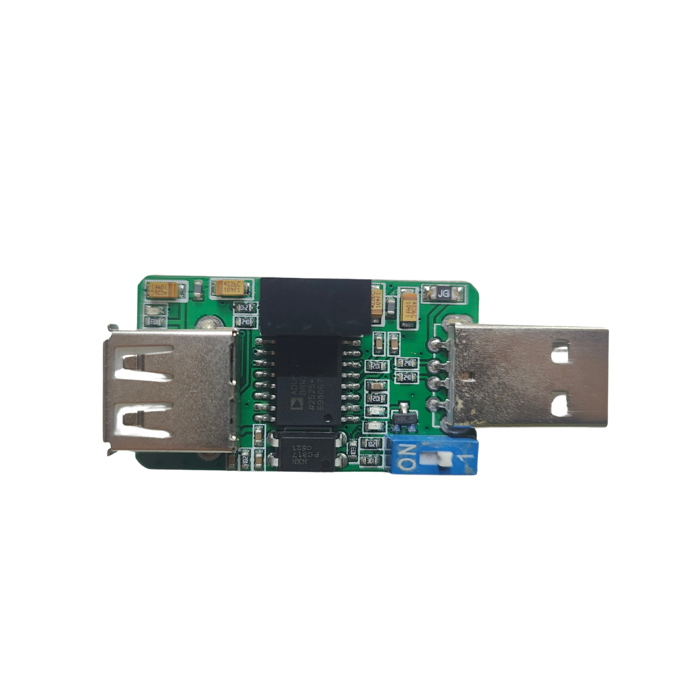

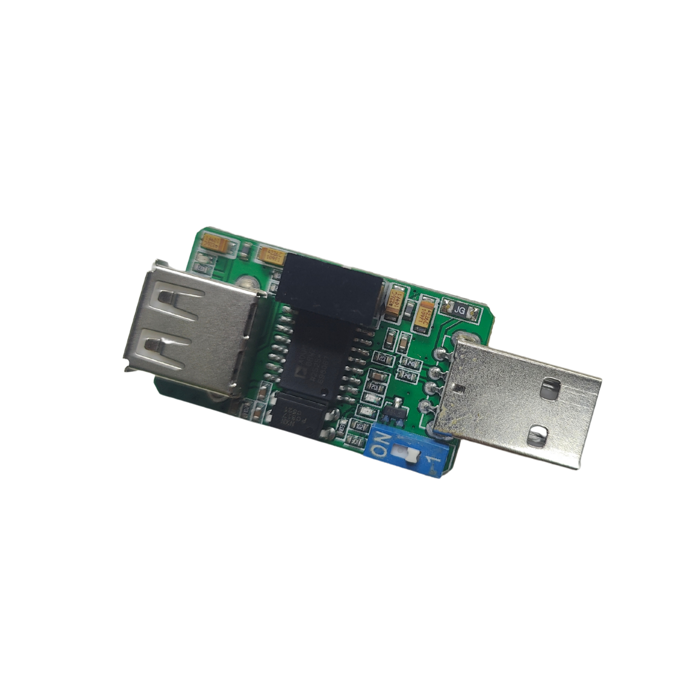

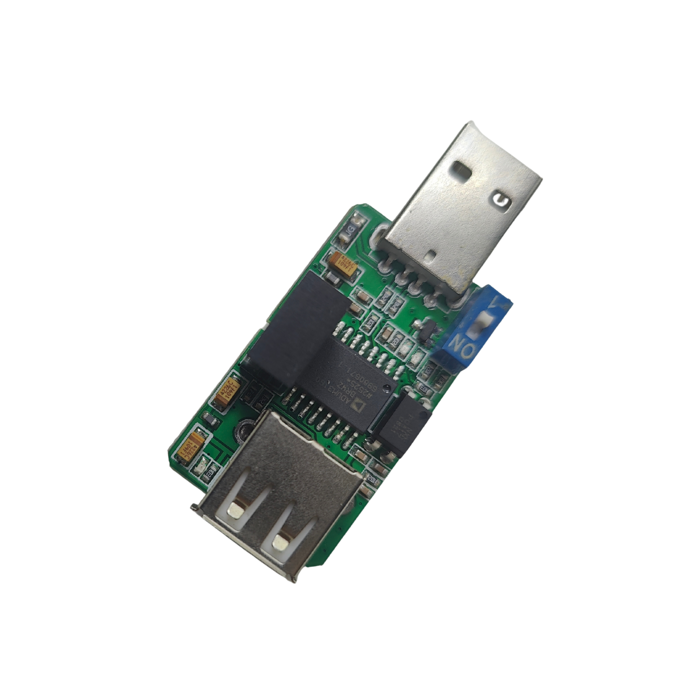

1500V USB To USB Isolator Module ADUM4160 & 3160 - Optical Isolation Board for USB Protection The USB to USB Isolator Module is designed to protect your devices and computer from electrical noise, ground loops, and voltage spikes. Featuring optical isolation technology, this module ensures safe communication between USB interfaces by isolating the data and power lines. It supports both low-speed (1.5 Mbps) and full-speed (12 Mbps) USB communication, making it suitable for a variety of microcontroller programmers, USB test instruments, HID devices, and data-acquisition tools. With an isolation voltage of up to 3000V and a built-in 1500V isolated power module, this board offers robust electrical protection in demanding environments. It is plug-and-play, powered directly from the host USB port, and requires no additional drivers. Ideal for labs, embedded systems, industrial environments, and DIY electronics, the ADUM3160 isolator helps ensure stable signal integrity and protects both the host system and connected equipment. Features: Provides strong electrical isolation using ADUM3160/ADUM4160 to protect USB devices from noise, surges, and ground loops. Supports USB 1.5 Mbps low-speed and 12 Mbps full-speed communication for wide compatibility. Built-in 1500V isolated power module and 3000V data isolation capability for enhanced safety. Compatible with many programmers and USB devices such as FT232, CH341, J-Link, PICKIT2, card readers, cameras, and more. Plug-and-play design powered directly from the host USB port—no external drivers required. Designed to operate in a wide temperature range from -40°C to 85°C, suitable for lab and industrial use. Compact PCB for easy integration into workbenches, test setups, and embedded development systems.

SmartElex 10A 5V 1-Channel Relay Module The SmartElex 10A 5V 1-Channel Relay Module is a compact and dependable low level trigger relay module designed to control high-power devices using low-voltage microcontrollers. Operating at 5V DC, this single channel relay module features an SPDT relay rated for 10A at 250VAC, making it suitable for switching lights, motors, pumps, and other appliances. Its isolated input circuitry helps protect sensitive control boards from voltage spikes, while the onboard pull-down circuit prevents false triggering during startup. With a clear power indicator and secure mounting design, this 5V Relay Module delivers safe, stable, and long-lasting performance for home automation, industrial control, and DIY electronics projects. Features: A single-channel relay module with SPDT setup Supports up to 10A at 250 VAC for high-current applications. High-level trigger for dependable control. Compatible with a wide range of microcontrollers, including Arduino, AVR, PIC, and ARM. Isolated inputs to protect sensitive control circuitry. Contains a pull-down circuit to avoid inadvertent activation. Power supply indicator for rapid status checks. complies with international safety standards Convenient installation with four mounting holes.

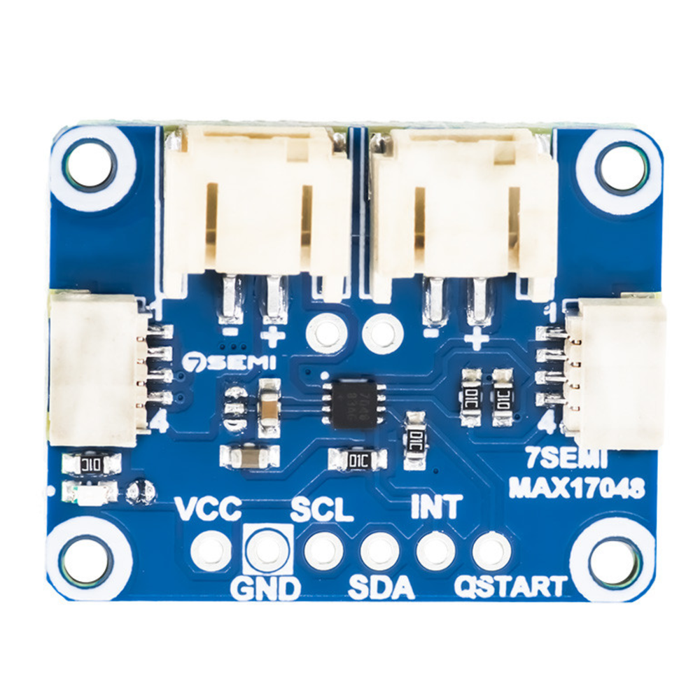

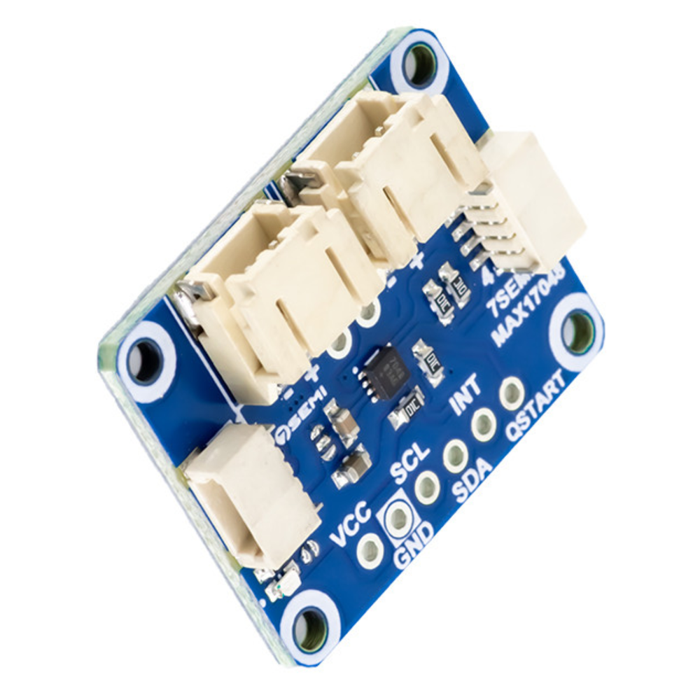

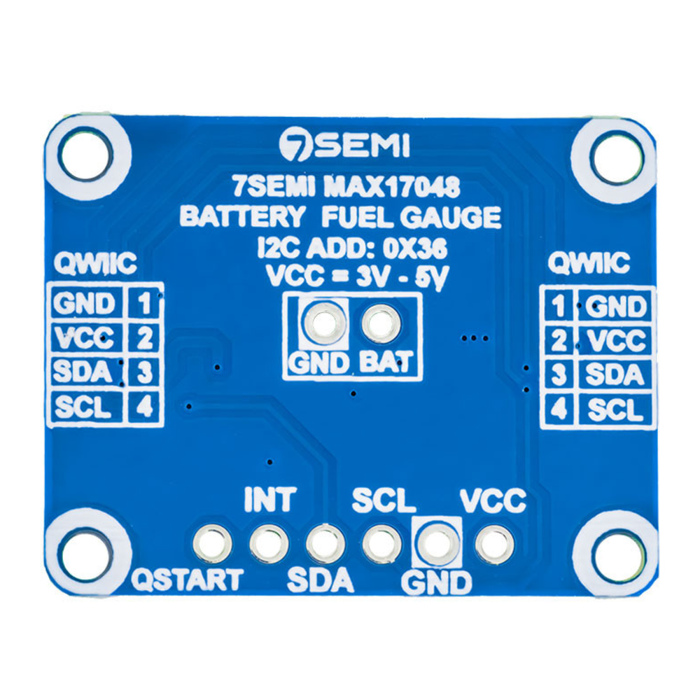

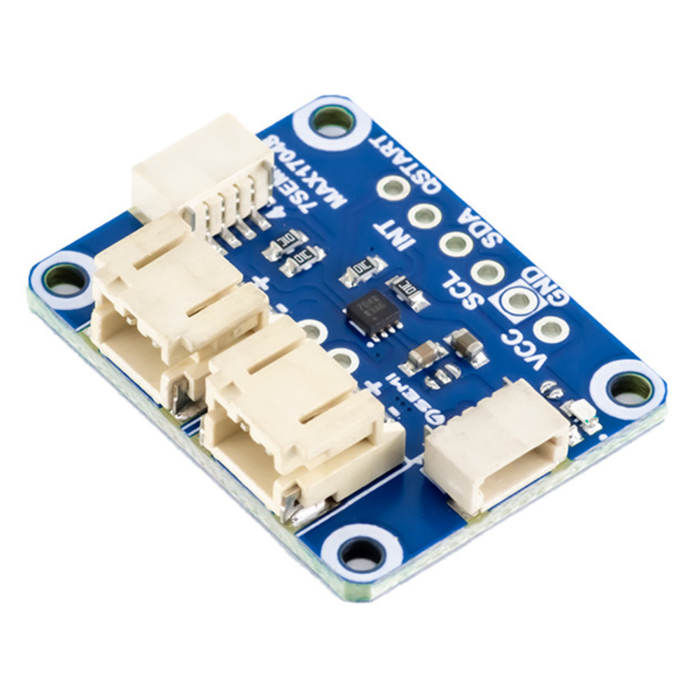

7Semi MAX17048 LiPoly - LiIon  Battery Fuel Gauge Breakout Module The 7Semi MAX17048 LiPoly - LiIon  Battery Fuel Gauge Breakout Module is a reliable and easy-to-use battery fuel gauge module built for accurate monitoring of single-cell lithium batteries. Using the MAX17048 IC, this single-cell lithium battery monitor delivers precise state-of-charge and voltage measurements without the need for a current-sense resistor, simplifying circuit design. With its I2C interface, the board integrates smoothly with microcontrollers, making it perfect for real-time battery tracking in portable devices, IoT applications, and DIY electronics projects. Features: MAX17048-based battery fuel gauge module for accurate SoC measurement Supports Li-Ion and Li-Poly single-cell lithium battery monitoring No current-sense resistor required for simplified design I2C communication for easy microcontroller integration Compact breakout board suitable for portable and IoT projects Benefits: Streamline your process: Avoid project delays and time-consuming guesswork with instantaneous battery % monitoring. For seamless and effective operations, know precisely when it's time to recharge. Advanced surveillance without the trouble: These intricate battery calculations are handled by the sophisticated MAX17048 microcontroller, which provides you with extremely precise data without requiring any programming or analysis on your behalf. All-purpose compatibility for every project: Whether you're using Arduino, Raspberry Pi, or other well-known microcontrollers, you can easily incorporate this board into your configurations. For optimal versatility across many systems, it supports both 3.3V and 5.0V logic levels. Optimize battery life by tailoring low-power modes and alarms to your specific project requirements, making the most of your LiPo batteries for extended runtimes. Go beyond simple voltage measurements: The MAX17048 offers a reliable, real-time state-of-charge percentage, so you can learn the truth about the condition of your battery.

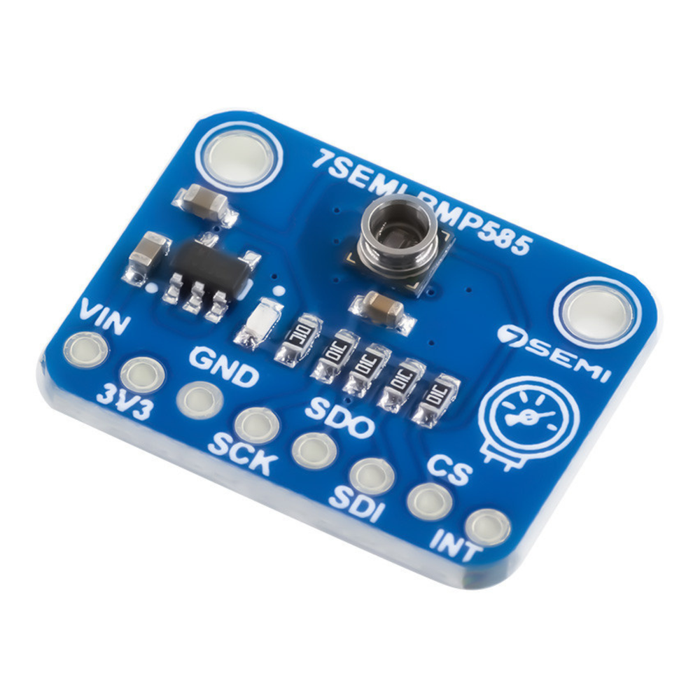

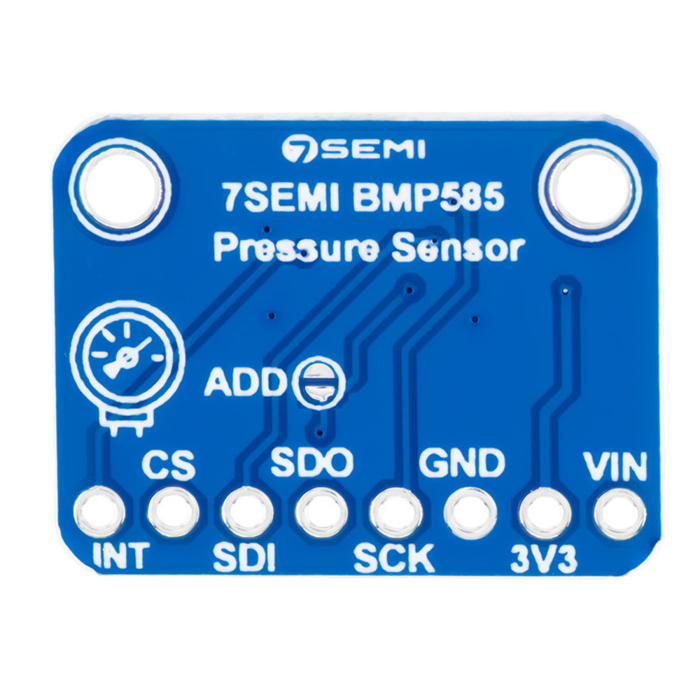

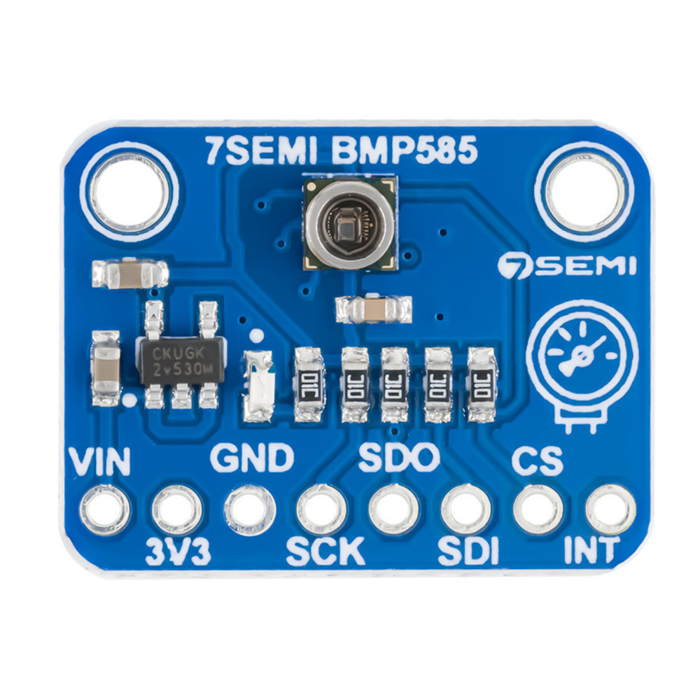

7Semi BMP585 I2C Pressure Sensor Breakout Module The 7Semi BMP585 I2C Pressure Sensor Breakout Module is a high-precision sensor designed to measure atmospheric pressure with exceptional accuracy, covering a range of 300–1250 hPa. This BMP585 Pressure Sensor combines low power consumption with compact design, making it perfect for mobile devices, battery-powered systems, and IoT projects. With both I2C and SPI interface support, it can be easily integrated into various electronics projects, enabling applications such as altimetry, weather monitoring, indoor navigation, and environmental sensing. Its reliable performance ensures accurate readings in real-time, making it an essential component for makers and engineers seeking precise pressure measurement. Features: Exceptional pressure sensing resolution at 1/64 Pa and accuracy of ±0.5 hPa provide highly precise data. Wide Pressure and Temperature Range: Measures pressure from 30 to 125 kPa and temperature from -40°C to 85°C, ensuring versatility in a variety of applications. Flexible Data Communication: Compatible with both I2C (up to 1MHz) and SPI (up to 12MHz) protocols, allowing enabling easy integration into a variety of systems. Programmable features include variable oversampling, a FIFO buffer (stores up to 32 samples), low-pass filtering, and 6 bytes of user-programmable non-volatile memory. Energy-Efficient Operation: Provides five operational modes with minimal power usage (1.5µA in Deep Standby and 260µA peak during measurements). Compact Design: A small breakout board with pin spacing of 0.1" allows for simple soldering and connecting.

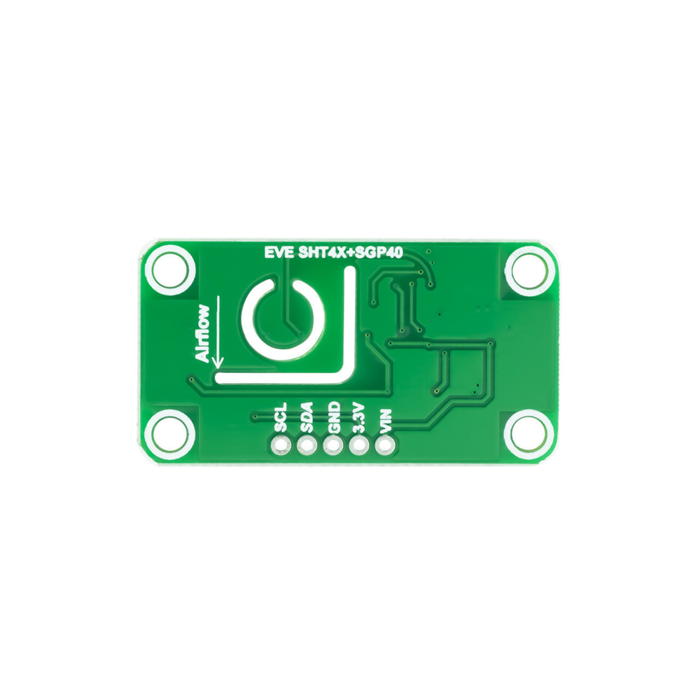

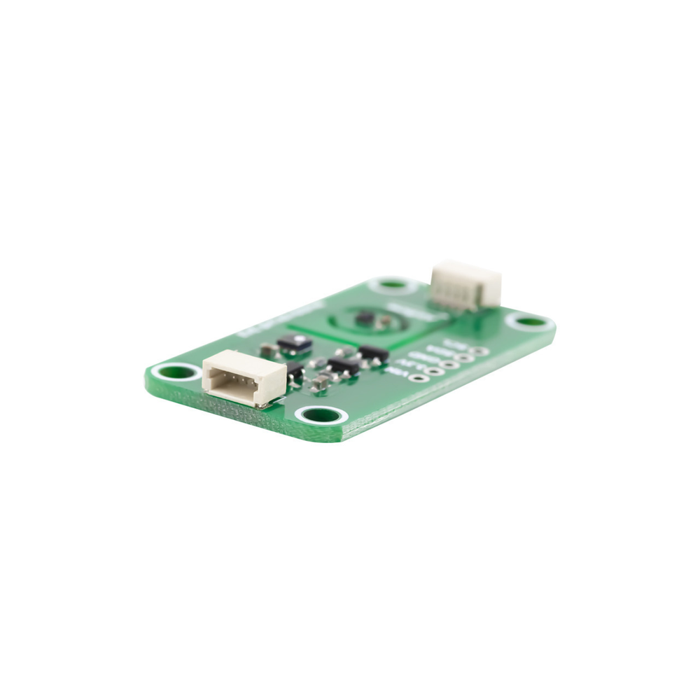

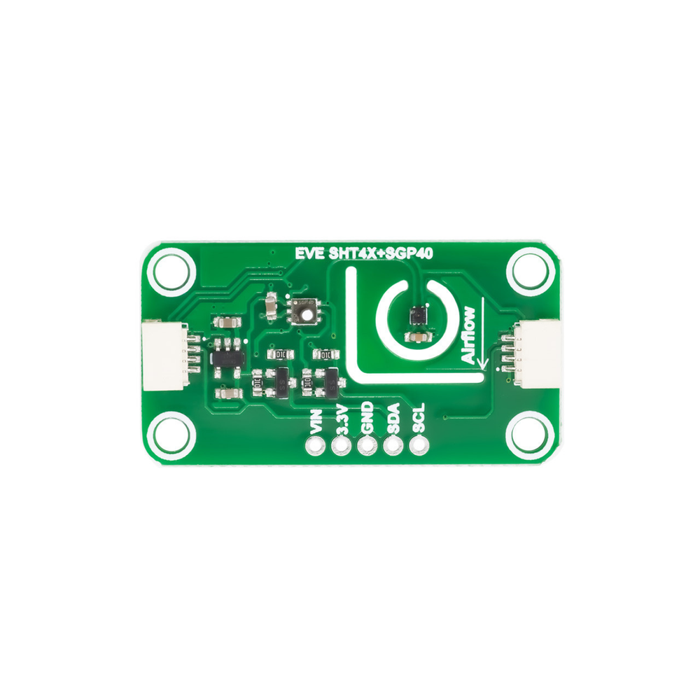

7Semi SHT40 SGP40 VOC Environmental Monitoring Sensor Module Qwiic-Ready The 7Semi SHT40 + SGP40 VOC Environmental Monitoring Sensor Module is designed to help you measure temperature, humidity, and air quality with high accuracy and minimal effort. Built with advanced SHT40 and SGP40 sensing technology, this compact module delivers precise data for temperature (–40°C to 125°C), humidity (0–100% RH), and VOC levels with excellent response time and reliability. Whether you're prototyping with Arduino, Raspberry Pi, or any I2C-based microcontroller, the Qwiic-compatible interface makes integration incredibly simple and clean. This breakout board is ideal for home automation, indoor air-quality projects, workplace monitoring, or industrial systems where accurate VOC readings matter. Its low power consumption and digital 16-bit output make it highly suitable for long-term IoT deployments, high-precision environmental sensing projects, and portable air-quality monitors. Features: Designed as a compact breakout board integrating the SHT40 high-precision temperature and humidity sensor and the SGP40 VOC sensor for reliable environmental monitoring. Offers fast and accurate measurements, including ±0.2°C temperature accuracy and ±1.8% RH humidity accuracy, ensuring dependable readings in various environments. Qwiic-compatible interface enables effortless plug-and-play connectivity with I2C-enabled microcontrollers and SBCs without soldering. Produces 16-bit digital raw and processed VOC Index signals for easy integration into data-logging, automation, or IoT systems. Ensures low power consumption, making it suitable for battery-powered and continuous-monitoring applications. Built to detect a wide range of volatile organic compounds such as ethanol, acetone, and formaldehyde with high sensitivity and quick response times. Board Dimensions: Arduino I2C Connection Diagram:

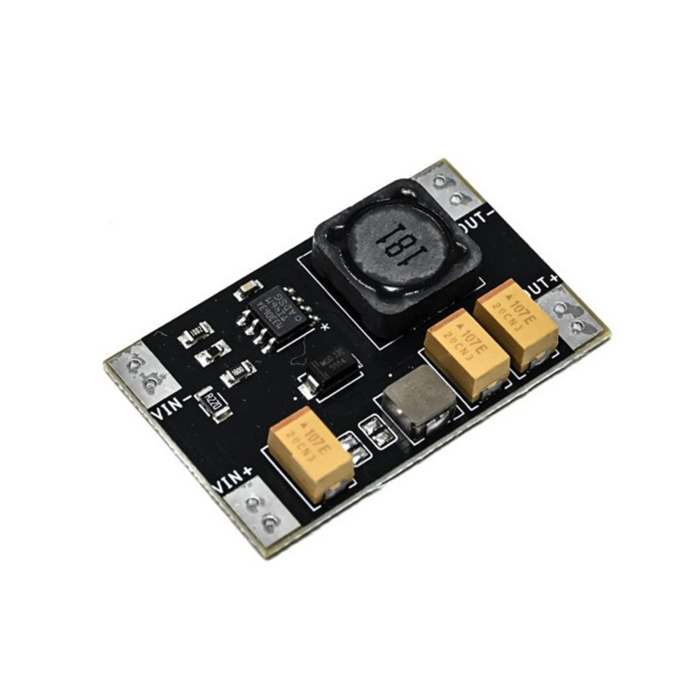

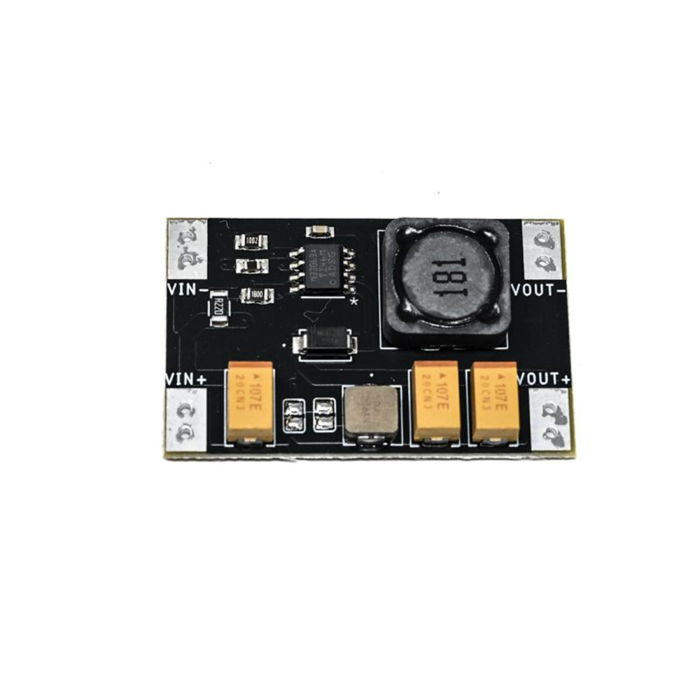

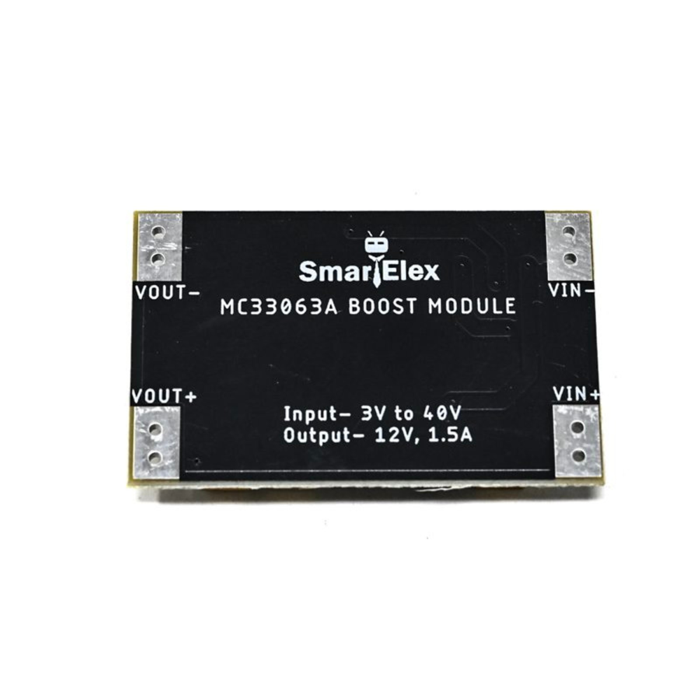

SmartElex 12V 1.5A MC33063A Boost Module The SmartElex 12V 1.5A MC33063A Boost Module is a compact DC-DC boost converter designed to step up lower voltages to a stable 12V output for electronic projects. It offers a reliable way to power modules, sensors, and communication devices when a direct 12V supply is not available. This module is suitable for students, hobbyists, engineers, and startups working on embedded systems or battery-powered applications where efficient power management is essential. This boost module is ideal for robotics, IoT devices, automation systems, and portable projects that need a consistent 12V source from lower input voltages. It integrates easily with microcontroller platforms like Arduino, Raspberry Pi, and ESP32-based circuits, making it useful for prototyping and real-world deployment. The stable output and dependable performance help reduce power-related issues, allowing users to focus on development without worrying about unstable voltage supply. Notes: Efficient Conversion: The module ensures high efficiency, making it ideal for battery-powered applications, reducing energy loss. Compact and Easy Integration: Its small size and low component count make it easy to integrate into custom circuits. Protection Features: Overload and short-circuit protections ensure the module and connected devices are safe under fault conditions. Low Ripple: The module provides a clean, stable 12V output with minimal ripple, which is essential for powering sensitive components. Aspect Filtered Output Non-Filtered Output Ripple Reduced, smooth DC voltage with minimal ripple Significant ripple in the DC output Stability Stable, suitable for powering sensitive electronics Unstable, may cause instability in sensitive devices Components Requires capacitors to smooth output No filtering components, raw output Use Case Ideal for powering microcontrollers, sensors, and other sensitive electronics Suitable for less sensitive applications or where ripple is not critical Voltage Output Steady, clean DC voltage Pulsating DC with noticeable fluctuations Features: Built-in protection against overload and short circuits for safe operation. Delivers a steady 12V output with low ripple, suitable for sensitive circuits. Uses standard inductor values (100µH to 220µH) based on load needs. Uses capacitors (100µF to 470µF) to help maintain voltage stability. Compact 8-pin package design that is easy to add to electronic projects. Applications: Powers 12V devices from low-voltage sources like Li-ion batteries. Suitable for 12V LED strips and lighting setups. Useful in custom 12V power supplies. Can power sensors, microcontrollers, and communication modules needing a clean 12V source.

SmartElex 5V 3A 4 Channel Signal Relay Module The SmartElex 5V 3A 4 Channel Signal Relay Module is a compact and reliable 4 Channel Relay Module designed to control four independent medium-power loads with precision. Powered as a 5V relay module, it integrates high-quality JY4100F-S-DC5V-C relays, each capable of switching up to 3A at 120V AC or 24V DC. With dedicated trigger inputs and LED status indicators for every channel, it allows easy monitoring and accurate switching. This module directly interfaces with popular microcontrollers such as Arduino, ESP8266, and Raspberry Pi, making it ideal for IoT, home automation, and embedded control applications where safety, isolation, and consistent performance are essential. Applications: Home automation (controlled lights, fans, and locks) Industrial machine control IoT multi-device projects. Robotics and Motor Control Security systems and alarms. Cautions: Always utilize a properly regulated 5V power supply. Avoid exceeding the rated load capacity. Provide proper isolation for AC loads. Store the module in a dry, clean place. Features: Four-channel relay module allows for independent control of four devices. Operates at 5V DC and has an active LOW/HIGH trigger. Each relay can handle up to 3A at 120V AC or 24V DC. Compatible with Arduino, ESP8266, Raspberry Pi, and more platforms. Each channel has its own set of LED indicators. Fast switching: ≤10 ms operation and ≤5 ms release time. Low contact resistance (≤100 mΩ) ensures effective operation. The total power consumption is around 1.44W over four channels. High insulation resistance and dielectric strength are essential for safety. Wide operational temperature range (-40°C to +85°C).

SmartElex DRV8825 Stepper Motor Driver Module with Aluminum Heat Sink The SmartElex DRV8825 Stepper Motor Driver Module with Aluminum Heat Sink is a compact and efficient solution for controlling bipolar stepper motors with high precision. Built around the trusted TI DRV8825 IC, it supports microstepping up to 1/32 step, enabling smoother motion and finer positional accuracy in applications like 3D printing, CNC machining, and robotics. The module can deliver up to approximately 2.2A peak current with proper cooling, while the integrated aluminum heat sink ensures effective thermal management during continuous operation. Its adjustable current limiting feature protects the motor and driver, improving overall system reliability. With a simple STEP and DIR interface, the module easily integrates with popular platforms such as Arduino, ESP32, and Raspberry Pi, making it an excellent choice for both DIY enthusiasts and professional motion control systems. Features: Based on the TI DRV8825 microstepping bipolar stepper motor driver. Onboard adjustable current limiting potentiometer Supports microstepping up to a 1/32 step. Simple STEP/DIR control interface. Thermal shutdown, overcurrent, and undervoltage protection. Works with 3.3 V and 5 V logic systems. Compact breakout board with an aluminum heat sink for improved cooling.

SmartElex 12V 3A 8 Channel Signal Relay Module The SmartElex 12V 3A 8 Channel Signal Relay Module is a reliable control solution designed to switch multiple electrical devices using low-power control signals. It allows users to safely manage higher-voltage or higher-current loads without directly connecting them to sensitive control circuits. This module is suitable for students, makers, engineers, educators, and startups working on embedded systems, automation projects, and control applications that require dependable multi-channel switching. This 8-channel relay module is ideal for robotics, IoT systems, home and industrial automation, and advanced prototyping where several devices need to be controlled independently. It can be easily interfaced with popular platforms such as Arduino, Raspberry Pi, and ESP32 to control lights, motors, pumps, relays, or other external equipment. The straightforward design and consistent performance make it easy to integrate into both experimental setups and finished products, supporting safe and efficient control across a wide range of applications. Features: 8-channel relay module for controlling multiple devices independently Operates on 12V, suitable for automation and control systems Supports up to 3A load current per relay channel Electrical isolation between control signals and load circuits Compatible with Arduino, Raspberry Pi, ESP32, and other controllers Compact board design with LED indicators for channel status

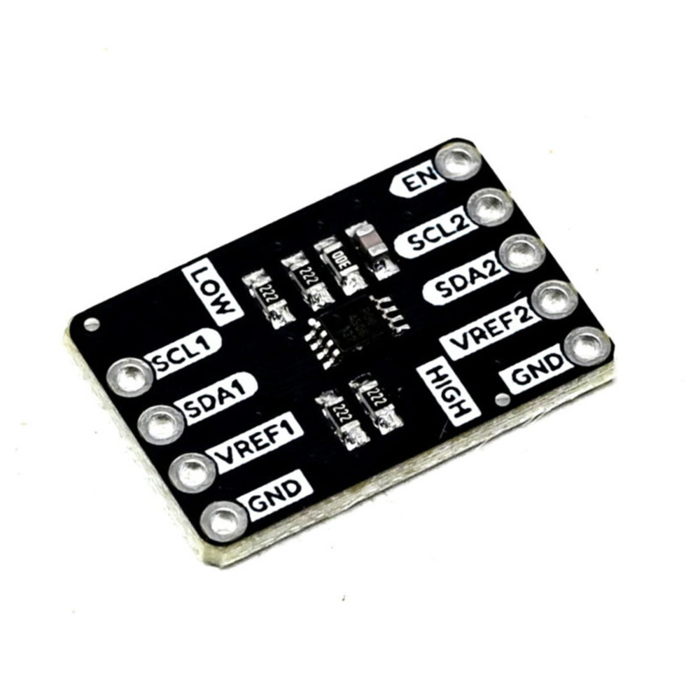

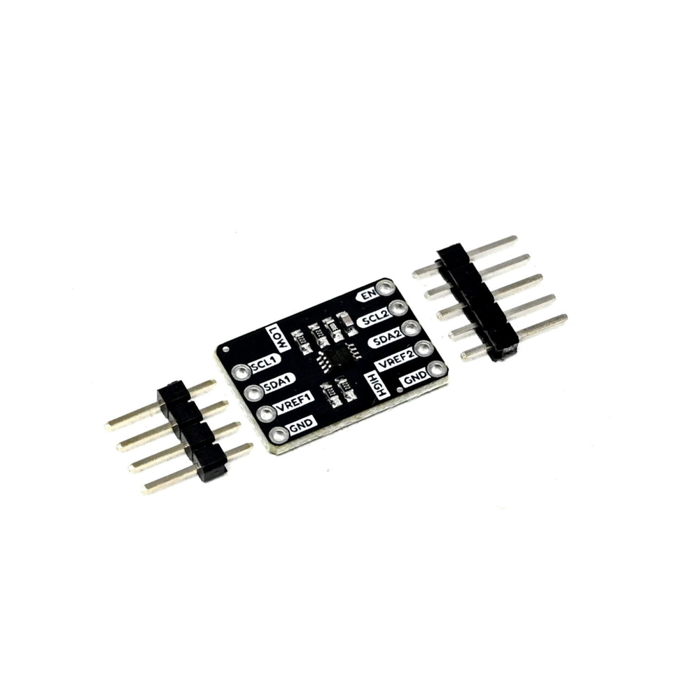

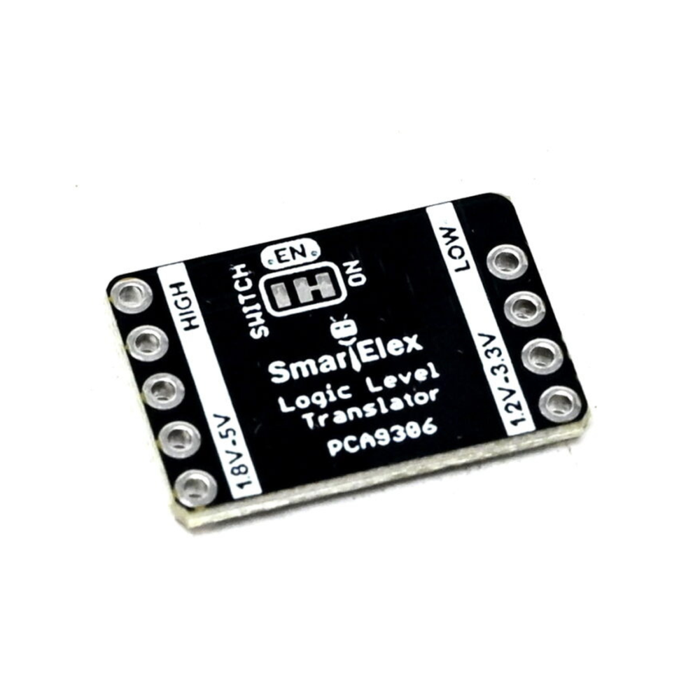

SmartElex PCA9306 Logic Level Translator Breakout Module The SmartElex PCA9306 Logic Level Translator Breakout Module is a compact solution designed to shift signal voltages between different logic levels in electronic systems. This PCA9306 level translator helps connect components that operate at mismatched voltages, such as 1.8V, 3.3V, and 5V devices, without risking damage or unstable communication. It is ideal for students, hobbyists, engineers, educators, and startups who need a simple and reliable way to manage voltage differences in mixed-signal circuits, sensor interfaces, and microcontroller projects. With its bidirectional design, this voltage level translator supports seamless communication in both directions, making it suitable for robotics, IoT devices, automation systems, and embedded prototyping. It works smoothly with platforms like Arduino, Raspberry Pi, ESP32, and other controllers, allowing easy integration with modules, displays, and sensors. Whether used as a bidirectional level shifter for I2C communication or for general logic conversion, it offers a practical way to ensure safe and consistent signal translation across a range of development environments. Features: Based on the PCA9306 bidirectional level shifting IC Safely converts logic levels between 1.8V, 3.3V, and 5V devices Supports I2C and general-purpose bidirectional communication Protects components from voltage mismatches and signal damage Compatible with Arduino, Raspberry Pi, ESP32, and other controllers Compact breakout design for fast prototyping and integration

5V WiFi Smart Relay Module for IoT & DIY Projects The 5V WiFi Relay Module is a smart control board that lets you switch electrical devices on and off using a WiFi connection. It works with standard 5V power and can be connected to home networks, allowing remote control of lights, fans, appliances, and other devices through your smartphone or automation system. This module is designed for easy integration with DIY electronics and smart home projects. It provides reliable switching performance and can be used in both residential and hobby automation setups. Whether you’re building a custom smart switch or adding wireless control to your gadgets, the 5V WiFi Relay Module offers a simple and flexible way to make your devices connected and controllable over WiFi. Features: Operates on 5V power supply for easy integration Enables wireless ON/OFF control of electrical devices over WiFi Suitable for smart home and IoT automation projects Supports remote switching via mobile app or automation system Reliable relay-based output for controlling loads safely Compact module design for DIY electronics and embedded systems Ideal for controlling lights, fans, pumps, and appliances

SmartElex Dual Channel Battle Relay module The SmartElex Dual Channel Battle Relay Module is a compact and practical relay board designed to safely control high-power electrical loads using low-voltage control signals. It helps users switch devices like motors, lights, pumps, or appliances without directly handling high voltage, making projects safer and more reliable. This module is well suited for students, makers, educators, and engineers who are working on control systems, robotics projects, or learning automation concepts in labs and classrooms. This dual-channel relay module is commonly used in robotics, home automation, IoT experiments, and industrial prototyping where isolated and dependable switching is required. It integrates easily with popular development platforms such as Arduino, Raspberry Pi, and ESP32, allowing quick connection and straightforward control through digital pins. With stable operation and simple interfacing, the SmartElex Dual Channel Battle Relay Module enables developers to focus on logic and application design, making it ideal for DIY projects, academic experiments, and early-stage product development. Connection Diagram : Features: Dual-channel relay module for independent control of two loads Safely switches high-power devices using low-voltage control signals Electrical isolation for improved safety and reliable operation Easy interfacing with Arduino, Raspberry Pi, and ESP32 boards Suitable for robotics, RC systems, automation, and DIY projects Compact design ideal for prototyping and embedded applications Applications: Control of auxiliary systems in RC combat and battle vehicles Glow plug control in RC nitro-powered cars and models Switching high-power lighting systems in RC aircraft, boats, and cars Domestic appliance control for home automation projects Non-critical automotive electronics control such as glow wires
