Product Overview

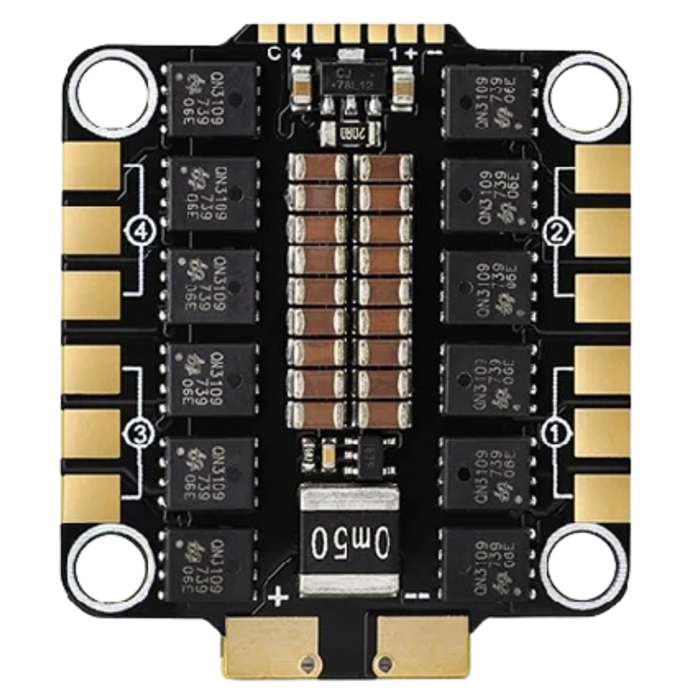

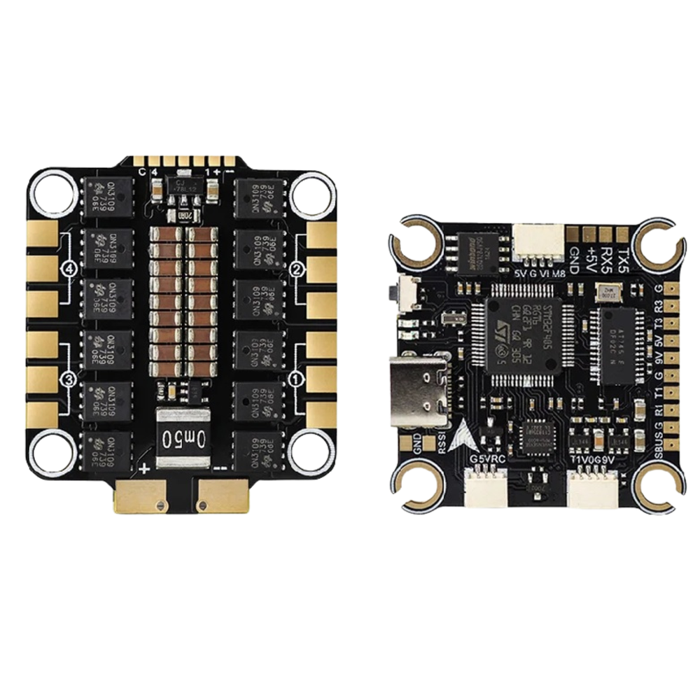

HGLRC SPECTER F460 Electronic Stack with 4-in-1 ESC
The HGLRC SPECTER F460 Electronic Stack with 4-in-1 ESC is engineered to deliver high-performance flight control and efficient power management for FPV drone builds. Combining a flight controller with a 4-in-1 ESC, it provides seamless integration and precise motor control, ensuring smooth and responsive flight characteristics.
Equipped with advanced gyroscopic sensors, the stack enhances stability and accuracy, making it ideal for high-speed racing and freestyle flying. Its compact form factor and robust construction allow easy installation while maintaining durability under demanding conditions, making it a reliable choice for both professional racers and hobbyists.
Features:

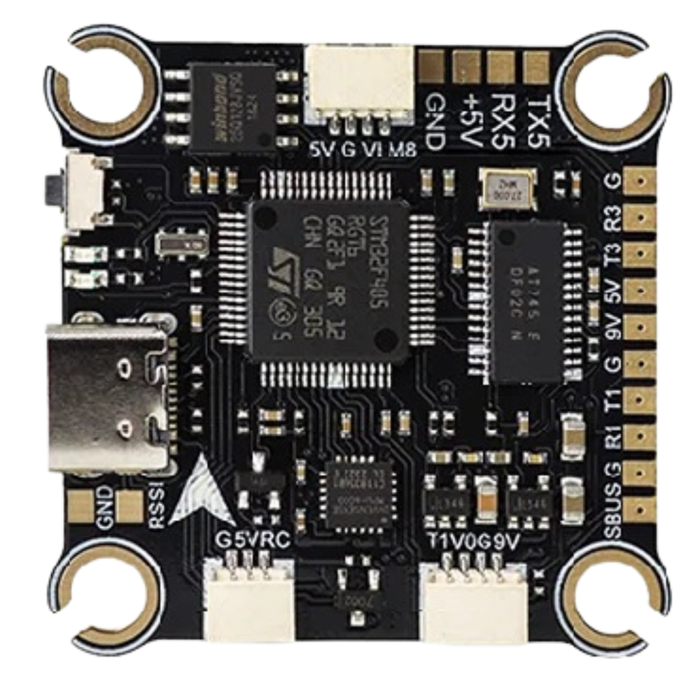

The flight control uses an exceptionally steady MPU6000 gyroscope.
The flight control primary control chip uses the F405 chip, and the serial connection allows up to four groups, resulting in faster operation and smoother control.
The primary chip of the ESC picks a new imported FD6288 processor, which is matched with ON3109 high-performance MOS, and can constantly sustain current and steady output.
The socket allows for rapid connection to the camera, receiver, picture transmission, LED, or GPS without the need for welding.
Maximum support for BEC 9V2A/BEC 5V2.5A, capable of providing reliable voltage and current output to external devices.
The immersion gold high-tech design is temperature- and current-resistant, the ESC has a large pad, and the flight controller is directly plugged in, so there is no issue welding.
The integrated 16M black box may record flight data.
Onboard galvanometer module, real-time display of data, such as current feedback via the flight control
Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage | 2–6S LiPo (7.4V – 22.8V) |
| Mounting Hole | 30.5 × 30.5 mm (M3) |
| Supported Protocols | DShot600 / DShot300 / DShot150 / Oneshot125 / Oneshot42 / Multishot |
| Weight | 29 g |
Use Cases
- High-performance HGLRC SPECTER F460 Stack designed for FPV racing drones
- Integrated flight controller + 4-in-1 ESC for efficient power distribution
- Ensures precise motor control and smooth throttle response
- Built with advanced gyroscopic sensors for enhanced flight stability
