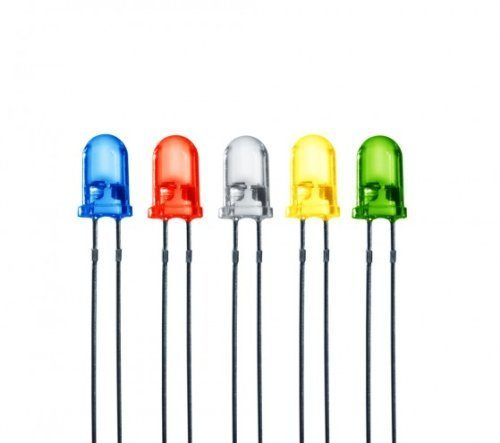

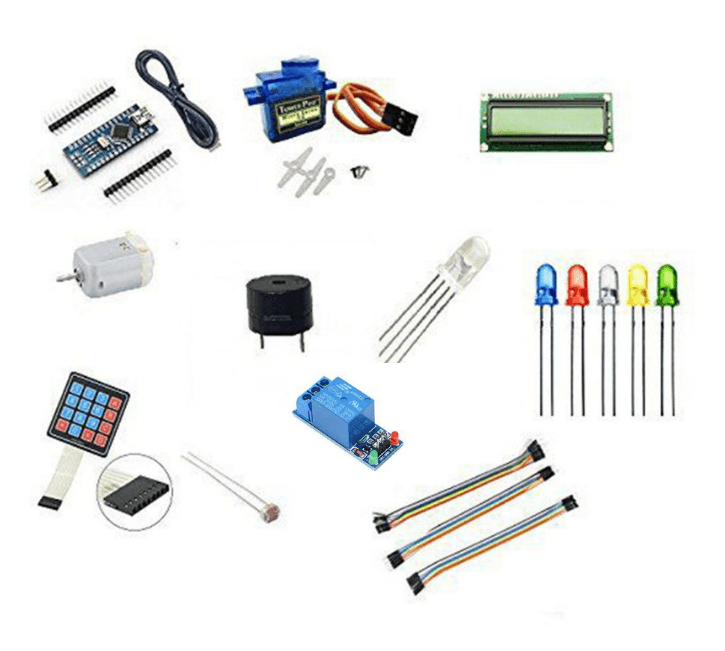

Arduino Nano Ultimate Starter Kit compatible

Official Raspberry Pi 4 Model B 4GB RAM The Raspberry Pi 4 Model B 4GB is a compact and versatile single-board computer that provides desktop-level performance in a credit card-sized device. The RPI 4B is powered by a Broadcom Quad-Core Cortex-A72 (ARM v8) 64-bit SoC that runs at 1.5GHz and has 4GB of LPDDR4-3200 SDRAM for efficient multitasking and basic desktop programs. This device is designed for a wide range of DIY projects, including media centres, file servers, robotics, and smart home systems. The Raspberry Pi 4B 4GB supports dual 4K displays ( 4K@30Hz ) through its micro-HDMI ports, making it perfect for high-definition video and creative endeavours. It has dual-band WiFi 2.4 GHz and 5.0 GHz IEEE 802.11ac , Bluetooth 5.0 , and Gigabit Ethernet for a consistent connection. It also features two USB 3.0 connections and two USB 2.0 ports to connect devices. The Raspberry Pi 4 4GB is popular among programmers and makers. It comes with native Python support , making it a fantastic platform for coding education and automation project development. It is capable of running both 32-bit and 64-bit operating systems , offering versatility for different uses. Whether for teaching, prototyping, or creative projects, it serves as a potent and affordable computing option. Shop Raspberry Pi 4 4GB Full Kit – Plug & Play Setup Affordable power for your projects – Raspberry Pi 4 2GB ! What makes this model Great? The speed and performance of the new Raspberry Pi 4 4GB are a noticeable improvement from earlier models. For the first time, the Raspberry Pi Foundation has created a complete desktop experience. Whether you're editing documents, browsing the web with multiple tabs open, managing spreadsheets, or creating a presentation, you'll find the experience smooth and familiar. It is a more energy-efficient and cost-effective machine. Features Broadcom 2711 Quad-Core Cortex A72 @ 1.5GHz delivers 20% faster performance with improved power and thermal efficiency. Dual micro-HDMI outputs support dual 4K displays with hardware video decode at 4Kp60 (H.265, H.264, MPEG-4). Dual-band WiFi (802.11b/g/n/ac) on 2.4GHz & 5GHz with advanced PCB antenna for robust wireless connectivity. Bluetooth 5.0 offers an extended range of wireless peripherals. Upgraded USB 3.0 Ethernet provides wired speeds up to 10x faster than previous models. 2 USB 3.0 and 2 USB 2.0 ports enable versatile peripheral connections. 40-pin GPIO header is fully backwards-compatible with earlier Pi models. Optional PoE support is available, with PoE header pins designed to work with proper standoffs. Comparison Table Raspberry Pi 4 Model B Raspberry Pi 5 Raspberry Pi 3 Model B+ Price (INR) ?3599 VIEW ?5129 VIEW ?3649 VIEW Processor 1.5GHz Quad-Core ARM Cortex-A72 2.4GHz Quad-Core ARM Cortex-A76 1.4GHz Quad-Core ARM Cortex-A53 RAM 1GB, 2GB, 4GB, 8GB LPDDR4 2GB, 4GB, 8GB, 16GB LPDDR4 1GB LPDDR2 Wi-Fi Dual-band 802.11ac Dual-band 802.11ac Dual-band 802.11ac Bluetooth 5.0 5.0 4.2 USB Ports 2× USB 3.0, 2× USB 2.0 2× USB 3.0, 1× USB 2.0 4× USB 2.0 Ethernet Gigabit Ethernet Gigabit Ethernet Gigabit Ethernet Video Output 2× Micro HDMI (4Kp60) 2× Micro HDMI (4Kp60) 1× HDMI (1080p) GPIO Pins 40 40 40 Storage MicroSD (SDXC up to 2TB) MicroSD (SDXC up to 2TB) MicroSD (SDHC) Power Supply USB-C USB-C Micro USB Click for Complete Raspberry Pi Kits – Learn, Build, and Innovate! Pin Diagram:

SmartElex Dual Channel Battle Relay module The SmartElex Dual Channel Battle Relay Module is a compact and practical relay board designed to safely control high-power electrical loads using low-voltage control signals. It helps users switch devices like motors, lights, pumps, or appliances without directly handling high voltage, making projects safer and more reliable. This module is well suited for students, makers, educators, and engineers who are working on control systems, robotics projects, or learning automation concepts in labs and classrooms. This dual-channel relay module is commonly used in robotics, home automation, IoT experiments, and industrial prototyping where isolated and dependable switching is required. It integrates easily with popular development platforms such as Arduino, Raspberry Pi, and ESP32, allowing quick connection and straightforward control through digital pins. With stable operation and simple interfacing, the SmartElex Dual Channel Battle Relay Module enables developers to focus on logic and application design, making it ideal for DIY projects, academic experiments, and early-stage product development. Connection Diagram : Features: Dual-channel relay module for independent control of two loads Safely switches high-power devices using low-voltage control signals Electrical isolation for improved safety and reliable operation Easy interfacing with Arduino, Raspberry Pi, and ESP32 boards Suitable for robotics, RC systems, automation, and DIY projects Compact design ideal for prototyping and embedded applications Applications: Control of auxiliary systems in RC combat and battle vehicles Glow plug control in RC nitro-powered cars and models Switching high-power lighting systems in RC aircraft, boats, and cars Domestic appliance control for home automation projects Non-critical automotive electronics control such as glow wires

SmartElex 5V 3A 2 Channel Signal Relay Module The SmartElex 5V 3A 2 Channel Signal Relay Module is a dependable 2-Channel Relay Module designed to switch and control multiple medium-power devices with precision. Powered by a stable 5V relay module design, it uses two JY4100F-S-DC5V-C relays, each rated to handle 3A at 120V AC or 24V DC, ensuring exact and consistent switching performance. Its core function is to provide electrically isolated control between low-voltage microcontrollers and higher-voltage loads, making it safe and efficient for real-world applications. With onboard LED indicators, protective circuitry, and seamless compatibility with Arduino, Raspberry Pi, and ESP32, this module is a practical choice for automation systems, IoT solutions, and smart control projects. Applications: Smart home systems have dual device control. Dual motor or light control in automation. IoT initiatives require various device management. robotics, alarms, and security systems. Industrial process control Cautions: Provide a good 5V regulated supply. Do not exceed the rated voltage and current for contacts. Use isolation techniques for high voltage connections. Prevent moisture and dust collection on the PCB. Features: A dual-channel relay module may control two loads. 5V DC operating voltage allows for simple integration. Each channel can switch up to 3A at 120V AC or 24V DC. Ideal for microcontrollers such as the Arduino, Raspberry Pi, and ESP32. Quick response time: ≤10 ms operation and ≤5 ms release. Low power usage (`0.36W each channel, ~0.72W overall). Includes status LEDs for each channel. High insulation resistance (≥100 MΩ) ensures safety and reliability. Built-in safety features ensure safe operation. The operating temperature range is -40°C to +85°C for durability.

SmartElex 10A 5V 1-Channel Relay Module The SmartElex 10A 5V 1-Channel Relay Module is a compact and dependable low level trigger relay module designed to control high-power devices using low-voltage microcontrollers. Operating at 5V DC, this single channel relay module features an SPDT relay rated for 10A at 250VAC, making it suitable for switching lights, motors, pumps, and other appliances. Its isolated input circuitry helps protect sensitive control boards from voltage spikes, while the onboard pull-down circuit prevents false triggering during startup. With a clear power indicator and secure mounting design, this 5V Relay Module delivers safe, stable, and long-lasting performance for home automation, industrial control, and DIY electronics projects. Features: A single-channel relay module with SPDT setup Supports up to 10A at 250 VAC for high-current applications. High-level trigger for dependable control. Compatible with a wide range of microcontrollers, including Arduino, AVR, PIC, and ARM. Isolated inputs to protect sensitive control circuitry. Contains a pull-down circuit to avoid inadvertent activation. Power supply indicator for rapid status checks. complies with international safety standards Convenient installation with four mounting holes.

SmartElex 5V 3A 4 Channel Signal Relay Module The SmartElex 5V 3A 4 Channel Signal Relay Module is a compact and reliable 4 Channel Relay Module designed to control four independent medium-power loads with precision. Powered as a 5V relay module, it integrates high-quality JY4100F-S-DC5V-C relays, each capable of switching up to 3A at 120V AC or 24V DC. With dedicated trigger inputs and LED status indicators for every channel, it allows easy monitoring and accurate switching. This module directly interfaces with popular microcontrollers such as Arduino, ESP8266, and Raspberry Pi, making it ideal for IoT, home automation, and embedded control applications where safety, isolation, and consistent performance are essential. Applications: Home automation (controlled lights, fans, and locks) Industrial machine control IoT multi-device projects. Robotics and Motor Control Security systems and alarms. Cautions: Always utilize a properly regulated 5V power supply. Avoid exceeding the rated load capacity. Provide proper isolation for AC loads. Store the module in a dry, clean place. Features: Four-channel relay module allows for independent control of four devices. Operates at 5V DC and has an active LOW/HIGH trigger. Each relay can handle up to 3A at 120V AC or 24V DC. Compatible with Arduino, ESP8266, Raspberry Pi, and more platforms. Each channel has its own set of LED indicators. Fast switching: ≤10 ms operation and ≤5 ms release time. Low contact resistance (≤100 mΩ) ensures effective operation. The total power consumption is around 1.44W over four channels. High insulation resistance and dielectric strength are essential for safety. Wide operational temperature range (-40°C to +85°C).

5V WiFi Smart Relay Module for IoT & DIY Projects The 5V WiFi Relay Module is a smart control board that lets you switch electrical devices on and off using a WiFi connection. It works with standard 5V power and can be connected to home networks, allowing remote control of lights, fans, appliances, and other devices through your smartphone or automation system. This module is designed for easy integration with DIY electronics and smart home projects. It provides reliable switching performance and can be used in both residential and hobby automation setups. Whether you’re building a custom smart switch or adding wireless control to your gadgets, the 5V WiFi Relay Module offers a simple and flexible way to make your devices connected and controllable over WiFi. Features: Operates on 5V power supply for easy integration Enables wireless ON/OFF control of electrical devices over WiFi Suitable for smart home and IoT automation projects Supports remote switching via mobile app or automation system Reliable relay-based output for controlling loads safely Compact module design for DIY electronics and embedded systems Ideal for controlling lights, fans, pumps, and appliances

SmartElex 12V 3A Single Channel Signal Relay Module The SmartElex 12V 3A Single Channel Signal Relay Module is a compact and reliable solution for switching electrical loads using low-power control signals. It allows users to safely control higher-voltage or higher-current devices without direct electrical contact, making it ideal for protecting sensitive control circuits. This module is suitable for students, makers, engineers, educators, and startups who are working on embedded systems, control projects, or automation prototypes that require dependable on-off switching. This single channel relay module is well suited for robotics, IoT systems, home and industrial automation, and general prototyping applications. It can be easily interfaced with popular platforms such as Arduino, Raspberry Pi, and ESP32 to control lights, motors, solenoids, alarms, or other external devices. The simple interface and consistent performance make it easy to integrate into both experimental setups and final products, helping users build reliable control systems with minimal effort. Features: Single channel relay module for switching external loads using low-power control signals Operates on 12V, suitable for industrial and automation environments Supports up to 3A load current for controlling common electrical devices Electrical isolation between control side and load side for added safety Compatible with Arduino, Raspberry Pi, ESP32, and other microcontrollers Compact and easy-to-integrate design for projects and prototyping

SmartElex 12V 7A Single Channel Power Relay Module The SmartElex 12V 7A Single Channel Power Relay Module is a dependable switching solution designed to control higher-power electrical loads using low-voltage control signals. It helps protect microcontrollers and sensitive electronics by providing proper isolation between the control circuit and the load side. This module is suitable for students, makers, engineers, educators, and startups who are working on control systems, automation projects, or embedded applications that require safe and reliable power switching. This single channel power relay module is ideal for robotics, IoT systems, home automation, and industrial control projects where devices such as motors, lights, pumps, or other electrical equipment need to be switched reliably. It can be easily interfaced with popular development platforms like Arduino, Raspberry Pi, and ESP32, making it convenient for both prototyping and final product integration. The simple design and consistent performance allow users to build stable control systems without added complexity. Features: Single channel power relay module for high-load switching Operates on 12V, suitable for automation and control systems Supports up to 7A load current for power applications Electrical isolation between control side and load side for safety Compatible with Arduino, Raspberry Pi, ESP32, and similar boards Compact and durable design for easy integration into projects

SmartElex 12V 20A Single Channel Power Relay Module The SmartElex 12V 20A Single Channel Power Relay Module is a high-current switching solution designed to control heavy electrical loads using low-voltage control signals. It helps safely operate high-power devices without directly exposing microcontrollers or control circuits to high current, reducing risk and improving system reliability. This module is suitable for students, makers, engineers, educators, and startups who are working on power control, automation, or embedded electronics projects that demand robust switching capability. This single channel power relay module is ideal for robotics, IoT systems, home and industrial automation, and power management applications where devices such as motors, heaters, pumps, or high-load appliances need reliable control. It can be easily interfaced with popular platforms like Arduino, Raspberry Pi, and ESP32, making it convenient for both prototyping and deployment. The strong build quality and straightforward integration make it a dependable choice for projects requiring consistent and safe high-current switching. Features: Single channel power relay module for high-current load control Operates on 12V, suitable for industrial and automation systems Supports heavy load switching up to 20A Electrical isolation between control and power circuits for safety Compatible with Arduino, Raspberry Pi, ESP32, and similar controllers Robust design for reliable operation in power control applications

SmartElex 12V 3A 8 Channel Signal Relay Module The SmartElex 12V 3A 8 Channel Signal Relay Module is a reliable control solution designed to switch multiple electrical devices using low-power control signals. It allows users to safely manage higher-voltage or higher-current loads without directly connecting them to sensitive control circuits. This module is suitable for students, makers, engineers, educators, and startups working on embedded systems, automation projects, and control applications that require dependable multi-channel switching. This 8-channel relay module is ideal for robotics, IoT systems, home and industrial automation, and advanced prototyping where several devices need to be controlled independently. It can be easily interfaced with popular platforms such as Arduino, Raspberry Pi, and ESP32 to control lights, motors, pumps, relays, or other external equipment. The straightforward design and consistent performance make it easy to integrate into both experimental setups and finished products, supporting safe and efficient control across a wide range of applications. Features: 8-channel relay module for controlling multiple devices independently Operates on 12V, suitable for automation and control systems Supports up to 3A load current per relay channel Electrical isolation between control signals and load circuits Compatible with Arduino, Raspberry Pi, ESP32, and other controllers Compact board design with LED indicators for channel status

SmartElex 12V 10A Single Channel Power Relay Module The SmartElex 12V 10A Single Channel Power Relay Module is a reliable switching solution designed to control high-power electrical loads using low-voltage control signals. It helps safely operate devices that draw higher current without directly connecting them to sensitive control circuits. This module is suitable for students, makers, engineers, educators, and startups who are working on electronics projects, automation systems, or prototypes that require dependable and safe power switching. This single channel power relay module is widely used in robotics, IoT applications, home automation, and industrial control projects where motors, lights, pumps, or appliances need to be switched on and off reliably. It can be easily interfaced with popular platforms such as Arduino, Raspberry Pi, and ESP32, making integration simple for both learning projects and real-world systems. The sturdy design and consistent performance make it a practical choice for prototyping as well as final deployment in power control applications. Features: Single channel power relay module for high-current load switching Operates on 12V, suitable for automation and control applications Supports up to 10A load current for power devices Electrical isolation between control and load circuits for safety Compatible with Arduino, Raspberry Pi, ESP32, and similar boards Compact and durable design for easy integration

SmartElex 12V 3A 2 Channel Signal Relay Module The SmartElex 12V 3A 2 Channel Signal Relay Module is a compact and dependable solution for controlling multiple electrical loads using low-power control signals. It allows users to switch devices safely without directly handling higher voltages or currents, helping protect sensitive control circuits. This relay module is suitable for students, makers, engineers, educators, and startups working on embedded systems, control projects, and automation setups that require reliable dual-channel switching. This 2-channel relay module is ideal for robotics, IoT applications, home and industrial automation, and general prototyping where two devices need to be controlled independently. It can be easily interfaced with popular development platforms such as Arduino, Raspberry Pi, and ESP32, making it simple to control lights, motors, pumps, alarms, or other external equipment. The straightforward design and stable performance make it easy to integrate into both experimental projects and finished products, supporting consistent and safe operation. Features: Dual-channel relay module for controlling two devices independently Operates on 12V, suitable for automation and control systems Supports up to 3A load current per channel Provides electrical isolation between control and load circuits Compatible with Arduino, Raspberry Pi, ESP32, and other controllers Compact design with LED indicators for easy status monitoring

SmartElex 12V 10A Single Channel Automotive Relay Module The SmartElex 12V Relay Module is a compact and reliable 12V relay module designed to safely control high-power electrical loads using low-voltage signals from microcontrollers. It helps users switch devices like motors, lights, pumps, and automotive accessories without directly handling high current, making projects safer and easier to manage. This Single Channel Relay Module is well suited for students, makers, educators, engineers, and startups working on electronics, robotics, or automation projects where dependable load control is required. Built for real-world applications, this relay module integrates smoothly with popular development platforms such as Arduino, Raspberry Pi, and ESP32, making it ideal for robotics control systems, IoT automation, smart vehicles, and DIY prototyping. Its automotive-grade design ensures stable performance in demanding environments, while the simple input interface allows quick integration into new or existing projects. Whether you are building a prototype, an automation solution, or an educational demo, this module offers dependable switching and easy integration for everyday electronics applications. Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product. Features: Supports safe switching of 12V DC loads in high-power applications Uses an automotive-grade relay for reliable and long-lasting operation Compact and durable design suitable for space-constrained setups Easy to interface with Arduino, Raspberry Pi, ESP32, and other controllers Low-power trigger allows efficient control using logic signals or switches Suitable for automotive systems, robotics, DIY electronics, and automation projects

SmartElex 5V 3A 8 Channel Signal Relay Module The SmartElex 5V 3A 8 Channel Signal Relay Module is a dependable switching solution built to control multiple electrical devices with precision. This 8 Channel Relay Module features eight JY4100F-S-DC5V-C relays, each capable of safely switching loads up to 3A at 120V AC or 24V DC. Designed to operate on a stable 5V supply, it offers individual input triggers and LED indicators for real-time status visibility. With strong electrical isolation and seamless compatibility with Arduino, ESP32, and Raspberry Pi, this 5V relay module is well-suited for automation panels, IoT systems, and complex control applications where reliable multi-channel switching is essential. Applications: Smart home automation (e.g., managing several appliances) Complex industrial automation systems. Robotics projects require several actuators. IoT systems have several relay outputs. Alarms, security, and access control panels Cautions: Use a well regulated 5V supply with adequate current (at least 1A suggested). Ensure that relay load restrictions are not exceeded. To avoid electrical dangers, securely isolate all AC wiring. Maintain a dry, clean, and dust-free atmosphere. Features: An 8-channel relay module with individual control. It operates at 5V DC and has active LOW/HIGH triggers. Each relay can handle 3A at 120V AC or 24V DC. Compatible with Arduino, ESP32, Raspberry Pi, and more platforms. Status LEDs for each channel are used to monitor operation. Fast switching: ≤10 ms operation and ≤5 ms release. Contact resistance of ≤100 mΩ enables stable conductivity. Total power usage is around 2.88W across all channels. High insulation resistance and dielectric strength are essential for safety. Suitable for -40°C to +85°C temperatures.

5V 8 Channel SSR Module The 5V 8-Channel Solid-State Relay is somewhat similar to that of a mechanical relay & the difference is that there is no moving contact in a Solid-State Relay. Here we make use of a Phototrriac coupler to turn it ON and OFF. It finds its application in AC circuits as a TRIAC has got only limited applications in DC. The 5V 8 Channel SSR relay allows you to control high-voltage AC loads from lower voltage DC control circuitry. Solid-state relays do have several advantages over mechanical relays. One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays. Also, because there are no moving contacts, solid-state relays can be switched much faster and for much longer periods without wearing out. Input Parts : DC+: connected to VCC (Supply power according to relay voltage) DC-: connected to GND IN1: CH1 Signal triggering the end of 1-channel relay module (active at the high level) IN2: CH2 Signal triggering the end of 2-channel relay module (active at the high level) IN3: CH3 Signal triggering the end of 3-channel relay module (active at the high level) IN4: CH4 Signal triggering the end of 4-channel relay module (active at the high level) IN5: CH5 Signal triggering the end of 5-channel relay module (active at the high level) IN6: CH6 Signal triggering the end of 6-channel relay module (active at the high level) IN7: CH7 Signal triggering the end of 7-channel relay module (active at the high level) IN8: CH8 Signal triggering the end of 8-channel relay module (active at the high level)
