Product Overview

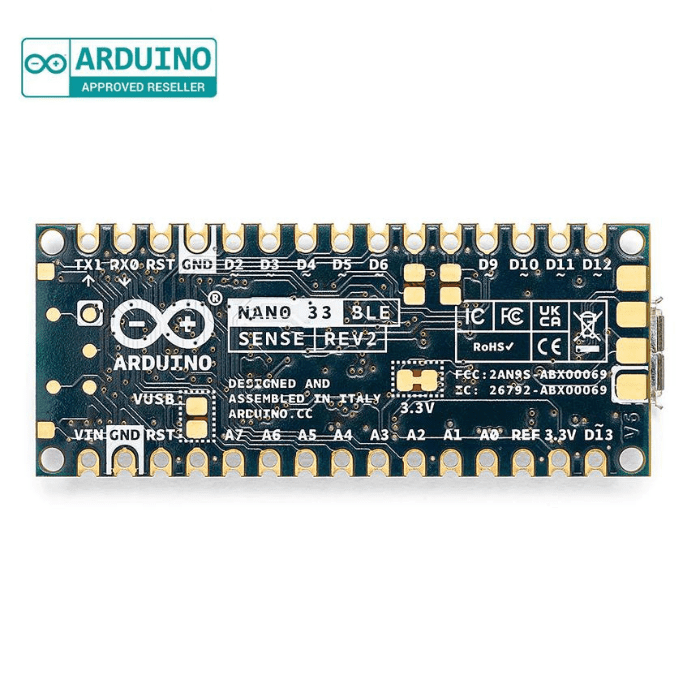

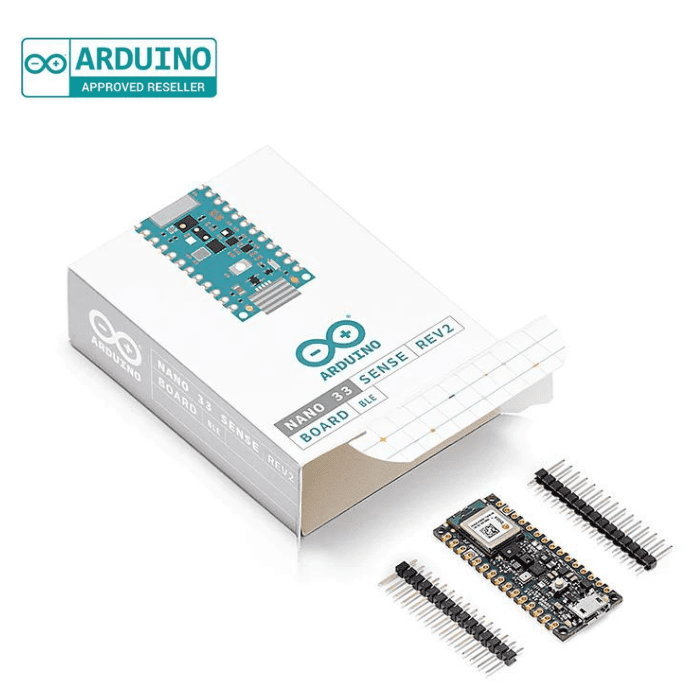

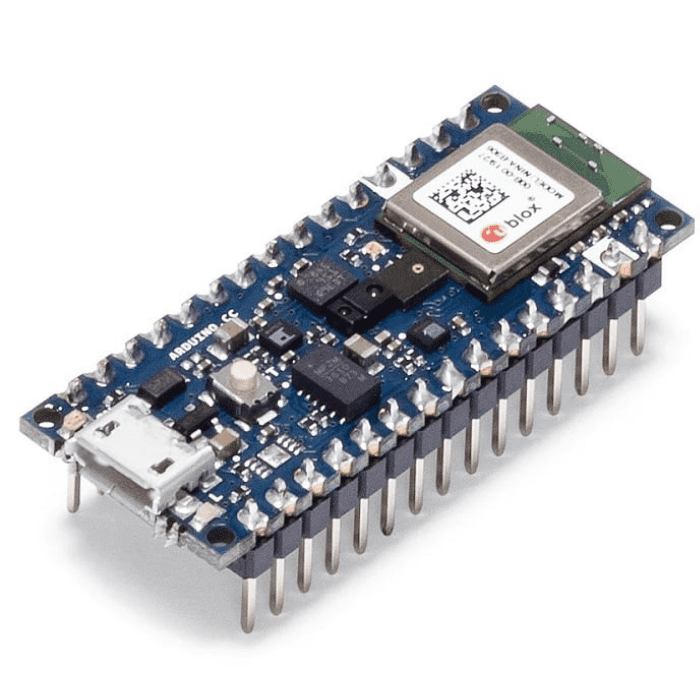

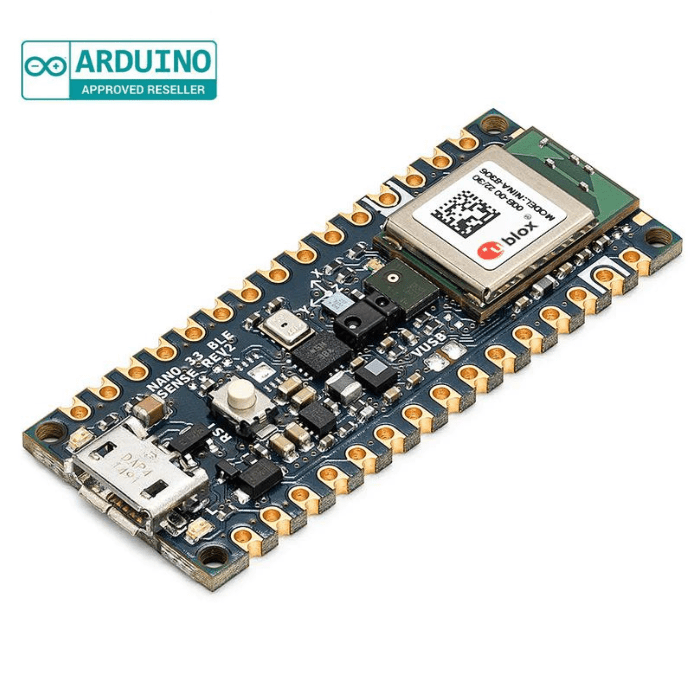

Arduino Nano 33BLE Sense Rev2 with Headers ABX00070
The Arduino Nano BLE sense Rev 2 is a completely new Arduino AI-enabled
board
in the smallest form factor.

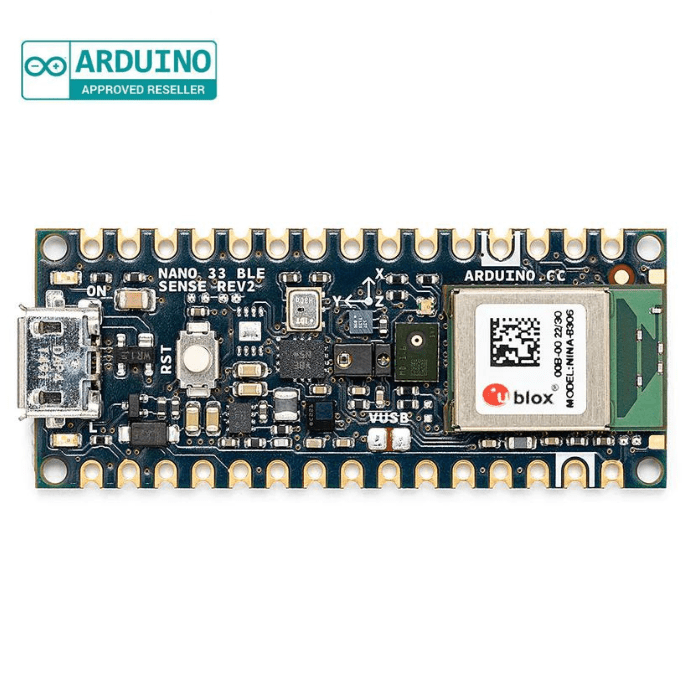

The Arduino Nano 33 BLE Sense Rev2 is a miniature-sized module containing a NINA B306 module, based on Nordic nRF52840 and containing a Cortex M4F.
The BMI270 and BMM150 jointly provide a 9-axis IMU. The Arduino Nano 33 BLE Sense Rev2 can either be mounted as a DIP component (when mounting pin headers) or as an SMT component, directly soldering it via the castellated pads.
This innovative product offers maximum flexibility when connecting other devices due to its compatibility with most major operating systems like Windows 10 S/IoT Core Operating System plus Android 7+ OS support via USB OTG Host mode.
It also runs on CircuitPython so custom firmware development is possible during prototyping stages and then easily transferred onto production ready hardware at a later stage if needed!
Furthermore, thanks to its low power consumption you don't have to worry about battery life being compromised either - making your project both energy efficient AND cost-effective – what more could you want?
Pinout Of Arduino Nano BLE Sense (Rev-2)
What is the main feature of the Arduino Nano BLE sense Rev2 board?
The main feature of the
Arduino Nano 33 BLE Sense Rev2
board is the possibility of running Edge Computing applications (AI) on it using TinyML. You can create your machine learning models using TensorFlow Lite and upload them to your board using the Arduino IDE.
Note:
Iotcart is the authorized seller of Arduino in India. Therefore, even if you are in Bangalore, Hyderabad, Mumbai, or Pune, you can order and buy the
Arduino Nano 33 BLE Sense Rev2
board online from the comfort of your home.
Visit our official
Arduino Board
page for original Arduino Boards.
Key Features:
Features the nRF52840 from Nordic Semiconductors.
Offers 1MB of program memory and 128 times larger RAM.
Ensures efficient operation and longer battery life.
Includes 9-axis inertial sensor, humidity, temperature, barometric, microphone, and gesture/proximity/light sensors.
Enables Edge Computing applications using TinyML.
Supports Bluetooth pairing via NFC.
Can function as both a BLE and Bluetooth client and host device.
Humidity, temperature, and barometric sensors provide highly accurate measurements.
Gesture, proximity, light color, and light intensity sensors provide information about luminosity and movement.
Microphone allows for capturing and analyzing sound in real time.
Pinout:
Pinout of Arduino Nano BLE Sense (Rev-2)
Arduino Nano 33 BLE Sense Explained:

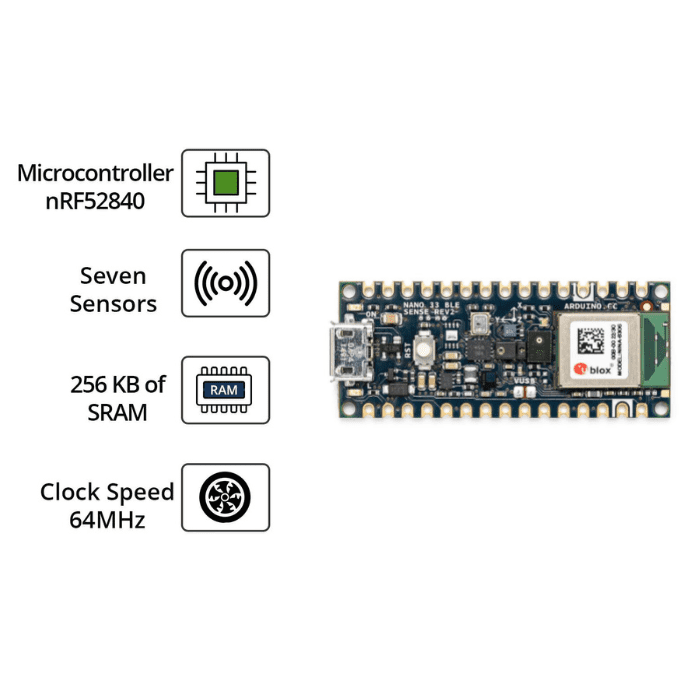

Technical Specifications
| Brand | Arduino |
|---|---|
| Model | Arduino Nano BLE Sense (Rev-2) |
| Microcontroller | nRF52840 |
| Operating Voltage | 3.3V |
| Input Voltage (limit) | 21V |
| DC Current per I/O Pin | 15 mA |
| Clock Speed | 64MHz |
| CPU Flash Memory | 1MB |
| SRAM | 256KB |
| Digital Input / Output Pins | 14 |
| PWM Pins | All digital pins |
| IMU | BMI270 and BMM150 |
| Temperature, humidity | HS3003 |
| Gesture, light, proximity, color | APDS9960 |
| Dimensions | 45 x 18mm |
| Weight | 25gm |
Use Cases
- AI-Enabled Board: The Arduino Nano BLE Sense Rev2 is an AI-enabled board with powerful capabilities.
- 9-Axis IMU: Equipped with a 9-axis inertial sensor, it can sense motion and orientation.
- TinyML Support: Run machine learning models using TensorFlow Lite and upload them to the board.
- Advanced Sensors: It includes humidity, temperature, barometric, and more sensors for data collection.
