7Semi UCC21220 Dual-channel Isolated Gate Driver Breakout
Delivery & Pickup Options
Pick up today from our store.
Estimated delivery: 2-5 business days

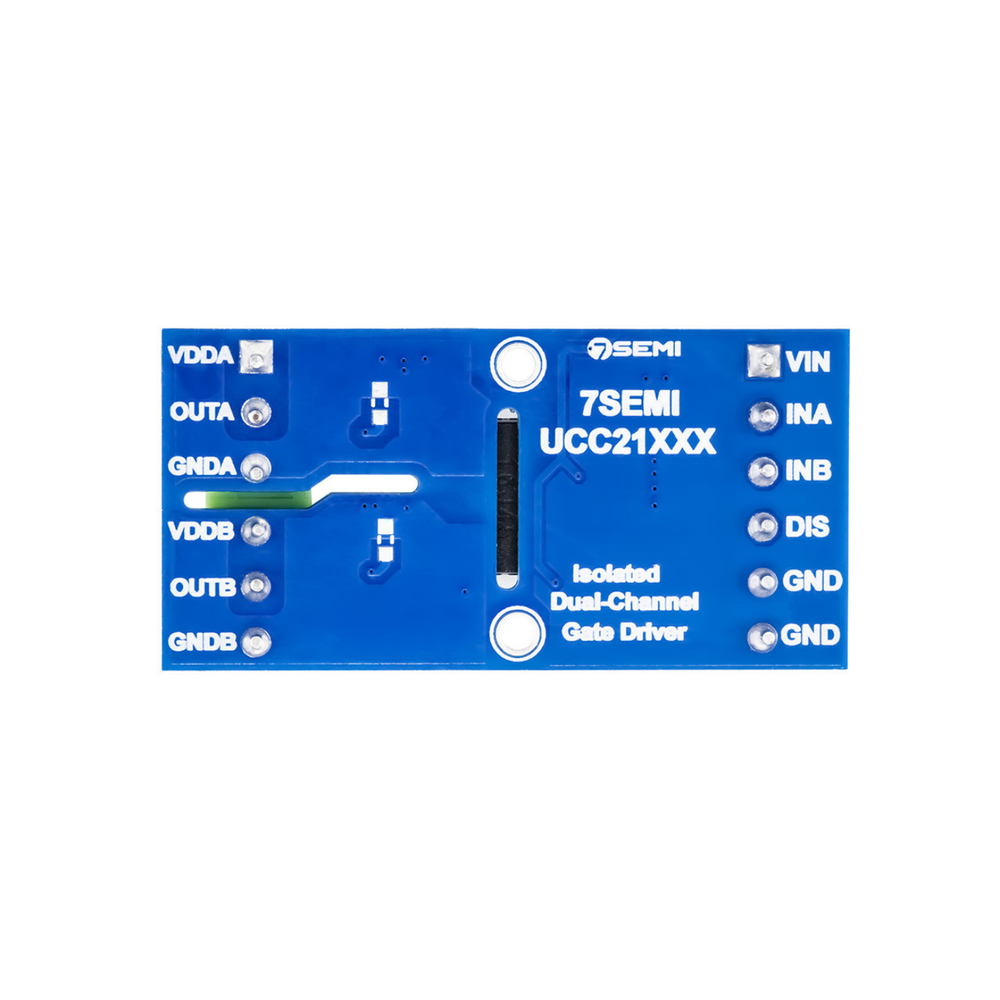

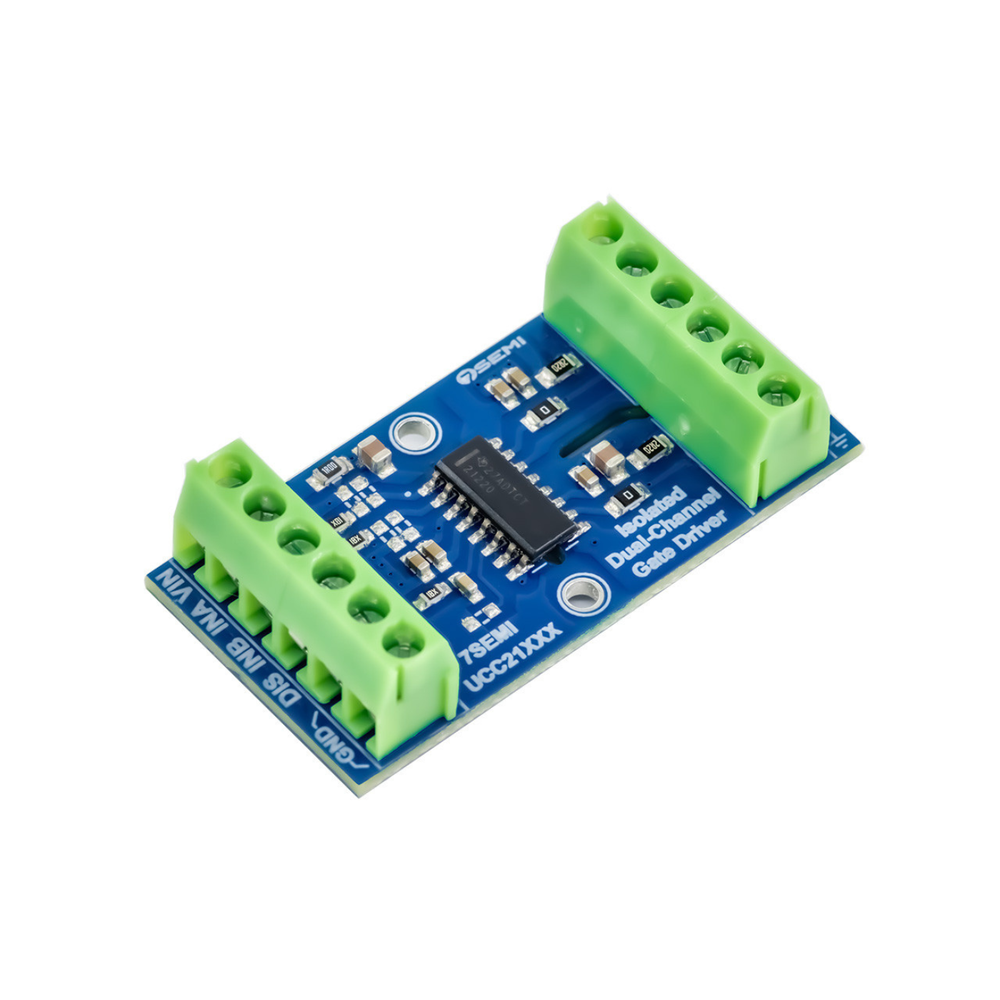

7Semi UCC21220 Dual-channel Isolated Gate Driver Breakout The 7Semi UCC21220 Dual-Channel Isolated Gate Driver Breakout is a high-performance isolated gate driver module designed to provide safe and efficient driving of power MOSFETs and GaN FETs in modern power electronics systems. Many microcontrollers and control boards cannot directly drive high-voltage gates or handle fast switching signals without isolation; this board solves that by offering galvanic isolation between the control logic and the power stage. This ensures reliable operation, protects sensitive components, and reduces noise interference in demanding applications. Featuring dual channels with robust isolation and wide input ranges, this breakout simplifies the implementation of isolated MOSFET gate driving in converters, inverters, motor drives, and power supplies. Its compact design and ease of integration make it suitable for students learning power electronics, hobbyists building advanced projects, and professionals developing prototypes or industrial systems. With strong performance and reliable protection, it helps improve overall system efficiency and safety wherever isolated high-speed switching is needed. Features: Advanced basic and functional isolation for safe and efficient power transfer Fast and precise switching with 40 ns max propagation delay, 5 ns delay matching, and low pulse-width distortion High output drive strength with 4 A peak source and 6 A peak sink capability Built-in protection features including UVLO, active pulldown, and input transient rejection Supports high-side, low-side, and half-bridge configurations Ideal for driving MOSFETs and GaN FETs in demanding power applications
- Dual-channel isolated gate driver based on the UCC21220 IC
- Provides safe galvanic isolation between control and power stages
- High drive strength with 4A source and 6A sink capability
- Fast switching performance for MOSFETs and GaN FETs
- Supports high-side, low-side, and half-bridge configurations
- Ideal for power supplies, inverters, motor drives, and converters
- Parameter Specification
- Product Type Isolated Gate Driver Breakout
- Driver IC UCC21220
- Channels Dual (2)
- Isolation Basic and Functional Galvanic Isolation
- Propagation Delay Max 40 ns
- Delay Matching 5 ns
- Pulse-Width Distortion 5.5 ns
- Output Drive Capacity 4 A Peak Source / 6 A Peak Sink
- Protection Features UVLO, Active Pulldown, Input Transient Rejection
- Configurations Supported High-Side, Low-Side, Half-Bridge
- Board Type Compact Breakout Module
