7Semi TMAG5273 4Pin 3D Hall-effect Sensor Breakout Module
Delivery & Pickup Options
This item is not available right now. Please check back later or contact us for availability.

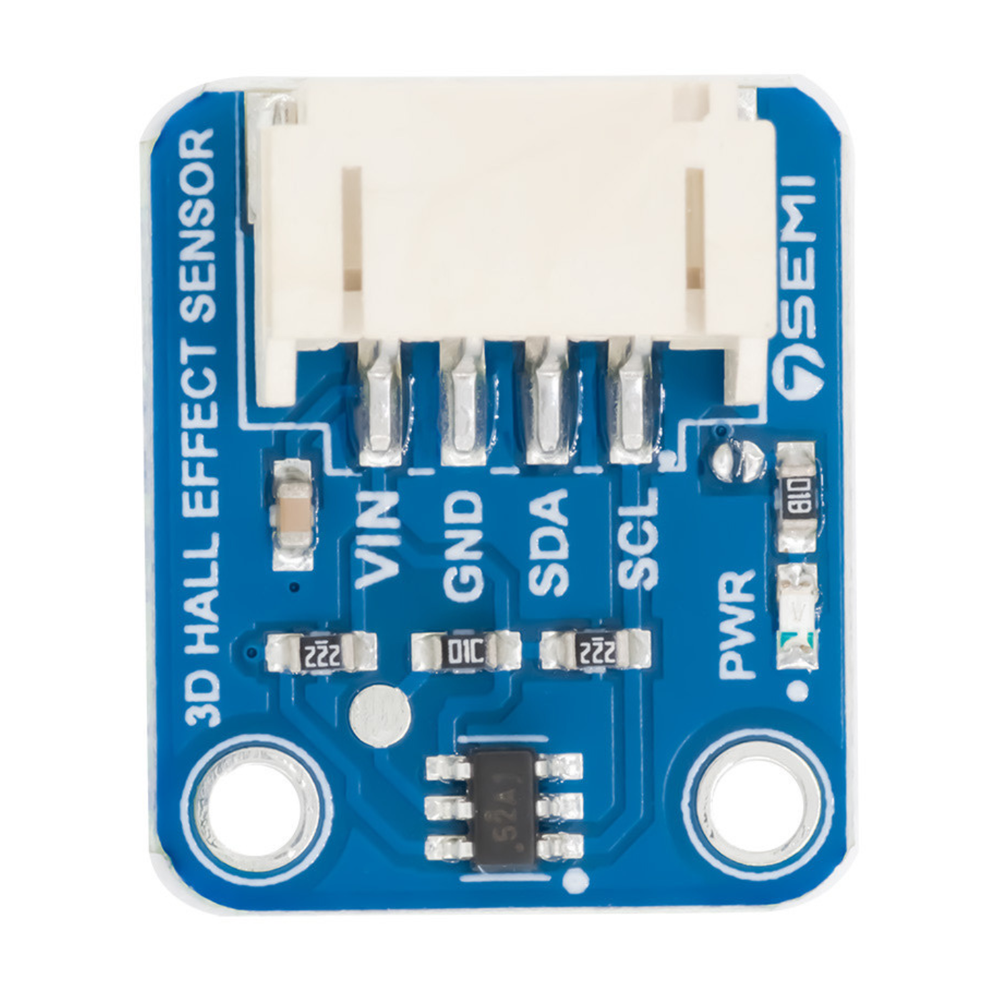

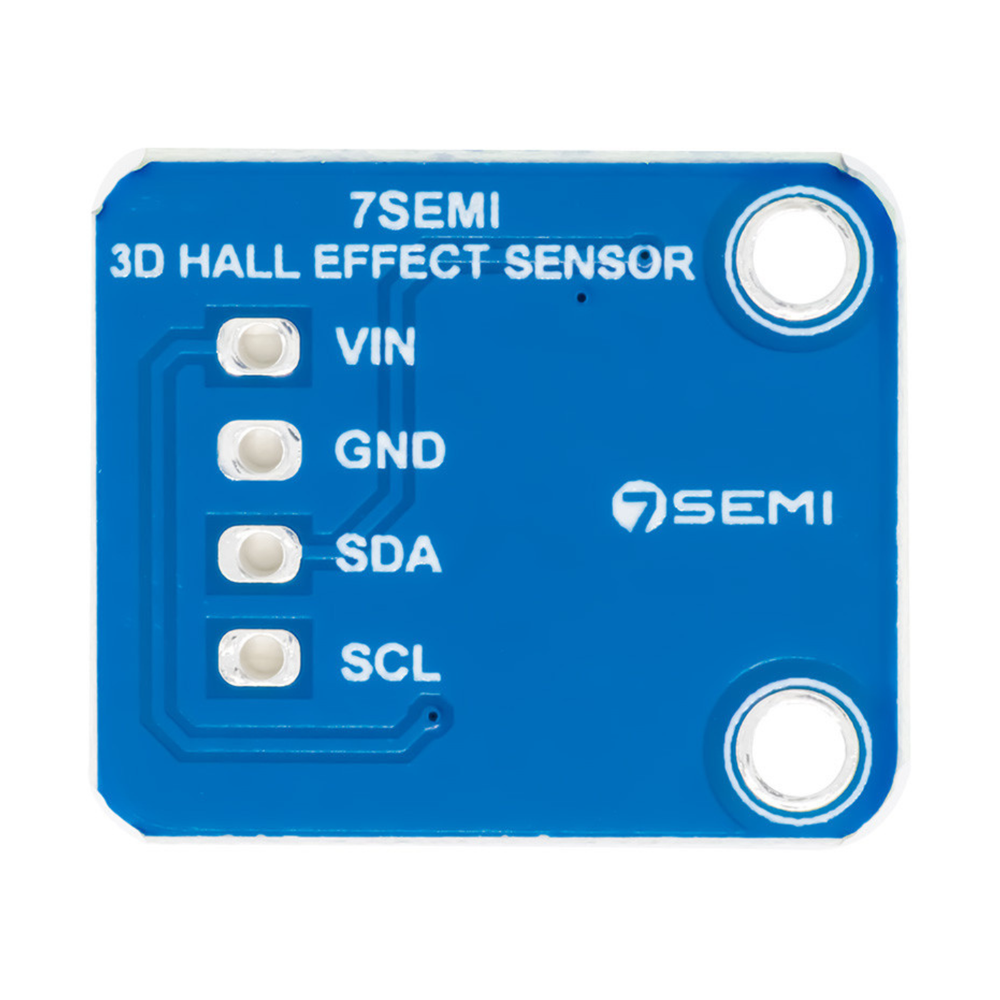

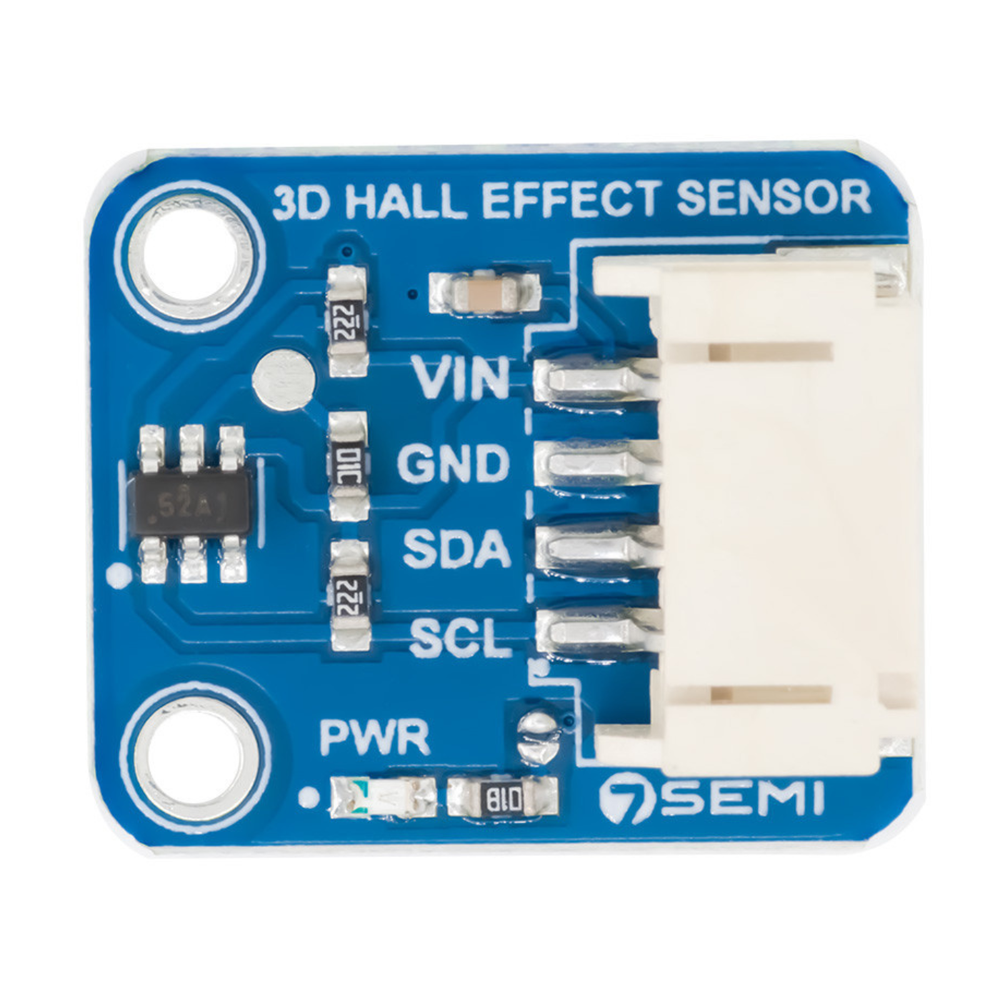

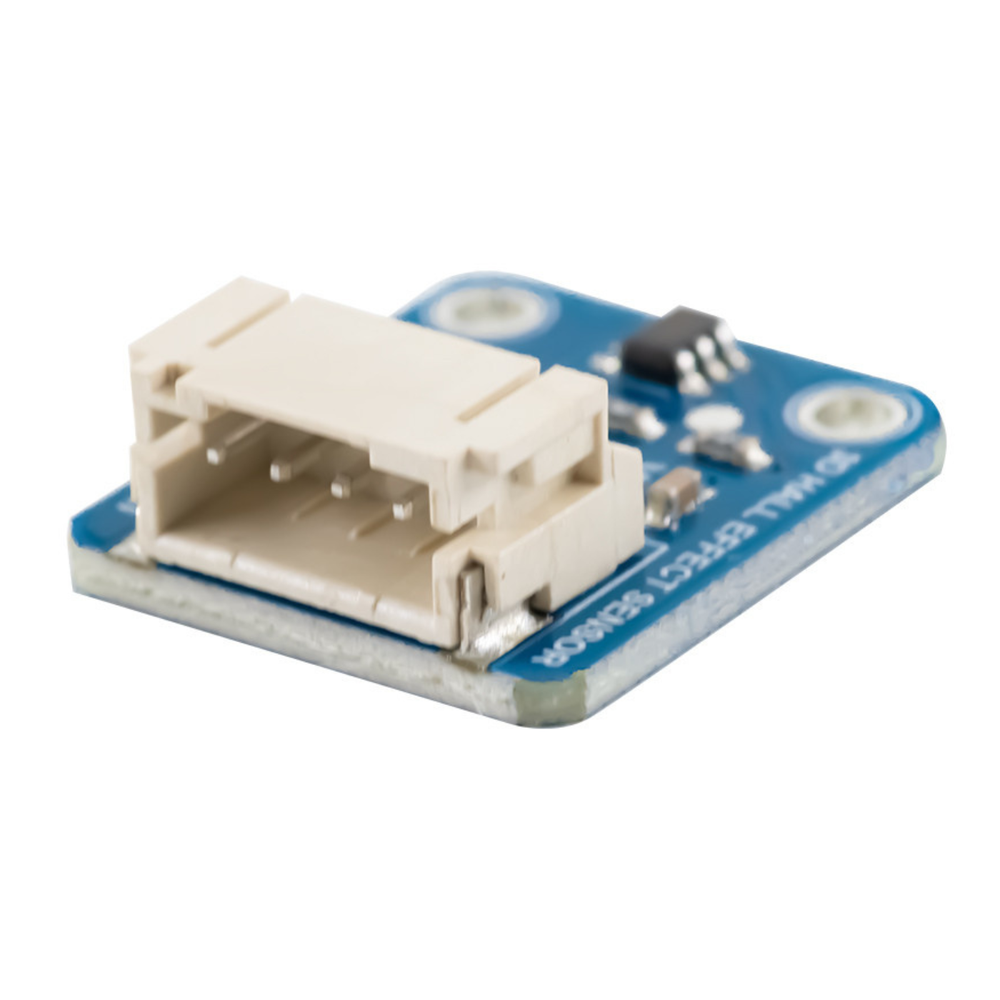

7Semi TMAG5273 4Pin 3D Hall-effect Sensor Breakout Module The 7Semi TMAG5273 4Pin 3D Hall-effect Sensor Breakout Module is built around the high-performance TMAG5273 3D Hall-effect Sensor from Texas Instruments, designed to measure magnetic fields precisely across the X, Y, and Z axes. It supports a selectable linear magnetic sensing range of ±40 mT or ±80 mT, making it suitable for both low and moderate magnetic field applications. With an I2C communication interface and a convenient 4-pin JST connector, this module ensures easy integration into embedded systems, robotics, and industrial sensing projects where accurate three-dimensional magnetic field measurement is essential. Features: Selectable Magnetic Range at X, Y, or Z axis: TMAG5273x1: ±40mT, ±80mT TMAG5273x2: ±133mT, ±266mT Precision and efficiency: Interrupt signal based on user-defined magnetic and temperature criteria 5% typical sensitivity drift. Integrated angle CORDIC calculation with gain and offset adjustments. 20kSPS single-axis conversion rate. Configurable averaging of up to 32x for noise reduction. Improved communication: I2C interface with CRC. Maximum 1-MHz I2C clock speed. Special I2C frame readings for increased throughput. I2C addresses are factory-programmed and can be modified by the user. Enhanced durability: Integrated temperature correction for different magnet kinds. Built-in temperature sensor Supply voltage: 3.3 volts Operating temperature range: -40C to 125C.
- Powered by Texas Instruments TMAG5273 3D Hall-effect Sensor for accurate magnetic sensing
- Measures magnetic fields on X, Y, and Z axes (true 3D detection)
- Selectable linear magnetic range: ±40 mT or ±80 mT
- I2C interface for simple and reliable communication
- Compact breakout with 4-pin JST connector for quick integration
- Magnetic Axes X, Y, Z (3-Axis)
- Magnetic Range ±40 mT / ±80 mT (Selectable)
- Interface I2C
- Connector 4-Pin JST
- Operating Function Linear 3D magnetic field sensing
