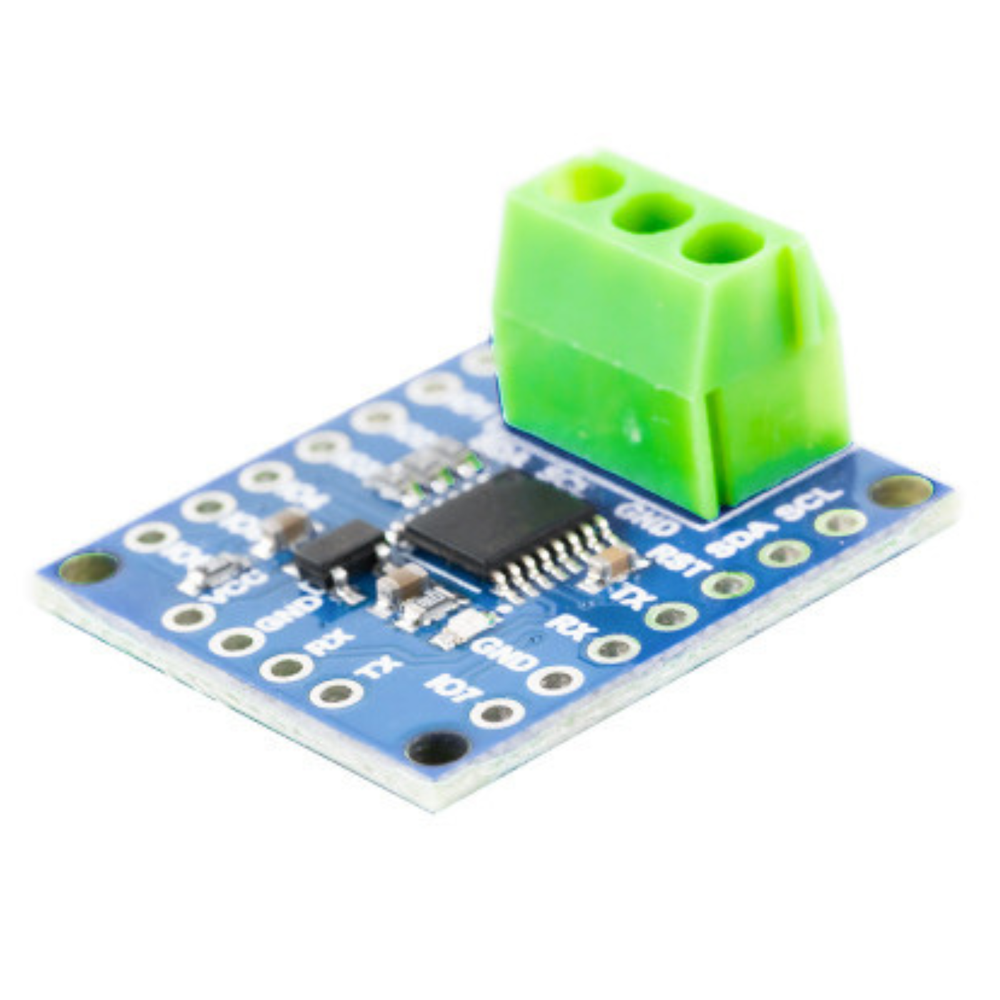

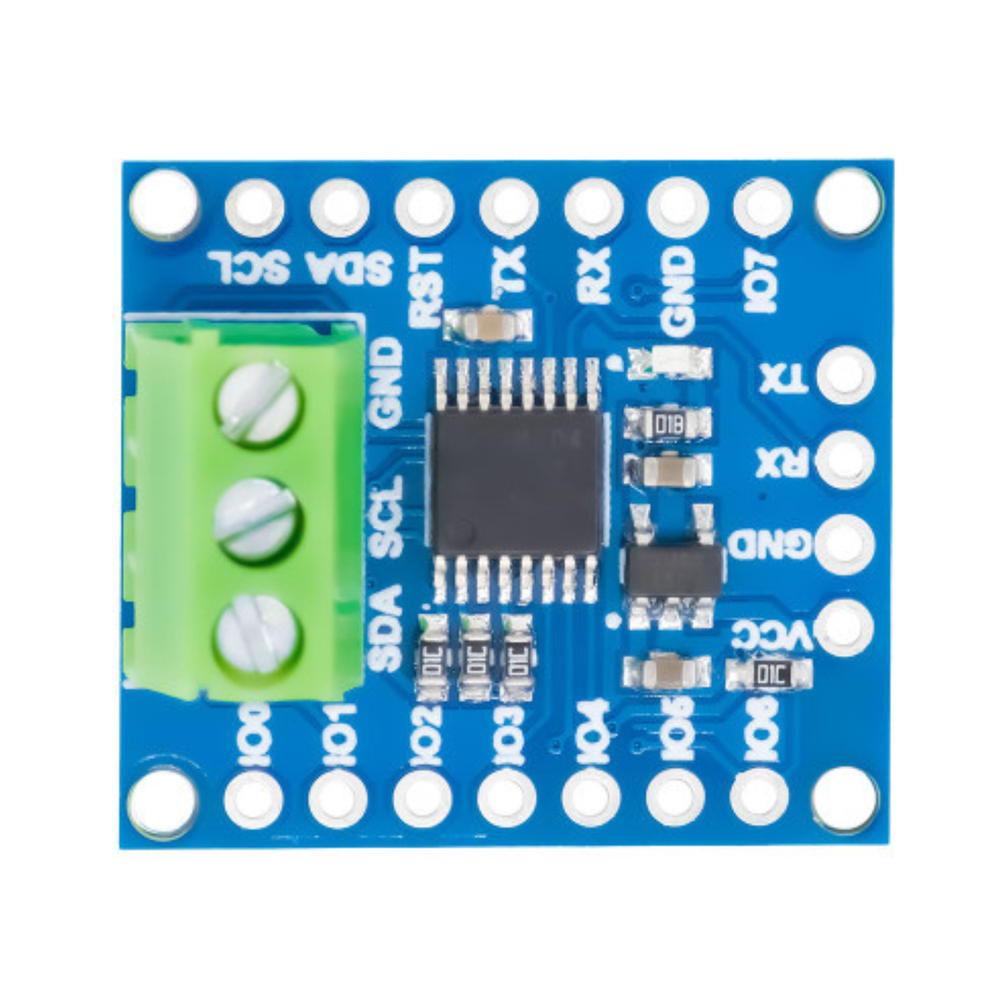

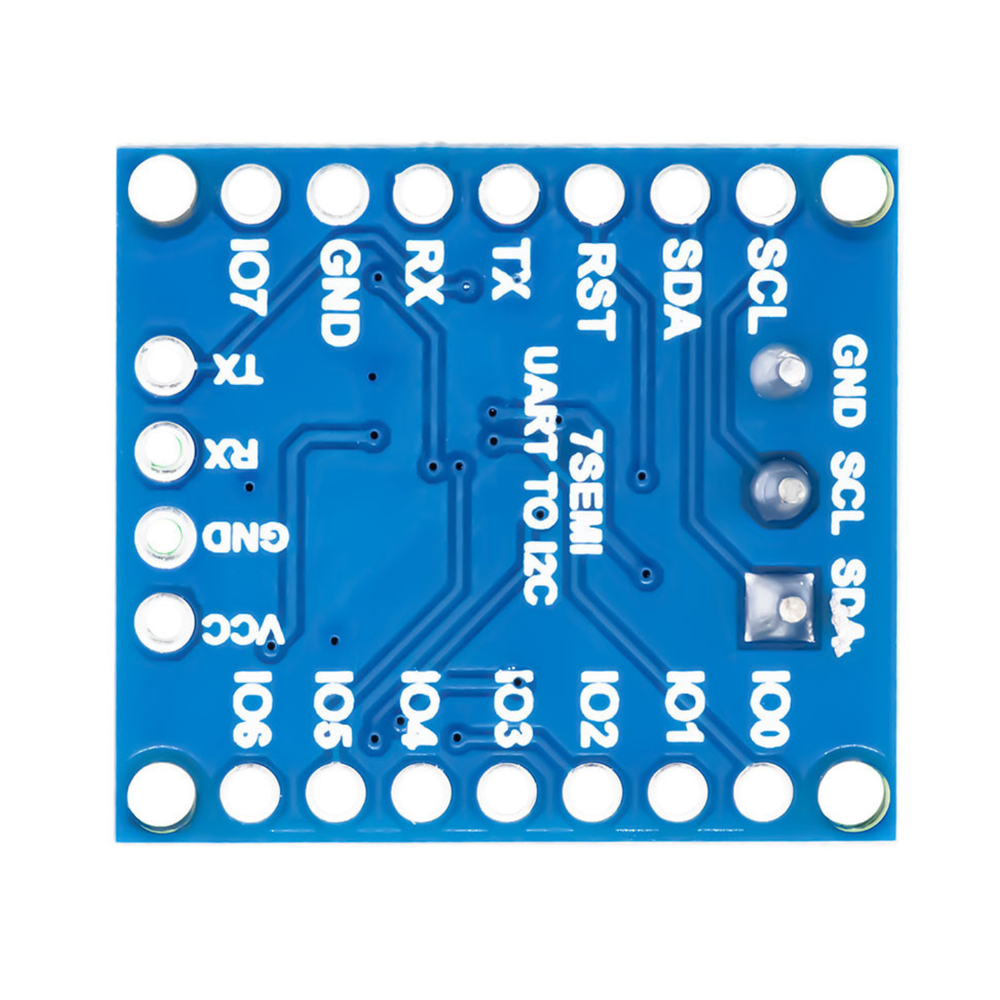

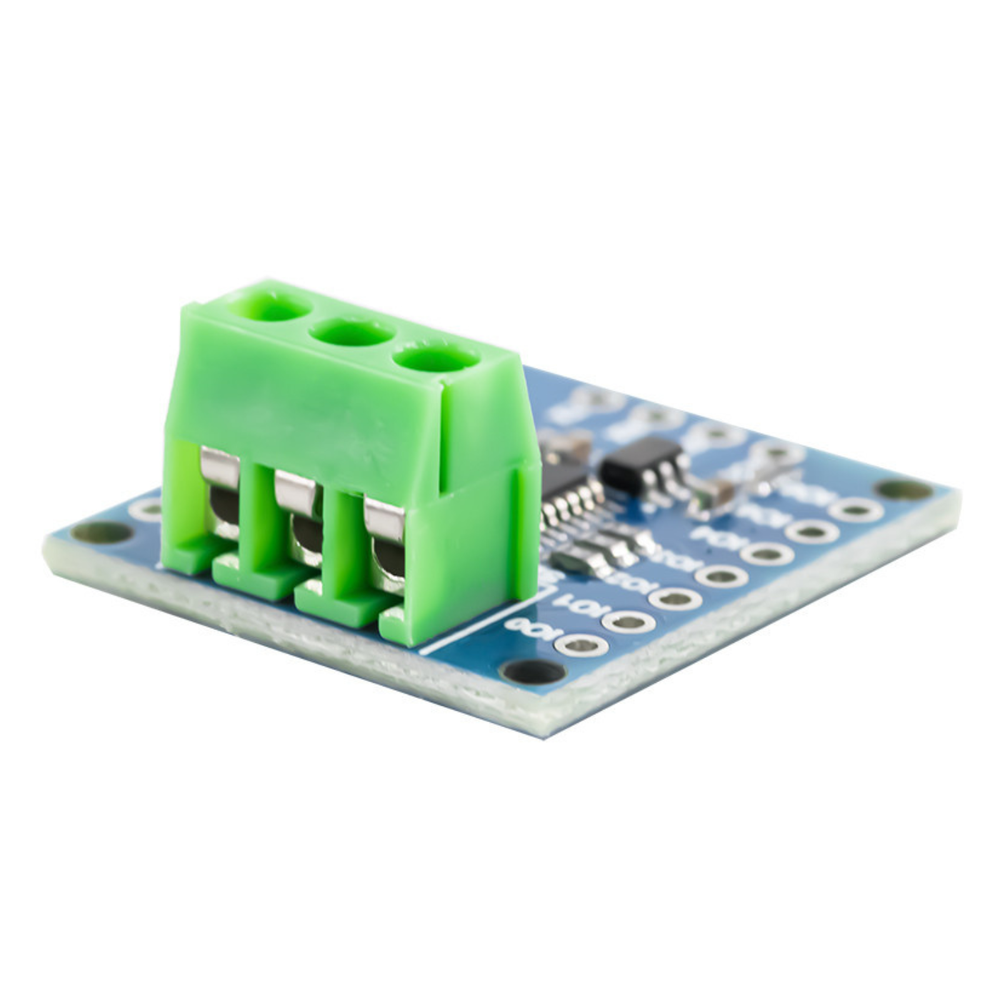

7Semi SC18IM704 UART to I2C Bus Bridge Breakout Board
Delivery & Pickup Options
Pick up today from our store.
Estimated delivery: 2-5 business days
7Semi SC18IM704 UART to I2C Bus Bridge Breakout Board The 7Semi SC18IM704 UART to I2C Bus Bridge Breakout Board is a compact and efficient UART to I2C bridge converter designed to simplify communication between UART-based microcontrollers and I2C peripherals. It enables reliable protocol conversion with UART speeds of up to 460.8 kbit/s, while the integrated 256-byte FIFO buffer minimizes data loss during high-speed transfers. Using an easy-to-implement ASCII message protocol, developers gain precise control over I2C bus sequences, including timing and arbitration. With additional user-programmable GPIO pins, this board is well-suited for embedded systems, industrial control, and IoT applications where UART and I2C interfaces must work together seamlessly. Features: High-Speed Communication: Supports UART baud rates of up to 460.8 kbit/s and a 256-byte FIFO for efficient data processing. User-Friendly Interface: Communicates with the host MCU via conventional RX and TX pins, making integration into systems straightforward. I2C Protocol Control: The ASCII message protocol provides full control over I2C-bus sequences, including protocol, arbitration, and timing. Industrial Applications: Ideal for communication bridges, automation control, and I2C bus support in a variety of industrial configurations. Configurable GPIO Pins: Provides multiple user-configurable GPIO pins to meet unique application requirements.
- UART to I2C bridge converter for seamless protocol conversion between UART controllers and I2C devices
- Supports high-speed UART communication up to 460.8 kbit/s
- Built-in 256-byte FIFO buffer ensures smooth and reliable data transfer
- Full control of I2C bus protocol, arbitration, and timing via ASCII command interface
- User-configurable GPIO pins for added control and flexibility in embedded applications
- Bridge IC SC18IM704
- UART Interface Up to 460.8 kbit/s
- I2C Interface Standard I2C Bus
- FIFO Buffer 256 Bytes
- Control Protocol ASCII Command-Based
- GPIO Support User-Configurable GPIO Pins
