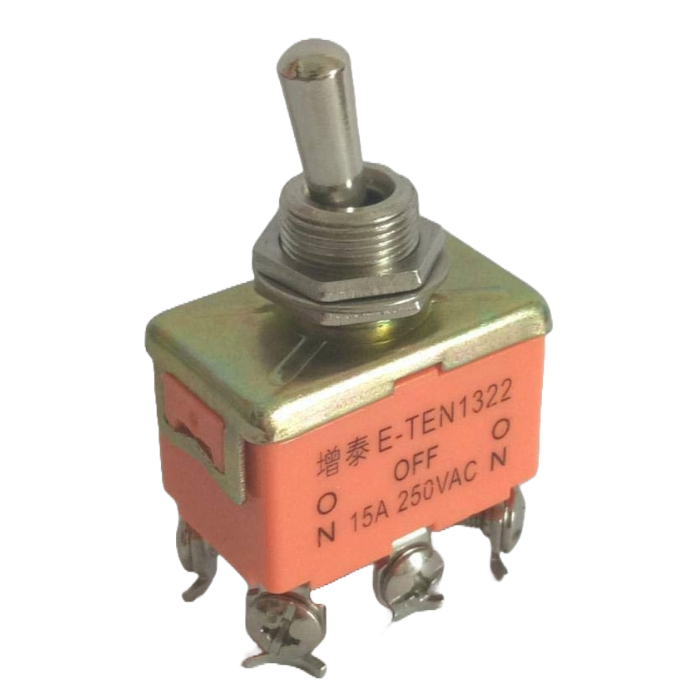

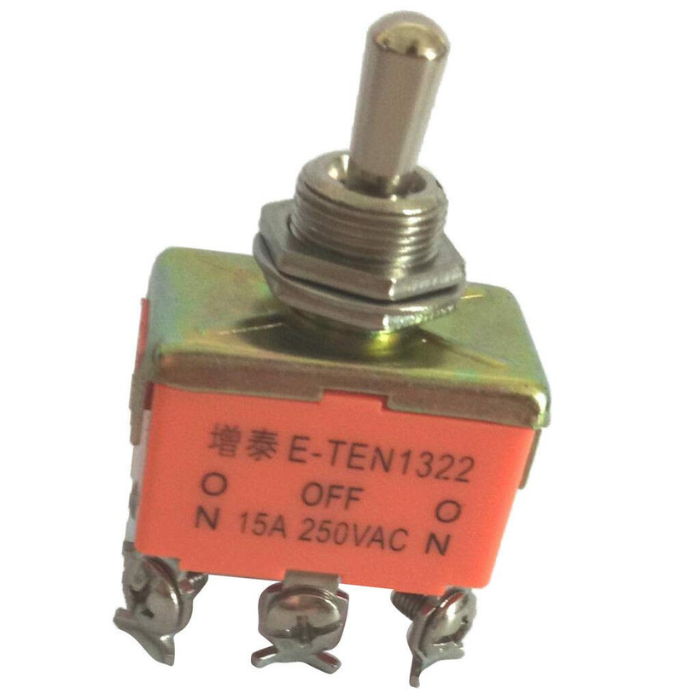

DPDT 6 Pin Toggle Switch ON-OFF-ON (15A 250V) 6 Pin 15A/250VAC DPDT ON-OFF-ON Toggle Switch. The ON-OFF-ON momentary toggle switch is made of metal and bakelite. The shaft and bracket are both made of Brass Material. The terminal is made of copper. Delicate appearance with strong Construction.  Widely applied to various additional electric equipment inside and outside the car, such as lights, chassis lamps, fog lamps, dome lights, etc. Applications: Home Light Switching Industrial applications Toys

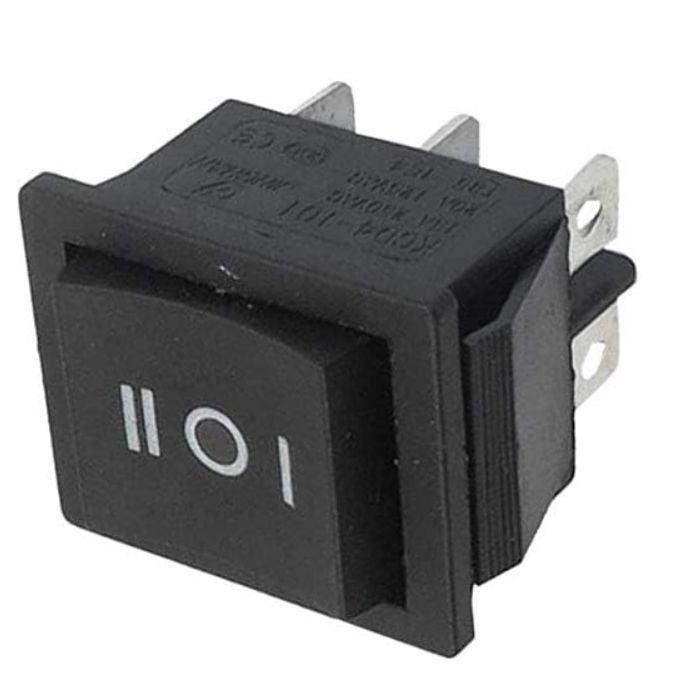

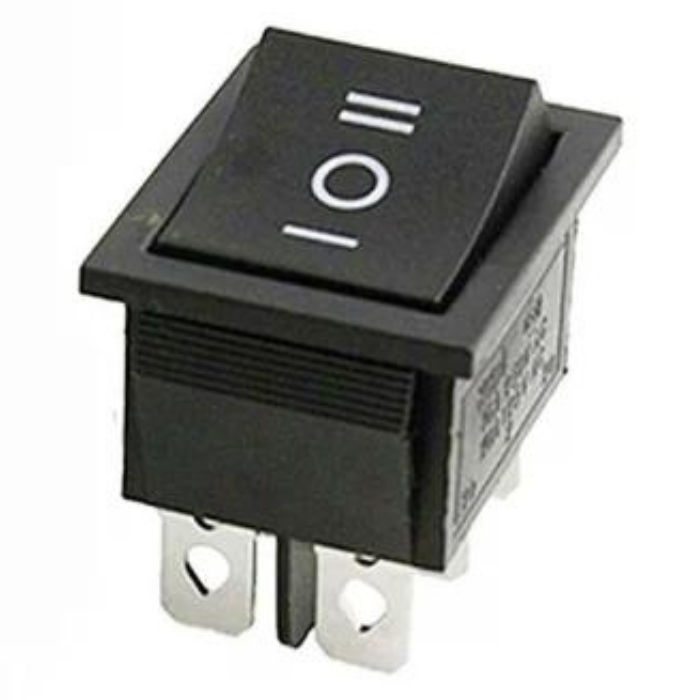

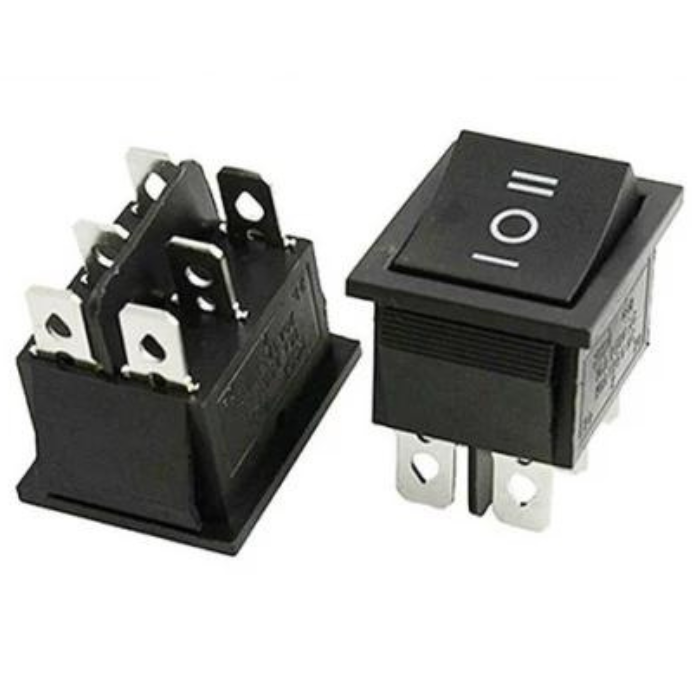

DPDT on-off-on Rocker Switch (16A) 250V AC - 6pin The DPDT On-Off-On Rocker Switch, a reliable solution for your electronic projects. This switch, with a 16A rating, ensures efficient power control. Its lock action and center-off design make it versatile for various applications. The easy installation, thanks to tabs on the top and bottom, eliminates the need for screws. Clearly marked On and Off positions enhance user convenience during operation. Crafted from high-quality plastic and metal, this rocker switch guarantees durability. The 22x20x10mm panel cut-out allows for wide compatibility with different enclosures. The sleek black design, with dimensions of 25mm length, 21mm width, and 20mm height, adds a professional touch to your projects. Features: Max 16A rating for efficient power control DPDT structure with ON-OFF-ON switching mode Easy installation with tabs on top and bottom, no screws needed Sleek black design with dimensions of 25mm length, 21mm width, and 20mm height Versatile functionality suitable for various electronic projects- Rating: Max 16A Structure: DPDT (Double Pole Double Throw) Switching Mode: ON-OFF-ON Material: Plastic and Metal Versatile Functionality: DPDT On-Off-On Rocker Switch with a 16A rating, suitable for electronic projects. Easy Installation: Tabs for secure attachment to an enclosure without screws. Clearly Marked Positions: On and Off positions for user convenience during operation. Durable Build: Made with high-quality plastic and metal for longevity and reliability. Wide Compatibility: 22x20x10mm panel cut-out, making it suitable for various applications. Sleek Design: Black color and compact dimensions provide a professional touch to projects. Applications: The DPDT (Double Pole Double Throw) on-off-on rocker switch with 6 pins is commonly used in various applications that require robustness and water resistance It has a high switching current capacity, making it ideal for applications like water dispensers, extension sockets, electric vehicles, household electrical appliances, and automotive accessories It has a durable construction with a blend of plastic and metal, ensuring reliability, performance, and longevity even under repeated use The switch has a long mechanical life cycles, making it a reliable choice for long-term use This rocker switch can be easily installed in different devices to enhance their performance and functionality Some common applications of the DPDT on-off-on rocker switch include water dispensers, extension sockets, boats, cars, and other automotive applications.

DPDT Switch A DPDT switch or Double Pole Double Throw switch is an electromechanical switch with two inputs and four outputs, with each input having two corresponding outputs. A simple way to think of this switch is to imagine 2 SPDT switches side by side with the 'handles' attached to each other. Perhaps the most popular use for this switch is 'phase or polarity reversal'. So, how does the DPDT switch accomplish this? First, you have to wire the 2 'top' and 2 'bottom' terminals in a 'criss-cross' fashion. The top 2 terminals become the input and the middle two terminals become the output. Let pin1 is X,pin2 is Z,pin5 is Y and pin6 is W now, W & Y are connected, as are X & Z. The polarity is maintained because the input and output are directly connected When the switch is in the 'down' position. The + input goes from the 'W' terminal, down to the lower right, and then up to the 'Z' terminal. The negative input goes from the 'X' terminal and out through the 'Y' terminal. See what has happened? With one flip of a switch, polarity has been reversed. This switch is very simple to install electronic components because it includes a locking system that allows you to directly lock and unlock the switch in your remote cabinet without the use of any screws or Nut-Bolts. If you want to use this switch in your projects, for that you will need a few essential components like dc motors , batteries or power supply , bo motors , wires and connectors

DPDT Switch Box for Robot with 2 DPDT Switch, switch box with 2 DPDT Switch This is Robotics Switch Box Enclosure Without DPDT Switches. The switch box is used to accommodate two DPDT Rocker Switches. It is a perfect makeshift remote for your robot. This is a Remote Control Box for Wired Hobby Robot Control. To make the anti-clockwise motion of the motor, the polarity of the supply must be inverted in a clockwise motion. For “Polarity Reversal” DPDT switches are generally used. A Double Pole Double Throw (DPDT) switch is an electromechanical switch that has 2 inputs and 4 outputs and each input has 2 corresponding outputs that it can connect to. Applications: Remote-controlled robot. AVR-based robotics projects. ARM-based robotics projects. PIC-based robotics projects. Arduino-based robotics projects. Raspberry-pi-based robotics projects. Android-based robotic projects.

2 Pin Button Switch A 2 pin button switch is a type of switch that has two metal pins or terminals on the back of it. It is designed to be mounted in a hole in a panel or circuit board, and is usually actuated by pressing a button or lever on the front of the switch. These types of switches are commonly used in a variety of electronic devices, including computers, appliances, and industrial control systems, to control the flow of electricity and turn circuits on and off. Some examples of 2 pin button switches include push-button switches, toggle switches, and rocker switches. They are typically small in size and can be easily integrated into a variety of different electronic devices and systems. They are typically rated for a specific voltage and current, depending on the type of switch and the intended application.It can be configured in a variety of different circuit configurations, such as SPST (single pole, single throw), SPDT (single pole, double throw), and DPDT (double pole, double throw).
